QZIMBH2WLZ07Wireless LAN SDIO card

User’s Manual 1. Package -Wireless LAN SDIO card (MBH2WLZ07) -Drivers on CD-ROM -User’s Manual 2. System Requirements -Windows CE-based PDA PDA with Windows CE3.0/Pocket PC 2000 or newer. Secure Digital (SD) slot (Assuming SDIO host controller is already installed) Microsoft ActiveSync should be installed -Linux-based PDA Secure Digital (SD) slot (Assuming SDIO host controller is already installed) 3. Installing of the MBH2WLZ07 driver to your PDA Connect your PDA to your PC and ActiveSync has established for a connection between the two devices. Insert the CD-ROM to your PC. Installation will pop up to choose the operating system. 4. Removing the Driver: 1) In your PDA, go to Start, then Settings. 2) Click on System Tab. 3) Click on Remove Programs Icon. 4) A new window will open and showing the Installed programs in your PDA. 5) Click on MBH2WLZ07 and then click Remove button. 6) Click YES when prompted. The Driver is removed. 5. Getting connected using Wi-Fi (802.11b) To configure the Wireless Network in your PDA environment: 1) Press the wireless button to enable the wireless capability on your device. 2) Tap the Start button Settings Connections tab. 3) To add, edit, or delete a profile, tap Wireless Ethernet. 4) On the Configure Wireless Networks screen, select one of the available network names. NOTE: If the network name is not listed, you must add a configuration profile for each wireless network environment in which you want to use your (mobile) wireless client station. If you plan to use your wireless client station in multiple networking environments that require different configuration settings, you can define dedicated profiles for each environment. For example, you can create a configuration profile for your office headquarters, a branch office, and your home or SOHO network. a If there are none listed then tap Add New Settings... Type in the network name. If this will be Peer-to-Peer connection tap the "This is a device to computer (ad-hoc) connection" check box. b Tap the Authentication tab if your connection does not require encryption. • To disable WEP, tap the Data encryption (WEP enabled) check box. • If you are using Network Authentication (Shared mode), tap the check box. • Tap the The key is provided for me automatically check box. • If you do require encryption and are provided with the key automatically, the The key is provided for me automatically check box, when selected, allows you to enter the encryption key yourself. You can enter key values in either Alphanumeric Value or Hexadecimal Value. The encryption key value is case-sensitive. Consult your LAN Administrator for the correct value. If you are using IEEE 802.1x option you will first need to get a certificate through a non 802.1x enabled wireless network connected to a certificate server. Select or configure a non 802.1x enabled wireless network from the list. Notes MBH2WLZ07 cannot be used for PDA equipped with cellular phone function, or such a device held to the ear. MBH2WLZ07 can be operated only by the driver which is provided together. =FCC WARNING= Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The available scientific evidence does not show that any health problems are associated with using low power wireless devices. There is no proof, however, that these low power wireless devices are absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low-level RF that does not produce heating effects causes no known adverse health effects. Many studies of low-level RF exposures have not found any biological effects. Some studies have suggested that some biological effects might occur, but such findings have not been confirmed by additional research. MBH2WLZ07 has been tested and found to comply with FCC radiation exposure limits set forth for an uncontrolled equipment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. The maximum SAR levels tested for MBH2WLZ07 has been show to be 0.37 W/kg at Body. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: QZIMBH2WLZ07

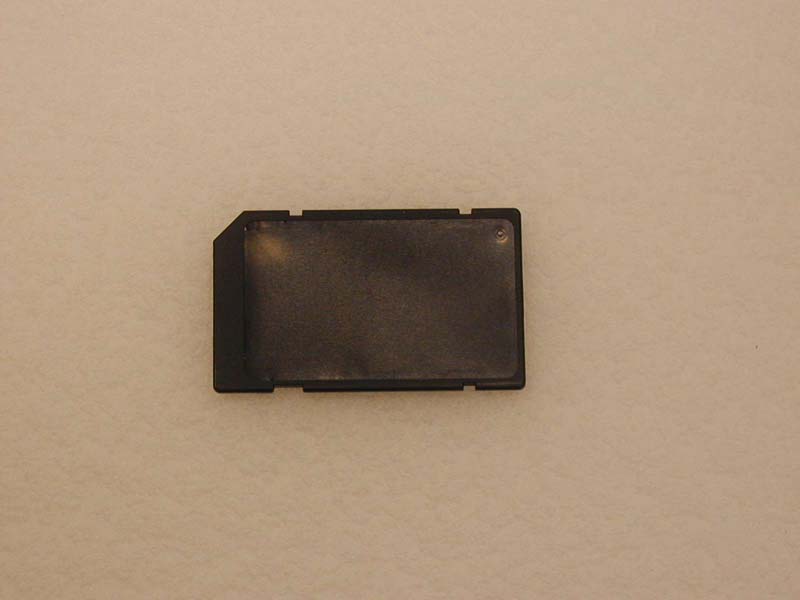

FCC ID : QZIMBH2WLZ07 External Photo Fujitsu Media Devices Limited Front Back

FCC ID : QZIMBH2WLZ07 Internal Photo Fujitsu Media Devices Limited Front Back

Test report No. : 25BE0343-HO Page : 2 of 63 Issued date : November 02, 2004 FCC ID : QZIMBH2WLZ07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 CONTENTS PAGE SECTION 1 : Client information ................................................................................................................. 3 SECTION 2 : Equipment under test (Wireless LAN SD Card)................................................................. 3 SECTION 3 : Requirements for compliance testing defined by the FCC ................................................ 5 SECTION 4 : Dosimetry assessment setup .................................................................................................. 5 SECTION 5 : Test system specifications...................................................................................................... 9 SECTION 6 : Measurement outline ........................................................................................................... 10 SECTION 7 : Test setup of EUT ................................................................................................................ 11 SECTION 8 : Measurement uncertainty ................................................................................................... 15 SECTION 9 : Simulated tissue liquid parameter...................................................................................... 16 SECTION 10 : System validation data ...................................................................................................... 17 SECTION 11 : Evaluation procedure ........................................................................................................ 18 SECTION 12 : Exposure limit .................................................................................................................... 19 SECTION 13 : SAR Measurement results................................................................................................. 20 SECTION 14 : Equipment & calibration information ............................................................................. 21 SECTION 15 : References........................................................................................................................... 22 APPENDIX 1 : Photographs of test setup................................................................................................ 23 APPENDIX 2 : SAR Measurement data .................................................................................................. 30 APPENDIX 3 : Validation Measurement data ........................................................................................43 APPENDIX 4 : System Validation Dipole (D2450V2,S/N: 713)............................................................. 45 APPENDIX 5 : Dosimetric E-Field Probe Calibration (ET3DV6,S/N: 1684) ...................................... 54 Test report No. : 25BE0343-HO Page : 3 of 63 Issued date : November 02, 2004 FCC ID : QZIMBH2WLZ07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 1 : Client information Company Name : FUJITSU MEDIA DEVICES LIMITED Brand Name : - Address : Shin-Yokohama Square Bldg., 12F, Shin-Yokohama 2-3-12, Kohoku-ku, Yokohama-shi, Kanagawa, 222-0033 , JAPAN Telephone Number : +81-45-476-4273 Facsimile Number : +81-45-476-4265 Contact Person : Toshikazu Asami SECTION 2 : Equipment under test (Wireless LAN SD Card) 2.1 Identification of Wireless LAN SD Card This EUT has IEEE 802.11b wireless LAN function with SD card interface. Applicant : FUJITSU MEDIA DEVICES LIMITED Type of Equipment : Wireless LAN SD Card Model No. : MBH2WLZ07 Serial No. : 1C Country of Manufacture : Japan Receipt Date of Sample : October 25,2003 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Size : 24 * 40 * 2.1 mm (W*L*H) Category Identified : Portable device Test report No. : 25BE0343-HO Page : 4 of 63 Issued date : November 02, 2004 FCC ID : QZIMBH2WLZ07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 2.2 Product description of Wireless LAN SD Card Tx Frequency : 2412MHz~2462MHz Modulation : DSSS: Direct sequence spread spectrum (IEEE802.11b) Rating : DC 3.3V / 0.39A Max.Output Power Tested : 16.25 dBm Peak Conducted Antenna Type : Inverted F type Antenna Gain : Max 2.1dBi Wireless LAN SD card Antenna Test report No. : 25BE0343-HO Page : 5 of 63 Issued date : November 02, 2004 FCC ID : QZIMBH2WLZ07 UL Apex Co., Ltd. Head Office EMC Lab. 4383-326 Asama-cho, Ise-shi, Mie-ken 516-0021 JAPAN Telephone: +81 596 24 8116 Facsimile: +81 596 24 8124 SECTION 3 : Requirements for compliance testing defined by the FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption du…

Text truncated - open the document above for the full version.

FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 1 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) EMI TEST REPORT Test Report No. : 25BE0339-YK-1 Applicant : Fujitsu Media Devices Limited Type of Equipment : Wireless LAN SD card Model No. : MBH2WLZ07 FCC ID : QZIMBH2WLZ07 Test Standard : FCC Part15 Subpart C, Section 15.247: 2004 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: October 20, 21 and 28, 2004 Tested by: & Makoto Hosaka Toyokazu Imamura Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 2 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Table of Contents Page 1 GENERAL INFORMATION 3 1.1 Tested Methodology 3 1.2 Test Facility 3 2 PRODUCT DESCRIPTION 4 3 SYSTEM TEST CONFIGURATION 5 3.1 Justification 5 3.2.Configuration of Tested System 6 4 MEASUREMENT UNCERTAINTY 7 5 SUMMARY OF TESTS 8 5.1 §15.207 Conducted Emissions 8 5.2 §15.247 (a)(2) 6dB Bandwidth (Antenna Port Conducted) 8 5.3 §15.247 (b)(3) Maximum Peak Conducted Output Power (Antenna port Conducted) 8 5.4 §15.247 (d) Out of Band Emissions (Radiated) 9 5.5 §15.247 (d) Out of Band Emissions (Antenna Port Conducted) 9 5.6 §15.247 (e) Power Density (Antenna Port Conducted) 9 Contents of Appendixes 10 APPENDIX 1: Photographs of test setup 11 APPENDIX 2: Test Data 14 APPENDIX 3: Test instruments 42 FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 3 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 1 GENERAL INFORMATION Applicant Company Name : Fujitsu Media Devices Limited Address : Shin-Yokoyama Square Bldg. 12F, Shin-Yokohama 2-3-12, Kohoku-ku, Yokohama-shi, Kanagawa-ken 222-0033 JAPAN Telephone Number : +81 45 476 4273 Facsimile Number : +81 45 476 4265 Contact Person : Toshikazu Asami ([email protected]) Type of Equipment : Wireless LAN SD card Model No. : MBH2WLZ07 Serial No. : 1C Rating : DC3.3V, 0.39A Receipt Date of Sample : October 20, 2004 Condition of EUT : Production prototype (Not for sale: This sample is equivalent to mass-produced items.) Regulation(s) : FCC Part15 Subpart C, Section 15.247: 2004 Test Site : UL Apex Yamakita EMC lab. 1.1 Tested Methodology The measurements were performed according to the procedures in ANSI C63.4 (2003). These tests were also referred to "Guidance on Measurement for Digital Transmission Systems Section15.247". 1.2 Test Facility No. 1 test site has been fully described in a report submitted to FCC office, and accepted on September 20, 2002 (Registration No.: 95486). IC Registration No. : IC3489 No. 1 anechoic chamber has been fully described in a report submitted to FCC office, and accepted on November 8, 2002 (Registration No.: 95967). IC Registration No. : IC3489-B Test room Width x Depth x Height (m) Test room Width x Depth x Height (m) No.1 shielded room 8.0 x 5.0 x 2.5 10.0 x 7.5 x 5.7 No.2 shielded room 5.0 x 4.0 x 2.5 No.1 EMS lab. (Semi-anechoic chamber) No.3 shielded room 4.0 x 5.0 x 2.7 FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 4 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 2 PRODUCT DESCRIPTION Fujitsu Media Devices Limited, Model: MBH2WLZ07 (referred to as the EUT in this report) is a Wireless LAN SD card for PDA. This equipment transmits and receives in the 2.4GHz ISM band. The clock frequency used in EUT: 40MHz Equipment type : Transceiver Frequency of operation : 2412 - 2462 MHz Channel spacing : 5 MHz Channel number : 11 channels Type of modulation : Direct sequence spread spectrum (IEEE802.11b) Antenna type : Inverted F type Antenna connector type : None Antenna gain : 2.1dBi (MAX) Mode of operation : Duplex Emission Designation : G1D Operation temperature range: -20 ~ 70 deg. C. Operation voltage (inner) : DC3.3V *FCC Part15.31 (e) SL-C860 (PDA) provides the Wireless LAN SD card with stable power supply (DC3.3V), and the power is not changed when voltage of the PDA is varied. Therefore, the equipment complies power supply regulation. *FCC Part15.203 The Wireless LAN SD card and its antenna comply with this requirement since this antenna is built in the equipment and it cannot be replaced by end users. FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 5 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) 3 SYSTEM TEST CONFIGURATION 3.1 Justification The system was configured in typical fashion (as a customer would normally use it) for testing. Test mode: Transmitting -2412MHz (Low) -2437MHz (Middle) -2462MHz (High) FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 6 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) …

Text truncated - open the document above for the full version.

FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 11 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Conducted emission FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 12 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Radiated emission FCC ID : QZIMBH2WLZ07 Test report No. : 25BE0339-YK-1 Page : 13 of 42 Issued date : November 4, 2004 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(11.04.03) Pre check of worse-case position X-axis Y-axis Z-axis
