QZMHB023AScissors feet ABS Bluetooth Keyboard

iPad super slim bluetooth keyboard manual(For iPad User) Folding Leather Protective Case With Bluetooth Keyboard Caution: To make you use it properly, please read this manual carefully before you start to use the keyboard. Welcome to select our super slim iPad Folding Leather Protective Case with Bluetooth Keyboard! This product is special designed for iPad to protect your iPad from scratches, and at the same time equip your iPad with standard layout keyboard and special iPad function keys. It is built by silicone green material, its wireless connection will bring the total fresh experience to you, just enjoy the fun of wireless connection! Packing Contents: 1. PU Leather Case with Bluetooth Keyboard 2. USB Charging Cable 3. User manual Product Features: 1. Built-in wireless Bluetooth 3.0 silicone keyboard 2. Stylish protective PU leather case designed for iPad. 3. iPad display stand for easy viewing. 4. Built-in Rechargeable lithium battery 5. Special [home] screen key for one touch from variety of application. 6. Light weight, quiet keystrokes. waterproof and dust-proof design 7. Energy saving keyboard sleep mode Keyboard Specification 1. Bluetooth 3.0 interface standard 2. Operating Distance range to 10 meters 3. Operating Voltage: 3.0-5.0V 4. Working Current: <4.0mA 5. Standby Current: 2.5mA 6. Sleeping Current: <200μA 7. Charging Current: -100mA 8. Standby Time: 80 days 9. Charging Time: 3-4hours 10. Lithium Battery Capacity:380mA 11. Continuous Working Time: About 40 hours12. Lithium Battery Life: 3 years 12. Key Strength: 80±10g 13. Key Life: 5 million strokes 14. Operation Temperature: -10 — 65 °C Power Switch Charge interface Connect button Power Indicator Light Charging Indicator Light Bluetooth Indicator Light Bluetooth Keyboard Pairing Step 1: Turn on the power switch. The [power] and [Bluetooth] light will keep lighting 5 seconds, then it will be off. Step 2: Press on the [connect] button, the [Bluetooth] indicator light will be flashing ,and the [power] Indicator will be on. The keyboard now is ready for connecting to iPad Step 3: Click the iPad [setting] icon, in the settings menu, select item [General] to access [Bluetooth] settings Step 4:Click on [Bluetooth] to turn on the connection. iPad will automatically search Bluetooth devices Step 5: Bluetooth Keyboard found. Click on the device to connect Step 6: Enter the password code as displayed On screen Step 7: Password accepted and Bluetooth keyboard connected Successfully. [power] indicator light will stay on until the keyboard is switched off Special Note: The bluetooth keyboard can be connected to iPAD2,iPAD3.iphone3G, 3GS, 4G and ipod Touch that had installed iOS 4.0 or later version. For other Bluetooth enabled device, please verify the Bluetooth standard & compatibility before you attempt to connect to the keyboard. Charging When the battery power is low, the [power] indicator light will keep flashing, It is time to charge the keyboard. Step 1: Connect USB-B of the native USB power cable to the keyboard charging interface Step 2: Connect USB-A to the power adaptor or computer's USB interface Step 3:The [charge] red indicator light will stay on when the keyboard is charging. Once it finished charging, the [charge] Indicator light will turn off Troubleshooting (A) Unable to connect 1. Make sure the power switch is turned on 2. Make sure the keyboard is within the operating distance 3. Make sure the battery is charged 4. Make sure iPad Bluetooth setting is at on status 5. Make sure wireless keyboard is connected to iPad 6. Make sure the wireless keyboard has been paired with the iPad (B) Unable to charge keyboard Make sure the USB power cable is connected properly to the keyboard and the power source FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. LABEL ARTWORK AND LOCATION FCC ID: QZMHB023A Label Size: L*W=18mm*8mm FCC ID Label Location

PHOENIX TEST-LAB GmbH Product Certification Königswinkel 10 D 32825 Blomberg Date: 01/09/2013 Authority to Act as an Agent We declare that the following representative (agent) Name Jack kang Position EMC Manager Company Name Shenzhen TCT Testing Technology Co., Ltd Address 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, China Tel / Fax +86-0755-27363466/+86-0755-27673332 E-Mail [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name scissors feet ABS bluetooth keyboard Model Name HB023A Brand Name N/A We also authorize BZT – TCP Certification GmbH, Ms.Wanida Patthanavoj (address: Hermann - Loens - Weg 6, 15859 Storkow b. Berlin Germany) to process the application. Yours sincerely, Signatory Name John Liao Position Manager Company Name Shenzhen Bluekey Technology Co., Ltd Address 16B, Yongfu, Guoqi Building, Shangbu South Road, Futian District, Shenzhen, China Tel / Fax 0755-22303034/0755-82150362 E-Mail [email protected] In case of FCC, we certify that we are not subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance.

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: SHENZHEN BLUEKEY TECHNOLOGY CO., LTD FCC ID: QZMHB023A FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☐ Bill Of Materials Parts list of the product for the radio device ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Yours sincerely, Signatory Name John Liao Position Manager Company Name Shenzhen Bluekey Technology Co., Ltd Address 16B, Yongfu, Guoqi Building, Shangbu South Road, Futian District, Shenzhen, China Tel / Fax 0755-22303034/0755-82150362 E-Mail [email protected]

External photo

LABEL ARTWORK AND LOCATION FCC ID: QZMHB023A Label Size: L*W=18mm*8mm FCC ID Label Location

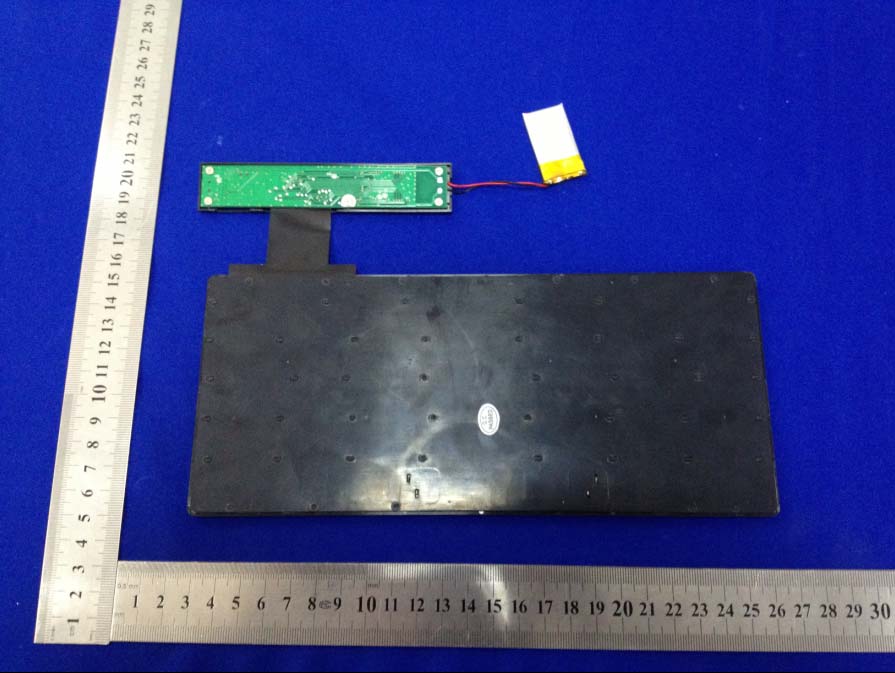

Inside View of the EUT

Shenzhen TCT Testing Technology Co., Ltd. FCC ID TEST REPORT for scissors feet ABS bluetooth keyboard Model: HB023A FCC ID: QZMHB023A Prepared for: Shenzhen Bluekey Technology Co., Ltd. 16B, Yongfu, Guoqi Building, Shangbu South Road, Futian District, Shenzhen, China. Prepared by: Shenzhen TCT Testing Technology Co.,Ltd 1F, Building 1, Yibaolai Industrial Park, Qiaotou Village, Fuyong Town, Baoan District, Shenzhen, Guangdong, China TEL: +86-0755-27363466 FAX: +86-0755-27673332 Report Number：TCS1211014-1 Date of Test： January 04~10, 2013 Date of Report： January 10, 2013 The results detailed in this test report relate only to the specific sample(s) tested. It is the Application’s responsibility to ensure that all production units are manufactured with equivalent EMC characteristics. This report is not to be reproduced except in full, without written approval from TCT Testing Technology. Shenzhen TCT Testing Technology Co., Ltd. FCC ID: QZMHB023A Report Number: TCS1211014-1 Page 2 of 44 Table of Contents 1.0 General Details ...................................................................................................3 1.1 Test Lab Details...................................................................................................3 1.2 Applicant Details.................................................................................................3 1.3 Description of EUT ..............................................................................................4 1.4 Submitted Sample.................................................................................................4 1.5 Test Duration....................................................................................................... 4 1.6 Test By............................................................................................................4 2.0 List of Measurement Equipment............................................................................5 3.0 Technical Details................................................................................................6 3.1 Summary of Test Results.......................................................................................6 3.2 Test Standards....................................................................................................6 4.0 EUT Modification...............................................................................................6 5.0 Measurement Uncertainty....................................................................................6 6.0 Power Line Conducted Emission Test......................................................................7 6.1 Schematics of the test...........................................................................................7 6.2 Test Method and Test Procedure...............................................................................7 6.3 EUT Operating Condition.......................................................................................7 6.4 Test Equipment...................................................................................................7 6.5 Conducted Emission Limit......................................................................................8 6.6 Photo documentation of the test set-up .....................................................................8 6.7 Test specification.................................................................................................8 6.8 Test result.........................................................................................................8 7.0 20 dB Bandwidth Measurement.............................................................................11 7.1 Test Equipment...................................................................................................11 7.2 Test Specification................................................................................................11 7.3 Limit...............................................................................................................11 7.4 Test Result........................................................................................................ 11 8.0 Maximum Peak Output Power..............................................................................14 9.0 Carrier Frequency Separation..............................................................................15 10.0 Number of Hopping Channels...............................................................................18 11.0 Time of Occupancy (Dwell Time).............................................................................20 12.0 Band age Measurement........................................................................................23 13.0 Spurious Emission Test........................................................................................28 14.0 Antenna Requirement.........................................................................................37 15.0 Maximum Permissible Exposure............................................................................38 16.0 FCC ID Label...................................................................................................39 17.0 Photos of testing................................................................................................40 18.0 Photos for the EUT.............................................................................................42 Shenzhen TCT Testing Technology Co., Ltd. FCC ID: QZMHB023A Report Number: TCS1211014-1 Page 3 of 44 1.0 General Details 1.1 Test Lab Details Name : Shenzhen Tongce Testing Lab Address: 1F, Leinuo Watch Building, Fuyong Town, Baoan District, Shenzhen City, China Telephone: +86-755-33026382 Fax: +86-755-27952656 Site Listed with Federal Communication Commission Registration Number: 572331 For 3m chamber Site Listed with Industry Canada of Ottawa, Canada Registration Number IC: 10668A-1 For 3m chamber 1.2 Applicant D…

Text truncated - open the document above for the full version.

Radiated emission test view Conducted test View
