R2344001400Indoor Light

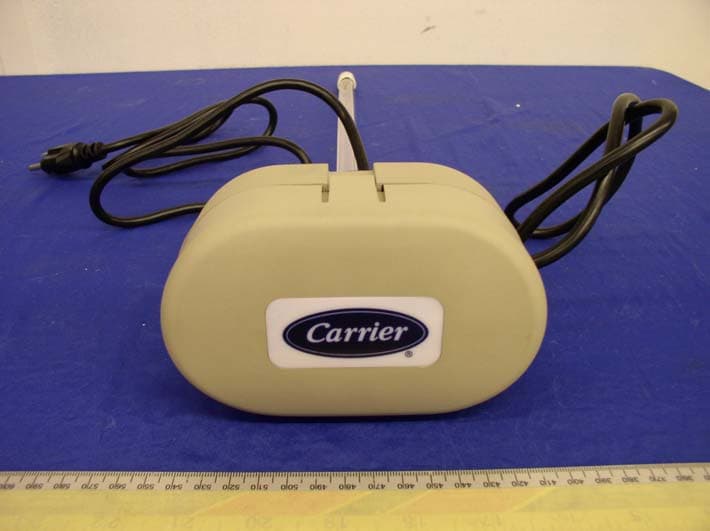

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS Chassis – Front View Chassis – Cover Off View EUT – Front View EUT – Rear View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC Label Sample Label Location Information Specifications : Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT EUT- Rear View / FCC Label Location FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference. Label Here FCC ID: R2344001400 This device complies with Part18 of the FCC

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Component View EUT - Solder View

5/17/2004 Carrier Power Supply, 120-2/20 HO UV Steril-Aire Part # 44000104 DESCRIPTIONDESIGNATIONU/MQTY PCB, CEM-1, 94V-0EA1 RES, 240K, 1/4WR1A, 1B, 2A, 2BEA4 RES, 30, 1/4WR3, 4EA2 RES, 0.5, 1/2WR6, 7EA2 RES, 470, 1/4WR8EA1 CAP, 0.047uF/400VC1, 7, 9EA3 CAP, 33uF/200VC2A, C2BEA2 CAP, 3300pF/3KVC3EA1 CAP, 0.0033uF/630VC4EA1 CAP, 0.047uF/50VC6, 12EA2 CAP, 0.0027uF/630VC8EA1 DIO, 1A/1000VD1, D2, D3, D4EA4 DIO, LEDD11, 12EA2 Insulating Tubing, Fiberglass, 94-V0EA4 DIO, 1A, 1000VD5, 6, 7EA3 DIO, DIAC, 28-36VD8EA1 DIO, 1A, 40VD9, D10EA2 FUSE, 1A/125VF1EA1 CONNECTOR, POWER, H7730R-09CON1EA1 CONNECTOR, LAMP SOCKETCON2EA1 CHOKE, 1.2mHL1EA1 CHOKE, 200uHL2EA1 CHOKE, 11mHL3EA1 XFRM, TOROIDT1EA1 X'STR, 4A/400VQ1, Q2EA2

1234 A B C D 4321 D C B A Title NumberRevisionSize Letter Date:30-Oct-2002Sheet of File:C:\Richard Zhang\..\carrier 3x3 connector.SchDrawn By: D8 F1 C9 L3 C1 L2 C3 D1 D2D4 R2A R1A C6 R2B R1B C4 D7 T1B R3 C10 Q1 R6 R7 Q2 C11 R4 T1C T1A D5 D6 L1 C8A C7 C2A C2B CARRIER UV BALLAST 1/1 D3 CON1 CON2 C12 R8 D11D12 SOCKETASOCKETB D9 D10 X X X X X X X X X

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government FCC PART 18 MEASUREMENT AND TEST REPORT FOR Steril – Aire USA 11100 E. Artesia Blvd., Unit D, Cerritos, CA 90703 FCC ID: R2344001400 2004-04-14 This Report Concerns: Original Report Equipment Type: Indoor RLF Test Engineer: Jerry Wang/ Report Number: R0403185 Test Date: 2004-04-09 Reviewed By: Hans Mellberg/ Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Steril-Aire USA FCC ID: R2344001400 Report #R0403185 Page 2 of 9 FCC Part 18 ID Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION..................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..............................................................................3 1.2 OBJECTIVE.............................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).......................................................................................................................3 1.4 TEST METHODOLOGY............................................................................................................................................3 1.5 TEST FACILITY.......................................................................................................................................................3 2 - SYSTEM TEST CONFIGURATION.....................................................................................................................4 2.1 JUSTIFICATION.......................................................................................................................................................4 2.2 EUT EXERCISE PROGRAM.....................................................................................................................................4 2.3 SCHEMATICS/BLOCK DIAGRAM.............................................................................................................................4 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................4 2.5 INTERFACE PORTS AND CABLING...........................................................................................................................4 2.5 CONFIGURATION OF TEST SYSTEM.........................................................................................................................5 2.6 TEST SETUP BLOCK DIAGRAM...............................................................................................................................5 3 - CONDUCTED EMISSIONS TEST DATA............................................................................................................6 3.1 MEASUREMENT UNCERTAINTY..............................................................................................................................6 3.2 EUT SETUP............................................................................................................................................................6 3.3 EMI RECEIVER SETUP...........................................................................................................................................6 3.4 EQUIPMENT LIST AND DETAILS..............................................................................................................................6 3.5 TEST PROCEDURE..................................................................................................................................................6 3.6 SUMMARY OF TEST RESULTS.................................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA.....................................................................................................................7 Steril-Aire USA FCC ID: R2344001400 Report #R0403185 Page 3 of 9 FCC Part 18 ID Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Steril-Aire USA Model: 44001400 or the "EUT" as referred to in this report is a Indoor RLF, which measures 57cmL x 9cmW x 8cmH. *The test data gathered are from production sample, serial number:UVLXXRPL1020, provided by the manufacturer. 1.2 Objective This Following test report is prepared on behalf of Steril-Aire USA in accordance with Part 2, Subpart J, and Part 18, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted in accordance with MP-5, FCC Methods of Measurements of Radio Noise Emissions from Industrial, Scientific, and Medical Equipment. All radiated and conducted emission measurements were performed at Bay Area Compliance Laboratory Corp. (BACL). 1.5 Test Facility The Open Area Test site used by BACL to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Sunnyvale, California, USA. Test site at BACL has been fully described in reports submitted to the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI). The details of these reports has been found to be in compliance with the requirements of Section 2.948 of the FCC Rules and Article 8 of the VCC…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission – Front View Conducted Emission – Side View
