R2344001500Indoor Light

Model 44001500 (P/N 44000127) Block Diagram (208/230 V Carrier Residential Power Supply) 208/230V 60Hz AC Filter Rectifier Inverter Lamp 208/230V 60Hz AC 300V DC 45kHz AC

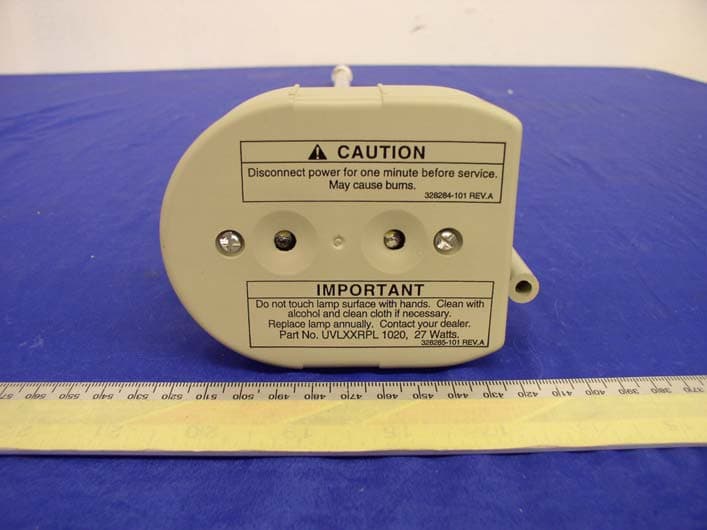

APPENDIX C - EUT PHOTOGRAPHS Chassis – Front View I Chassis – Front View II Chassis – Cover Off View

APPENDIX A - FCC PRODUCT LABELING AND WARNING STATEMENT FCC Label Sample Label Location Information Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT EUT- Rear View / FCC Label Location FCC Warning Statement This device complies with Part 18 of FCC rules. Information on the following matters shall be provided to the user in the instruction manual or on the packaging if an instruction manual is not provided for any type of any ISM equipment: a. The interference potential of the device or system b. Maintenance of the system c. Simple measures that can be taken by the user to correct interference. Label Here FCC ID: R2344001500 This device complies with Part18 of the FCC Rules FCC ID: R2344001500 This device complies with Part18 of the FCC Rules

EUT – Component View EUT - Solder View

Part Description Part: Carrier Residential Power Supply, 208/230 V Part #: 44000127 Functionality Description: The power supply receives a 208/230 VAC 60Hz line input. It rectifies the AC (alternating current) input to DC (direct current) at about 300V and smoothes it with an electrolytic capacitor. This DC voltage supplies the half bridge inverter circuit, which works around 45 kHz and which generates a high frequency voltage to operate the lamp (referred to as Emitter TM ). The output choke will stabilize the Emitter TM current to about 400mA. The capacitor, in parallel with the Emitter TM , helps to ignite the Emitter TM . When the inverter is working, it will light the LED’s on the power supply to reflect the normal working condition of the power supply. Whenever there is a failure to cause the inverter to stop working, the LED’s will turn off to reflect an abnormal condition.

06/08/2004 Carrier 208/230 V Power Supply Steril-Aire P/N 44000127 DESCRIPTIONDESIGNATIONU/MQTY PCB, CEM-1, 94V-0EA1 RES, 240K, 1/4WR1A, 1B, 2A, 2BEA4 RES, 30, 1/4WR3, 4EA2 RES, 0.5, 1/2WR6, 7EA2 RES, 470, 1/4WR8EA1 CAP, 0.047uF/630VC1EA1 CAP, 0.047uF/400VC7EA1 CAP, 10uF/450VC2EA1 CAP, 3300pF/3KVC3EA1 CAP, 0.0033uF/630VC4EA1 CAP, 0.047uF/50VC6, 12EA2 CAP, 0.0027uF/630VC8EA1 DIO, 1A/1000VD1, D2, D3, D4EA4 DIO, LEDD11, 12EA2 Insulating Tubing, Fiberglass, 94-V0EA4 DIO, 1A, 1000VD5, 6, 7EA3 DIO, DIAC, 28-36VD8EA1 DIO, 1A, 40VD9, D10EA2 FUSE, 1A/350VF1EA1 CONNECTOR, POWER, H7730R1-09CON1EA1 CONNECTOR, LAMP SOCKETCON2EA1 CHOKE, 0.98mHL1EA1 CHOKE, 200uHL2EA1 CHOKE, 11mHL3EA1 XFRM, TOROIDT1EA1 X'STR, 4A/400VQ1, Q2EA2

Note: The test report is specially limited to the use of the above client company and the product model. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government FCC PART 18 MEASUREMENT AND TEST REPORT FOR Steril – Aire USA 11100 E. Artesia Blvd., Unit D, Cerritos, CA 90703 FCC ID: R2344001500 2004-08-05 This Report Concerns: Original Report Equipment Type: Indoor RLF Test Engineer: Jerry Wang/ Report Number: R0407222 Test Date: 2004-08-02 Reviewed By: Ling Zhang/ Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732-9164 Steril-Aire USA FCC ID: R2344001500 Report #R0403185 Page 2 of 9 FCC Part 18 ID Test Report TABLE OF CONTENTS 1 - GENERAL INFORMATION.................................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................................3 1.2 OBJECTIVE................................................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S).....................................................................................................................................3 1.4 TEST METHODOLOGY..............................................................................................................................................................3 1.5 TEST FACILITY.........................................................................................................................................................................3 2 - SYSTEM TEST CONFIGURATION..................................................................................................................................4 2.1 JUSTIFICATION..........................................................................................................................................................................4 2.2 EUT EXERCISE PROGRAM......................................................................................................................................................4 2.3 SCHEMATICS/BLOCK DIAGRAM.............................................................................................................................................4 2.4 EQUIPMENT MODIFICATIONS.................................................................................................................................................4 2.5 CONFIGURATION OF TEST SYSTEM.......................................................................................................................................5 2.6 TEST SETUP BLOCK DIAGRAM...............................................................................................................................................5 3 - CONDUCTED EMISSIONS TEST DATA........................................................................................................................6 3.1 MEASUREMENT UNCERTAINTY.............................................................................................................................................6 3.2 EUT SETUP...............................................................................................................................................................................6 3.3 EMI RECEIVER SETUP............................................................................................................................................................6 3.4 EQUIPMENT LIST AND DETAILS.............................................................................................................................................6 3.5 TEST PROCEDURE....................................................................................................................................................................6 3.6 SUMMARY OF TEST RESULTS.................................................................................................................................................7 3.7 CONDUCTED EMISSIONS TEST DATA....................................................................................................................................7 Steril-Aire USA FCC ID: R2344001500 Report #R0403185 Page 3 of 9 FCC Part 18 ID Test Report 1 - GENERAL INFORMATION 1.1 Product Description for Equipment Under Test (EUT) The Steril-Aire USA Model: 44001500 or the "EUT" as referred to in this report is a Indoor RLF, which measures 550mmL x 135mmW x 80mmH. *The test data gathered are from production sample, serial number:001, provided by the manufacturer. 1.2 Objective This Following test report is prepared on behalf of Steril-Aire USA in accordance with Part 2, Subpart J, and Part 18, Subparts A and B of the Federal Communication Commissions rules. The objective is to determine compliance with FCC Part 18 limit requirements for Industrial, Scientific, and Medical Equipment. 1.3 Related Submittal(s)/Grant(s) No Related Submittals. 1.4 Test Methodology All measurements contained in this report were conducted in accordance with MP-5, FCC Methods of Measurements of Radio Noise Emissions from Industrial, Scientific, and Medical Equipment. All radiated and conducted emission measurements were performed at Bay Area Compliance Laboratory Corp. (BACL). 1.5 Test Facility The Open Area Test site used by BACL to collect radiated and conducted emission measurement data is located in the back parking lot of the building at 230 Commercial Street, Sunnyvale, California, USA. Test site at BACL has been fully described in reports submitted to the Federal Communication Commission (FCC…

Text truncated - open the document above for the full version.

APPENDIX B - TEST SETUP PHOTOGRAPHS Conducted Emission – Front View Conducted Emission – Side View
