AUTOCOOL PM FAN SPEED ECONOMY BATTERY LOW REMOTE CONTROL ownerís manual Æ page introduction 2 Hello and congratulations on purchasing a Breezair Ducted Cooler for your home. Breezair coolers have been designed to provide quiet, reliable and cool comfort. At Seeley International we manufacture Breezair evaporative coolers from the highest quality materials, and we have designed the product to provide many years of economical, trouble free cooling. Please take a few moments to read these operating instructions, so that the most can be gained from this investment. Breezair coolers are fitted with either a Wall Mounted Thermostat Control or a RemoteThermostat Control. Please refer to the relevant section in this manual for instructions on how to operate either system.Also, please be aware of the components and features that are fitted to your particular cooler. Keep these instructions in a safe place for future reference. EFFECTIVE COOLING To provide efficient cooling or ventilation the building must have sufficient exhaust openings to the outside of the building.To assist air flow, open windows and doors that are farthest from the outlet vent in each room. In these rooms, provide an exhaust opening about 2 times the vent size of the room. Where the design of the building prevents adequate exhaust, consideration should be given to the provision of mechanical extractions, such as an exhaust fan. In areas where temperatures can cause water supply pipes to freeze, a drain down facility should be provided during the installation. This drain down facility must be activated prior to freezing conditions, to avoid possible damage to the cooler components. Important Note! Æ Æ Æ Æ Æ range thermost at 3 Wall MountedThermostat Control (wall control) RemoteThermostat Control (remote control) AUTOCOOL PM FAN SPEED ECONOMY REMOTE CONTROL ILL239-D ILL1140-A Æ page content s 4 RemoteThermostat Control..............5 Wall MountedThermostat Control...11 Bleed Funnel & Drain Valve............15 Power Outages...............................15 Seasonal Maintenance...................16 Troubleshooting..............................18 Service & Warranty.........................20 Æ ther mostat control remote 5 SETTING THE CLOCK TURNINGTHE COOLER Set the clock on the remote control before proceeding with any other programming. The clock can only be set with the remote control switched OFF. Hold the button down for over 2 seconds, until the hour flashes. Use the and buttons to change the hour. To change minutes, press the button again. Change the minutes using the and buttons. To lock in the time setting, and enter the OFF state, press the button.The display will stop flashing. The remote control is switched on and off using the button.The memory will store The clock can be set to either 12 or 24 hours (see page 10). If the clock is set to 12 hours make sure that the AM/PM displayed on the screen is correct.AM/PM will change with adjustment of the hour. ON and use the settings from when the cooler was last used. Once the remote control is on, you can choose between MANUAL, AUTO andAUTO TIMER modes by pressing the button. decreaseincrease MANUALMODE With the remote control ON, press the button until MANUALis shown in the top left corner of the display. The button is used to select VENT(where fresh air is being delivered without being cooled) or COOL. Once either COOLor VENT has been selected, the remote control will maintain a constant fan speed.This is indicated by the bar graph in the centre of the display. Toorthe fan speed required, press either the or buttons. MANUAL COOL FAN SPEED ILL1108-A MANUALVENT FAN SPEED ILL1109-A ILL1104-A PM Æ 6 AUTO MODE The remote control contains a thermostat. InAUTO mode the cooler is controlled automatically, based on your pre-comfort level.The cooler will adjust the fan speed, switch between COOLand VENTand turn itself off. However, the sequence and regularity at which these settings change will differ with each operation of the cooler. As the remote control senses room conditions, the heat from direct sunlight or electrical appliances. Likewise placing the remote control in cupboards or drawers or under cooling vents will affect the coolerís operation. To set theAUTO mode press the button untilAUTO is displayed. Ten levels of comfort are available with the remote control. While inAUTO mode pressing the and buttons will adjust the level of required comfort.The display selected comfort control settings will be influenced by will show your selection by indicating a level between 1 and 10. WARMER or COOLER will be displayed on the screen as settings are changed. Begin by pressing the button.The hour displayed will start flashing and the word ON will appear on the screen.Then use the and buttons to change the hour value. AUTO TIMER MODE AUTO TIMER mode can be selected by using the button. Once theAUTO TIMER mode is selected the cooler will only operate during the programmed time period. Programming the timer must be performed beforeAUTO TIMER can be activated.This can be done while in any mode, even when it is OFF. There are 7 steps involved in setting the AUTO TIMER. NOTE:After pressing the button the display will revert back to the previous setting if no buttons are pressed within 4 seconds. To program the timer use the following sequence: (1) Setting the ON time hour AUTO TIMER ON ILL1112-A ther mostat control remote AUTO FAN SPEED ILL1105-A PM Æ 7 (2) Setting the ON time minutes (3) Setting the OFFtime hour Press the button.The minutes displayed will start flashing and the word ON will appear on the screen.Then use the and buttons to change the minute setting. Press the button.The hour displayed will start flashing and OFF will be displayed.Then use the and buttons to change the hour. Press the button.The minutes displayed will start flashing and the word OFF will appear. Then use the and buttons to change the minute setting. (4) Setting the OFFtime minutes AUTO TIMER ON ILL1113-A A…

Text truncated - open the document above for the full version.

Block diagram DIP SWITCHES μPROCESSOR LCD DISPLAY THERMAL SENSING KEYPAD RF TRANSMITTER BATTERY SUPPLY

Doc ID: 666092.DOC Sensolid Pty Limited A.C.N. 001 088 017 T/A Austest Laboratories Reg. Office, Ground Floor 35 Alleyne Street Chatswood NSW 2067 Australia 7 th June 2006 To: FCC Certification Application administration Re: Confidentiality request for R2ESIA06 exhibits (reply to correspondence no. 31003) To Whom it May Concern, Please provide special 45 day confidentiality for the internal photographs and user manual for this application. A confidentiality fee has been paid with the Certification fee. Thanks for your assistance with this matter. Yours Truly, Paul Kay Austest Laboratories Adelaide +61 8 8288 7400

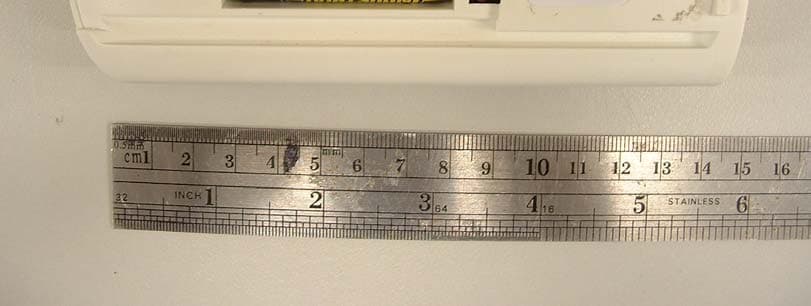

External photos

640045.DOC Label proposal Proposed FCC label for 2006 Remote Control: 12mm x 38mm (white background), 10pt font FCC ID: R2ESIA06

Label Photos

Internal photos

R2ESIA06 Equipment description The Handset is a battery powered thermostat with a Liquid Crystal Display (LCD). The Handset utilises Radio Frequency technology to communicate with the Evaporative Cooler Power module (ECP05) and Cooler Power Module (CPMD). By sensing the room temperature and controlling the operations of the fan and pump via the ECP05 and CPMD, the Handset can be used to control the comfort level of a building. In addition, the Handset provides features like programmable time operations, pump and drain valve control, Water manager operation, time of day clock, economy mode, automatic and manual control modes. Specifications Battery Requirements (Note these can change based on processor and transmitter selection) Operating Voltage : 4.5v d.c. Batteries : 3 x 1.5v d.c. (AAA alkaline) Battery life : minimum 2000 hours of operation (2 years) Memory Backup : 3 minutes after batteries removed once “Battery Low” is indicated, assuming no buttons are pressed Operating Temperature Operating temperature : 0 C to 40 C Storage temperature : 0 C to 50 C Relative humidity : 0 to 85% non condensing Transmission Frequency And Range Carrier frequency : 433.92 ±0.4 MHz Signal frequency : 300 Hz RF Output Power : 5.8uW max Modulation : ASK Range : 50 metres Periodic Transmission When operating : sends the data packet once every 2 minutes to 10 minutes When off : none Data Packet Packet size : 3 x 6 byte packets (8 bits per byte), total 18 bytes Byte 1 : Preamble 0ffH fixed Byte 2 : Header 0aaH fixed Bytes 3 - 5 : Data 00H to 07fH variable Byte 6 : CRC (last byte) 00H to 0ffH variable
