R2GL3Bluetooth headset

We, Lezun, declare under our sole responsibility, that the product Lezun L3, confirms with the provisions of the following Directives: 1999/5/EC; 2004/108/EC and 2006/95/EC. The crossed-out wheelie bin symbol means that the product must be disposed of separately in the European Union. These products must not be disposed of with unsorted household waste. FCC ID: R2GL3 To locate the FCC and IC identification numbers, please look on the underside of the Lezun L3. Model number L3 Battery Before you use it for the first time, the L3 must be fully charged. To do this, connect L3 to your computer via the USB to micro- USB cable. The indicator on the side of the right ear cup illuminates with a red light to show that the device is charging. Once charging is complete, the indicator light turns off (1). When the battery is flat, you can still use the L3 to listen to music if your audio player is connected to the headset via the Jack to Jack cable. Conversely, the telephone and Bluetooth music transfer functions and touch sensitive panel are not available (2). Switching the L3 on/off Press the button (1) to switch the product on/off. Wearing the headset Adjust the band without forcing it, so that the headphones will fit comfortably over your ears, then put the headset on, using the letters (L) and (R) to help you distinguish left and right. Bluetooth Connection Before L3 can be used with your telephone or Bluetooth audio player, the two devices must be paired(3) . Once the two devices have detected each other, it is no longer necessary to pair each time. 1. From your telephone or Bluetooth audio player, start a search for Bluetooth peripherals. 2. Select “L3” Once your telephone is paired with the L3, the two devices will connect to each other automatically each time that the L3 is switched on. It is not possible to simultaneously connect several devices to L3. All Bluetooth Audio device Listening to music at high volumes for long periods can lead to hearing problems. We do not recommend using these headphones at maximum volume, particularly for long periods of time. To protect your hearing, turn down the volume of your music player before connecting your headphones. After putting on the headphones, gradually turn up the volume until you reach a suitable level. Sound levels are measured in decibels (dB). Exposure to sound 85 dB or above may result in gradual loss of hearing. Monitor your use. Hearing loss depends on the intensity of the sound and the duration. The higher the volume, the less your exposure capacity will last. The lower the volume, the longer your exposure period can be. Be responsible: pay attention to your environment (acoustic) when you are wearing your headphones and listening to music or the radio. Avoid hazardous behavior that may cause an accident for you or somebody else (pedestrians, motorcyclists, drivers, cyclists) or cause damage to property when you are wearing your headphones. Lezun would like to inform you that the use of stereo headphones is strictly forbidden when driving a motor vehicle. Lezun also recommends not listening to music or the radio through your headphones when riding a bicycle, a scooter or any other means of transport for which it is not compulsory to wear a helmet. Lezun can not accept any responsibility if you choose to ignore these warnings. Warning Volume/Using during a call (4) To increase the volume, swipe your finger upward and pause one second on the touch sensitive panel. To decrease the volume, swipe your finger downward and pause one second on the touch sensitive panel. Next/Previous (5) If your audio player is connected to the L3 via Bluetooth: To return to the previous track, swipe your finger backward on the touch sensitive panel. To move to the next track, swipe your finger forward on the touch sensitive panel. Pause/Play Press the power button to pause and play music. Telephone Press the power button to answer the phone call. Press the power button again to end the phone call. Press the power button twice to call the last number in your phone call records. Note: The touch sensitive panel is located on the right speaker. Connect the L3 to the audio source 1. Connect the Jack to Jack cable supplied to the L3’s right headphone and connect the other end to your audio player. 2. If your telephone/Bluetooth audio player supports Bluetooth A2DP, you can also send music to your L3 via Bluetooth. Music ® ® ® ® Mac, iPad, iPhone, iPod are trademarks of Apple Inc., registered in the U.S. and other countries. ® BlackBerry is a registered trademark of Research in Motion Limited. Samsung is a registered trademark of Samsung Electronics Co., Ltd. TM Android is a trademark of Google Inc. ® Windows is a registered trademark of Microsoft corporation in the United States and other countries. ® The Bluetooth word mark and logo are registered trademarks and are owned by the Bluetooth SIG, Inc. All other registered and unregistered are the property of their respective owers. FCC Statement This equipment has been tested and found to comply with the limits for a Class C digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is conne…

Text truncated - open the document above for the full version.

Lezun Limited 3F, Blo ck 1C Hu iye tech nolo gy park, Gua ngua ng Road, She nzhe n --- ------------------ ----- ------------------------------ ------------------------------ ------------------------------- Federal Communic ati ons Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: R2GL3 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential tr eatment of in format ion accompanying this application as outlined be low: emaN eliF epyT tibihxE fdp.scitamehcS_DICCF_3LG2R sci tamehcS Block Diagram R2GL3_FCCID_BlockDiagram.pdf Operational Description R2GL3_FCCID_OperationalDes cription.pdf The above materials contain trad e secrets and proprietary in fo rmat ion not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustifie d benefits to it s competitors. The ap pl icant und erstands th at pursuant to Sec tion 0.457 of the Rules, dis closure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Lezun Limited --- ------------------ ---- (David Tan) (General Manager)

Lezun Limited 3F, Blo ck 1C Hu iye tech nolo gy park, Gua ngua ng Road, She nzhe n --- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- ---- - (FCC ID：R2GL3) POWER OF ATT ORN EY DAT E: 2015- 01-0 4 Fed eral Com muni cati ons Comm issi on Aut hori zati on and Evalu atio n Di visi on 743 5 Oa klan d Mi lls Road Col umbi a, MD 21 046 To Whom It May Conc ern: We, the und ersi gned , he reby aut hori ze Shenz hen SEM. Test Tec hnol ogy Co., Ltd . Jan dy So on our beh alf, to appl y to the Fed eral Com muni cati ons Comm issi on on ou r equipment. Any and all acts carried out by Shenzhen SEM.Test Technology Co., Ltd. Jan dy So on our beh alf shal l ha ve the same effe ct as ac ts of ou r ow n. Thi s is to advi se that we are in fu ll compl ianc e wi th the Anti- Drug Abu se Act. We, Lez un Limit ed, are not subj ect to a den ial of feder al benef its purs uant to Sec tion 530 1 of the Ant i-Dr ug Act of 19 88, 21 USC85 3a, and no party to the app lica tio n is subj ect to a den ial of feder al benef its purs uant to that sec tion . Sincerely , Lezun Limited --- ---- ---- ---- ---- ---- -- (David Tan) (General Manager)

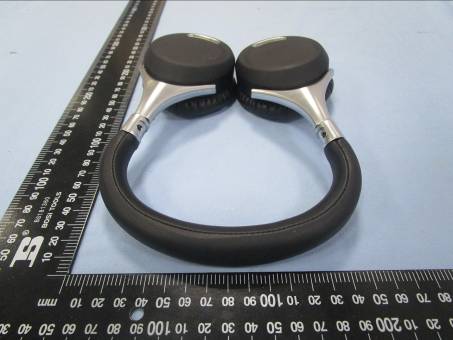

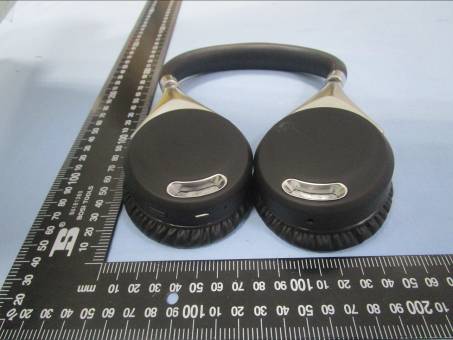

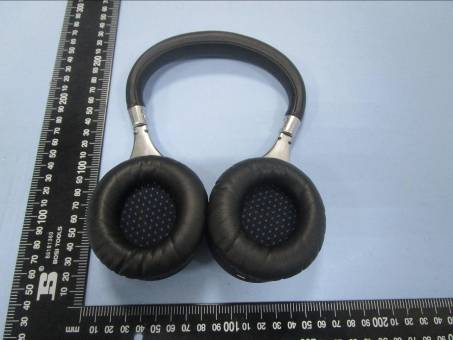

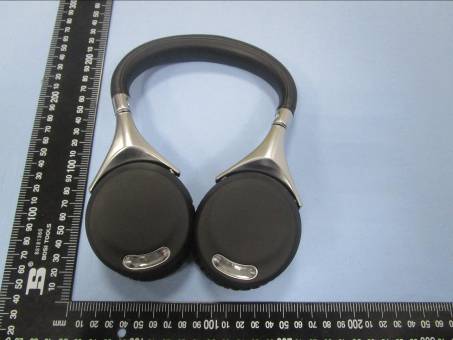

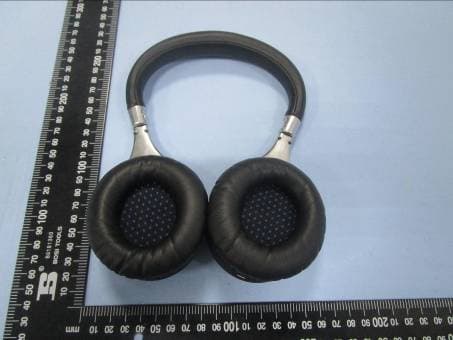

Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EUT View 3 EUT View 4 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EUT View 5 EUT View 6

Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: Text is Black in color and justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Solder Board-Component View 2 Solder Board-Component View 3 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Solder Board-Component View 4 Solder Board-Component View 5 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Solder Board-Component View 6 Solder Board-Component View 7 Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Solder Board-Component View 8

RF Exposure Requirements Product Description: Bluetooth headset Model No.: L3 FCC ID: R2GL3 According to the KDB-447498 D01 V05r02, the following RF exposure evaluation shall to demonstrate RF exposure compliance. Bluetooth (EDR mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 6.071 dBm Maximum Output Power: 4.05mW Limit: 10mW Source-based time-averaged output power is 4.05mW < 10 mW Bluetooth (BLE mode) Tx frequency range: 2402~2480MHz Device category: Portable device (Distance: 5mm) Maximum Conducted Output Power: 6.807 dBm Maximum Output Power: 4.79mW Limit: 10mW Source-based time-averaged output power is 4.79mW < 10 mW So the transmitter complies with the RF exposure requirements and the SAR is not required.

Lezun Limited Model: L3 REPORT NO.: STR14128130I-2 PAGE 1 OF 36 FCC PART 15.247 FCC Part 15C Measurement and Test Report For Lezun Limited 3F, Block 1C Huiye technology park, Guanguang Road, Shenzhen FCC ID: R2GL3 FCC Rule(s): FCC Part 15.247 Product Description: Bluetooth headset Tested Model: L3 Report No.: STR14128130I-2 Tested Date: 2014-12-15 to 2014-12-24 Issued Date: 2014-12-24 Tested By: Jong Wang / Engineer Reviewed By: Lahm Peng / EMC Manager Approved & Authorized By: Jandy so / PSQ Manager Prepared By: Shenzhen SEM.Test Technology Co., Ltd. 1/F, Building A, Hongwei Industrial Park, Liuxian 2nd Road, Bao'an District, Shenzhen, P.R.C.（518101） Tel.: +86-755-33663308 Fax.: +86-755-33663309 Website: www.semtest.com.cn Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen SEM.Test Technology Co., Ltd. Lezun Limited Model: L3 REPORT NO.: STR14128130I-2 PAGE 2 OF 36 FCC PART 15.247 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 3 1.2 TEST STANDARDS ................................................................................................................................................... 4 1.3 TEST METHODOLOGY ............................................................................................................................................. 4 1.4 TEST FACILITY ....................................................................................................................................................... 4 1.5 EUT SETUP AND TEST MODE ................................................................................................................................. 5 2. SUMMARY OF TEST RESULTS ........................................................................................................................... 6 3. RF EXPOSURE ......................................................................................................................................................... 7 3.1 STANDARD APPLICABLE ......................................................................................................................................... 7 3.2 TEST RESULT.......................................................................................................................................................... 7 4. ANTENNA REQUIREMENT .................................................................................................................................. 8 4.1 STANDARD APPLICABLE ......................................................................................................................................... 8 4.2 EVALUATION INFORMATION .................................................................................................................................. 8 5. POWER SPECTRAL DENSITY ............................................................................................................................. 9 5.1 STANDARD APPLICABLE ......................................................................................................................................... 9 5.2 TEST EQUIPMENT LIST AND DETAILS ..................................................................................................................... 9 5.3 TEST PROCEDURE ................................................................................................................................................... 9 5.4 ENVIRONMENTAL CONDITIONS .............................................................................................................................. 9 5.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 10 6. 6DB BANDWIDTH ................................................................................................................................................. 13 6.1 STANDARD APPLICABLE ....................................................................................................................................... 13 6.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 13 6.3 TEST PROCEDURE ................................................................................................................................................. 13 6.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 13 6.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 14 7. RF OUTPUT POWER ............................................................................................................................................ 17 7.1 STANDARD APPLICABLE ....................................................................................................................................... 17 7.2 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 17 7.3 TEST PROCEDURE ................................................................................................................................................. 17 7.4 ENVIRONMENTAL CONDITIONS ............................................................................................................................ 17 7.5 SUMMARY OF TEST RESULTS/PLOTS .................................................................................................................... 18 8. FIELD STRENGTH OF SPURIOUS EMISSIONS ............................................................................................. 19 8.1 MEASU…

Text truncated - open the document above for the full version.

Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Below 30MHz) Radiation Emission Test Setup (30MHz to 1GHz) Lezun Limited Model: L3 REPORT NO.: STR14128130I-1&2 FCC PART 15.247 Radiation Emission Test Setup (Above 1GHz)
