R2WMMGEN131151Ceiling Light

31151/**/48 Gebruiksaanwijzing Notice d’emploi Benutzerhandbuch User manual Manual de usuario A IMPORTANT SAFETY INSTRUCTIONS MESURES DE SÉCURITÉ À RESPECTER Incl. 2 A C C A B B A C C A B B Excl. 2x 3x 8mm 3/8” 3 Product appearance may vary from image shown. L’apparence du produit peut différer de l’image montrée. La apariencia del producto puede variar de la imagen mostrada. DANGER -RISK OF SHOCK- DISCONNECT POWER BEFORE INSTALLATION. DANGER -RISQUE DE CHOC- COUPER L'ALIMENTATION AVANT L'INSTALLATION. CAUTION – RISK OF FIRE ATTENTION – RISQUE D’INCENDIE PRECAUCION – RIESGO DE INCENDIO THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. CE PRODUIT DOIT ÊTRE INSTALLÉ SELON LE CODE D’INSTALLATION PERTINENT? PAR UNE PERSONNE QUI CONNAÎT BIEN LE PRODUIT ET SON FONCTIONNEMENT AINSI QUE LES RISQUES INHÉRENTS. ESTE PRODUCTOR DEBE SER INSTALADO SEGUN EL CODIGO DE INSTALACION APLICABLE POR UNA PERSONA QUE CONOZCA LA CONSTUSSION Y EL FUNCIONAMIENTO DEL PRODUCTO Y LOS RIESGOS QUE SUPONE. 4 1 2 5 3 6 5 OK NOK 4 A C C A B B 7 ON 6 4404.017.00361 Last update: 06/01/15 Shield_Black_2013 Version 1.1 – 25 October 2013 Distributor 10275 W. Higgins Road Rosemont, IL 60018, USA www.philips.com

C Distributor 10275 W. Higgins Road Rosemont, IL 60018, USA 4404.017.01171 Last update: 02/11/15 © Copyright This device complies with Part 15 of the FCC Rules and Industry Canada licence RSS-210. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTICE: Changes or modifications made to this device not expressly approved by Philips Lighting Company (USA) and Philips Electronics Ltd (Canada) (collectively “Philips”) may void the U.S. FCC and Canadian authorization to operate this device. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Addendum: FCC/IC E N G L I S H F R A N Ç A I S 1 Cet appareil est conforme à l’alinéa 15 de la réglementation de la FCC et à la norme CNR d’Industrie Canada RSS-210. Son fonctionnement est assujetti aux deux conditions suivantes : (1) l’appareil ne doit pas causer d’interférences nuisibles; (2) l’appareil doit accepter toute interférence reçue, y compris les interférences qui peuvent causer un fonctionnement non désiré. AVIS : les modi¬fications apportées à cet appareil sans avoir été explicitement approuvées par Philips Lighting Company (États-Unis) et Philips Electronics Ltd (Canada) (collectivement « Philips ») peuvent annuler l’autorisation d’utilisation de cet appareil octroyée par la FCC aux États-Unis et par Industrie Canada. À l’issue des tests dont il a fait l’objet, cet équipement a été déclaré conforme à la section15 de la réglementationFCC applicable aux appareils numériques de classeB. Ces limites sont conçues pour fournir installations résidentielles. Cet équipement génère, utilise et peut émettre des ondes radioélectriques. Il est susceptible de créer des interférences nuisibles dans les communications radioélectriques s’il n’est pas installé ou utilisé conformément au mode d’emploi. Cependant, l’absence d’interférences dans une installation particulière n’est pas garantie. Dans le cas où cet équipement créerait des parasites nuisibles en éteignant et en rallumant l’appareil, il est conseillé d’essayer de corriger ces parasites en appliquant une ou plusieurs des mesures suivantes : • Réorienter ou déplacer l’antenne de réception. • Augmenter la distance entre l’appareil et le récepteur. • Raccorder l’appareil à une prise de courant située sur un circuit différent de celui sur lequel le récepteur est connecté. • Prendre conseil auprès d’un distributeur ou d’un technicien radio/TV. E S P A Ñ O L 2 Este dispositivo cumple con la Parte 15 de las reglas de la FCC y con RSS-210 de Industry Canada. La operación está sujeta a las siguientes dos condiciones: (1) Este dispositivo no debe causar interferencia dañina, y (2) este dispositivo debe aceptar cualquier interferencia recibida, incluida la interferencia que podría causar una operación indeseada. AVISO: Los cambios o modificaciones que se le hagan a este dispositivo que no hayan sido autorizados expresamente por Philips Lighting Company (EE.UU.) y Philips Electronics Ltd (Canadá) (colectivamente “Philips”) podrían invalidar la autorización de la FCC de EE.UU y de Canadá para operar este dispositivo. Este equipo ha sido verificado y cumple con los limites requeridos para dispositivos digitales Clase B, conforme a partida 15 de las normas FCC. Estos límites se diseñaron para proporcionar protección razonable contra interferencia dañina en instalaciones residenciales. Este dispositivo produce, utiliza y puede radiar energía de radiofrecuencia y, si no se instala y utiliza de conformidad con las instrucciones, puede causar interferencia dañina a las comunicaciones por radio. Sin embargo, no hay ninguna garantía de que no habrá interferencia en una instalación en particular. Si este dispositivo causa interferencia dañina a la recepción de radio o televisión, lo cual se puede determinar encendiendo y apagando el dispositivo, se recomienda que el usuario trate de corregir la interferencia tomando una de las siguientes medidas: • Reorientar o cambiar el lugar de la antena receptora. • Aumentar la separación entre el dispositivo y el receptor. • Conectar el dispositivo en un enchufe que se encuentre en un circuito distinto al circuito en el cual está conectado el receptor. • Consultar al vendedor o a un técnico en radio/televisión con experiencia

Dec 2013 Letter of Agency "I, an officer of Philips Consumer Luminaires do hereby authorize Intertek Testing Services (Mr. Terry Chan / Koo Wai Ip / Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,862. Dated this Jan. day 10th of 2015_ By Tjeerd Dijkstra Signature Tjeerd Dijkstra Printed Name Quality Project Leader Title Remark: The person who signs this authorization letter must be the grantee contact of record in the Grantee Code data base.

Attention: Application Examiner Re: Request for confidentiality Applicant: [Philips Consumer luminaires] FCC ID:R2WMMGEN131151 To whom it may concern, Permanent Confidentiality [Complete this section if permanent confidentiality is requested] Request is hereby submitted by [Philips Consumer Luminaires] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: [Select one or more of items below, as appropriate] • √Schematics • √Detailed Block diagrams • √Detailed Operational/Functional Description Rationale for request for confidentiality: [Philips Consumer Luminaires] has invested considerable time and materials in research and development to produce the referenced product. [Permanent confidentiality: Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us.] If you have questions or need further information, please contact the undersigned. Sincerely, [Signature] Tjeerd Dijkstra [Title] Quality Project Leader [Company name] Philips Consumer Luminaires

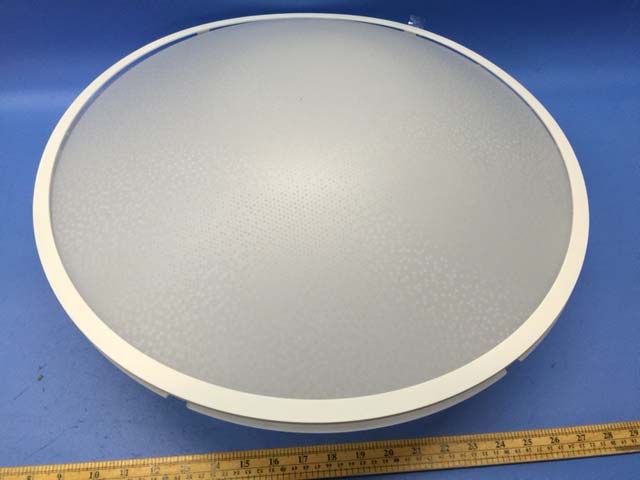

INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (External)

1 E334775 Requirements for ID-Lable 1, Font size: Min. 2.4mm.! 2, Lable Size: 47*30mm ! 3, Position: Please see "Dimension Requirement" 4, Fonts in black text on siliver lable. Requirement for LSCT Lable: Requirement for "Dry location use only" lable: Position Technical labels 测试记录 PCLZ饰 TECHNICAL LABEL SPECIFCATION FORM Report MARK0508008_V04.XLSVersionDate07/05/2015 Issued by CNH78040Page ARTICLE SPECIFICATIONS说PICTURE Item Nbr 9150.050.60701 Project No140918 Production PlantCN07 BrandPhilips Silverlabel TypePhilips ClassNOT IPIP20 1, Using existed 12NC: "4404.018.62601"! 2, Position: Please see "Dimension Requirement" 1, Using (442270740291) 2, Position: Please see "Dimension Requirement" 3, Fonts size: Min. 2.4mm! Client Ref NoCD1409181A01 UL Laser Label See "Dimension requirement and 908881 05/XXYY Model: 31151 INPUT/ENTRÉE: 100‐120V~, 50/60Hz, AC ONLY/ C.A. SEULEMENT OUTPUT/SORTIE: 1x MAX.20W LED + 1x MAX.10W LED + 1x MAX.6W LED MADE IN CHINA/FABRIQUÉS EN CHINE FCC ID: R2WMMGEN131151 IC: 135AG‐MMGEN131151 -1m - The linked image cannot be displayed. The file may have been moved, renamed, or deleted. Verify that the link points to the correct file and location. The link ed image cannot be display ed. The file may hav e been mov ed, renamed, or deleted. Verify that the link points to the correct file and location. QA-ARTICLE-ER-MARK

The height of symbol not be less than 5mm. UL label: 442270740291 UL Label: 442270739131 Except LSCT label, all other label s

INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Equipment Photographs (Internal)

Analysis Report Report No.: 14100263HKG-001 The Equipment Under Test (EUT) is a Hue Tone Luminaries. The EUT can operate while connected and controlled by a Zigbee Remote (Provided by Applicant) via Zigbee radio link. The EUT can only support Zigbee. The Zigbee portion occupies frequency range of 2405MHz to 2480MHz (15 channels with channel spacing of 5MHz). The EUT is powered by 120VAC 60Hz. Chipset 1(450lm) OR Chipset 2(900lm) OR Chipset 3(1800lm): Antenna Type: Internal integral antenna Antenna Gain: -1.8dBi Nominal rated field strength: 100dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 105dBμV/m at 3m in frequency 2.4GHz, thus; Duty cycle = 0.068. The EIRP = [(FS*D) ^2*1000 / 30] = 0.650mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.976mW. The SAR Exclusion Threshold Level: = 3.0 * (min. test separation distance, mm) / sqrt(freq. in GHz) = 3.0 * 5 / sqrt (2.480) mW = 9.53 mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing. Simultaneous Transmission SAR exclusion considerations Since two Zigbee transmitters of this device may operate simultaneously, simultaneous transmission analysis is required. Per KDB 447498, simultaneous transmission SAR test exclusion can be applied when the sum of 1-g SAR of all simultaneously transmitting antennas in an operating mode and exposure condition combination is within the SAR limit (≤ 1.6W/kg). When the standalone SAR test exclusion is applied, the standalone 1-g SAR must be estimated according to the following equation, Estimated SAR = )max/()5.7/)((TDPxGHzF where F(GHz) is the RF channel transmit frequency in GHz Pmax is the max. power of channel, including tune-up tolerance, mW TD is the min. test separation distance, mm For Zigbee chipset 1(450lm) operation, Ma ximum Time-averaged EIRP of this device = 0.98mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.04 W/kg where Pmax = 0.98W , TD = 5 mm and F(GHz) = 2.480 GHz For Zigbee chipset 2 (900lm) oper ation, Maximum Time-averaged EIRP of this device = 0.98 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.04 W/kg where Pmax = 0.98mW, TD = 5 mm and F(GHz) = 2.480 GHz For Zigbee chipset 3(1800lm) operation, Maximum Time-averaged EIRP of this device = 0.98 mW Therefore, the Estimated SAR will be determined as follow, Estimated SAR = )max/()5.7/)((TDPxGHzF = 0.04 W/kg where Pmax = 0.98mW, TD = 5 mm and F(GHz) = 2.480 GHz Simultaneous Transmission Analy sis  SAR (W/kg) Simultaneous SAR Required 0.12 No Conclusion Since the above summed SAR result for all simultaneous transmission conditions were below the SAR limit (1.6 W/kg), SAR evaluation for simultaneous transmission configuration are not required.

- Intertek's standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: 14100263HKG-001 Philips Consumer Luminaires Application For Certification (Original Grant) (FCC ID: R2WMMGEN131151) (IC: 135AG-MMGEN131151) Transceiver Prepared and Checked by: Approved by: Signed On File Lee Shui Tim, Tim Engineer Koo Wai Ip Assistant Supervisor Date: May 18, 2015 INTERTEK TESTING SERVICES Report No.: 14100263HKG-001 i FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 GENERAL INFORMATION Grantee: Philips Consumer Luminaires Grantee Address: Satenrozen 13, B-2550 Kontich, Belgium Contact Person: Tjeerd Dijkstra Tel: +3234589140 Fax: +3234581003 e-mail: N/A Manufacturer: Philips Consumer Luminaires Manufacturer Address: Satenrozen 13, B-2550 Kontich, Belgium Brand Name: Philips Model: 31151 Type of EUT: Transceiver Description of EUT: Ceiling Light Serial Number: N/A FCC ID / IC: R2WMMGEN131151 / 135AG-MMGEN131151 Date of Sample Submitted: October 08, 2014 Date of Test: October 08, 2014 to May 08, 2015 Report No.: 14100263HKG-001 Report Date: May 18, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: 14100263HKG-001 ii FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 8.8 Pass Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS-210 A2.9, RSS-210 2.5 Pass Radiated Emission in Restricted Bands 15.205 / RSS-210 2.2 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2013 Edition RSS-210 Issue 8, December 2010 RSS-Gen Issue 4, December 2014 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: 14100263HKG-001 iii FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Table of Contents 1.0 General Description.........................................................................................1 1.1 Product Description ........................................................................................1 1.2 Related Submittal(s) Grants............................................................................1 1.3 Test Methodology ...........................................................................................1 1.4 Test Facility ....................................................................................................1 2.0 System Test Configuration ..............................................................................2 2.1 Justification.....................................................................................................2 2.2 EUT Exercising Software................................................................................2 2.3 Special Accessories .......................................................................................2 2.4 Measurement Uncertainty...............................................................................2 2.5 Support Equipment List and Description.........................................................2 3.0 Emission Results .............................................................................................3 3.1 Field Strength Calculation...............................................................................3 3.2 Radiated Emission Configuration Photograph ................................................4 3.3 Radiated Emission Data .................................................................................4 3.4 Conducted Emission Configuration Photograph .............................................4 3.5 Conducted Emission Data ..............................................................................4 4.0 Equipment Photographs ................................................................................16 5.0 Product Labelling ...........................................................................................16 6.0 Technical Specifications ...............................................................................16 7.0 Instruction Manual .........................................................................................16 8.0 Miscellaneous Information .............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Configuration Photographs Worst-Case Line-Conducted Emissions (Back View) INTERTEK TESTING SERVICE Report No: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Configuration Photographs Worst-Case Line-Conducted Emissions (Back View)

INTERTEK TESTING SERVICE Report No: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: 14100263HKG-001 FCC ID: R2WMMGEN131151 IC: 135AG-MMGEN131151 Configuration Photographs Worst-Case Radiated Emissions (Back View)
