R36-SB65HSoundbar

1 Instruction Manual www.currentaudio.com ©2012 Current Audio LLC 1830 John Towers Avenue El Cajon, CA 92020 Sales 866‐927‐7181 SB80 RPA 090312 ! Safety Instructions 1.Read these instructions completely prior to use or hook-up. 2.Keep these instructions for future reference. Record Model Number_______________ and Serial Number _____________________ 3.Understand and heed all Warnings. 4.Follow all instructions. 5.Do not use soundbar or subwoofer near water, rain or high moisture. 6.Clean only with a dry cloth. Never use solvents. A microfiber cloth is recommended. 7.Do not block any of the ventilation openings. See Instructions. 8.Do not install near heat sources such as stoves, radiators and amplifiers. 9.Use only with supplied power sources, with polarized power cord. 10. Protect power cord from being walked on or pinched. Do not have cord stretched taut. 11. Use only connections and auxiliary equipment suggested by manufacturer. 12. Use only with an approved cart, stand, tripod, bracket or table specified by the manufacturer. 13. Unplug this system during lightning storms or when left unattended for extended periods. 14. Use an ILS-120 to protect from surges, over/under voltages and lightning strikes. 15. Refer service to qualified service personnel. 16. Allow at least 2” (5 cm) space around units for ventilation. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation or maintenance instructions. The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of dangerous voltages within the product’s enclosure that may be sufficient magnitude to constitute a risk of electric shock to people. WARNING TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. 2 www.currentaudio.com ©2012 Current Audio LLC 1830 John Towers Avenue El Cajon, CA 92020 Sales 866‐927‐7181 SB80 RPA 090312 Thank you for purchasing the Current Audio Home Theater SoundBar. Please read this manual thoroughly before making any connections or applying AC power. This manual applies to the SB80 and SB65 SoundBar Systems. Follow the instructions in this manual. It will allow you to obtain the maximum performance and listening pleasure from your new amplifier. Please retain this manual to use as a future reference. Supplied Accessories The boxes include the following equipment and accessories: •(1) Multiple speaker SoundBar •(1) 120VAC to 12VDC power supply •(1) FM Antenna •(1) RCA stereo audio cable •(1) 3.5mm stereo audio cable •(1) Hand held remote control unit •(1) 2.4GHz wireless MegaBass unit with power cord •(1) Wall support mounting bar with screws •(1) Table Top Mounting feet •(1) Instruction Manual 3 Specifications SoundBar Power SB80/65 Subwoofer SB80/65 60 Watts RMS Ported /40 Watts RMS Ported. Defined midrange. 80 Watts RMS Powered / 60 Watts Powered Sound Mode SB80 Selectable 2.0/2.1 with Enhanced DSP Surround Modes Sound Mode SB652.1 for Enhanced DSP listening Speakers SB808 Speakers. 6 2.5” Midrange Drivers and 2 1.25” Tweeters Speakers SB656 Speakers. 4 2.5” Midrange Drivers and 2 1.25” Tweeters Subwoofer SB80/652.4GHz 8” Long Throw Ported Woofer. 6.5” Long Throw. Bluetooth SB80 OnlyConnectivity for iPhone,Android,MP3 and PC Audio Inputs SB80/65Digital Optical, Digital Coaxial, RCA,3.5mm USB and SD Memory Slot MP3,USB, HD Frequency Response SB80: 37Hz-20 kHzSB65: 40-Hz-20kHz FM Tuner Built-in Selectable FM Tuner with Presets Dimensions WxHxD SoundBar: SB80: 39 ¾” (1010mm) x 3 ½”” (89mm) x 3 5/16” (84mm) SB65: 39 ½” (1003mm) x 3 ½”” (89mm) x 3 5/16” (84mm) Dim MegaBass SB65WxHxD 16 3/8”(416mm) x 7 7/8”(200mm) x 13”(330mm) Dim MegaBass SB80WxHxD 17 1/8”(435mm) x 8 11/16”(221mm) x 14 1/4”(362mm) Weight SoundBars Subwoofer 9 lbs (4.08kg) SB80 21 lbs (9.5kg) SB65 17 lbs (7.7kg) www.currentaudio.com ©2012 Current Audio LLC 1830 John Towers Avenue El Cajon, CA 92020 Sales 866‐927‐7181 AMP2150 RPA 06052012 Soundbar SB80 and SB65 by Current Audio The SB80 and SB65 SoundBar describes the latest digital technology in amplified speaker sound bars with a powerful wireless amplified MegaBass subwoofer by Current Audio. The powerful subwoofer can be located anywhere in the room. This is the perfect Home Theater System with a wide sound stage. The system comes with a handheld remote to control power, switch inputs and adjust sound fields. You may also use the touch screen buttons on the SoundBar. The slim depth and sleek design blends with all flat LED/LCD TV models. 4 Features and Connections for SoundBar (see photo on next page) Rear Panel SoundBar 1.Power Switch-Rear panel switch to cut power for service or hook-up. 2.Input Power Jack-Connect the 12VDC power supply here. 3.Line Inputs–Three input methods are provided on the back panel. Digital Optical or Coaxial or standard analog RCA input from TV. 4.AUX IN-A standard 3.5mm audio jack for MP3, computers or mobile devices. 5.FM Antenna-Connect the supplied FM antenna to play FM radio. Front and Side Panel SoundBar 6. Remote Control Receive Window-Aim the Remote to this area to control or change the functions of the system. 7. LCD Display-The Digital read out gives status of the system functions and will automatically dim after 60 seconds. Press any button on the remote to turn the display on. 8. Sound Source Touch Button-Switches between FM radio, Aux, USB, SD card, TV, Optical or Coaxial modes. 9. Volume Up/Down Touch Buttons-Manually control volume. 10. Power Touch Button-Place system in Standby OFF mode or ON mode. 11. USB-Port-2.0 Input for MP3 or WMA format music files. 12. SD Memory Card Port-Input for MP3 and WMA format music files. 13. Mounts-packed with each amp is an accessory pack that include brackets allowing the SoundBar to be table top or wall mounted. Subwoof…

Text truncated - open the document above for the full version.

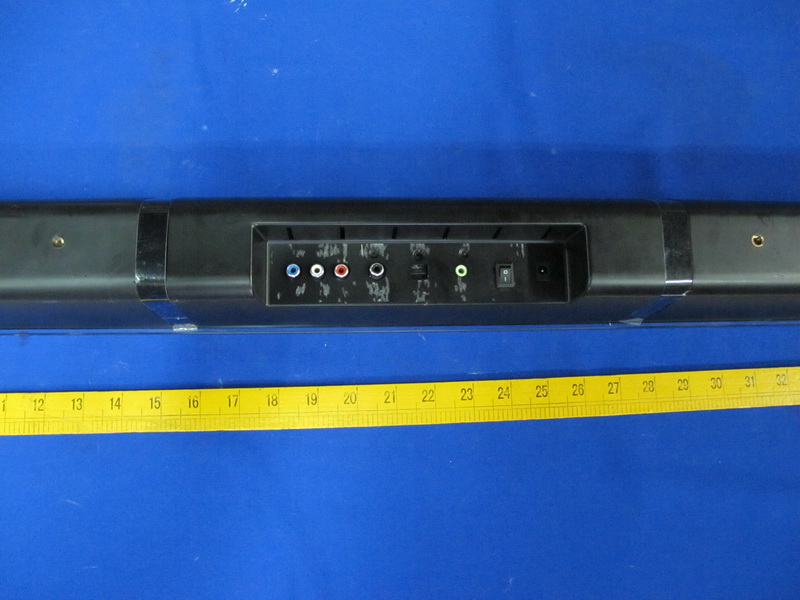

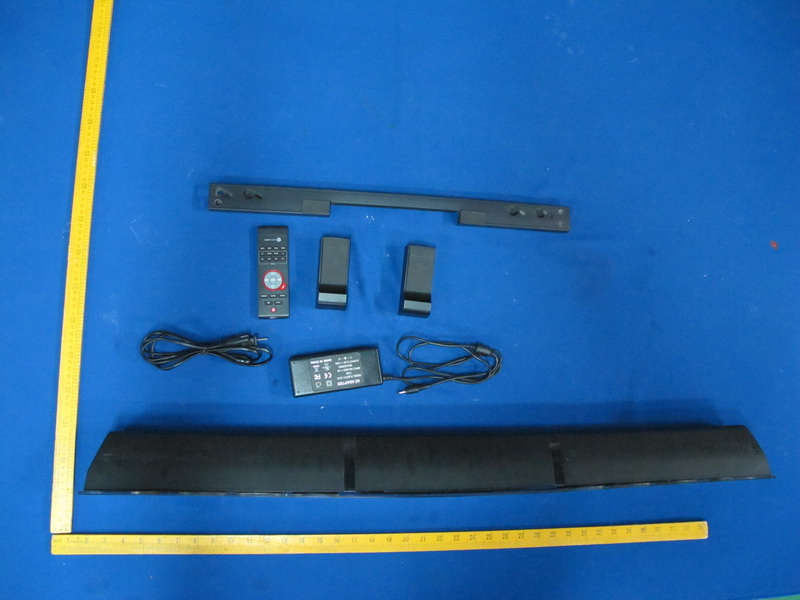

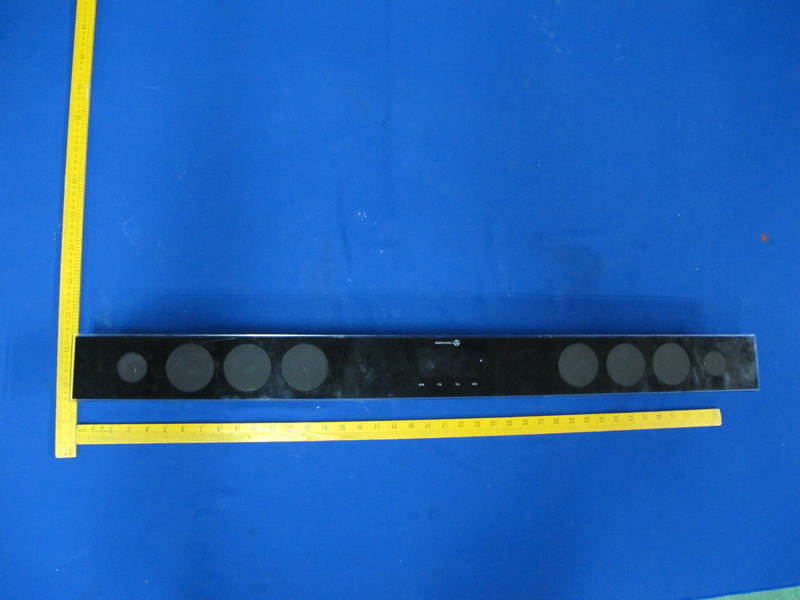

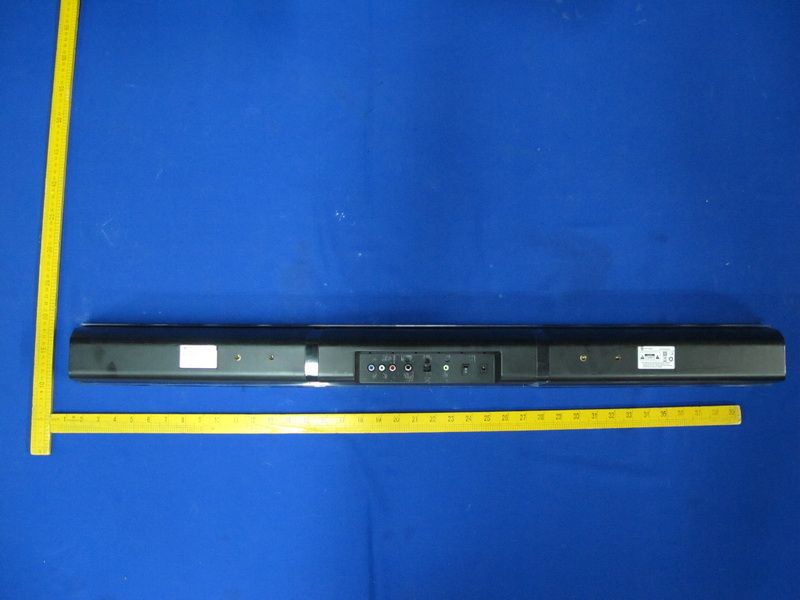

Report No.: TB-FCC125547 Page: 3 of 13 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC125547 Page: 4 of 13 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Report No.: TB-FCC125547 Page: 5 of 13 TB-RF-075-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

Report No.: TB-FCC125547 Page: 2 of 13 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC125547 Page: 1 of 13 TB-RF-074-1.0 Appendix IID Label FCC ID: R36-SB65H This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CURRENT AUDIO Model: SB65 Note: There are similar labels as shown above for other models, where only the model name is replaced by: SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605,SP-606, SP-607, SP-608, SP-609.

Report No.: TB-FCC125547 Page: 6 of 13 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT Bluetooth RF 2.4G Report No.: TB-FCC125547 Page: 7 of 13 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC125547 Page: 8 of 13 TB-RF-075-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB Report No.: TB-FCC125547 Page: 9 of 13 TB-RF-075-1.0 Photo 13 Appearance of PCB Photo 14 Appearance of PCB Report No.: TB-FCC125547 Page: 10 of 13 TB-RF-075-1.0 Photo 15 Appearance of PCB Photo 16 Appearance of PCB Bluetooth Antenna Report No.: TB-FCC125547 Page: 11 of 13 TB-RF-075-1.0 Photo 17 Appearance of PCB Photo 18 Appearance of Back Cover RF2.4G Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE125549 Page: 1 of 2 TB-RF-075-1.0 RF Exposure Evaluation FCC ID: R36-SB65H 1. Client Information Applicant : CURRENT AUDIO Address : 1830 John Towers Ave., El Cajon, San Diego City, CA 92020, USA Manufacturer : ShenZhen Ailipu Electronic Co., Ltd. Address : Block A2, Lanbao Industrial Park, Ditang Road, Shasan Village, Shajing Town, Baoan District, Shenzhen, China 2. General Description of EUT EUT Name : Soundbar Models No. : SB65, SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605,SP-606, SP-607, SP-608, SP-609 Model Difference : The different models are identical in schematic, structure and critical component, the only different is the appearance. Product Description : Operation Frequency: RF(2.4G):2404~2479MHz Bluetooth:2402~2480MHz Number of Channel: RF(2.4G): 16Channels Bluetooth:79Channels Out Power: BT(GFSK):3.784mW Conducted Power 2.4G(FSK):2.547mW Conducted Power Antenna Gain: BT: 0 dBi PCB Antenna RF(2.4G): 2 dBi PIFA Antenna Modulation Type: BT:GFSK 1Mbps RF(2.4G): FSK Power Supply : DC Voltage supplied by AC/DC Adapter. Power Rating : Input: AC 100~240V 50/60Hz 1.5A max Output: 12V 7A Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information please refer the RF Test Report. Report No.: TB-HEA125549 Page: 2 of 2 TB-RF-075-1.0 MPE Calculations 1. No Evaluation required if power is below （60/f(GHz) mW） where f is the transmit frequency of the EUT. 2. Calculation: EIRP= P+G Where P=Conducted Output Power (dBm) G=Power Gain of the Antenna (dBi) So Condition 1: Only RF 2.4G TX Mode(2.4G FSK) Test Mode Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2404 MHz 4.06 2 6.06 4.037 2444 MHz 3.80 2 5.80 3.802 2479 MHz 3.43 2 5.43 3.492 Condition 2: Only Bluetooth TX Mode(BT GFSK) Test Mode Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2402 MHz 5.35 0 5.35 3.428 2441 MHz 5.66 0 5.66 3.681 24780 MHz 5.78 0 5.78 3.784 Condition 3: RF 2.4G+Bluetooth worst case RF 2.4G Peak Power (mW) RF 2.4G Peak Power (mW) Total Power (mW) 4.037 3.784 7.821 3. Conclusion: No SAR Evaluation required since all conditions Transmitter EIRP power is bellow FCC threshold. Note For a more detailed features description, please refer to the RF Test Report.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC125548 Page: 1 of 45 TB-RF-074-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: R36-SB65H Report No. : TB-FCC125548 Applicant : CURRENT AUDIO Equipment Under Test (EUT) EUT Name : Soundbar Model No. : SB65 Serial No. : SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605, SP-606, SP-607, SP-608, SP-609 Brand Name : N/A Receipt Date : 2012-10-29 Test Date : 2012-10-30 to 2012-11-08 Issue Date : 2012-11-09 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC125548 Page: 2 of 45 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing The Configuration of System Tested..................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 15 4.1 Test Standard and Limit .................................................................................................... 15 4.2 Test Setup ........................................................................................................................... 16 4.3 Test Procedure ................................................................................................................... 17 4.4 EUT Operating Condition ................................................................................................. 17 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 23 5.1 Test Standard and Limit .................................................................................................... 23 5.2 Test Setup ........................................................................................................................... 23 5.3 Test Procedure ................................................................................................................... 23 5.4 EUT Operating Condition ................................................................................................. 24 5.5 Test Equipment .................................................................................................................. 24 6. NUMBER OF HOPPING CHANNEL .................................................................................... 27 6.1 Test Standard and Limit .................................................................................................... 27 6.2 Test Setup ........................................................................................................................... 27 6.3 Test Procedure ................................................................................................................... 27 6.4 EUT Operating Condition ................................................................................................. 27 6.5 Test Equipment .................................................................................................................. 27 7. AVERAGE TIME OF OCCUPANCY ..................................................................................... 29 7.1 Test Sta…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC125547 Page: 1 of 49 TB-RF-074-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: R36-SB65H Report No. : TB-FCC125547 Applicant : CURRENT AUDIO Equipment Under Test (EUT) EUT Name : Soundbar Model No. : SB65 Serial No. : SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605, SP-606, SP-607, SP-608, SP-609 Brand Name : N/A Receipt Date : 2012-10-29 Test Date : 2012-10-30 to 2012-11-07 Issue Date : 2012-11-08 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC125547 Page: 2 of 49 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing The Configuration of System Tested..................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 15 4.1 Test Standard and Limit .................................................................................................... 15 4.2 Test Setup ........................................................................................................................... 16 4.3 Test Procedure ................................................................................................................... 17 4.4 EUT Operating Condition ................................................................................................. 17 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 23 5.1 Test Standard and Limit .................................................................................................... 23 5.2 Test Setup ........................................................................................................................... 23 5.3 Test Procedure ................................................................................................................... 23 5.4 EUT Operating Condition ................................................................................................. 24 5.5 Test Equipment .................................................................................................................. 24 6. NUMBER OF HOPPING CHANNEL .................................................................................... 27 6.1 Test Standard and Limit .................................................................................................... 27 6.2 Test Setup ........................................................................................................................... 27 6.3 Test Procedure ................................................................................................................... 27 6.4 EUT Operating Condition ................................................................................................. 27 6.5 Test Equipment .................................................................................................................. 27 7. AVERAGE TIME OF OCCUPANCY ..................................................................................... 29 7.1 Test Sta…

Text truncated - open the document above for the full version.

Report No.: TB-FCC125547 Page: 12 of 13 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Bellow 1 GHz) Report No.: TB-FCC125547 Page: 13 of 13 TB-RF-075-1.0 Photo of Setup for Conducted Emission Test Photo of Setup for Conducted Emission Test
