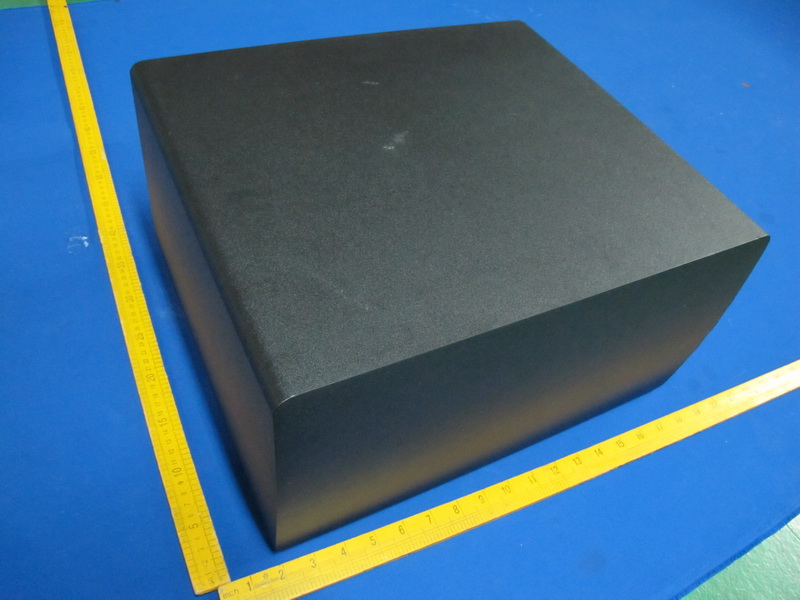

Report No.: TB-FCC125550 Page: 3 of 10 TB-RF-075-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT Report No.: TB-FCC125550 Page: 4 of 10 TB-RF-075-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT

Report No.: TB-FCC125550 Page: 2 of 10 TB-RF-075-1.0 Appendix II ID Label Location FCC ID LOCATION

Report No.: TB-FCC125550 Page: 1 of 10 TB-RF-074-1.0 Appendix IID Label FCC ID: R36-SB65S This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. CURRENT AUDIO Model: SB65 Note: There are similar labels as shown above for other models, where only the model name is replaced by: SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605, SP-606, SP-607, SP-608, SP-609.

Report No.: TB-FCC125550 Page: 5 of 10 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 5 Internal of EUT Photo 6 Internal of EUT RF 2.4G Report No.: TB-FCC125550 Page: 6 of 10 TB-RF-075-1.0 Photo 7 Appearance of PCB Photo 8 Appearance of PCB Report No.: TB-FCC125550 Page: 7 of 10 TB-RF-075-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB Report No.: TB-FCC125550 Page: 8 of 10 TB-RF-075-1.0 Photo 11 Appearance of PCB RF 2.4G Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE125551 Page: 1 of 2 TB-RF-075-1.0 RF Exposure Evaluation FCC ID: R36-SB65S 1. Client Information Applicant : CURRENT AUDIO Address : 1830 John Towers Ave., El Cajon, San Diego City, CA 92020, USA Manufacturer : ShenZhen Ailipu Electronic Co., Ltd. Address : Block A2, Lanbao Industrial Park, Ditang Road, Shasan Village, Shajing Town, Baoan District, Shenzhen, China 2. General Description of EUT EUT Name : Soundbar Models No. : SB65, SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605,SP-606, SP-607, SP-608, SP-609 Model Difference : The different models are identical in schematic, structure and critical component, the only different is the appearance. Product Description : Operation Frequency: RF(2.4G):2404~2479MHz Number of Channel: 16 Channels Out Power 0.817mW Conducted Power Antenna Gain: 2 dBi PIFA Antenna Modulation Type: FHSS(FSK) Power Supply : AC Voltage supplied from AC power cable. Power Rating : Input: AC 100~240V 50/60Hz Connecting I/O Port(S) : Please refer to the User's Manual Note: More test information please refer to the RF Test Report. Report No.: TB-HEA125551 Page: 2 of 2 TB-RF-075-1.0 MPE Calculations 1. No Evaluation required if power is below （60/f(GHz) mW） where f is the transmit frequency of the EUT. 2. Calculation: EIRP= P+G Where P=Conducted Output Power (dBm) G=Power Gain of the Antenna (dBi) So TX Test Mode Conducted Power (dBm) Antenna Gain (dBi) EIRP (dBm) EIRP (mW) 2404 MHz -0.88 2 1.12 1.294 2444 MHz -1.13 2 0.87 1.222 2479 MHz -1.39 2 0.61 1.151 3. Conclusion: No SAR Evaluation required since Transmitter EIRP is bellow FCC threshold. Note For a more detailed features description, please refer to the RF Test Report.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC125550 Page: 1 of 45 TB-RF-074-1.0 10/F., A Block, Jiada R & D Bldg., No.5 Songpingshan Road, Science & Technology Park, Nanshan District, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: R36-SB65S Report No. : TB-FCC125550 Applicant : CURRENT AUDIO Equipment Under Test (EUT) EUT Name : Soundbar Model No. : SB65 Serial No. : SB80, SB90, SB100, SP-601, SP-602, SP-603, SP-604, SP-605, SP-606, SP-607, SP-608, SP-609 Brand Name : N/A Receipt Date : 2012-10-29 Test Date : 2012-10-30 to 2012-11-08 Issue Date : 2012-11-09 Standards : FCC Part 15, Subpart C(15.247) Test Method : ANSI C63.4:2003 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC125550 Page: 2 of 45 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing The Configuration of System Tested..................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Test Facility ........................................................................................................................... 7 2. TEST SUMMARY ....................................................................................................................... 8 3. CONDUCTED EMISSION TEST ............................................................................................. 9 3.1 Test Standard and Limit ...................................................................................................... 9 3.2 Test Setup ............................................................................................................................. 9 3.3 Test Procedure ..................................................................................................................... 9 3.4 Test Equipment Used ........................................................................................................ 10 3.5 EUT Operating Mode ........................................................................................................ 10 3.6 Test Data ............................................................................................................................. 10 4. RADIATED EMISSION TEST ................................................................................................ 15 4.1 Test Standard and Limit .................................................................................................... 15 4.2 Test Setup ........................................................................................................................... 16 4.3 Test Procedure ................................................................................................................... 17 4.4 EUT Operating Condition ................................................................................................. 17 4.5 Test Equipment .................................................................................................................. 17 5. RESTRICTED BANDS REQUIREMENT ............................................................................. 23 5.1 Test Standard and Limit .................................................................................................... 23 5.2 Test Setup ........................................................................................................................... 23 5.3 Test Procedure ................................................................................................................... 23 5.4 EUT Operating Condition ................................................................................................. 24 5.5 Test Equipment .................................................................................................................. 24 6. NUMBER OF HOPPING CHANNEL .................................................................................... 27 6.1 Test Standard and Limit .................................................................................................... 27 6.2 Test Setup ........................................................................................................................... 27 6.3 Test Procedure ................................................................................................................... 27 6.4 EUT Operating Condition ................................................................................................. 27 6.5 Test Equipment .................................................................................................................. 27 7. AVERAGE TIME OF OCCUPANCY ..................................................................................... 29 7.1 Test Sta…

Text truncated - open the document above for the full version.

Report No.: TB-FCC125550 Page: 9 of 10 TB-RF-075-1.0 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Bellow 1 GHz) Report No.: TB-FCC125550 Page: 10 of 10 TB-RF-075-1.0 Photo of Setup for Conducted Emission Test Photo of Setup for Conducted Emission Test
