R38YLCP12SSmart Phone

1 User's Guide Contents Getting Started ......................................................... 3 Overview .......................................................................... 3 Key Explainrd ................................................................... 4 Starting up........................................................................ 4 Switching Your Phone On/Off .......................................... 6 Getting Around Your Phone ............................................. 7 Phone Calls .............................................................. 8 Calling from the Phone .................................................... 8 Calling from Your Contacts .............................................. 8 Calling from a Text Message ........................................... 9 Receiving Calls ................................................................ 9 Contacts ................................................................... 9 Messaging .............................................................. 10 The Message Box .......................................................... 10 Sending an Message ..................................................... 10 Message Settings .......................................................... 11 Touch Input Settings ...................................................... 11 2 Getting Connected to the Internet ........................ 11 Adding a New Network Connection ..................... 11 Turning On Wi-Fi ........................................................... 12 Connecting to a Wi-Fi Network ...................................... 12 Checking the Wi-Fi Network Status ............................... 12 USB tethering & portable hotspot .................................. 12 Browsing the Internet ............................................ 14 Making the Most of Multimedia ............................. 14 Camera .......................................................................... 14 FM ................................................................................. 14 Playing Music ................................................................ 14 Gallery ........................................................................... 15 Sund Recorder .............................................................. 15 Sorting out Your Phone Settings .......................... 15 Bluetooth ....................................................................... 15 Setting Date and Time ................................................... 16 Display Settings ............................................................. 16 Sound Settings .............................................................. 16 Language Settings ........................................................ 16 Security Settings ........................................................... 17 Managing Your Device Memory .................................... 17 Reset to Factory Settings .............................................. 17 Google ........................................................................... 18 Clock.............................................................................. 18 Calculator ...................................................................... 18 3 Screen record ................................................................ 18 For Your Safety ...................................................... 19 General Safety ............................................................... 19 Distraction ...................................................................... 20 Product Handling ........................................................... 20 Electrical Safety ............................................................. 23 Interference .................................................................... 24 Explosive Environments ................................................ 25 System update ............................................................... 26 Common fault diagnosis ................................................ 26 Getting Started Overview 客户补充外观图 4 Key Explainrd Key Function Power Key • Press to turn on or off • Press to restart your phone • Press to Screenshot • Press to Emergency Home Key • Press to return to the Home Screen from any application or screen. Menu Key Hold to see recently used applications. Back Key Press to go to the previous screen. Volume Keys Press or hold to turn the volume up or down. Starting up Status and Notification lcons Your phone will tell you exactly what’s going on by showing you simple icons. Here’s what they mean 5 USB connected Missed call Airplane mode Signal strength Battery charge New message Meeting mode Wi-Fi network Alarm set Earphone insert Silent mode New Wi-Fi network detected Bluetooth icon USB debugging connected Installing the SIM/SD Switch off your phone before installing or replacing the battery, SIM, or memory card. 1.Remove the back cover 2.Hold the SIM card with the cut corner oriented as shown and slip it into the card holder. 3.Insert the memory card into the card slot with the metal contacts facing down until it inserts to the right position. 4.Press the cover gently back into place until you hear a click. Charging the Battery When you first get your new phone you’ll need to charge the battery. Connect the adapter to the charger jack. Ensure that the adapter is inserted 6 with the correct orientation. Do not force the connector into the charger jack. Connect the charger to a standard AC wall outlet. Disconnect the charger when the battery is fully charged. Switching Your Phone On/Off Make sure the SIM card is in your device and the battery is charged. 1. Hold Power Key to switch on your phone. 2. To switch it off, hold Power Key to get the phone options. Select Power off, and then tap OK. Setting Up Your Phone for the First Time When you first power on your phone after you purchase it or reset it to factory settings (see chapter Sorting out Your…

Text truncated - open the document above for the full version.

Attestation Statements 2024-03-29 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: R38YLCP12S) Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd, the undersigned, hereby authorize Coolpad Technologies Inc to act as our designated U.S. agent for service of process, Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Coolpad Technologies Inc accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd Contact Name: DeYu Li Address: Floor 20, Block C, Coolpad Building North High-TechIndustrial Park, Nanshan District, Telephone No: 86-755-83301199 FRN: 0022250344 Email: [email protected] Signature: DeYu Li U.S. Agent Information: Company Name: Coolpad Technologies Inc Address: 530 Technology Drive, Suite 100, Irvine CA 92618 FRN: 0033414293 Contact Name: Brandy Cudd Telephone No:9724392126 Email: [email protected] Signature: Brandy Cudd

Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd 2024-03-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: R38YLCP12S) Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: DeYu Li Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd 2024-03-29 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: R38YLCP12S) Yulong Computer Telecommunication Scientific (Shenzhen) Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: DeYu Li

HWE UNISOC CONFIDENTIAL AND PROPRIETARY TITLE & REV: B 1 2 3 4 5 D C B A 6 C D A LTR REVISION RECORD APPROVED: DATE: ECO NO: EQA: DESIGNER: APPROVED: DATED: DATED: DATED: DEPARTMENT: DOCUMENT NO.: COMPANY: 2021-05-18 Leiwen.Ma Hongqing.Li Hongyu.Yang UMS9230_A_CS_A_SCH_V0.1.0 BLOCK DIAGRAM 2021-05-18 2021-05-18 GSM 850: 824 ~ 849 MHz PCS 1900: 1850 ~ 1910 MHz WCDMA Band II: 1850 ~ 1910 MHz WCDMA Band IV:1710 ~ 1755 MHz WCDMA Band V: 824 ~ 849 MHz LTE Band 2:1850 ~1910MHz LTE Band 4:1710 ~1755MHz LTE Band 5:824 ~ 849MHz LTE Band 7:2500 ~ 2570MHz LTE Band 12:699~716MHz LTE Band 17:704 ~ 716MHz LTE Band 25:1850~1915MHz LTE Band 26:814~824MHz/824-849MHz LTE Band 66:1710~1780MHz WLAN 802.11b/g/n20: 2412 MHz ~ 2462 MHz WLAN 802.11n40: 2422 MHz ~ 2452 MHz 5G WLAN: 5150 ~ 5250 MHz 5725 ~ 5850 MHz Bluetooth: 2402 ~ 2480 MHz

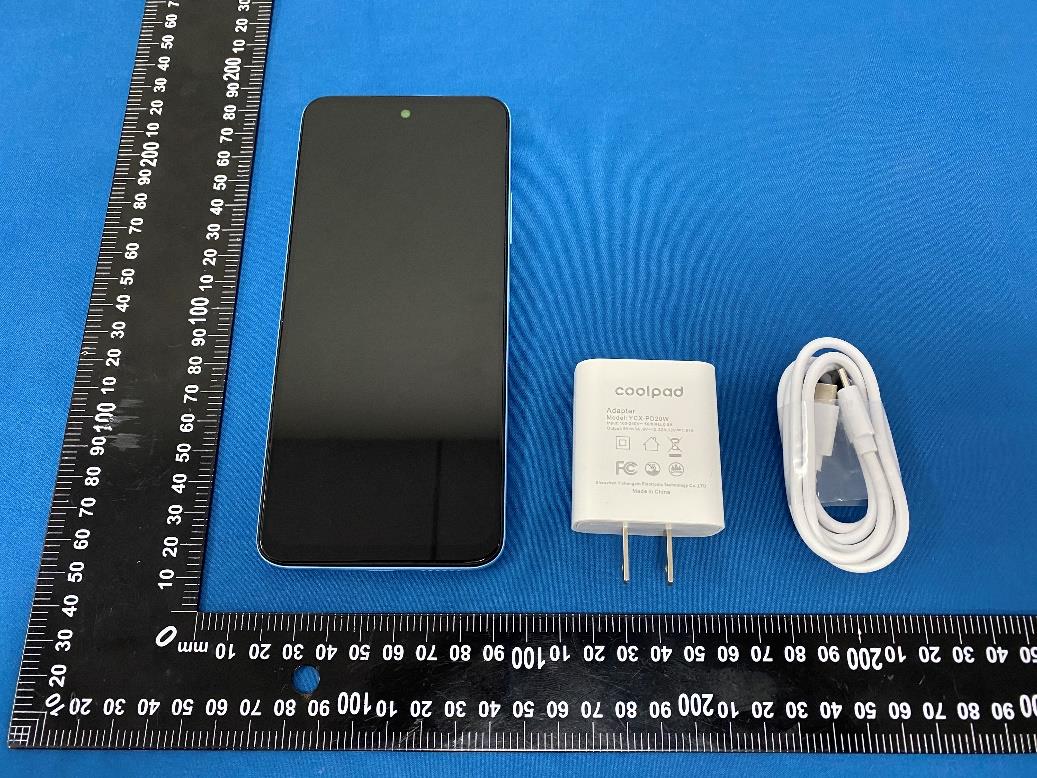

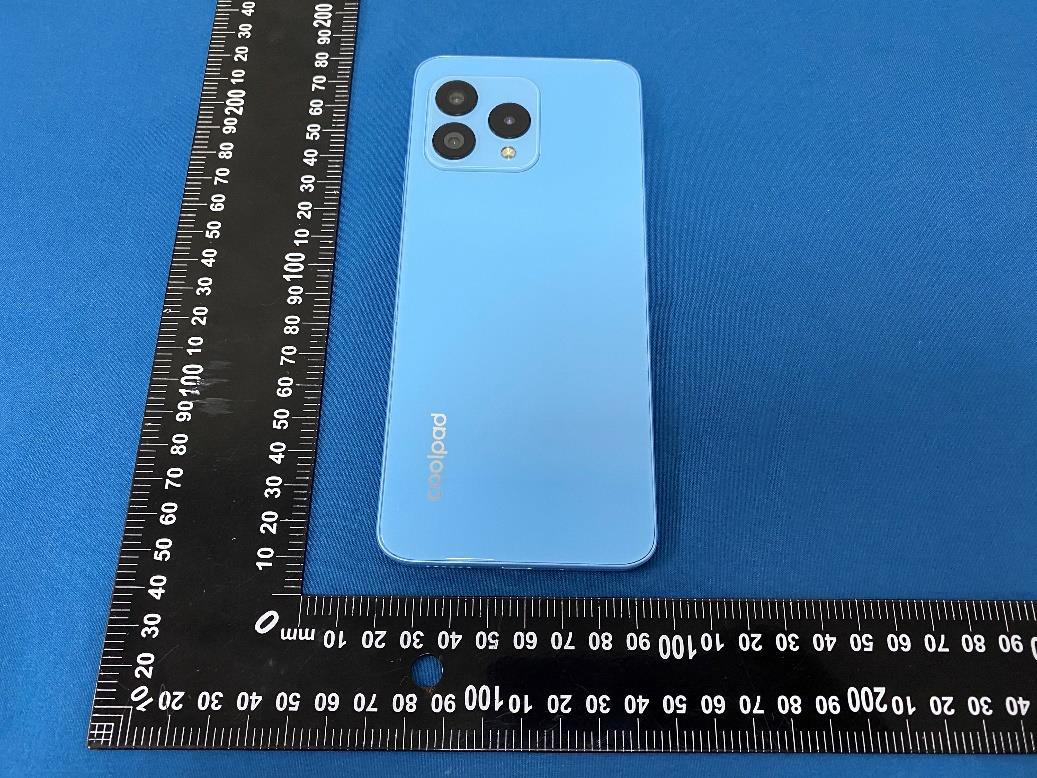

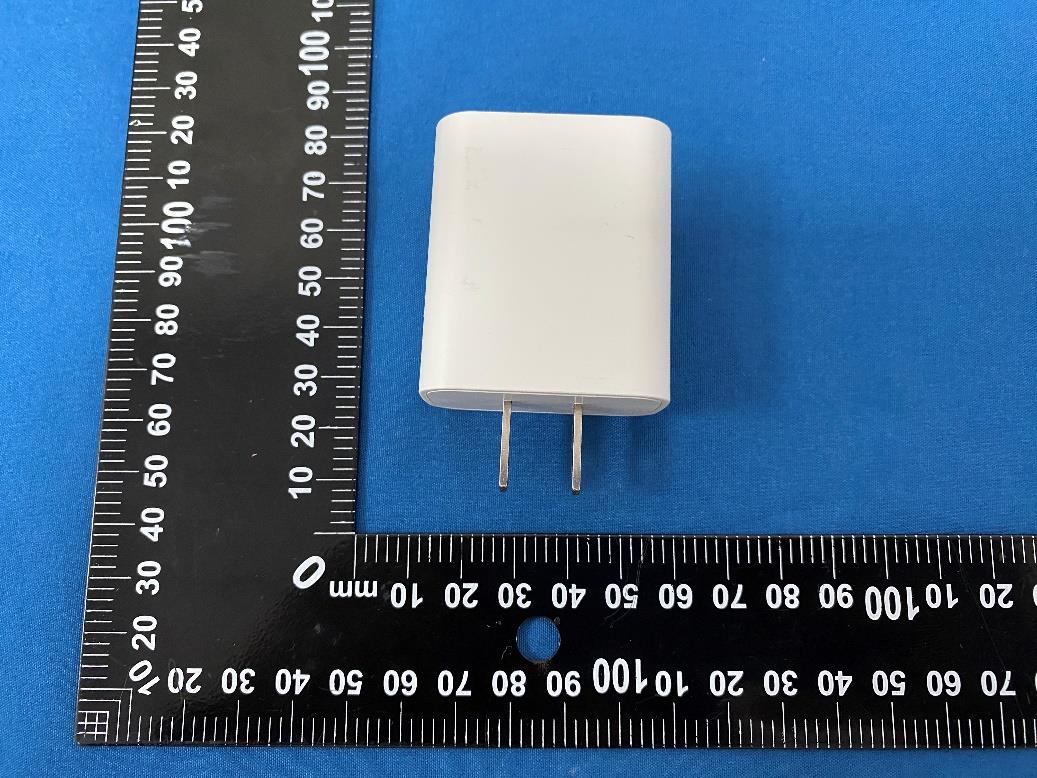

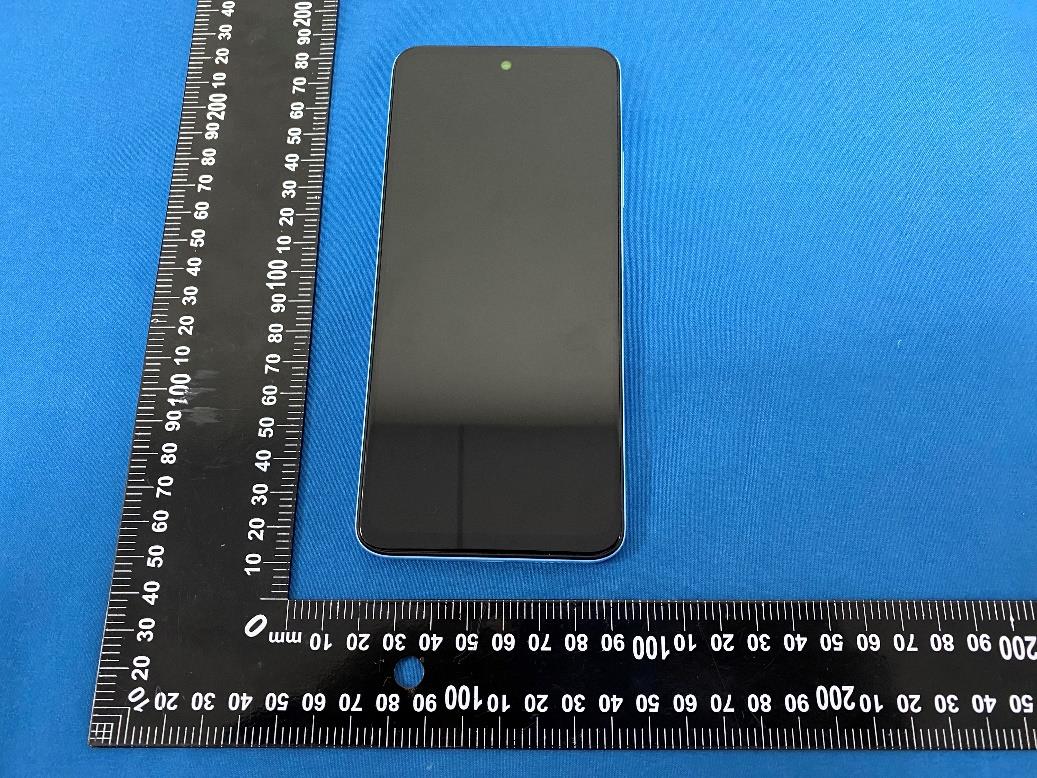

Page 1 of 5 Report No.: LGT24B033 Appendix - External Photographs of EUT Constructional Details Model: CP12s Photo 1 Photo 2 Page 2 of 5 Report No.: LGT24B033 Photo 3 Photo 4 Page 3 of 5 Report No.: LGT24B033 Photo 5 Photo 6 Page 4 of 5 Report No.: LGT24B033 Photo 7 Photo 8 Page 5 of 5 Report No.: LGT24B033 Photo 9

Page 1 of 7 Report No.: LGT24B033 Appendix - Internal Photographs of EUT Constructional Details Model: CP12s Photo 1 Photo 2 Page 2 of 7 Report No.: LGT24B033 Photo 3 Photo 4 Page 3 of 7 Report No.: LGT24B033 Photo 5 Photo 6 Page 4 of 7 Report No.: LGT24B033 Photo 7 Photo 8 Page 5 of 7 Report No.: LGT24B033 Photo 9 Photo 10 Page 6 of 7 Report No.: LGT24B033 Photo 11 Photo 12 Page 7 of 7 Report No.: LGT24B033 Photo 13 Photo 14

Operational Description 1. Overview: S68581 works with GSM quad band (GSM850/900/1800/1900), UMTS band1/8,LTE B1/3/5/7/8/20/38/41. It can support DC-HSDPA downlink ,HSUPA uplink data rates, as well as Class 12 GPRS (in both uplink and downlink mode) and EDGE. 2. System diagram Overview: Qogir L6 SR3595D RF SPI LVDSRF 26M RFCTL RFFE FEM PRX TX SWITC H DRX TCXO WCN ANT EMMC PHY EMMC5.1 LPDDR4X DDR PHY FHD+ LCM DSI CTP IIC3/EXTINT0/1 CAMERA REAR(Sub) CSI1_M CAMERA REAR(Main) CSI0 IIC0 PROX/G+M+R SENSOR IIC2/GPIO UMP510G (SC2730) ADI Interface DCDC power input LDO power input AUD/VBC Interface 32K Speaker Receiver Main MIC Aux MIC VIBRATOR Backup BAT/CAP USB2.0 TypeC VBUS VBAT Charge DP/DM DP/DM USB20 DP/DM KEYPAD SIM0 SIM1 T-Flash KEYPAD SIM0 SIM1 SDIO0 Tri- plexer SAW SAWLNA WB_IQ WF_IQ GPS_IQ FM_ANT CAMERA REAR(Third) CSI1_S IIC1 Merlion WF_2G_T RX GNSS_ RFIN FM_L ANT DCDC/Charger/Flash/LCM Driver/WLED IIC5/ADI2 DCXO/TSX PMIC 26M to AP PMIC 26M to Transceiver PMIC 26M to merlion PMIC 26M to Transceiver PMIC 26M to AP PMIC 26M to Merlion PRX_ANT DRX_ANT DPDT UCP1301 HIFI IIS1 Headset WF_5G_T RX 5G_AUX_ RX 5G_AUX_ TXWCN_SPI FM_SPI WF_SPI CHIP_EN/RST WCN_RFCTLsWCN_RFCTLs to WCN 5G FEM IIC8 CAMERA FRONT CSI2 CLK26M_WCN TCXO to PMIC TCXO to PMIC Main Li-on Battery 2.1. RF: RF (Radio Frequency) section is in charge of the signal transmit and receiving, signal modulation and demodulation. 2.2. Product technical parameters: GSM Items GSM850 GSM900 DCS PCS Frequency allocation TX(Uplink): 824M‐ 849MHZ TX(Uplink): 880M‐ 915MHZ TX(Uplink): 1710M‐ 1785MHZ TX(Uplink): 1850M‐ 1910MHZ RX(Downlink): 869M‐894MHz RX(Downlink): 925M‐ 960MHZ RX(Downlink): 1805M‐ 1880MHZ RX(Downlink): 1930M‐ 1990MHZ Channelwidth 200KHz 200KHz 200KHz 200KHz Channel 128‐251 975‐1023，0‐124 512‐885 512‐810 Modulation GMSK,BT=0.3 8PSK(downlink) GMSK,BT=0.3 8PSK(downlink) GMSK,BT=0.3 8PSK(downlink) GMSK,BT=0.3 8PSK(downlink) power class 4 4 1 1 GPRS Class12 capability class B Class12 capability class B Class12 capability class B Class12 capability class B EGPRS Class 12 Class 12 Class 12 Class 12 TX/RX space 45MHz 45MHz 95MHz 80MHz (Fn)Freq. calculating formula Fn=824.2+(N‐128) X0.2 N: Channel No. Unit: MHz Fn=880.2+(N‐975) X0.2 N: Channel No. Unit: MHz Fn=1710.2+(N‐ 512 )X0.2 N: Channel No. Unit: MHz Fn=1850.2+(N‐512 )X0.2 N: Channel No. Unit: MHz WCDMA Items Band1 Band8 Frequency allocation TX(Uplink):1920-1980MHz TX(Uplink): 880-915MHz RX(Downlink):2110-2170MHz RX(Downlink):925-960MHz Channel band width 5MHz 5MHz Channel 9612‐9888 2712-2863 Modulation Uplink: QPSK Downlink: 16QAM Uplink: QPSK Downlink: 16QAM power class Power Class 3 Power Class 3 HSDPA Power Class 3 Category 14 Power Class 3 Category 14 HSUPA Power Class 3 Category 6 Power Class 3 Category 6 TX/RX channel space 190MHz 45MHz (Fn)Freq. calculating formula Fn = 1922.4+ (N‐9612) X0.2N: Channel No. //Unit: MHz Fn = 882.4+ (N‐2712) X0.2N: Channel No. //Unit: MHz Power Class 3 3 Cell Radius 800m 800m LTE Items band1 band3 band5 band7 band8 Frequenc y allocati on TX(Uplink) :1920-19 80MHz TX(Uplink) :1710-17 85MHz TX(Uplink) :824-8 49MHz TX(Uplink) :2500-25 70MHz TX(Uplink) :880-9 15MHz RX(Downlink):2110-2 170MHz RX(Downlink):1805-1 880MHz RX(Downlink):869- 894MHz RX(Downlink):2620-2 690MHz RX(Downlink):925- 960MHz Channel band width 1.4M/3M/5M/10M/15M/ 20M 1.4M/3M/5M/10M/15M/ 20M 1.4M/3M/5M/10M/15 M 5M/10M/15M/20M 1.4M/3M/5M/10M Channel 18000-18599 19200-19949 20400-20649 20750-21449 21450-21799 Modulati on QPSK,16QAM QPSK,16QAM QPSK,16QAM QPSK,16QAM QPSK,16QAM power class 3 3 3 3 3 TX/RX channel space 190MHz 95MHz 45MHz 120MHz 45MHz (Fn)Freq . calculat ing formula Fn = 1920+ (N‐ 18000)X 0.2 N: Channel No. //Unit: MHz Fn = 1710+ (N‐ 19200)X 0.2 N: Channel No. //Unit: MHz Fn = 824+ (N‐ 20400)X 0.2 N: Channel No. //Unit: MHz Fn = 2500+ (N‐ 20750)X 0.2 N: Channel No. //Unit: MHz Fn = 880+ (N‐ 21450)X 0.2 N: Channel No. //Unit: MHz Items band20 band38 band41 Frequency allocation TX(Uplink) :832-862MHz 2570-2620MHz 2496-2689MHz RX(Downlink):791-821MHz Channel band width 5M/10M/15M/20M 5M/10M/15M/20M 5M/10M/15M/20M Channel 24150-24449 37750-38249 39650-41589 Modulation QPSK,16QAM QPSK,16QAM QPSK,16QAM power class 3 3 3 TX/RX channel space 41MHz Fn = 2570+ (N‐ 37750)X 0.2 N: Channel No. //Unit: MHz Fn = 2496+ (N‐ 38650)X 0.2 N: Channel No. //Unit: MHz (Fn)Freq. calculating formula Fn = 832+ (N‐24150)X 0.2 N: Channel No. //Unit: MHz BR/EDR Specs: BR/EDRSpecs: Items Values FrequencyRange 2402MHz–2480MHz Power 6.5dBm±1dB Modulation GFSK/8‐DPSK/π/4‐DQPSK Numberorchannels 79 Channelspacing 1MHz BLE Specs: Items Values FrequencyRange 2402MHz–2480MHz RFPowerOutput 0.0dBm±1dB Modulation GFSK Numberorchannels 40 WIFI: Frequencyrange 2412MHz–2472MHzforb/g/n(HT20) 2422MHz–2462MHzforn(HT40) 5150MHz-5820MHz IEEE 802.11a,b,g,n HT20/HT40 RFpower802.11baveragepower 15.5Bm±1dB RFpower802.11gaveragepower 13.5dBm±1dB RFpower802.11nHT20averagepower 12.5dBm±1dB RFpower802.11nHT40averagepower 10.0dBm±1dB RFpower802.11bpeakpower 20.0dBm±1dB RFpower802.11gpeakpower 22.0dBm±1dB RFpower802.11nHT20peakpower 22.0dBm±1dB RFpower802.11nHT40peakpower 20.0dBm±1dB RFpower802.11aHT20peakpower 18.0dBm±1dB RFpower802.11aHT20peakpower 18.0dBm±1dB Modulation DSSS/OFDM Channelspacing 5MHz/10MHz/20MHz RECOMMENDABLE OPERATION CONDITION: NormalSupplyVoltage(Vd.c.) 3.7V MaximumExtremeSupplyVoltage(Vd.c.) 4.2V MinimumExtremeSupplyVoltage(Vd.c.) 3.4V MinimumExtremeTemperature ‐20°C SIM/USIMVoltage 1.8/3v 2G PA PA parameter GSM Specification Min. Typ. Max. Powersupplyvoltage 3.1V 3.5V 4.8V Powersupplycurrent 0 0.23 1.8A 3G PA PA parameter UMTS Specification Min. Typ. Max. Powersupplyvoltage 3.1V 3.2V 4.2V Powersupplycurrent 0 0.51 0.8A 2.3. BB: BB (Base‐Band) section is the control & management center of the mobile where OS (Operate System) running and provides the MMI for the Tablet PC. 2.4. Receiver principle The aerial signal mobile received go to RF Connector, and then transmit to transceiver via the selected band i…

Text truncated - open the document above for the full version.

版本:V1.0版作成日期：2024/3/25 name of materialdescriptionPlacementPCS CPU UMS9230T;704;FCCSP;12x10.8;040;BB;LTE U21001 PMUUMP510G;247;FCVFBGA;7.7*7.7;040;PMUU02001 DC-DC VIN Voltage：（–0.3V to 6.0V），Default Output Voltage （0.88-0.92V） U03011 WIFI ICUMW2631;117;WBBGA;4.5x4.2;035;WCN;RFU72051 GPS/WIFI SAW DPX GPS/WIFI （GPS(1.5GHZ)/WLAN(2.4G/5GHZ),2.0*1.2*0.9mm） U72011 WIFI SAWWIFI SAW Filter,Unbalanced,2442MHz,1.1*0.9*0.65mmU72041 GPS SAW GPS SAW Filter,Unbalanced,1575.42MHz,1.15*0.95*0.65mm GPS SAW GPS SAW Filter,Unbalanced,1575.42MHz,1.15*0.95*0.65mm GPS LNAGNSS,LNA,DFN-6L,1.1*0.9*0.45mmU72031 LDO DC_DC BOST CHIP (TSOT23-6) U41001 SchottkySchottky Barrier Diode;40V;0.5V/1A;SOD-323D41001 RFPA MMMB PA,4mm*6.8mm*0.73mm,LGA 42 U06011 RFPA4GRF SWITCH (5.5*5.3*0.8mm)__TX moduleU07051 TransceiverSR3595D;123;FCVFBGA;4.5*4.5;035;RF;4GU06001 CrystalTSX;26MHZ;+/-10ppm;9pf;2.5*2.0mmY02001 RF SWITCH 0.1 to 3.0 GHz SP8T Antenna Switch Small QFN (14- pin,2.0*2.0*0.55mm) U0802 U08092 UFS+DDR4XUFS+LPDDR4X;128GB/6GB;12x15,254ball BGAU05001 1U7202 第1页，共54页 版本:V1.0版作成日期：2024/3/25 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 ResistorRES,47K,±1%,1/20W,0201 ResistorRES,47K,±1%,1/20W,0201 ResistorRES,47K,±1%,1/20W,0201 ResistorRES,47K,±1%,1/20W,0201 2 5 1 1 C0525 C0520 C0506 C0522 C0524 C0500 C0503 C0508 R0611 第2页，共54页 版本:V1.0版作成日期：2024/3/25 ResistorRES,10K,±5%,1/20W,0201 ResistorRES,10K,±5%,1/20W,0201 ResistorRES,10K,±5%,1/20W,0201 ResistorRES,10K,±5%,1/20W,0201 ResistorRES,0Ω±5%,1/20W,0201 ResistorRES,0Ω±5%,1/20W,0201 ResistorRES,0Ω±5%,1/20W,0201 ResistorRES,0Ω±5%,1/20W,0201 ResistorRES,0Ω±5%,1/16W,0402 ResistorRES,0Ω±5%,1/16W,0402 ResistorRES,0Ω±5%,1/16W,0402 ResistorRES,0Ω±5%,1/16W,0402 CapacitorCAP,X5R,22uF,±20%,10V,0603 CapacitorCAP,X5R,22uF,±20%,10V,0603 CapacitorCAP,X5R,22uF,±20%,10V,0603 CapacitorCAP,X5R,10uF,±20%,6.3V,0603 CapacitorCAP,X5R,10uF,±20%,6.3V,0603 CapacitorCAP,X5R,10uF,±20%,6.3V,0603 CapacitorCAP,X5R,10uF,±20%,6.3V,0603 1 13 2 19 13 R0532 R0539 C0303 C0304 C0319 C0519 C0523 C0530 C0732 C2211 C2217 C2221 C2233 C2237 C2251 C2277 C2273 C2269 C2265 C6101 C5104 C0210 C0200 C0326 C0327 C0324 C0321 C0312 C2261 C7202 C0300 C0301 C5122 C0347 R6203 R0504 R0501 R0523 R0525 R0507 R0509 R0527 R0529 R0519 R0521 R2202 R2210 R0534 第3页，共54页 版本:V1.0版作成日期：2024/3/25 CapacitorCAP,X5R,10uF,±20%,6.3V,0603 CapacitorCAP,X5R,10uF,±20%,10V,0402 CapacitorCAP,X5R,10uF,±20%,10V,0402 CapacitorCAP,X5R,10uF,±20%,10V,0402 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,4.7uF,±20%,6.3V,0402 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0402 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0201 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0201 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0201 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0201 CapacitorCAP,X5R,2.2uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±10%,6.3V,0402 CapacitorCAP,X5R,1uF,±10%,6.3V,0402 CapacitorCAP,X5R,1uF,±10%,6.3V,0402 CapacitorCAP,X5R,1uF,±10%,6.3V,0402 17 14 1 1 13 3 C0208 C0640 C0210 C0200 C0326 C0327 C0324 C0321 C0312 C2261 C7202 C0300 C0301 C5122 C0347 C0315 C2219 C5100 C0209 C0325 C0627 C0618 C2270 C2262 C2252 C2222 C2238 C3121 C4101 C7212 C0514 C0516 C5113 C5148 C6402 C0213 C0211 C0206 C0316 C0308 C0334 C0604 C0622 C0623 C0507 C0528 C0529 C6206 C6301 第4页，共54页 版本:V1.0版作成日期：2024/3/25 CapacitorCAP,X5R,1uF,±10%,6.3V,0402 CapacitorCAP,X5R,1uF,±10%,25V,0402 CapacitorCAP,X5R,1uF,±10%,25V,0402 CapacitorCAP,X5R,1uF,±10%,25V,0402 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±20%,6.3V,0201 CapacitorCAP,X5R,1uF,±10%,50V,0603 CapacitorCAP,X5R,1uF,±10%,50V,0603 CapacitorCAP,X5R,1uF,±10%,50V,0603 CapacitorCAP,X5R,1uF,±10%,50V,0603 CapacitorCAP,X5R,1uF,±10%,50V,0603 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 1 1 1 1 48 C0640 C0335 C0203 C0204 C0217 C0212 C0344 C0342 C0328 C0309 C0337 C0605 C0616 C2276 C2268 C2259 C2236 C2248 C2230 C2212 C2249 C2213 C2250 C2256 C2216 C2232 C2242 C3102 C3103 C3117 C3116 C4109 C7222 C7211 C7232 C7206 C2235 C2258 C2229 C7208 C0510 C0512 C0526 C0527 C5121 C5134 C5160 C6400 C6401 C0628 C4103 C0214 第5页，共54页 版本:V1.0版作成日期：2024/3/25 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 CapacitorCAP,X5R,470nF,±20%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,100nF,±10%,6.3V,0201 CapacitorCAP,X5R,10nF,±10%,25V,0201 CapacitorCAP,X5R,10nF,±10%,25V,0201 CapacitorCAP,X5R,10nF,±10%,25V,0201 CapacitorCAP,X5R,10nF,±10%,25V,0201 CapacitorCAP,X5R,10nF,±10%,25V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 CapacitorCAP,X7R,1.0nF,±10%,50V,0201 1 55 1 6 C0828 C0810 C2272 C2274 C2264 C2266 C2254 C2257 C2231 C2234 C2240 C2243 C2224 C2223 C2215 C2260 C2206 C2207 C2208 C2209 C2202 C2200 C2247 C2218 C2201 C2204 C2203 C2205 C2278 C2220 C2279 C2228 C2227 C2245 C2225 C2244 C2246 C0603 C2255 C0504 C0518 C0511 C0513 C0501 C0509 C5150 C6103 C4106 C0740 C0601 C0626 C0639 C3114 C3115 C7237 C0214 第6页，共54页 版本:V1.0版作成日期：2024/3/25 CapacitorCAP,X7R,470pF,±10%,50V,0201 Capacit…

Text truncated - open the document above for the full version.

FCC ID _Tune Up Procedure Measurement Procedure: 1. Set the device to operational voltage and on a predefined channel in a special test mode. 2. The actual output power is measured at several power levels. 3. The gain factors of each individual device are adjusted until the target value is met. The appropriate gain control settings for each output power level are stored in each device individually (for each power level). The user has no possibility to change these settings later on. 4. The maximum gains of each individual device are adjusted and measured until the target value is met. The production target power with tolerance compiles with the maximum power in test report. Rated RF power output: Mode GSM850 GSM1900 GSM 34±1dBm 31±1dBm GPRS (1 Slot) 34±1dBm 31±1dBm GPRS (2 Slot) 32±1dBm 28±1dBm GPRS (3 Slot) 30±1dBm 26±1dBm GPRS (4 Slot) 28±1dBm 24±1dBm EDGE (1 Slot) 27±1dBm 27±1dBm EDGE (2 Slot) 25.5±1dBm 25.5±1dBm EDGE (3 Slot) 23.5±1dBm 22.5±1dBm EDGE (4 Slot) 20.5±1dBm 21±1dBm Mode WCDMA Band II WCDMA Band IV WCDMA Band V RMC 23.5±1dBm 23±1dBm 23.5±1dBm HSDPA Subtest-1 23.5±1dBm 23±1dBm 23±1dBm HSDPA Subtest-2 23.5±1dBm 23±1dBm 23±1dBm HSDPA Subtest-3 23±1dBm 22.5±1dBm 22.5±1dBm HSDPA Subtest-4 22.5±1dBm 22±1dBm 22.5±1dBm HSUPA Subtest-1 23.5±1dBm 23±1dBm 23±1dBm HSUPA Subtest-2 23.5±1dBm 23±1dBm 23±1dBm HSUPA Subtest-3 23.5±1dBm 23±1dBm 23±1dBm HSUPA Subtest-4 23.5±1dBm 23±1dBm 23±1dBm HSUPA Subtest-5 23±1dBm 23±1dBm 23±1dBm BW[MHz] RB Size Mode Band 2 Band 4 Band 5 Band 7 Band 12 1.4 1 QPSK 23.5±1dBm 24±1dBm 23.5±1dBm N/A 23±1dBm 1.4 3 23.5±1dBm 24±1dBm 23.5±1dBm N/A 23±1dBm 1.4 6 23±1dBm 23.5±1dBm 23±1dBm N/A 22.5±1dBm 1.4 1 16- QAM 23.5±1dBm 24±1dBm 23.5±1dBm N/A 23±1dBm 1.4 3 23±1dBm 23±1dBm 22.5±1dBm N/A 22.5±1dBm 1.4 6 21.5±1dBm 22±1dBm 22±1dBm N/A 21.5±1dBm 3 1 QPSK 23.5±1dBm 24±1dBm 23.5±1dBm N/A 23.5±1dBm 3 8 23±1dBm 23.5±1dBm 23±1dBm N/A 22.5±1dBm 3 15 23±1dBm 23.5±1dBm 23±1dBm N/A 22.5±1dBm 3 1 16- QAM 23.5±1dBm 24±1dBm 23±1dBm N/A 23±1dBm 3 8 22±1dBm 22±1dBm 22±1dBm N/A 21.5±1dBm 3 15 22±1dBm 22±1dBm 22±1dBm N/A 21±1dBm 5 1 QPSK 23.5±1dBm 23.5±1dBm 23.5±1dBm 23.5±1dBm 23.5±1dBm 5 12 23±1dBm 23.5±1dBm 23±1dBm 23.5±1dBm 22.5±1dBm 5 25 23±1dBm 23±1dBm 23±1dBm 23.5±1dBm 22.5±1dBm 5 1 16- QAM 22.5±1dBm 23±1dBm 22.5±1dBm 23.5±1dBm 22±1dBm 5 12 21.5±1dBm 22±1dBm 21.5±1dBm 22±1dBm 21±1dBm 5 25 21.5±1dBm 22±1dBm 21.5±1dBm 22±1dBm 21±1dBm 10 1 QPSK 23.5±1dBm 24±1dBm 24±1dBm 24±1dBm 23.5±1dBm 10 25 23±1dBm 23.5±1dBm 23.5±1dBm 23±1dBm 22.5±1dBm 10 50 23±1dBm 23.5±1dBm 23.5±1dBm 23±1dBm 22.5±1dBm 10 1 16- QAM 23.5±1dBm 24±1dBm 23.5±1dBm 23±1dBm 23±1dBm 10 25 21.5±1dBm 22±1dBm 22.5±1dBm 22±1dBm 21±1dBm 10 50 21.5±1dBm 22±1dBm 22±1dBm 22±1dBm 21±1dBm 15 1 QPSK 23.5±1dBm 24±1dBm N/A 24±1dBm N/A 15 36 23±1dBm 23.5±1dBm N/A 23.5±1dBm N/A 15 75 23±1dBm 23.5±1dBm N/A 23±1dBm N/A 15 1 16- QAM 23.5±1dBm 24±1dBm N/A 24±1dBm N/A 15 36 21.5±1dBm 22±1dBm N/A 22±1dBm N/A 15 75 21.5±1dBm 22±1dBm N/A 22±1dBm N/A 20 1 QPSK 24±1dBm 24.5±1dBm N/A 24±1dBm N/A 20 50 23.5±1dBm 24±1dBm N/A 23±1dBm N/A 20 100 23.5±1dBm 24±1dBm N/A 23±1dBm N/A 20 1 16- QAM 23±1dBm 23.5±1dBm N/A 23±1dBm N/A 20 50 22±1dBm 22.5±1dBm N/A 22±1dBm N/A 20 100 22±1dBm 22.5±1dBm N/A 22±1dBm N/A BW[MHz] RB Size Mode Band 17 Band 25 Band 26 (Part 22) Band 26 (Part 90) Band 66 1.4 1 QPSK N/A 23.5±1dBm 23.5±1dBm 23.5±1dBm 24±1dBm 1.4 3 N/A 23.5±1dBm 22.5±1dBm 23±1dBm 24±1dBm 1.4 6 N/A 23±1dBm 22±1dBm 22.5±1dBm 24±1dBm 1.4 1 16- QAM N/A 23.5±1dBm 23.5±1dBm 23±1dBm 24±1dBm 1.4 3 N/A 23±1dBm 22±1dBm 22±1dBm 23.5±1dBm 1.4 6 N/A 21.5±1dBm 21±1dBm 21±1dBm 22.5±1dBm 3 1 QPSK N/A 23.5±1dBm 23.5±1dBm 23.5±1dBm 24±1dBm 3 8 N/A 23.5±1dBm 22±1dBm 22.5±1dBm 24±1dBm 3 15 N/A 23±1dBm 22±1dBm 22.5±1dBm 23.5±1dBm 3 1 16- QAM N/A 23.5±1dBm 23.5±1dBm 23±1dBm 23±1dBm 3 8 N/A 21.5±1dBm 21±1dBm 21.5±1dBm 22±1dBm 3 15 N/A 21.5±1dBm 21±1dBm 21.5±1dBm 22±1dBm 5 1 QPSK 23±1dBm 23.5±1dBm 23±1dBm 23.5±1dBm 24±1dBm 5 12 22.5±1dBm 23±1dBm 22±1dBm 22.5±1dBm 24±1dBm 5 25 22.5±1dBm 23±1dBm 22±1dBm 22.5±1dBm 23.5±1dBm 5 1 16- QAM 22±1dBm 23.5±1dBm 22.5±1dBm 22.5±1dBm 23±1dBm 5 12 21±1dBm 21.5±1dBm 21±1dBm 21.5±1dBm 22±1dBm 5 25 21±1dBm 21.5±1dBm 21±1dBm 21.5±1dBm 22±1dBm 10 1 QPSK 23.5±1dBm 23.5±1dBm 24±1dBm 23.5±1dBm 24.5±1dBm 10 25 22.5±1dBm 23±1dBm 23±1dBm 23±1dBm 23.5±1dBm 10 50 22.5±1dBm 23±1dBm 23±1dBm 23±1dBm 23.5±1dBm 10 1 16- QAM 23±1dBm 23.5±1dBm 23±1dBm 23±1dBm 24±1dBm 10 25 21±1dBm 22±1dBm 21±1dBm 22±1dBm 22.5±1dBm 10 50 21±1dBm 22±1dBm 21±1dBm 21.5±1dBm 22±1dBm 15 1 QPSK N/A 23.5±1dBm N/A 24±1dBm 24.5±1dBm 15 36 N/A 23±1dBm N/A 23.5±1dBm 23.5±1dBm 15 75 N/A 23±1dBm N/A 23.5±1dBm 23.5±1dBm 15 1 16- QAM N/A 23.5±1dBm N/A 23.5±1dBm 24±1dBm 15 36 N/A 22±1dBm N/A 22.5±1dBm 22.5±1dBm 15 75 N/A 21.5±1dBm N/A 22±1dBm 22±1dBm 20 1 QPSK N/A 24±1dBm N/A N/A 25±1dBm 20 50 N/A 23.5±1dBm N/A N/A 24±1dBm 20 100 N/A 23.5±1dBm N/A N/A 24±1dBm 20 1 16- QAM N/A 23±1dBm N/A N/A 24±1dBm 20 50 N/A 22±1dBm N/A N/A 22.5±1dBm 20 100 N/A 22±1dBm N/A N/A 22.5±1dBm Mode BT GFSK 4±1dBm π/4-DQPSK 4±1dBm 8DPSK 4.5±1dBm Mode BLE GFSK(1Mbps) 0±1dBm GFSK(2Mbps) 0±1dBm Mode 2.4G WLAN 802.11b 15.5±1dBm 802.11g 13.5±1dBm 802.11n(HT20) 13.5±1dBm 802.11n(HT40) 13±1dBm Mode 5.2G WLAN 802.11a 2.5±1dBm 802.11 n-HT20 2.5±1dBm 802.11 n-HT40 2.5±1dBm 802.11 ac-VHT20 2.5±1dBm 802.11 ac-VHT40 2.5±1dBm Mode 5.8G WLAN 802.11a 1.5±1dBm 802.11 n-HT20 1.5±1dBm 802.11 n-HT40 1.5±1dBm 802.11 ac-VHT20 2±1dBm 802.11 ac-VHT40 1.5±1dBm Then these appropriate rated RF output power settings are stored in each device individually. The user has no possibility to change these settings later on, and during manufacturing each device will be individual calibrated. The measurement is done in fully calibrated setup, which is based on the base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).
