R4FIRISUPPLY40RFID Cabinet

4.0 User Guide PREFACE This user guide provide information for the use and operation of the iRISupply™ Cabinet System. This user guide is considered a permanent part of the iRISupply™ Cabinet System, and should remain with the iRISupply™ Cabinet System at all times. The iRISupply Cabinet System must be professionally installed by authorized personnel from Mobile Aspects. Changes or modifications no t expressly approved by Mobile Aspects could void the user’s authority to operate the iRISupply Cabinet System. The information and specifications included in this publication were in effect at the time of approval for printing. Mobile Aspects re serves the right, however, to discontinue or change sp ecifications or design at anytime without notice and without incurring any obligation whatever. No part of this publication may be reproduced without written permission. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Revision History Date Version Description Author 04/14/06 1.0 Original Version K. Le Table of Contents 1. iRISupply User Log-In.................................. 6 1.1. Magnetic Stripe Card .. Error! Bookmark not defined. 1.1.1. Process Flow Diagram Error! Bookmark not defined. 1.1.2. Process Flow Description ............. Error! Bookmark not defined. 1.2. HID ....................................................... 6 1.2.1. Process Flow Diagram ........................ 7 1.2.2. Process Flow Description .................... 8 1.3. Proximity Card ...................................... 10 2. Patient List Functionality ............................ 11 2.1. Selecting a Patient ................................. 11 2.1.1. Patient List Screen .......................... 12 2.1.2. Workflow ....................................... 13 2.1.3. Workflow Description ....................... 14 2.2. Sorting the Pa tient List ........................... 18 2.2.1. Patient List Sort Screen.................... 19 2.2.2. Workflow ....................................... 20 2.2.3. Workflow Description ....................... 21 2.3. Searching the Pa tient List ....................... 27 2.3.1. Patient List Search Screen ................ 28 2.3.2. Workflow ....................................... 29 2.3.3. Workflow Description ....................... 30 3. Removing and Addi ng an Item .................... 34 3.1. Accessing the Cabinet ............................ 34 3.1.1. Cabinet Acce ss Screen ..................... 35 3.1.2. Workflow ....................................... 36 3.1.3. Workflow Description ....................... 37 3.2. Completing Your Transaction ................... 41 3.2.1. Status Change Screen...................... 42 3.2.2. Workflow ....................................... 43 3.2.3. Workflow Description ....................... 43 4. Product Directory ...................................... 44 4.1. Selecting a Product ................................ 44 4.1.1. Product Directory Screen.................. 45 4.1.2. Workflow ....................................... 46 4.1.3. Workflow Description ....................... 47 5. Appendix – Glossary of Terms Term Definition Auxiliary Cabinet An auxiliary cabinet does not contain a control compartment. It typically consists of 1 to 3 doors and 1 to 3 compartments. Its standard size is 74” H x 29” W x 35’’ D. Cabinet iRISupply is a modular storage unit that is made up of a cabinet system. There are two main types of cabinets: Auxiliary and Control. Cluster A cluster is a grouping of one or more cabinets. Ea ch cluster must have one control cabinet and 0 to 4 auxiliary cabinets. Compartment Each cabinet is segmented into sections known as compartment. Compartment are bounded by their physical access point, or in other words, by the door access. Control Cabinet A control ca binet contains a control compartment in the top section of the cabinet. Below the control compartment are compartments for storing inventory items. Control Compartment The control compartment contains the user interface for iRISupply. Inside the control compartment are the electronics required to operate the iRISupply system. # Title Description 13 Click on ‘Sort’ button. See Section 5.2 for additional information. On the Product Directory Screen click on the ‘Sort’ button. Proceed onto the Product Directory Sort Workflow. For additional information, please see section 5.2. 4.2. Sorting the Product Directory .................. 50 4.2.1. Product Directory Screen.................. 51 4.2.2. Workflow ....................................... 52 4.2.3. Workflow Description ....................... 53 4.3. Searching the Prod uct Directory............... 58 4.3.1. Product Directory Search Screen ....... 59 4.3.2. Workflow ....................................... 60 4.3.3. Workflow Description ....................... 61 5. Appendix – Glossa ry of Terms..................... 65 1. iRISupply User Log-In The iRISupply™ Cabinet Syst em offers several secure login methods. These login methods allow the system to uniquely identify the user requesting access to the system, thus improving overall quality and accountability of the supply chain management process. iRISupply™ provides for three log-in methods: Magnetic Stripe Card , HID , and a Proximity Reader Card . 1.1. HID HID or, Huges Identification Devices provide a proximity based secured access system. The HID system utilizes radio frequencies at 125 kHz to uniquely transmit encrypted ID codes over distances of 4-6 inches. Like the Magnetic Stripe ID Card log-in method, the iRISupply™ system utilizes the information provided by the HID card to uniquely identify users while also providing secure access to critical inventory and supplies. # Title Description 8 Select Product. When you have found your product, select it. • The scr…

Text truncated - open the document above for the full version.

REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 EXHIBIT: External Photos Product: iRISupply 4.0 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 2 REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 EXHIBIT: External Photos Product: iRISupply 4.0 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 2

120Vac, 60 Hz, 10A Max IRISupply 4.0 FCC ID: R4FIRISUPPLY40 MADE IN U.S.A S/N: 0001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MODEL: INPUT: // M O B I L E // A S P E C T S //

Label location is shown on page 5 of the Installation Guide.

Standard Antenna Catheter Antenna V5 Antenna

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 44 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) 6 Annex C: Photographs of the Equipment Photo 1: LRM2000 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 45 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 46 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) Photo 3 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 47 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) Photo 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 48 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) Photo 5: Multiplexer CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4112-01-02/05 Date:2005-11-29 Page 49 of 58 REFERENCE NUMBER(S) OF TEST EQUIPMENT USED : ( see test equipment listing) Photo 6: Power splitter

Curtis-Straus LLC is accredited by the American Association for Laboratory Accreditation for the specific scope of accreditation under Certificate Number 1627-01. This report may contain data which is not covered by the A2LA accreditation. _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Test Report Report No EH0300-1 Client Mobile Aspects, Inc. 112 19 th Street Pittsburg, PA 15222 Phone 1-412-325-1690 FRN 0010877447 Product Name iRISupply Model iRISupply 4.0 FCC ID R4FIRISUPPLY40 Equipment Type Low Power Communications Device Transmitter Equipment Code DXX Results As detailed within this report Prepared by _____________________ Evan Gould – Test Engineer Authorized by __________________________ Michael Buchholz – EMC Manager Issue Date 9/6/07 Conditions of issue This Test Report is issued subject to the conditions stated in ‘terms and conditions’ section of this report. REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 19 Table Of Contents Summary......................................................................................................................... 3 Test Methodology............................................................................................................ 3 Statement of Conformity.................................................................................................. 4 EUT Configuration........................................................................................................... 5 Required Modifications.................................................................................................... 6 Fundamental Measurements........................................................................................... 7 Radiated Spurious Emissions......................................................................................... 9 AC Line Conducted Emission Measurements............................................................... 11 Voltage Variation........................................................................................................... 12 Test Equipment Used.................................................................................................... 13 Terms And Conditions................................................................................................... 15 A2LA Accreditation........................................................................................................ 17 REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 19 Summary This test report supports an application for certification of a transmitter operating pursuant to 47 CFR 15.225. The product is the Mobile Aspects iRISupply 4.0 RFID supply cabinet system. The transmitter operates at 13.56MHz. The transmitter used is the FEIG Electronic ID ISC.LRM200-A/B Reader Module (FCC ID PJMLRM200A). The system tested consisted of three cabinets wired together. The middle cabinet contained the user interface, and the other two cabinets contained only various antennas. This provided all possible antenna orientations to be represented. Test Methodology Radiated emissions testing is performed according to the procedures specified in ANSI C63.4 (2003). Emissions were maximized by rotating the system around its vertical axis as well as varying the test antenna’s height and polarity. Frequency range investigated: 0.09MHz – 5GHz Measurement distance: 0.15 - 30MHz Conducted 0.09 – 30MHz 3m (loop antenna) 30MHz – 1GHz 3m 1 – 5GHz 1m AC Line conducted emissions testing was performed with a 50Ω/50μH LISN. REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 4 of 19 Statement of Conformity The iRISupply 4.0 has been found to conform to the following parts of 47 CFR as detailed below: Part 2 Part 15 Comments 15.15(b) There are no controls accessible to the user that vary the output power. 2.925 15.19 The label is shown in the label exhibit. 15.21 Information to the user is shown in the instruction manual exhibit. 15.27 No special accessories are required for compliance. 15.203 This product is professionally installed. 15.205 15.209 The fundamental is not in a Restricted band and the spurious and harmonic emissions in the Restricted bands comply with the general emission limits of 15.209. 15.207 The unit meets the AC conducted emissions requirements of 15.207. 15.225(a-d) The unit complies with these requirements as shown in this test report 15.225(e) See attached ID ISC.LRM200 Test Report for frequency stability test data (pp 11-12). REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 5 of 19 EUT Configuration EUT Configuration Work Order: H0300 Company: Mobile Aspects Company Address: 112 19th Street Pittsburg, PA 15222 Contact: Khang Lee MNSN EUT: iRISupply 4.01 EUT Description: iRISupply 4.0 EUT Max Fre quency: 1GHz (PC) Support Equipment: MNSN none EUT Cables: QtyShielded?LengthFerrites AC Power9No2mNo Ethernet1No1mNo Unpopulated EUT Ports: QtyReason none Software / Operating Mode Description: Fundamental: Transmitting full power on each antenna.in the system. Spurious: Continuously reading…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of24 PagesPage 1 (24) Test report no.: 2_2356-B/00 FCC Rule 15.225 ID ISC.LRM200 Akkreditiertes Prüflaboratorium DAR-Registriernummer: TTI-P-G 166/98 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 2 (24) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 3 (24) 1.2Testing laboratory CETECOM ICT Services GmbH 66117 Saarbrücken Untertürkheimer Straße 6 - 10 Deutschland Telefone: + 49 681 598 - 8411 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98 1.3Details of applicant Name : FEIG ELECTRONIC GmbH Street : Lange Straße 4 City : D-35781 Weilburg-Waldhausen Country : Germany Telephone: +49 (0)6471 / 3109-0 Telefax : +49 (0)6471 / 3109-99 Contact : Mr. Elmar Reichwein Telephone: +49 (0)6471 / 3109-38 1.4Application details Date of receipt of application : 08.12.00 Date of receipt of test item : 12.12.00 Date of test: 12.12.00 1.5Test item Type of equipment : Transponder system Type designation: ID ISC.LRM200 Manufacturer: Street: City: Country: Serial number: Additional informations:: Frequency : 13,56 MHz / 00H0NON Number of channels : 1 Antenna: Inductive loop antenna Power supply: 24V DC / 1,4 A ext. Type of equipment : Carrier power: 0,62 mW ERP / 0,90 mW EIRP 1.6Test standards: FCC Rule Part 15.225 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 4 (24) 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. Technical responsibility for area of testing : 23.12.99RSC8411Berg M. DateSectionNameSignature 23.12.99RSC8414Ames H. DateSectionNameSignature CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 5 (24) 2.2Test report TEST REPORT FCC Rule Part 15.225 Test report no. : 2_2356-B/00 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 6 (24) TEST REPORT REFERENCE LIST OF MEASUREMENTS SUBCLAUSEPARAMETER TO BE MEASUREDPAGE Transmitter parameters § 15.225 (a)Field strength of fundamental7 § 15.209Emissions radiated outside of the specified frequency bands8 Band edge compliance § 15.225 (c)Frequency tolerance11 § 15.207 Conducted limits 13 Test equipment listing 14 Photographs of the equipment 16 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 7 (24) Equipment under test : ID ISC.LRM200 Ambient temperature: 23°C Relative humidity : 37% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 42 , 65 FIELD STRENGTH OF FUNDAMENTIAL SUBCLAUSE § 15.225 (a) Polarisation of the measurements for the larger power level .: vertical Measurement distance 30 m TEST CONDITIONSFIELD STRENGTH (μV/m ) Frequency (MHz)13,56 T nom ( 23 )°C V nom ( 24.0 )V QP: 5902 μV/m 75.42 dBμV/m Maximum deviation from output power under extreme test conditions (dBc) -0,18 Measurement uncertainty±3dB Limits SUBCLAUSE § 15.225 (a) Frequency (MHz)Field strength (μV/m)Measurement distance (m) 13,5610,000 80 dBμV/m 30 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 8 (24) Equipment under test : ID ISC.LRM200 Ambient temperature: 23°C Relative humidity : 37% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EMISSIONS RADIATEDSUBCLAUSE §15.209 Transmitter operatingModulated/Unmodulated* *(Delete whichever is inappropriate) Measurement distance see table SPURIOUS EMISSIONS LEVEL (μV/m) 13,56 MHz f (MHz) DetectorLevel (μV/m) f (MHz) DetectorLevel (μV/m) f (MHz) DetectorLevel (μV/m) 33,9QP79,43250,28QP41,21 54,46QP37,58950,2QP94,41 95,08QP41,21 108,5QP78,52 122,0QP75,86 129,37QP48,42 149,08QP34,67 176,89QP33,50 190,35QP43,65 196,97QP36,73 Measurement uncertainty± 3dB Limits SUBCLAUSE § 15.209 Frequency (MHz)Field strength (μV/m)Measurement distance (m) 0.009 - 0.4902400/F(kHz)300 0.490 - 1.70524000/F(kHz)30 1.705 - 30.03030 30 - 881003 88 - 2161503 216 - 9602003 above 9605003 CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 9 (24) Equipment under test : ID ISC.LRM200 Ambient temperature: 23°C Relative humidity : 37% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EMISSIONS RADIATEDSUBCLAUSE §15.209 PEAK QUASI-PEAK FREQUENCY [MHz] EMISSION LEVEL[dBuV/m] 3010010004000 20 40 60 80 100 FCC Part 15 FEIG ID ISC.LR200 7 Dec 2000 14:21:21CETECOM ICT SERVICES GMBH FCC Part 15.209 hp hp CETECOM ICT Services GmbH Test report no.: 2_2356-B/00Issue Date: 14.12.2000Page 10 (24) Equipment under test : ID ISC.LRM200 Ambient temperature: 23°C Relative humidity : 37% REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 Band-edge complianceSUBCLAUSE §15.209 SWT 20 s A RF Att 30 dB -41 dB Offset-41 dB Offset Ref Lvl 78 dB Ê V Ref Lvl 78 dB Ê VUnitdB Ê V 6.25 kHz/Center13.56 MHzSpan62.5 kHz RBW 1 kHz VBW 3…

Text truncated - open the document above for the full version.

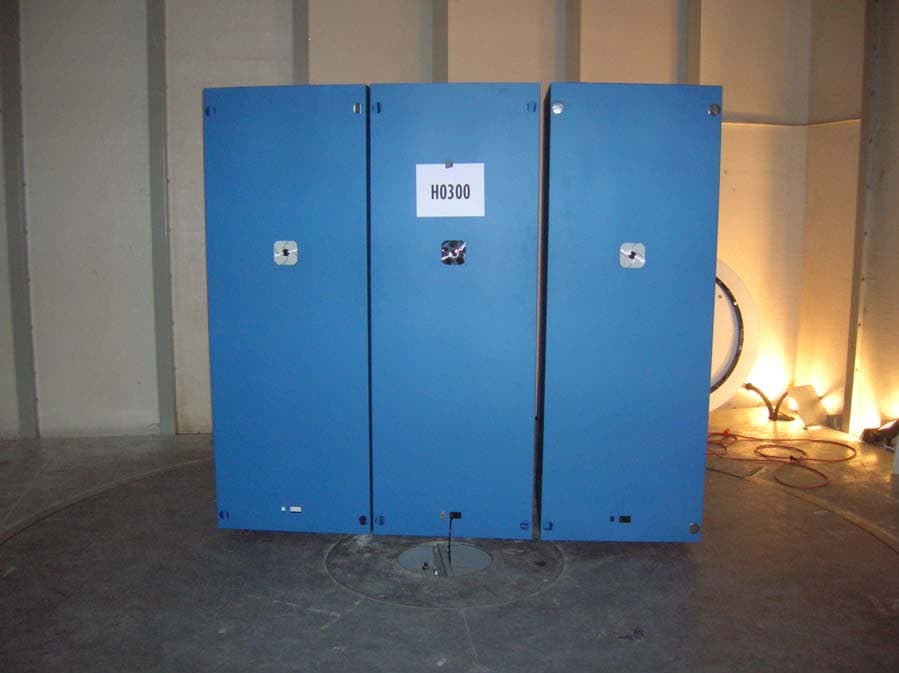

REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 EXHIBIT: Setup/External Photos Product: iRISupply 4.0 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 1 of 3 Radiated Emissions REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 EXHIBIT: Setup/External Photos Product: iRISupply 4.0 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 2 of 3 Radiated Emissions REPORT: EH0300-1 FCC ID: R4FIRISUPPLY40 EXHIBIT: Setup/External Photos Product: iRISupply 4.0 _____________________________________________________________ _____________________________________________________________ Curtis-Straus LLC • 527 Great Road • Littleton, MA • TEL (978) 486-8880 • FAX (978) 486-8828 Page 3 of 3 Conducted Emissions
