R4M-DALLAB-DBH80BLUETOOTH HEADSET

DBH80 User Manual Rev 1.4 1 Introduction Introduction to Bluetooth Wireless Technology Bluetooth is a short- range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, and printers), and home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM (Industrial Scientific and Medical) frequency band. Within the ISM band (2.4 GHz – 2.48 GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters. DALLAB Bluetooth Headset Introducing DALLAB Bluetooth Headset, the next generation in mobile accessories, a comfortable and portable Bluetooth headset for hands-free communication with your Bluetooth enabled mobile phone! The Bluetooth Headset works up to 10 meters, allowing you to leave your phone in another room or stowed in your briefcase. Easy access to volume controls with an answer/end that supports voice activation, makes Dallab a simple, lightweight (less than 28grams) hands-free solution! We are confident that you will find using your DALLAB Bluetooth Wireless Headset to be a convenient and secure way to make a clear, crisp phone call. Thank you for choosing a Dallab Bluetooth product. Safety and General Information: IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION. READ THIS INFORMATION BEFORE USING YOUR HEADSET Electromagnetic Interference/Compatibility Note: Nearly every electronic device is susceptible to electromagnetic interference (EMI) if inadequately shielded, designed, or otherwise configured for electromagnetic compatibility. Aircraft When instructed to do so, turn off your phone when on board an aircraft. Any use of a phone must be in accordance with applicable regulations per airline crew. Medical Devices Pacemakers The health industry Manufactures Association recommends that a minimum of 6 inches (15cm) be maintained between a handheld wireless phone and a pacemaker. These recommendations are consistent with the independent research by, and recommendations of, Wireless Technology Research. Persons with pacemakers should: DBH80 User Manual Rev 1.4 2 • ALWAYS keep the phone and the Bluetooth phone module more than six inches from your pacemaker when the phone is turned ON. • Not carry the phone and the Bluetooth phone module in the breast pocket. • Use the ear opposite the pacemaker to minimize the potential for interference. • Turn OFF the phone immediately if you have any reason to suspect that interference is taking place. Hearing Aids Some digital wireless phones may interfere with some hearing aids. In the event of such interference, you may want to consult with your hearing aid manufacturer to discuss alternatives. Other Medical Devices If you use any other medical devices, consult the manufacturer of your device to determine if it is adequately shielded from RF energy. Your physician may be able to assist you in obtaining this information. FCC notice to users and product statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in anyway. You are cautioned that changes or modifications not expressly approved by Dallab Sdn. Bhd. could void the user’s authority to operate the equipment. Because this Bluetooth™ headset is very small it is not practicable to place the label including the FCC statement on it. Therefore the required labeling information is placed in this chapter of the user’s manual of this Dallab Bluetooth headset. However the FCC identifier is displayed on the packaging of the Bluetooth headset in an appropriate form. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. DBH80 User Manual Rev 1.4 3 Part Name Description 1. ‘Answer/End’ button Controls various functions of the headset • Initiating • Answering • Transferring • Ending calls • Used to turn headset either ON/OFF • Pairing the headset to a Bluetooth phone 2. Charging Point Contacts for charging the battery. 3. Volume Control Button Adjusts the loudness of the sound we hear. 4. Headset Indicator lights (LED) Indicator lights shows status of the headset (Blue and Red) • Active (call in progress) • Standby(ready for call) • Off 5. Microphone For outgoing audio 6. Speaker For incoming audio DBH80 User Manual Rev 1.4 4 Preparing to use your Dallab: Charging the battery The DALLAB Headset comes with a rechargeable battery included. The battery is not fully charged when it is new. For first time use, it takes at least 8 hours to fully charge the battery. Then after, it will take about 4 hours to fully charge the bat…

Text truncated - open the document above for the full version.

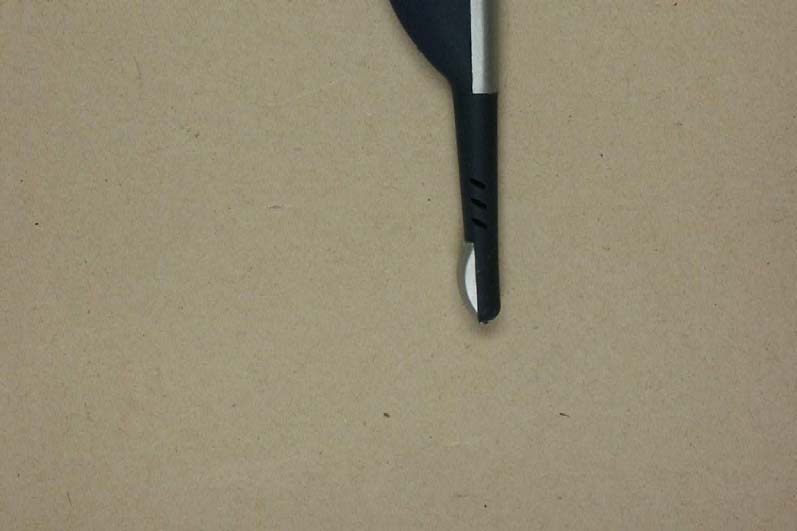

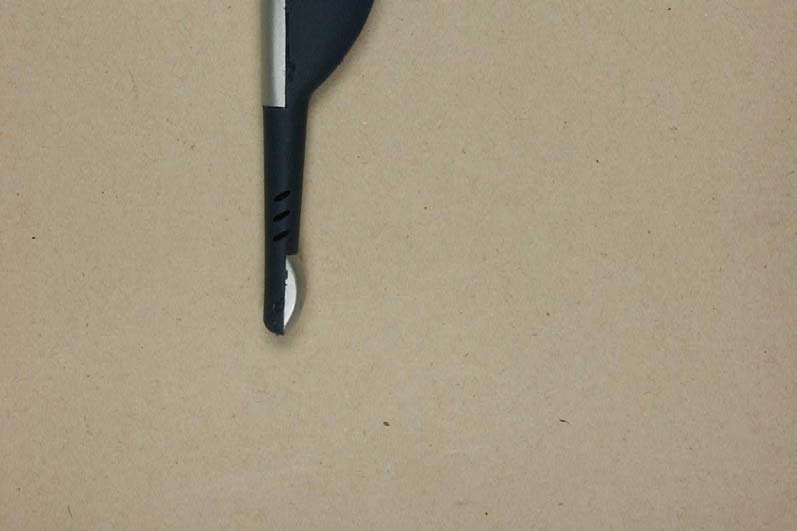

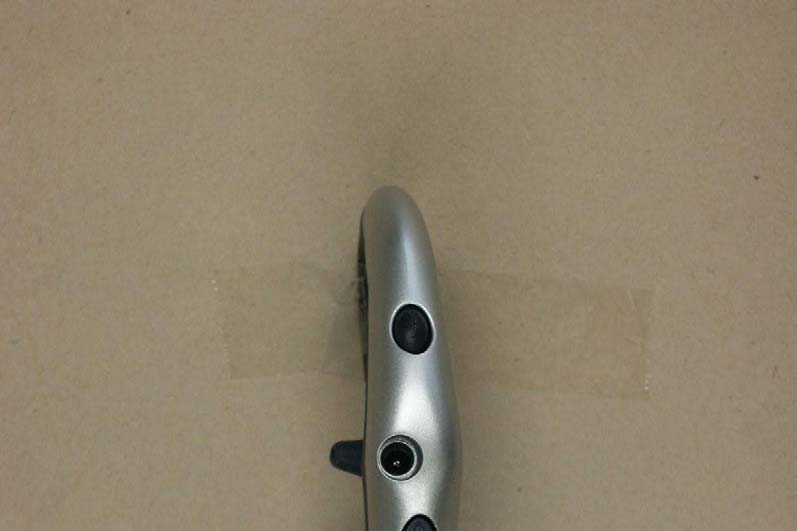

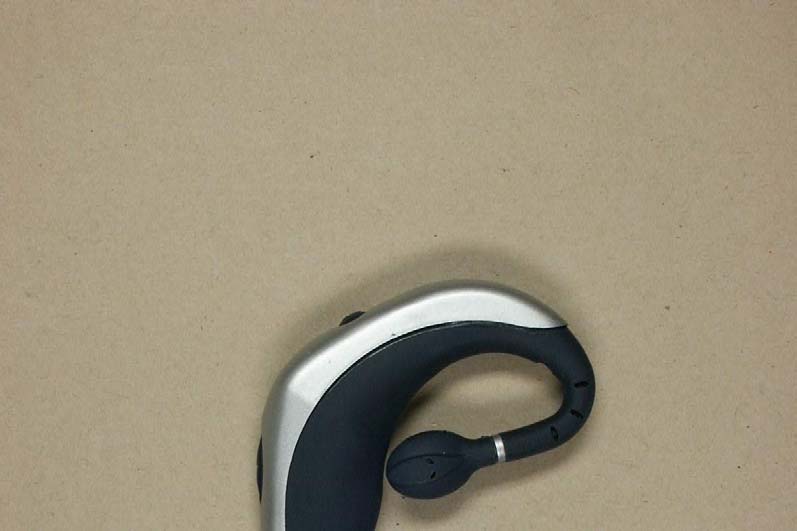

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 1 of 10 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 2 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 3 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 4 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 5 of 10 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 6 of 10

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: R4M-DALLAB-DBH80 Test report no.: G0M20402-8549-P-15 FCC ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 66 ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 1 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 2 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Futhermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. Tester: 03.03.2004 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 03.03.2004 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 3 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: TTI-P-G 126/96 ACCREDITED COMPETENT BODY DAR-REGISTRATION NUMBER: BPT-ZE-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) ACCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : SunMicrotel (Malaysia) Sdn Bhd (587734-A) Street : 1-4-3, Krystal Point Corporate Park, Jalan Tun Dr. Awang Town : 11900 Bayan Lepas, Penang Country : Malaysia Telephone : +(604) 643 9882 Fax : +(604) 643 5881 Contact : Yeoh Sian Kok Telephone : +(604) 643 9882 ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 4 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.4 Application details Date of receipt of application : 23.02.2004 Date of receipt of test item : 23.02.2004 Date of test : 23.02.2004-26.02.2004 1.5 Test item Description of test item : Bluetooth Headset Type identification : DBH80-xyz Serial number : without Photos : See Appendix A Technical data Frequency band : 2.4GHz – 2.4835GHz Frequency ( ch A) : 2.402 GHz Frequency (ch B) : 2.441 GHz Frequency (ch C) : 2.480 GHz Transmitter Unom Vnom Power (ch A) : Conducted: -2,82 dBm Radiated: -2,98 dBm Power (ch B) : Conducted: -1,62 dBm Radiated: -5,30 dBm Power (ch C) : Conducted: -3,48 dBm Radiated: -4,43 dBm Power supply : 1,2 V DC battery 120 V AC/DC Adaptor Operating mode : duplex Type of modulation : FHSS Antenna gain : -1 dBi Antenna Type : Permanently Antenna ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 5 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH Host device : none Classification : Fixed Device Mobile Device (Human Body distance > 20cm) Portable Device (Human Body distance < 20cm) Manufacturer: (if applicable) Name : SMT Technologies SDN BHD Street : Plot 102, Bakar Arang Industrial Estate Town : 08000 Sungai Petani, Kedah Country : Malaysia Additional information: The test sample is designed as Bluetooth device. Its pseudorandom hopping scheme, authentication, receiver parameters, synchronisation procedure and other parameters are determined by Bluetooth Core Specification. According to attached declaration of manufacturer this device don’t work in master inquiry mode. So we have only one frequency hopping system and the hopping sequence of the master inquiry mode is not very feed. ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 6 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.247 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course
of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests  performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 1,2 V DC battery 120 V AC/DC Adaptor Extrem conditions parameters: : test voltage - extreme min.: -- V max: -- V ETS Dr. Genz GmbH, Germany Registration number: G0M20402-8549-P-15 Page 7 of 27 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2.3 Test equipment utilized No. Measurement device:Type:Manufacturer: ETS 0001 Test receiverESHS 10Rohde&Schwarz ETS 0002 Test receiverESVPRohde&Schwarz ETS 0003 Test receiverESVS 10Rohde&Schwarz ETS 0004 Spektrum- and Network-AnalyzerFSMS 26Rohde&Schwarz ETS 0005 Test receiverSMV 11MEB ETS 0006 Test re…
