R4R-AIRT700UMPCUltra Mobile PC

i ii Intentionally Left Blank iii Preface © © Copyright 2006 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliab ility, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer. Safety Notices 1. Please read these safety instructions carefully. 2. All precautions and warnings on the equipment should be carefully noted. 3. Please disconnect the computer from the AC outlet before cleaning. 4. Never pour any liquids into any openings or directly onto the computer unit. This could result in fire or electrical shock. iv 5. Ensure the voltage range of the power outlet is between 100V and 240V before connecting the computer unit. Exceeding the maximum rated voltage may cause dama ge to the AC adapter or to the computer. This could result in fire or electrical shock. 6. Do not leave this equipment in a non-temperature controlled environment; storage temperatures below 4 ° C (39 ° F) or above 35 ° C (95 ° F) may damage the unit. To reduce the risk of an electric shock, which could cause personal injury, please follow all safety notices. The symbols shown are used in your documentation and on your equipment to indicate safety hazards. Lithium batteries can be dangerous. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions. Under no circumstances should the user attempt to disassemble the power supply. The power supply has no user-replaceable parts. Inside the power supply are hazardous voltages that can cause serious personal injury. A defective power supply must be returned to your dealer. v Safety Notices for the Power Cord This equipment has a 2 or 3-wire power cord. Replace the power cord if it becomes damaged. Contact your dealer for an exact replacement. In the U.S.A. and Canada, the power cord must be a UL-listed detachable power cord (in Canada, CSA-certified). 2-wire cord SPT-2 18AWG 3-wire cord SVT or SJT, 18 AWG, 3-conductor Provided with a molded-on cord connector body at the other end. The cord length must not exceed 3 meters. Outside the U.S.A. and Canada, the plug must be rated for 250 VAC, 2.5 amp minimum, and must display an international agency approval marking. The cord must be suitable fo r use in the end-user’s country. Consult your dealer or the local electrical authorities if you are unsure of the type of power cord to use in your country. Voltage changes occur automatically in the power supply. Notice of EMC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide r easonable protection against harmful interference in a residential installation. vi This equipment generates, uses, a nd can radiate radio frequency energy and if not installed and used in accordance with the instruction manual may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: h Reorient or relocate the receiving antenna. h Increase the separation between the equipment and receiver. h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. h Consult the dealer or an experienced technician for help. Use only shielded I/O cables to connect I/O devices to this equipment. You are cautioned the changes or modifications not expressly approved by the party responsible for compliance could void your authority to use the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device will not cause harmful interference, and (2) this device must accept any interference it receive including interference that may cause undesired operation. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. vii Canadian EMI Comp liance Statement This Class B digital apparatus meets all requirements of the Canadian Interference - Causing Equipment Regulations. European Union CE Marking Declaration This product has been tested and found to comply with the EMC requirement subject to the EU directive for CE marking. Laser Compliance Statemen t for CD-ROM, DVD-ROM, CD-RW and DVD/CD-R W Combo Drives The CD-ROM, DVD-ROM, CD-RW and DVD/CD-RW Combo drive for this computer are laser products. The classification label of the drive is located on the bottom of the dr ive. Below is a sample of the classification label; viii CLASS 1 LASER PRODUCT LASER KLASSE 1 LOUKAN 1 LASERLAITE APPAREIL A LASER DE CLASSE 1 KLASS 1 LASER APPARAT The drive is certified in the USA to comply with the requirements of the Department of Health and Human Services 21 Code of Federal Regulations (DHHS 21 CFR) Subchapter J. for Class 1 laser products. In other countries the drive is certified to comply with the requirements of EN60825. Do not open the drive. There are no user-serviceable parts or components inside. Use of controls, adjustments and operation of procedures other than those specified, may resu…

Text truncated - open the document above for the full version.

AMTEK SYSTEM CO., LTD. 14F-11, No.79, Sec.1, Hsin Tai Wu rd., Hsi Chih City, Taipei Hsien, Taiwan Tel: 02-2698-0909 / FAX: 02-2698-3939 Date: March 15, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Cliff Wu / EMC Dept. Manager AMTEK SYSTEM CO., LTD. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

AMTEK SYSTEM CO., LTD. 14F-11, No.79, Sec.1, Hsin Tai Wu rd., Hsi Chih City, Taipei Hsien, Taiwan Tel: 02-2698-0909 / FAX: 02-2698-3939 March 15, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: R4R-AIRT700UMPC Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Cliff Wu / EMC Dept. Manager AMTEK SYSTEM CO., LTD.

From: amanda.wu [mailto:[email protected]] On Behalf Of application Sent: Monday, April 03, 2006 11:58 PM To: [email protected] Subject: Re  AMTEK SYSTEM CO., LTD., FCC ID: R4R-AIRT700UMPC, Assessment NO.: AN06T5603, Notice#1 Dear Charvey: Please see my reply as below. Thank you. Best Regards Amanda <charvey- [email protected]> 2006/03/31 05:13 AM  <[email protected]>  <[email protected]>  AMTEK SYSTEM CO., LTD., FCC ID: R4R-AIRT700UMPC, Assessment NO.: AN06T5603, Notice#1 Dear Anthony Yao, You are listed as the Technical Contact for the above referenced TCB application. I have reviewed this application and find that the following items need to be addressed before the review can be completed: 1. Please provide a photograph of the back sided of the WLAN board. Ans: Added the back sided of the WLAN board on last page. 2. The schematics have lots of information but the schematic of the Bluetooth and WLAN boards seem to be missing. Please supply the Bluetooth & WLAN schematics for this device. Ans: Sorry, it should be lost. Please have the schematics for WLAN & BT again. 3. The average time of occupancy for the reduced hop set (32 channels for Bluetooth 2.0) have not been demonstrated. Please demonstrate compliance with this requirement. Ans: Please have the BT DoC Letter. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected]

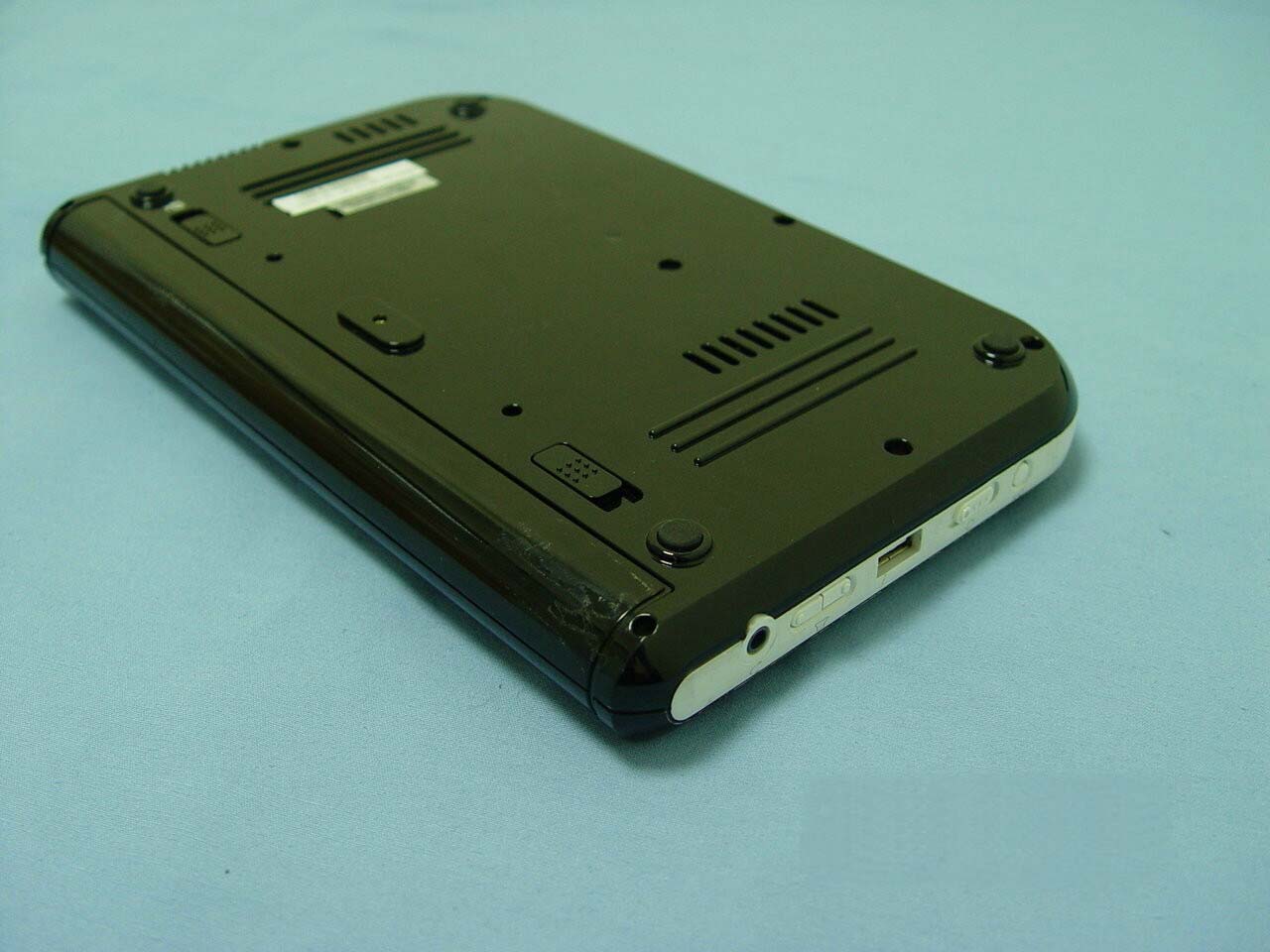

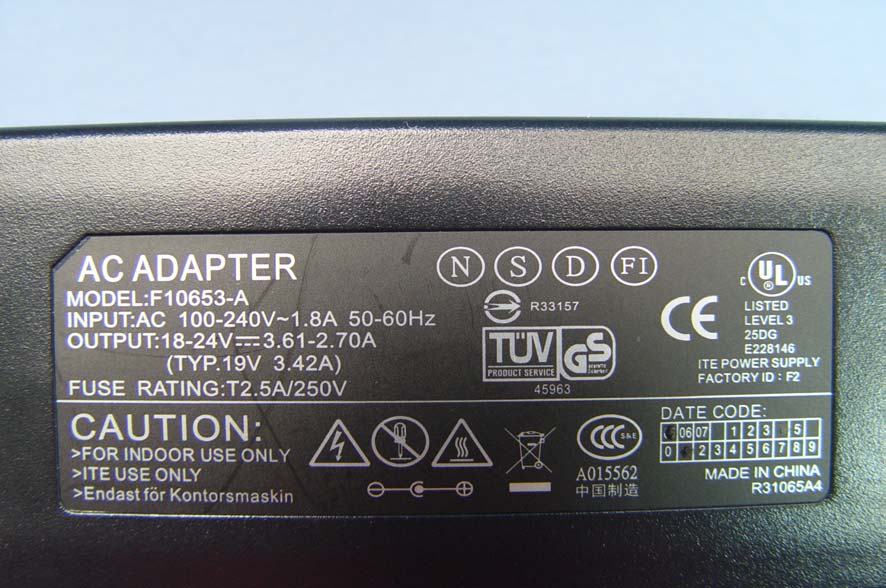

Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 3 Rev. 00

Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 7 Rev.00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 8 Rev.00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 10 Rev.00 Bluetooth Module Multilayer Chip Antenna Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 11 Rev.00 WLAN Module Compliance Certification Services Inc. Report No: 60309001 Date of Issue: March 21, 2006 Page 12 Rev.00

Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 1/12 Regulatory WLAN Antenna Information (Example) (English Language Required for Intel Regulatory Review / Approval) (OEM/ODM or antenna vendor is required to complete this document with platform antenna information. Remove Intel references and make this your own document) Brand Name Model Name H70 Antenna Vendor High-tek Antenna Part Number □ Main Antenna: □ Aux Antenna: With WLAN Module □ WM3B2100 (Check Box) □ WM3B2200BG □ WM3B2915ABG □ WM3945ABG Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 2/12 Antenna Sample / Antenna Data Requirements for worldwide regulatory approval Section Description of Required OEM / ODM Antenna Information US / ICEU Japan Taiwan S.Korea 1A Part Number for Antenna only RequiredRequiredRequired Required Required 1B Antenna Manufacturer Name RequiredRequiredRequired Required Required 1C Description of Antenna Type RequiredN/A N/A N/A N/A 1D Part number of Antenna Assembly / cable impedance, length & diameter. RequiredDesiredDesired Desired Desired 1E Main & Aux antenna (Peak Gain W/ cable loss) RequiredRequiredRequired Required Required 1E OR 1F, 1G, 1H 1F Main & Aux antenna (Peak Gain only) RequiredRequiredRequired Required Required 1G VSWR of cable including connector RequiredRequiredRequired Required Required 1H Main & Aux antenna (Cable loss W/ connector) RequiredRequiredRequired Required Required 2 Dimensioned Photographs and Drawings of main & auxiliary antennas RequiredRequiredRequired Required Required 3 Radiation patterns of antennas loaded in the host platform. RequiredDesiredRequired N/A Required 4 Platform model name / number - correlated to antenna manufacturer and antenna part number RequiredRequiredDesired Required Desired 5 Photograph(s) or Drawings showing location of antennas in platform. (S. Korea requires photographs of antennas for approval submission). Taiwan requires pictures of each antenna type shown in the system. RequiredRequiredDesired Required (Photos) Required (Photos) 6 Mech. drawings / photos with dimensions of antenna locations and distance from end-user (For evaluation of SAR testing requirement). RequiredN/A N/A N/A N/A 7 Photograph(s) or Drawings showing the location of all antennas (WLAN, other) and distance between those transmitting antennas. Information will be used to evaluate whether co-location testing is required. RequiredN/A N/A N/A N/A 8 Local representative contact information for LMA/ PARS process. RequiredN/A N/A N/A N/A Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 3/12 Antenna Information Section 1. Antenna Assembly Specifications Antenna Assembly Summary: 1A Antenna Part Number 1B Manufactu re 1C Antenna Type 1D Cable Assembly Part Number and Information 1E Peak Gain W/ Cable loss (dBi) 1F Peak Gain w/o Cable Loss (dBi) 1G VSWR 1H Cable Loss (dBi) 2400-2500MHz 0.42 dBi (peak) 2400-2500MHz 0.72 dBi (peak) 2400-2500MHz 1.45 max 2400-2500MHz 0.30 dBi (peak) 5150-5350MHz dBi (peak) 5150-5350MHz dBi (peak) 5150-5350MHz max 5150-5350MHz dBi (peak) 5470-5725MHz dBi (peak) 5470-5725MHz dBi (peak) 5470-5725MHz max 5470-5725MHz dBi (peak) Main Antenna HIGH-TEK PIFA (P/N: Sumitomo 0.7DS-PBE COAXIAL CABLE) (P/N: Hitachi UL1745-SB CX-50) 50 ohm Coaxial. length: 105 mm diameter: 1.13mm Connector: I-PEX 20278-111R-13 5725-5850MHz dBi (peak) 5725-5850MHz dBi (peak) 5725-5850MHz max 5725-5850MHz dBi (peak) Antenna Peak Gain Table: Main antenna Frequency (MHz) Horizontal (dBi) Vertical (dBi) Hori+Ver (dBi) 2400 0.63 -0.65 0.83 2450 0.87 -0.40 1.08 2500 0.24 -0.96 0.42 5150 5250 5350 5470 5600 5725 5785 5850 z Antenna Peak Gain required being test in system basis. z 1E frame contend absolutely peak antenna gain include H/ V/ H+V. Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 4/12 Section 2. Dimensioned Photos or Drawings of Antennas Include a dimensioned photo and dimensioned drawing of main antenna here. Main Antenna Dimensioned Drawing: Main Antenna Photo: Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 5/12 Section 3. Radiation characteristics of antennae Loaded in Host Platform 2400-2500MHz radiation characteristic Main antenna(L): 2400 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Center Frequency 2400 MHz Horizontal (dBi) peak 0.63 Vertical (dBi) peak -0.65 Horz+Vert (dBi) peak 0.83 Note: The red line represents the radiation pattern of horizontal polarization, the blue one represents the radiation pattern of vertical polarization and the green one represents the radiation pattern of average gain (H+V). Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 6/12 Main antenna(L): 2450 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Center Frequency 2450 MHz Horizontal (dBi) peak 0.87 Vertical (dBi) peak -0.40 Horz+Vert (dBi) peak 1.08 Note: The red line represents the radiation pattern of horizontal polarization, the blue one represents the radiation pattern of vertical polarization and the green one represents the radiation pattern of average gain (H+V). Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 7/12 Main antenna(L): 2500 MHz 0 45 90 135 180 225 270 315 0 -40-30-20-100 (GHz) Center Frequency 2500 MHz Horizontal (dBi) peak 0.24 Vertical (dBi) peak -0.96 Horz+Vert (dBi) peak 0.42 Note: The red line represents the radiation pattern of horizontal polarization, the blue one represents the radiation pattern of vertical polarization and the green one represents the radiation pattern of average gain (H+V). Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 8/12 Section 4. Host Platform Information OEM / ODM Host platform: (XXXXXXX) platform correlated to antenna data Rating Label Photo: Doc.No.:12.22.05 Rev – 6.1 Regulatory WLAN Antenna Information 9/12 Section 5. Antenna Host Platform Location Information Include a dimensioned photo or dimensioned drawing of main and auxiliary antenna placements. XX.0 mm XX.0 mm XX.0 mm XX.0 mm XX.0 mm AUX ANTENNA …

Text truncated - open the document above for the full version.

ACX Advanced Ceramic X AT7020 Series Multilayer Chip Antenna Features ™ Monolithic SMD with small, low-profile and light-weight type. ™ Wide bandwidth Applications ™2.4GHz WLAN, Home RF, Bluetooth Modules, etc. Specifications Part Number Frequency Range (MHz) Peak Gain (dBi typ.) Average Gain (dBi typ.) VSWR Impedance AT7020 -B2R4HAA_ 2400~2500 2.0 (XZ-V) 0.5 (XZ-V) 2 max. 50 Ω Q’ty/Reel (pcs) : 1,000 pcs Operating Temperature Range : -40 ~ +85 o C Storage Temperature Range : -40 ~ +85 o C Power Capacity : 3W max. Part Number AT 7020 - B 2R4 HAA ‡ /LF c d e f g h i c Type AT : Antenna d Dimensions ( L × W ) 7.0× 2.0 mm e Material Code B f Frequency Range 2R4=2400MHz g Specification Code HAA h Packaging T: Tape & Reel B: Bulk i Soldering =lead-containing /LF=lead-free Terminal Configuration No. Terminal Name No. Terminal Name c Feeding Point d NC d c ACX Advanced Ceramic X Dimensions and Recommended PC Board Pattern Unit : mm a W T Mark L W T a Dimensions 7.00.2 2.00.2 1.2+ 0.1/-0.2 0.50.3 *Line width should be designed to match 50Ω characteristic impedance, depending on PCB material and thickness. Typical Electrical Characteristics (T=25 o C) ™Test Board * * * 2.0 5.5 8.0 1.0 (Matching circuit and component values will be different, depending on PCB layout) Antenna No Ground Ground 20mm 19mm 40mm 9.5mm L 50Ω Feed Line ACX Advanced Ceramic X ™Return Loss ACX Advanced Ceramic X ™Radiation Patterns XY cut @2.45GHz Vertical Horizontal XZ cut @2.45GHz Vertical Horizontal YZ cut @2.45GHz Vertical Horizontal XY-V/XY-H XZ-V/XZ-H YZ-V/YZ-H Z 270 o 0 o 90 o X Y XY-cut scanning direction Y 270 o 0 o 90 o X Z XZ-cut scanning direction X 270 0 o 90 o Y Z YZ-cut scanning direction Advanced Ceramic X Corp. 16 Tzu Chiang Road, Hsinchu Industrial District Hsinchu Hsien 303, Taiwan TEL:886-3-5987008 FAX:886-3-5987001 E-mail: [email protected] http://www.acxc.com.tw 180 180 180 o

Compliance Certification Services Inc. Report No: 60309001-SF FCC ID: R4R-AIRT700UMPC Date of Issue: March 24, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 27 Rev. 00 ANSI/IEEE Std. C95.1-1992 in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC TEST REPORT For Ultra mobile PC Trade Name: AMTEK Model: T700 Issued to AMTEK SYSTEM CO., LTD. 14F-11, No.79, Sec.1, Hsin Tai Wu rd., Hsi Chih City, Taipei Hsien, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 60309001-SF Date of Issue: March 24, 2006 Page 2 Rev.00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) .................................................. 3 2. EUT DESCRIPTION ................................................................................................................ 4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ..................... 5 4. DOSIMETRIC ASSESSMENT SYSTEM................................................................................ 5 4.1 MEASUREMENT SYSTEM DIAGRAM .............................................................. 6 4.2 SYSTEM COMPONENTS...................................................................................... 7 5. EVALUATION PROCEDURES .............................................................................................. 9 6. MEASUREMENT UNCERTAINTY ..................................................................................... 13 7. EXPOSURE LIMIT ................................................................................................................ 14 8. TYPICAL COMPOSITION OF INGREDIENTS FOR LIQUID TISSUE PHANTOMS...... 15 9. MEASUREMENT RESULTS................................................................................................. 16 9.1 SYSTEM PERFORMANCE CHECK................................................................... 16 9.2 TEST LIQUID CONFIRMATION........................................................................ 17 9.3 EUT TUNE-UP PROCEDURES........................................................................... 18 9.4 SAR MEASUREMENTS RESULTS.................................................................... 20 10. EUT PHOTOS......................................................................................................................... 23 11. EQUIPMENT LIST & CALIBRATION STATUS................................................................. 25 12. FACILITIES ............................................................................................................................ 26 13. REFERENCES ........................................................................................................................ 26 14. ATTACHMENTS ................................................................................................................... 27 Compliance Certification Services Inc. Report No: 60309001-SF Date of Issue: March 24, 2006 Page 3 Rev.00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant: AMTEK SYSTEM CO., LTD. 14F-11, No.79, Sec.1, Hsin Tai Wu rd., Hsi Chih City, Taipei Hsien, Taiwan, R.O.C. Equipment Under Test: Ultra mobile PC Trade Name: AMTEK Model Number: T700 Date of Test: March 22, 2006 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Gavin Lim Chris Hsieh Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 60309001-SF Date of Issue: March 24, 2006 Page 4 Rev.00 2. EUT DESCRIPTION Product Ultra mobile PC Trade Name AMTEK Model Number T700 Model Discrepancy N/A Frequency Range IEEE 802.11b / g: 2400 ~ 2483.5 MHz Bluetooth: 2402 MHz ~ 2480 MHz Transmit Power(AV) IEEE 802.11b: 12.47 dBm IEEE 802.11b: 10.85 dBm Bluetooth: -1.25 dBm Max. SAR (1g): IEEE 802.11b: 0.955 W/kg IEEE 802.11g: 0.867 W/kg Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Bluetooth: FHSS (GFSK) Antenna Specification IEEE 802.11b / g: PIFA Antenna Bluetooth: Multilayer Chip Antenna Compliance Certification Services Inc. Report No: 60309001-SF Date of Issue: March 24, 2006 Page 5 Rev.00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996 [1]. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992 [6]. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to R…

Text truncated - open the document above for the full version.

Date/Time: 3/22/2006 09:05:33 AM Test Laboratory: Compliance Certification Services Inc. D2450V2 SN-728 Head DUT: Dipole 2450 MHz; Type: D2450V2; Serial: D2450V2 - SN:728 Communication System: CW2450; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2450 MHz; σ = 1.91 mho/m; ε r = 51.7; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23.7; Postprocessing SW: SEMCAD, V1.8 Build 161 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 9.90 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 88.1 V/m; Power Drift = -0.087 dB Peak SAR (extrapolated) = 32.6 W/kg SAR(1 g) = 13.9 mW/g; SAR(10 g) = 6.08 mW/g Maximum value of SAR (measured) = 15.5 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 15.6 mW/g Page1 Page2 Date/Time: 3/22/2006 6:42:12 PM Test Laboratory: Compliance Certification Services Inc. 802.11b Back parallel Touch mode DUT: T700; Type: Ultra mobile PC; Serial: N/A Communication System: IEEE 802.11b WLAN; Frequency: 2437 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2437 MHz; σ = 1.88 mho/m; ε r = 51.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Air Temperature:24.2 deg C;Liquid Temperature:23.0 deg C Area Scan Find Secondary Maximum Within 2dB and with a peak SAR value greater than 0.0012W/kg DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.12, 6.12, 6.12); z Sensor-Surface: 2.5mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn427; Calibrated: 9/22/2005 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Middle CH Rate=1M bit/Area Scan (11x18x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.247 mW/g Middle CH Rate=1M bit/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 11.1 V/m; Power Drift = -0.013 dB Peak SAR (extrapolated) = 0.420 W/kg SAR(1 g) = 0.201 mW/g; SAR(10 g) = 0.107 mW/g Maximum value of SAR (measured) = 0.277 mW/g Middle CH Rate=1M bit/Z Scan (1x1x51): Measurement grid: dx=20mm, dy=20mm, dz=2mm Maximum value of SAR (measured) = 0.280…
