Intel(R) PRO/Wireless 2200BG(WM3B2200BG) User's Guide Your Intel(R) PRO/Wireless 2200BG Network Connection adapter works with either 802.11b or 802.11g wireless standard. Operating at 2.4 GHz frequency at speeds of up to 54 Mbps you can now connect your computer to high-capacity existing 802.11b networks using multiple access points within large or small environments, and also to high-speed 802.11g networks. Your wireless adapter maintains automatic data rate control according to access point location to achieve the fastest possible connection. All your wireless client connections can be easily managed by the Intel(R) PROSet for Wireless utility. Using the PROSet Profile Wizard, you can create profiles automatically to suite your specific connection requirements. Enhanced security measures using 802.1x, WPA encryption and authentication, and 128-bit WEP encryption is standard for both 802.11b and 802.11g. Introduction to Wireless Networking Software Installation Using Intel(R) PROSet Connecting to a Network Security Overview Setting Up Security Troubleshooting Specifications Glossary Customer Support Safety and Regulatory Notices Warranty Adapter Registration Information in this document is subject to change without notice. (c) 2000–2003 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel(R) is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. September 2003 Back to Contents Page Wireless LAN Overview: Intel(R) PRO/Wireless 2200BG User's Guide About Wireless LAN Technology l Choosing a WLAN l Configuring a WLAN l Identifying a WLAN l Surveying the Site of Your WLAN l Factors Affecting Range A wireless network connects computers without using network cables. Computers use radio communications to send data between each other. You can communicate directly with other wireless computers, or connect to an existing network through a wireless access point. When you set up your wireless adapter, you select the operating mode for the kind of wireless network you want. You can use your wireless adapter to connect to other similar wireless devices that comply with the 802.11 standard for wireless networking. Choosing a Wireless LAN Wireless LANs can operate with or without access points, depending on the number of users in the network. Infrastructure mode uses access points to allow wireless computers to send and receive information. Wireless computers transmit to the access point, the access point receives the information and rebroadcasts it to other computers. The access point can also connect to a wired network or to the Internet. Multiple access points can work together to provide coverage over a wide area. Peer-to-Peer mode, also called Ad Hoc mode, works without access points and allows wireless computers to send information directly to other wireless computers. Ad Hoc Mode is only supported in 802.11b and 802.11g networks. You can use Peer-to-Peer mode to network computers in a home or small office or to set up a temporary wireless network for a meeting. Configuring a Wireless LAN There are three basic components that must be configured for an 802.11 wireless LAN to operate properly: l Network Name: Each wireless network uses a unique Network Name to identify the network. This name is called the Service Set Identifier (SSID). When you set up your wireless adapter, you specify the SSID. If you want to connect to an existing network, you must use the name for that network. If you are setting up your own network you can make up your own name and use it on each computer. The name can be up to 32 characters long and contain letters and numbers. l Profiles: When you set up your computer to access a wireless network, the wireless client manager creates a profile for the wireless settings that you specify. If you want to connect to another network, you can scan for existing networks and make a temporary connection, or create a new profile for that network. After you create profiles, your computer will automatically connect when you change locations. l Security: The 802.11 wireless networks use encryption to help protect your data. Wired equivalent privacy (WEP) uses a 64-bit or 128-bit shared encryption key to scramble data. Before a computer transmits data, it scrambles the data using the secret encryption key. The receiving computer uses this same key to unscramble the data. If you are connecting to an existing network, use the encryption key provided by the administrator of the wireless network. If you are setting up your own network you can make up your own key and use it on each computer. m Wi-Fi Protected Access (WPA) is a security enhancement that strongly increases the level of data protection and access control to a WLAN. WPA mode enforces 802.1x authentication and key-exchange to strengthen data encryption. WPA utilizes its Temporal Key Integrity Protocol (TKIP). TKIP provides important data encryption enhancements that include a per-packet key mixing function, a message integrity check (MIC) named "Michael", an extended initialization vector (IV) with sequencing rules, and a also re-keying mechanism. Using these improvement enhancements, TKIP protects against WEP's k…
Text truncated - open the document above for the full version.

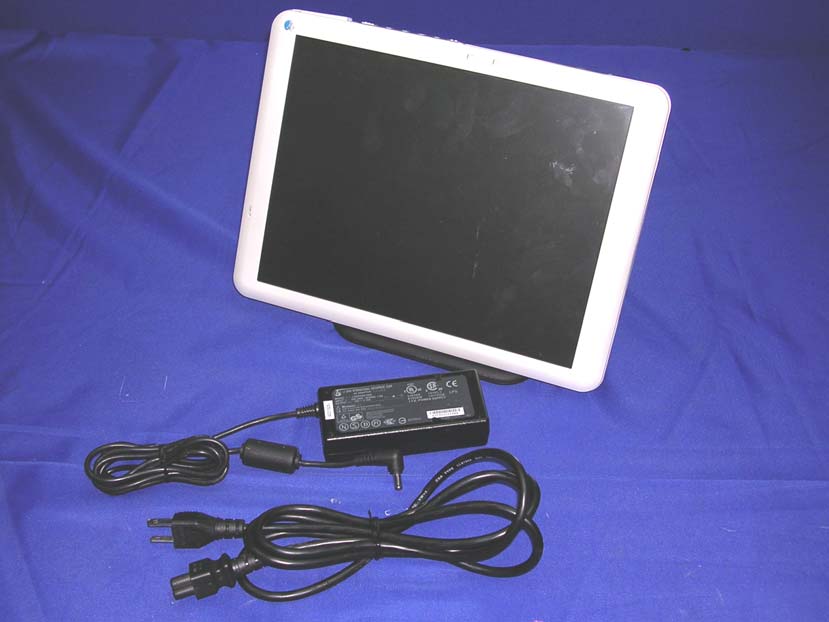

Report No.: 047L038FI Page : 1 of 14 Version:1.0 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 047L038FI Page : 2 of 14 Version:1.0 (3) EUT Photo (4) EUT Photo
AMTEK SYSTEM CO., LTD FCC ID.: R4RAIR2200BG 4FL., No.150, LI-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894 3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Tablet PC iTablet, Sahara Slate PC, PaceBlade, RM, Slate Model No.: T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Tablet PC Model No.: T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate F F C C C C I I D D : : R R 4 4 R R A A I I R R 2 2 2 2 0 0 0 0 B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan
AMTEK SYSTEM CO., LTD FCC ID.: R4RAIR2200BG 4FL., No.150, LI-Te Rd., Peitou, Taipei, Taiwan, R.O.C. Tel: +886 2 2894 3447 FCC ID AND DoC Label The FCC ID and DoC Label will be placed on the equipment as shown in the photograph below. Tablet PC iTablet, Sahara Slate PC, PaceBlade, RM, Slate Model No.: T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate TESTED TO COMPLY WITH FCC STANDARDS FOR HOME OR OFFICE USE S/N: Made in Taiwan Tablet PC Model No.: T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate F F C C C C I I D D : : R R 4 4 R R A A I I R R 2 2 2 2 0 0 0 0 B B G G This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. S/N: Made in Taiwan
Report No.: 047L038FI Page : 3 of 14 Version:1.0 (5) EUT Photo (6) EUT Photo Report No.: 047L038FI Page : 4 of 14 Version:1.0 (7) EUT Photo (8) EUT Photo Report No.: 047L038FI Page : 5 of 14 Version:1.0 (9) EUT Photo (10) EUT Photo Report No.: 047L038FI Page : 6 of 14 Version:1.0 (11) EUT Photo (12) EUT Photo Report No.: 047L038FI Page : 7 of 14 Version:1.0 (13) EUT Photo (14) EUT Photo Report No.: 047L038FI Page : 8 of 14 Version:1.0 (15) EUT Photo (16) EUT Photo Report No.: 047L038FI Page : 9 of 14 Version:1.0 (17) EUT Photo (18) EUT Photo Report No.: 047L038FI Page : 10 of 14 Version:1.0 (19) EUT Photo (20) EUT Photo Report No.: 047L038FI Page : 11 of 14 Version:1.0 (21) EUT Photo (22) EUT Photo Report No.: 047L038FI Page : 12 of 14 Version:1.0 (23) EUT Photo (24) EUT Photo Report No.: 047L038FI Page : 13 of 14 Version:1.0 (25) EUT Photo (26) EUT Photo Report No.: 047L038FI Page : 14 of 14 Version:1.0 (27) EUT Photo
Report No. 047L038FI Page: 5 of 63 Version:1.0 1.2. Operational Description EUT is a Tablet PC with 11 channels. This device provided four kinds of transmitting speed 1, 2, 5.5 and 11Mbps. The device of RF carrier is DBPSK, DQPSK and CCK (IEEE 802.11b) or eight kinds of transmitting speed 6, 9, 12, 18, 24, 36, 48 and 54Mbps. The device of RF carrier is OFDM (IEEE 802.11g). The device adapts direct sequence spread spectrum modulation. The antenna was Connector provides diversity function to improve the receiving function. This Tablet PC, compliant with IEEE 802.11b and IEEE 802.11g, is a high-efficiency Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direst Sequence Spread Spectrum (DSSS) radio transmission, the Tablet PC Wired Equivalent Protection (WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any IEEE 802.11b and IEEE 802.11g network. Mode 1: Transmitter 11Mbps Test Mode: Mode 1: Transmitter 54Mbps
Report No: 048L028SF Page: 1 of 56 Version:1.0 SAR Test Report Product Name:Tablet PC Model No. :T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate Applicant :AMTEK SYSTEM CO., LTD Address :14F-11, NO.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Date of Receipt:2004/07/29 Issued Date :2004/08/03 Report No. :048L028SF The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Report No: 048L028SF Page: 2 of 56 Version:1.0 Test Report Certification Issued Date: 2004/08/03 Report No.:048L028 Product Name : Tablet PC Applicant : AMTEK SYSTEM CO., LTD Address : 14F-11, NO.79, Sec.1, Hsin Tai Wu Rd., His Chih City, Taipei Hsien, Taiwan Manufacturer : AMTEK SYSTEM CO., LTD Model No. : T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate Trade Name : iTablet, Sahara Slate PC, PaceBlade, RM, Slate Measurement Standard : FCC Oet65 Supplement C Measurement Procedure : FCC Oet65 Supplement C Test Result : Max. SAR Measurement (1g) 802.11b: 0.46 W/kg 802.11g: 0.43 W/kg Application Type Certification The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. Documented By : (Grace Lin) Tested By : (Shine Hsu) Approved By : (Gene Chang) Report No: 048L028SF Page: 3 of 56 Version:1.0 TABLE OF CONTENTS Description Page 1. General Information.............................................................................. 5 1.1 EUT Description ............................................................................................................5 1.2 Test Environment ...........................................................................................................5 2. SAR Measurement System .................................................................. 6 2.1 ALSAS-10U System Description .................................................................................. 6 2.1.1 Applications ................................................................................................................ 6 2.1.2 Area Scans................................................................................................................... 6 2.1.3 Zoom Scan (Cube Scan Averaging)............................................................................ 7 2.1.4 ALSAS-10U Interpolation and Extrapolation Uncertainty......................................... 7 2.2 Isotropic E-Field Probe .................................................................................................. 7 2.2.1 Isotropic E-Field Probe Specification ......................................................................... 9 2.3 Boundary Detection Unit and Probe Mounting Device ................................................. 9 2.4 Daq-Paq (Analog to Digital Electronics) ..................................................................... 10 2.5 Axis Articulated Robot ................................................................................................ 10 2.6 ALSAS Universal Workstation.................................................................................... 11 2.7 Universal Device Positioner......................................................................................... 11 2.8 Phantom Types............................................................................................................. 11 2.8.1 APREL SAM Phantoms ........................................................................................... 12 2.8.2 APREL Laboratories Universal Phantom ................................................................. 12 3. Tissue Simulating Liquid ................................................................... 13 3.1 The composition of the tissue simulating liquid .......................................................... 13 3.2 Tissue Calibration Result ............................................................................................. 13 3.3 Tissue Dielectric Parameters for Head and Body Phantoms ....................................... 14 4. SAR Measurement Procedure ........................................................... 15 4.1 SAR System Validation................................................................................................ 15 4.1.1 Validation Dipoles..................................................................................................... 15 4.1.2 Validation Result ....................................................................................................... 15 4.2 SAR Measurement Procedure ...................................................................................... 16 5. SAR Exposure Limits ......................................................................... 17 6. Test Equipment List............................................................................ 18 7. Measurement Uncertainty .................................................................. 19 8. Test Results......................................................................................... 20 8.1 SAR Test Results Summary ......................................................................................... 20 8.2 SAR System Validation Data ....................................................................................... 22 8.3 SAR Measurement Data............................................................................................... 24 Report No: 048L028SF Page: 4 of 56 Version:1.0 Test Setup Photographs ...................................................................................................... 43 EUT Photographs ............................................................................................................... 45 Dipole Calibration..............................................................................................................47 Report No: 048L028SF…
Text truncated - open the document above for the full version.
Report No. 047L038FI Page: 1 of 63 Version:1.0 Test Report Product Name : Tablet PC Model No : T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate FCC ID : R4RAIR2200BG Applicant : AMTEK SYSTEM CO., LTD Address : 14F-11,NO.79,Sec.1,Hsin Tai Wu Rd., His Chih City , Taipei Hsien , Taiwan. Date of Receipt : Jul. 06, 2004 Issue Date : Jul. 26, 2004 Report No. : 047L038FI The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 047L038FI Page: 2 of 63 Version:1.0 Test Report Certification Issue Date : Jul. 26, 2004 Report No. : 047L038FI Test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Product Name : Tablet PC Applicant : AMTEK SYSTEM CO., LTD Address : 14F-11,NO.79,Sec.1,Hsin Tai Wu Rd., His Chih City , Taipei Hsien , Taiwan. Manufacturer : AMTEK SYSTEM CO., LTD Model No. : T200, Sahara i series, SlimBook 110 series, RMTAB3-01, Slate Rated Voltage : DC 3.3V(Power by PC) Trade Name : iTablet, Sahara Slate PC, PaceBlade, RM, Slate Measurement Standard : FCC CFR Title 47 Part 15 Subpart C: 2003 Measurement Procedure : ANSI C63.4: 2001 Test Result : Complied Documented By : ( Rita Huang ) Tested By : ( Jeff Wu ) Approved By : ( Gene Chang ) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 047L038FI Page: 3 of 63 Version:1.0 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................4 1.1. EUT Description............................................................................................................................4 1.2. Operational Description ................................................................................................................5 1.3. Tested System Datails....................................................................................................................6 1.4. Configuration of tested System .....................................................................................................6 1.5. EUT Exercise Software .................................................................................................................6 1.6. Test Facility ...................................................................................................................................7 2. Conducted Emission....................................................................................................................8 2.1. Test Equipment..............................................................................................................................8 2.2. Test Setup ......................................................................................................................................8 2.3. Limits ............................................................................................................................................8 2.4. Test Procedure ...............................................................................................................................9 2.5. Uncertainty ....................................................................................................................................9 2.6. Test Result of Conducted Emission.............................................................................................10 3. Peak Power Output ...................................................................................................................22 3.1. Test Equipment............................................................................................................................22 3.2. Test Setup ....................................................................................................................................22 3.3. Limits ..........................................................................................................................................22 3.4. Uncertainty ..................................................................................................................................22 3.5. Test Result of Peak Power Output...............................................................................................23 4. Radiated Emission .....................................................................................................................25 4.1. Test Equipment............................................................................................................................25 4.2. Test Setup ....................................................................................................................................25 4.3. Limits ..........................................................................................................................................26 4.4. Test Procedure .............................................................................................................................27 4.5. Uncertainty ..................................................................................................................................27 4.6. Test Result of Radiated Emission................................................................................................28 5. Band Edge ..................................................................................................................................40 5.1. Test Equipment............................................................................................................................40 5.2. Test Setup ..........................................................…
Text truncated - open the document above for the full version.
Report No.: 047L038FI Page : 1 of 3 Version:1.0 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 047L038FI Page : 2 of 3 Version:1.0 Front View of Radiated Test Back View of Radiated Test Report No.: 047L038FI Page : 3 of 3 Version:1.0 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
