Fluidmesh 1100/1200VOLO/3100 MITO series User manual Firmware Version 6.0.× Fluidmesh 1100/1200VOLO/3100 MITO Series Copyright © 2005-2013 Fluidmesh NetworksLLC. WARNING ONLY QUALIFIEDPERSONNELSHOULDINSTALLTHISUNIT. THEIN- STALLATIONSHOULDCONFORMTOALLLOCALCODES. INSOME COUNTRIES, A CERTIFIEDELECTRICIANMAY BEREQUIRED. CAUTION Whenopen,theapparatus shouldnotbedrippingorsplashing.Noobject filledwithliquidshallbeplacedontheapparatus. NOTICETO USERS Copyright © Fluidmesh Networks LLC. All rights reserved. This manual or the software described herein, in whole or in part, shall not be reproduced, translated or reduced to any machine-readable form without prior written approval from Fluidmesh Networks LLC. FLUIDMESH NETWORKS LLC, PROVIDES NO WARRANTY WITH RE- GARD TO THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CONTAINED HEREIN AND HEREBY EXPRESSLY DISCLAIMS ANY IM- PLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE WITH REGARD TO THIS MANUAL, THE SOFT- WARE OR SUCH OTHER INFORMATION. IN NO EVENT SHALL FLU- IDMESH NETWORKS, INC. BE LIABLE FOR ANY INCIDENTAL, CON- SEQUENTIAL OR SPECIAL DAMAGES, WHETHER BASED ON TORT, CONTRACT, OR OTHERWISE, ARISING OUT OF OR IN CONNECTION WITH THIS MANUAL, THE SOFTWARE OR OTHER INFORMATION CON- TAINED HEREIN OR THE USE THEREOF. Fluidmesh Networks LLC, reserves the right to make any modification to this manual or the information contained herein at any time without notice. The software described herein may also be governed by the terms of a separate user license agreement. Fluidmesh is a registered trademark of Fluidmesh Networks LLC, Mesh- Wizard, EasyMesh, FMQuadro, FluidThrottle, Endo, MITO are trademarks of Fluidmesh Networks, Inc. Microsoft,Windows, InternetExplorerareregisteredtrademarksofMi- crosoftCorporationin theUnitedStatesand/orothercountries. 1 Ethernet is a registered trademark of Xerox Corporation. All other brands and product names are trademarks or registered trade- marks of their respective owners. 2 Contents 1 Manual Overview6 2 Precautions7 3 Installationand SystemSet-up8 3.1Fluidmesh1100MITO Series..................8 3.1.1ProperInstallationProcedures. ............9 3.1.2PoweringonanFM1100. . . .... . .........9 3.1.3StatusandLinkLEDs. . . ..... . .... . ....10 3.1.4Factory DefaultHardwareReset........... .10 3.1.5IntegratedPanelAntenna. . ........ . . . ...11 3.2Fluidmesh3100MITO Series. . . . ..............12 3.2.1ProperInstallationProcedures. ............13 3.2.2PoweringonanFM3100. . . .... . .........13 3.2.3StatusandLinkLEDs. . . ..... . .... . ....14 3.2.4Factory DefaultHardwareReset........... .14 3.2.5IntegratedPanelAntenna. . ........ . . . ...15 4 FluidmeshArchitectureOverview20 4.1Point-to-PointWirelessBridge......... . . . . . ....20 4.2MeshNetwork Architecture............. . .... .21 4.3Point-to-MultipointArchitecture:FluidMAX™. . . . .....22 3 3.3 Fluidmesh 1200VOLO .. . . . . . . . . . . . . . . . . . . . 3.3.1 Proper Installation Procedures . . . . . . . . . . . . . 17 16 3.3.2 Powering on an 1200 VOLO. . .. . . . . . . . . . . . . 17 3.3.3 Status and Link LEDs . . . . . . . . . . . . . . . . . . 18 3.3.4 Factory Default Hardware Reset . . . . . . . . . . . . 18 3.3.5 Integrated Panel Antenna . . . . . . . . . . . . . . . . 19 5FluidmeshNetworkAddressing24 5.1BridgeIPAddressing. . . ..... . ........ . . . ...24 5.1.1ConnectingandConfiguringIPDevicesandCameras25 5.2MeshAddressing. . . ............ . .........25 5.2.1Network Addressing. . . ........... . . . . .26 6SoftwarePlug-ins29 6.1Plug-inActivation/DeactivationProcedure. ..... . . . . .30 7Web-basedInterfaceandConfiguration33 7.1SoftwareandHardwareRequirements..... . ...... .33 7.2Logging-into theWeb-basedInterface........ . . . . .34 7.3End-userLicenseAgreementandRegionof Operation. . . .35 7.4MeshWizard™. . . .......................37 7.5Web-basedInterfaceMenus............. . .... .37 7.6General Mode....... ............... . ...38 7.7WirelessSettings.................. . . . . . . .38 7.8AdvancedWirelessSettings. ....... . ...... . ...42 7.9AntennaAlignmentToolsandPhysicalStatistics.......43 7.10FrequencyScanTool.... . .............. . . . .45 7.11FMQuadro™(MeshEndonly)............... . .47 7.11.1VLA NTaggingConfiguration(SoftwarePlug-inRe- quired)..... . . ............ . .......53 7.12FirmwareUpgrade. . .... ................ . .54 7.13Plug-inManagement. . .....................56 7.14AdvancedTools. . . . . ...... . . . ............57 7.15Multicast. . .... ......... .... ...........58 7.16 PoE Passthrough (FM1100 and FM1200 only) . . . . . . . . . 59 7.17ChangePassword.... ..... . ..............59 7.18Status......... ..................... .59 7.19RebootandResetto Factory Default. . . . ..........60 7.20On-lineHelp................. ..........60 4 8 Troubleshooting61 8.1I am unable to get the log-inscreen. . ........ . . . . 61 8.2I am unable to log-ininto the Web-basedinterface..... . 61 8.3I forgotthe administrator password .............. . 62 8.4In Bridge ModeI get no Link or the Link LED is always red or I am gettinga weak Wirelesslink (below 60%signalstrength)62 5 1 Manual Overview This manual describes how to install and operate the Fluidmesh VOLO and MITO series products. More specifically, this manual contains a general overview of the Fluidmesh 1100 MITO, Fluidmesh 1200 VOLO and the Fluidmesh 3100 MITO in Section 3.1, Section 3.2 and Section 3.3 respectively. Please refer to Fig. 1.1(a), Fig. 1.1(b) and Fig.1.1(c) for a representation of each product. This user’s manual also includes a complete overview of the network architectures that can be created using Fluidmesh technology, and is discussed in Section 4. The Fluidmesh net- work addressing is described in Section 5. The use of Fluidmesh software plug-ins, their features, and their installation procedures in a network fol- lows in Section 6. The Web-based Graphical User Interface (GUI) is then described in Section 7. Please note that, unless otherwise explicitly speci- fied, the Web GUI pr…

Text truncated - open the document above for the full version.

Date: Apr. 18, 2013 To Whom it may concern, I would like to clarify the operating frequency range and intended operating purpose for below equipment: Model Name: FM1200V-HW FCC ID: R5S-FV Product Name: WiFi AP The operating frequency range of this equipment is only possible within the range of 5150—5250 MHz; however, in order to comply with the relevant FCC requirement (Part 15.407), when the 5150—5250 MHz is used for this equipment, this equipment should installed in the indoor, and this information will be described on the user manual. Regards, Signature___________________________________ Name/Title: Robert Huang / Supply Chain and Manufacturing Manager Company Name: Fluidmesh Networks LLC TEL: (617) 209-6080 3000 FAX: (886) 458-1522 Email: [email protected]

Date (18/04/2013) BABT FCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, Fluidmesh Networks LLC 1359 Barlcay Blvd. 1359 Barlcay Blvd.Buffalo Grove Illinois United States, hereby authorize TUV SUD Taiwan, Mr. Peter Kao (7/F,No.37,Sec.2, Zhongyang S. Road, Beitou District, Taipei City 11270 Taiwan,R.O.C.,886-2-2898-6818) to act as our agent in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization expires on Oct. 10, 2013 Sincerely, _________________________________________________________ Company Officer: Robert Huang / Supply Chain and Manufacturing Manager Telephone Number: (617) 209-6080 3000 Email: [email protected]

Date (29/03/2013) BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: R5S-FV Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Fluidmesh Networks LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Common exhibits for which confidentiality is requested are: Schematics Bill of Materials/Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, ______________________________________________ Company Officer: Robert Huang / Supply Chain and Manufacturing Manager Telephone Number: (617) 209-6080 3000 Email: [email protected]

Date: Apr. 18, 2013 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: R5S-FV, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Brand Name and Model Name of the specified radio equipment: Fluidmesh / FM1200V- HW FCC ID: R5S-FV Product Name: WiFi AP Regards, Signature___________________________________ Name/Title: Robert Huang / Supply Chain and Manufacturing Manager Company Name: Fluidmesh Networks LLC TEL: (617) 209-6080 3000 FAX: (886) 458-1522 Email: [email protected]

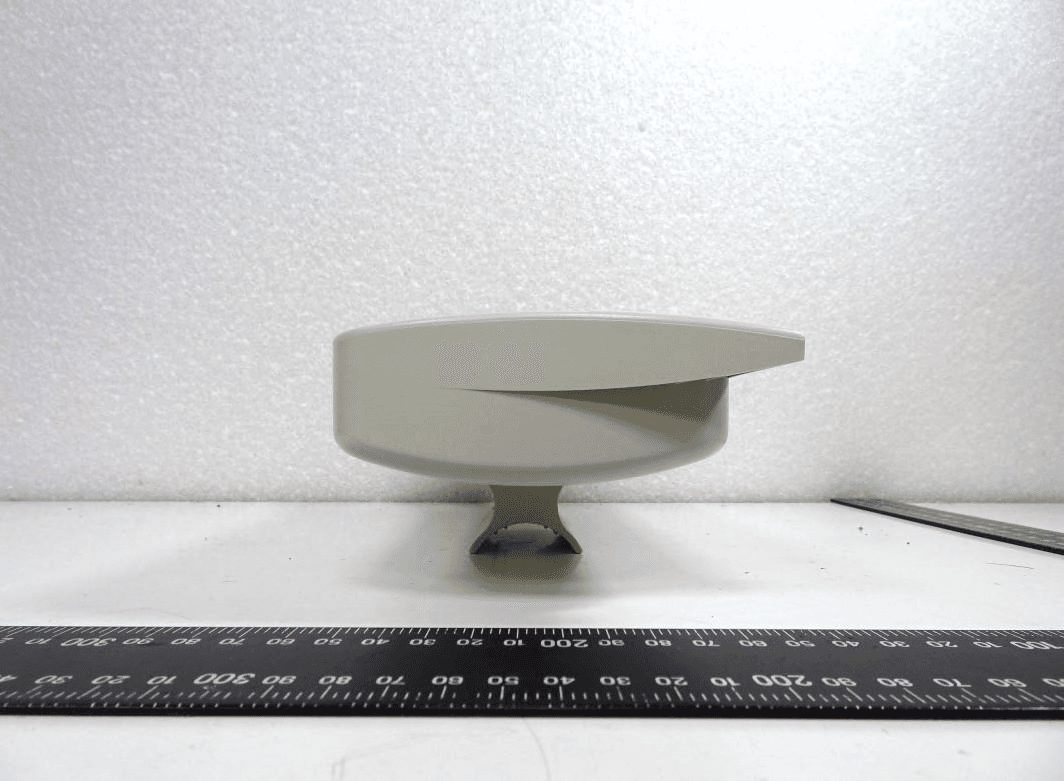

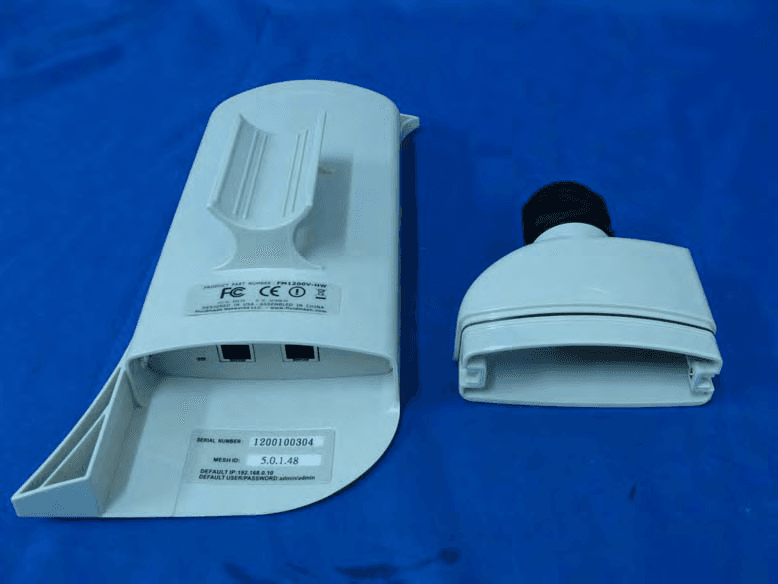

Report No. 131029R-RFUSP28V01 Page: 92 of 92 Attachment 2: EUT Detailed Photographs Report No.: 131029R-RFUSP28V02 Page : 1 of 12 Attachment 2 : EUT Detailed Photographs (1) EUT Photo (2) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 2 of 12 (3) EUT Photo (4) EUT Photo

Report No.: 131029R-RFUSP28V02 Page : 12 of 12 (23) EUT Photo

Report No.: 131029R-RFUSP28V02 Page : 2 of 12 (3) EUT Photo (4) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 3 of 12 (5) EUT Photo (6) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 4 of 12 (7) EUT Photo (8) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 5 of 12 (9) EUT Photo (10) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 6 of 12 (11) EUT Photo (12) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 7 of 12 (13) EUT Photo (14) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 8 of 12 (15) EUT Photo (16) EUT Photo Report No.: 131029R-RFUSP28V02 Page : 9 of 12 (17) EUT Photo (Adapter: GFP121DA-240050HB) (18) EUT Photo (Adapter: GFP121DA-240050HB) Report No.: 131029R-RFUSP28V02 Page : 10 of 12 (19) EUT Photo (Adapter: GFP121DA-240050HB) (20) EUT Photo (Adapter: GFP241DA-240100HB) Report No.: 131029R-RFUSP28V02 Page : 11 of 12 (21) EUT Photo (Adapter: GFP241DA-240100HB) (22) EUT Photo (Adapter: GFP241DA-240100HB) Report No.: 131029R-RFUSP28V02 Page : 12 of 12 (23) EUT Photo

Report No. 131029R-RFUSP32V01 Page: 1 of 4 RF Exposure Evaluation declaration Product Name WiFi AP Model No. FM1200V-HW FCC ID R5S-FV Applicant Fluidmesh Networks, LLC. Address 1359 Barlcay Blvd.,Buffalo Grove, IL 60089 USA Date of Receipt Dec. 27, 2012 Date of Declaration Jan. 21, 2013 Report No. 131029R-RFUSP32V01 The declaration results relate only to the samples calculated. The declaration shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 131029R-RFUSP32V01 Page: 2 of 4 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Report No. 131029R-RFUSP32V01 Page: 3 of 4 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. The temperature and related humidity: 18°Cand 78％ RH. Report No. 131029R-RFUSP32V01 Page: 4 of 4 1.3. Test Result of RF Exposure Evaluation Product : WiFi AP Test Item : RF Exposure Evaluation Test Site : No.3 OATS Operation Frequency 5180~5240MHz, 5745~5850MHz Maximum Conducted output power 29.80dBm Antenna gain 11.98dBi Output Power Into Antenna & RF Exposure Evaluation Distance: Output Power to Antenna (mW) Power Density at R = 40 cm (mW/cm2) 954.9926 0.749326 Power density is much lower than the limit (1 mW/cm 2 ).

Report No. 131029R-RFUSP28V01 Page : 1 of 91 FCC Test Report Product Name WiFi AP Model No FM1200V-HW FCC ID. R5S-FV Applicant Fluidmesh Networks, LLC. Address 1359 Barlcay Blvd.,Buffalo Grove, IL 60089 USA Date of Receipt Dec. 27, 2012 Issue Date Apr. 22, 2013 Report No. 131029R-RFUSP28V01 Report Version V1.0 The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Report No. 131029R-RFUSP28V01 Page : 2 of 91 Test Report Certification Issue Date: Apr. 22, 2013 Report No.: 131029R-RFUSP28V01 Product Name WiFi AP Applicant Fluidmesh Networks, LLC. Address 1359 Barlcay Blvd.,Buffalo Grove, IL 60089 USA Manufacturer Fluidmesh Networks, LLC. Model No. FM1200V-HW EUT Rated Voltage AC 100-240V, 50-60Hz EUT Test Voltage AC 120V/60Hz Trade Name Fluidmesh Applicable Standard FCC CFR Title 47 Part 15 Subpart C: 2012 ANSI C63.4: 2003, ANSI C63.10: 2009 Test Result Complied The test results relate only to the samples tested. The test report shall not be reproduced except in full without the written approval of QuieTek Corporation. This report must not be used to claim product endorsement by NVLAP any agency of the U.S. Government Documented By : ( Senior Engineering Adm. Specialist / Anita Chou ) Tested By : ( Engineer / Jack Hsu ) Approved By : ( Manager / Vincent Lin) Accredited by NIST (NVLAP) NVLAP Lab Code: 200533-0 Report No. 131029R-RFUSP28V01 Page : 3 of 91 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION .....................................................................................................5 1.1. EUT Description............................................................................................................................5 1.2. Operational Description ................................................................................................................7 1.3. Tested System Details....................................................................................................................8 1.4. Configuration of Tested System ....................................................................................................8 1.5. EUT Exercise Software .................................................................................................................8 1.6. Test Facility ...................................................................................................................................9 2. Conducted Emission..................................................................................................................10 2.1. Test Equipment............................................................................................................................10 2.2. Test Setup ....................................................................................................................................10 2.3. Limits ..........................................................................................................................................11 2.4. Test Procedure .............................................................................................................................11 2.5. Uncertainty ..................................................................................................................................11 2.6. Test Result of Conducted Emission.............................................................................................12 3. Peak Power Output ...................................................................................................................16 3.1. Test Equipment............................................................................................................................16 3.2. Test Setup ....................................................................................................................................16 3.3. Limits ..........................................................................................................................................16 3.4. Test Procedure .............................................................................................................................16 3.5. Uncertainty ..................................................................................................................................16 3.6. Test Result of Peak Power Output...............................................................................................17 4. Radiated Emission .....................................................................................................................21 4.1. Test Equipment............................................................................................................................21 4.2. Test Setup ....................................................................................................................................22 4.3. Limits ..........................................................................................................................................23 4.4. Test Procedure .............................................................................................................................24 4.5. Uncertainty ..................................................................................................................................24 4.6. Test Result of Radiated Emission................................................................................................25 5. RF antenna conducted test........................................................................................................34 5.1. Test Equipment............................................................................................................................34 5.2. Test Setup ..............................…

Text truncated - open the document above for the full version.

Report No. 131029R-RFUSP28V01 Page: 91 of 92 Attachment 1: EUT Test Photographs Report No.: 131029R-RFUSP28V02 Page : 1 of 4 Attachment 1: EUT Test Setup Photographs Front View of Conducted Test Back View of Conducted Test Report No.: 131029R-RFUSP28V02 Page : 2 of 4 Front View of Radiated Test Back View of Radiated Test Report No.: 131029R-RFUSP28V02 Page : 3 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn) Report No.: 131029R-RFUSP28V02 Page : 4 of 4 Front View of Radiated Test (Horn) Back View of Radiated Test (Horn)
