R5WNGTE1400Dual-band GSM phone GSM850/PCS1900

1 Welcome!! Thank you for choosingE1400 mobile phone! Please read this manual carefully before you use your mobile phone. For efficient use of your mobile phone, we recommend you to read the Safety and General Information chapter in advance. * Please read before using the mobile phone Group edit 29 Turbo set 30 Memory status 31 My number 31 My profile 32 Call logs 33 Dialed call 33 Answered call 34 Missed call 34 Call time 35 Camera 36 Shooting 36 Album 40 Photo editor 42 Setting 43 Memory 44 Setting 45 Sound45 Display47 Phone set 48 Security set52 Network set55 Net account58 Data folder61 Download 61 Photo 62 Video63 3 T T able of contents able of contents Safety and general information6 Package contents8 About your phone 9 Phone overview 9 Key definition 10 Idle display12 Status icon 13 Installing and Removing SIM card15 Installing SIM card 15 Removing SIM card 15 Installing and Removing battery 16 Installing the battery 16 Removing the battery 16 Basic Function17 Power on / off 17 About PIN/PUK 18 Making a call 20 Answering a call 21 Missed a call 21 In call menu 21 Quick access in idle mode 25 Storing a number 25 Main Menu27 Selecting main menu 26 Phone Book 27 Phone book 27 2 T T able of contents able of contents Reference information94 Battery94 About the battery94 Caution95 Battery time96 Entering text97 General text input guideline98 Change the text input mode99 Chinese character input100 English character input 101 Number input102 Symbol input102 Data format103 Troubleshooting104 Technical information106 5 T T able of contents able of contents Avatar64 Pictures 64 Melodies65 Scheduler66 Schedule 66 To do 67 Memo 68 Anniversary 69 Auto on / off 70 Entertainment 71 Game 71 Avatar72 Utilities 73 Alarm 73 Calculator 74 World time 74 Stopwatch75 Currency75 STK76 WAP 77 Access to WAP77 Message79 Access to message79 SMS79 MMS87 4 T T able of contents able of contents 7 6 Safety and General Information Safety and General Information Safety and General Information Safety and General Information Please read these simple guidelines and safety instructions carefully before using the phone. [Driving] Please do not use a phone while driving. If you want to use your phone, please use a hands-free kit or please park the car first. [Hospital] Please turn off the phone when you are in hospital. Mobile phones can cause possible interference to medical devices such as hearing aids or pacemaker. [Aircraft] Please turn off the phone when you are in an aircraft. It is prohibited to use phone in the aircraft. [Blasting Area] Please turn off the phone when you are near a blasting area. [Battery and accessory] Use only approved battery and accessories. [When refuelling] Do not use the phone at refuelling point(service station) or near fuel or chemicals. [Disassembly] Do not disassemble your phone or any of its accessories. Only certified service center can disassemble and repair your phone. [Children] Keep all accessories or batteries out of the reach of small children or babies. Please instruct children the proper ways of handling phone during usage. Shock circuit or breakdown may occur and may cause severe danger to user due to improper usage. [Battery] Do not apply extreme shock to battery. It is dangerous to dis- assemble a battery or to apply extreme shock to the battery via nail or heavy metal objects. Dispose of used batteries in accordance with local regulations. Always recycle. Do not dispose of batteries in a fire. 9 8 Package Contents Package Contents About About Y Y our Phone our Phone TransceiverBattery Charger * Product visualizations in this manual are for illustrative purposes only. * Screen images simulated. Package contents User Manual Phone overview : Side volume key : Screen : Left soft key : Right soft key : SEND key : END key : Joy stick (Up / Down / Left / Right / OK ) : Alphanumeric key : Lanyard latch : Camera : Speaker : Battery : Earphone jack : Microphone A B C D E F G H I J K L M N A C K L B D H E G J F I M N 11 10 About About Y Y our Phone our Phone About About Y Y our Phone our Phone Key definition [SEND Key] Makes or answers a call In idle mode : Access the Call list . [END Key] End an active call. Hold the key down, switch phone On or Off. [Soft Key : Left] In menu mode : Perform various functions according to the viewing menu. In idle mode : Connect to main menu. [Soft Key : Right] In Menu mode: Perform various functions according to the viewing menu In Idle mode: Connect to Message (SMS, EMS, MMS) [Side volume key] During a call : Adjusts earpiece volume In menu mode : Scrolls through the menu In idle mode : Adjusts the keytone volume Key Function [OK Key] In menu mode : Selects the menu. In idle mode : Connects to WAP directly. In camera mode : Function as a shutter [Joystick : Up] In menu mode : Scrolls the menu up. In idle mode : Access to the camera preview. [Joystick : Down] In menu mode : Scrolls down the menu In idle mode : Access to Alarm directly. [Joystick : Left] Edit mode: Move the cursor left In menu mode : Scrolls the menu up In idle mode : Access to Calendar directly. [Joystick : Right] Edit mode: Move the cursor right In Menu mode: Scroll the menu Right Idle mode: Access to Phone Book directly [Function Key : # ] When pressed and held in idle mode, it enters phone modemenu. Key Function [ Numeric Key] Input 0~9 number in idle mode [ Function Key : * ] When pressed and held while entering a phone number , it enters a pause 13 12 Idle display Status icon area Softkey area Idle banner Text and graphic area * Keypad lock Press the [Main] soft key and then press function [*] key in idle mode. Then the keypad lock icon appears at the idle graphic. For details, please refer to the menu of Phone set Time & Date area Keypad lock icon Status icon Icon Function [Signal Strength Indicator] Indicates the strength of the network signal [In Use] Appears when a call is progressing [Out of reach] Appears when the network signal is not received [Bell] Appears when you set…

Text truncated - open the document above for the full version.

SUBJECT: NEWGEN Telecom CO., LTD FCC ID: R5WNGTE1400 MODEL: E1400 Part 24 / 22 / 2 Certification Gentlemen: Submitted herewith, on behalf of NEWGEN Telecom CO., LTD is an application for Part 24, 22 Certification of the following Dual- Band GSM Phone: Trade Name/Model(s): NEWGEN Telecom / E1400 EUT Type: Dual-Band GSM Phone Tx Frequency: 824.20 – 848.80MHz (GSM850) / 1850.20MHz – 1909.80MHz (GSM1900) Rx Frequency: 869.20 – 893.80MHz (GSM850) / 1930.20MHz – 1989.80MHz (GSM1900) Max. RF Output Power: 0.343 W ERP GSM850 (25.35dBm) / 0.352W EIRP GSM1900 (25.46 dBm) Maximum SAR: 0.698 W/kg GSM850 Brain SAR / 0.557W/kg GSM850 Body SAR 0.522 W/kg GSM1900 Brain SAR / 0.192W/kg GSM1900 Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. Report prepared by: Ki-Soo Kim Manager of Product Compliance Team Mr. Choon-Gyum Kim-Director -NEWGEN Telecom CO., LTD December 22, 2005 Applicant: NEWGEN Telecom CO., LTD FRN: 0010936045

Company: NEWGEN Telecom CO., LTD 3rd FL, Samyoung Bldg., 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea Date: December 10, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: R5WNGTE1400 (Dual-Band GSM Phone) Part 24, 22 Certification To whom it may concern: We, the undersigned. hereby authorized HYUNDAI Calibration & Certification Technologies Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these manners. Any and all acts carried out by HYUNDAI Calibration & Certification Technologies Co., Ltd. on our behalf shall have the same effect as acts of our own. This authorization is valid until December 31, 2006. Sincerely Yours, --------------------------------------------------------- Mr. Choon-Gyum Kim - Director NEWGEN Telecom CO., LTD

Company: NEWGEN Telecom CO., LTD 3rd FL, Samyoung Bldg., 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea Date: December 10, 2005 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046, U.S.A. Subject: Authorization Letter FCC ID: R5WNGTE1400 (Dual-Band GSM Phone) Part 24, 22 Certification Gentlemen: In accordance with 0.459 of CFR 47, NEWGEN Telecom CO., LTD hereby requests confidentiality of the Block Diagrams attachment, Schematic Diagrams attachment, Operational Description attachment, and Part List/Tune-Up Procedure attachment for the above-referenced Certification application. These documents contain detailed system and equipment description and related information about the product which NEWGEN Telecom CO., LTD considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve NEWGEN Telecom CO., LTD feels this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely Yours, --------------------------------------------------------- Mr. Choon-Gyum Kim - Director NEWGEN Telecom CO., LTD

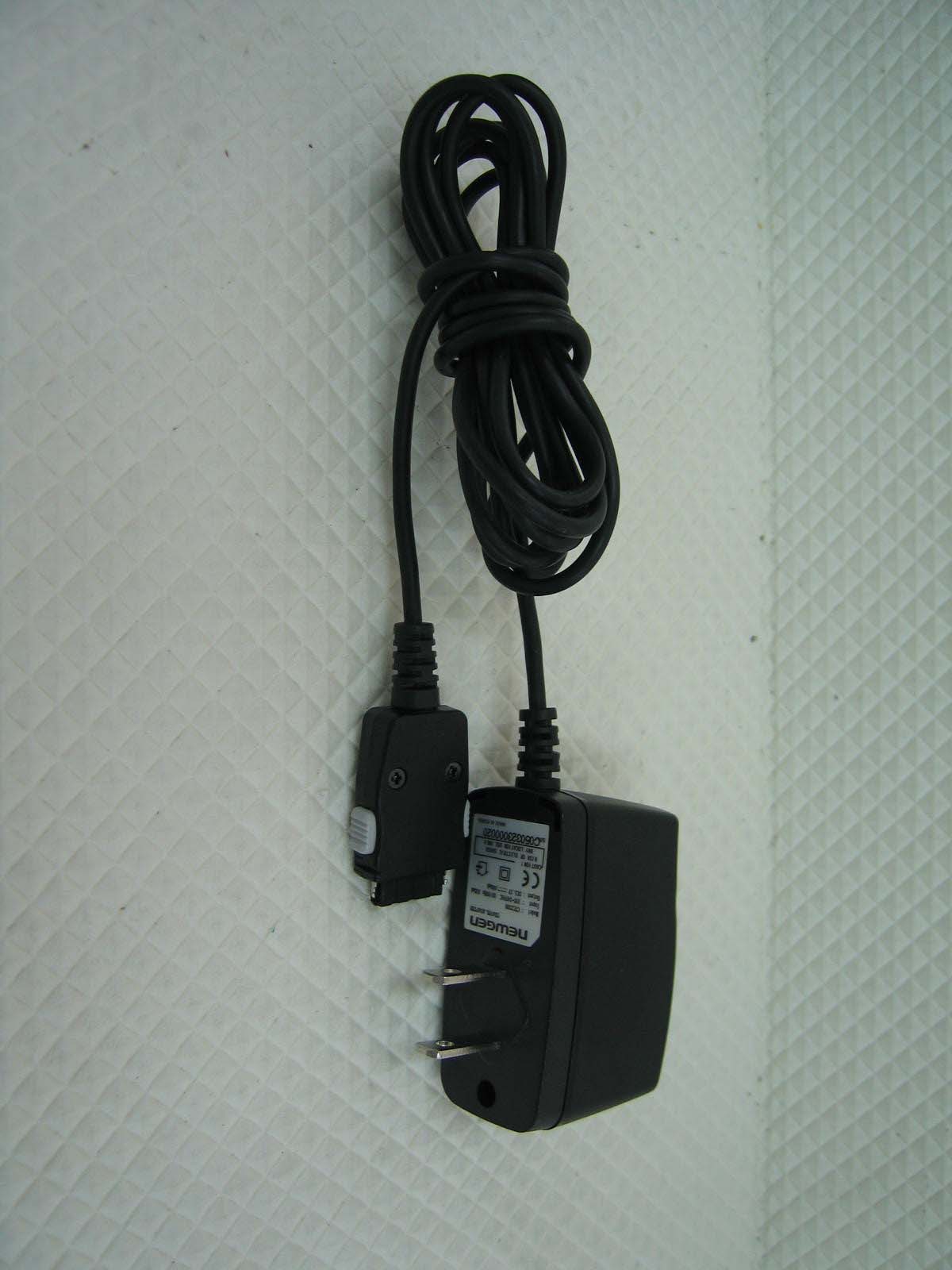

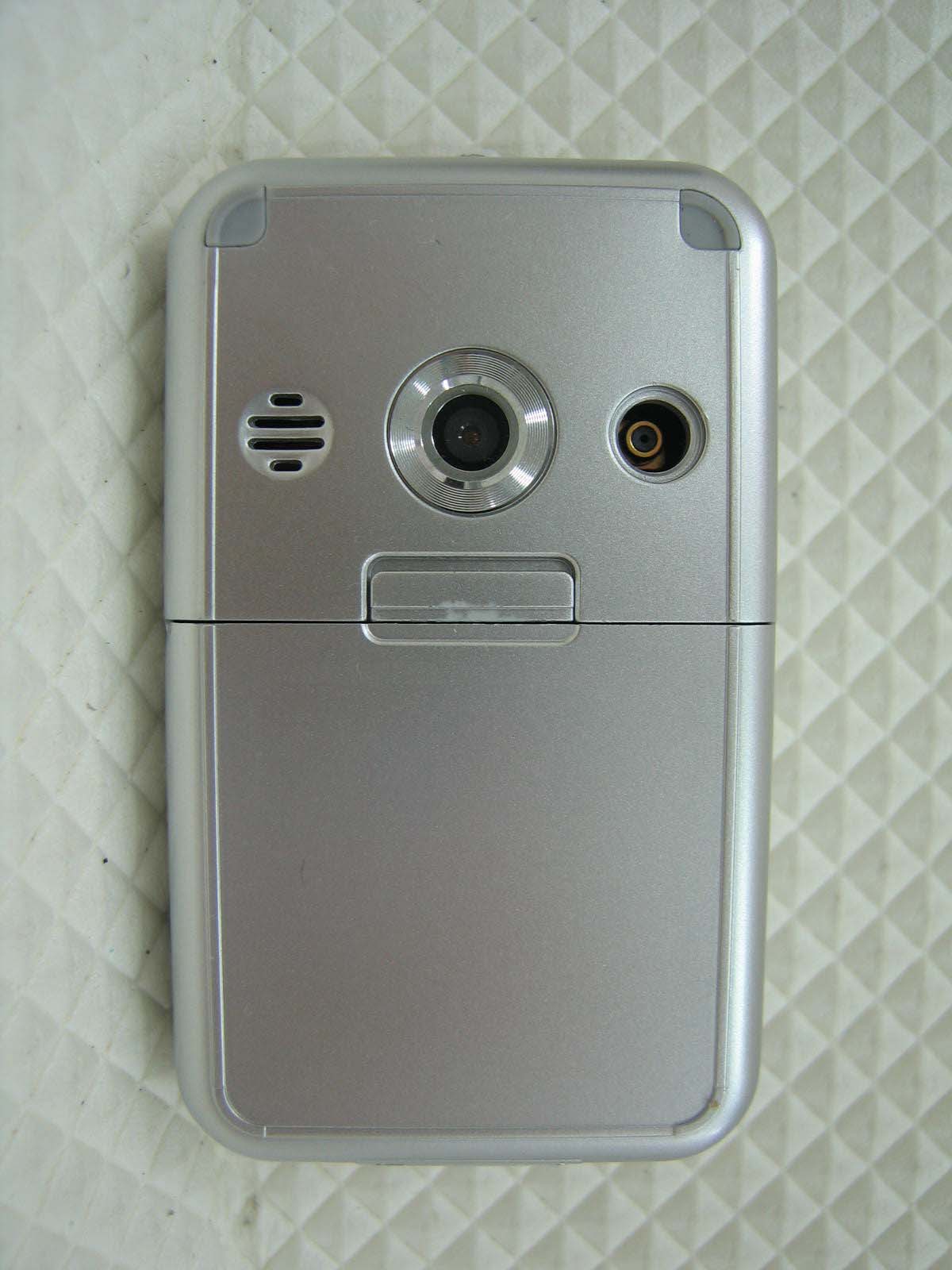

Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT G – EXTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ EXTERNAL PHOTO

Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT E – FCC ID LABEL/ LOCATION Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ( SEE NEXT PAGE ) Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT H – INTERNAL PHOTOGRAPHS Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ■ INTERNAL PHOTO

HYUNDAI CALIBRATION & CERTIFICATION TECH. CO., LTD. PRODUCT COMPLIANCE DIVISION SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI, KYOUNGKI-DO, 467-701, KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr CERTIFICATE OF COMPLIANCE SAR EVALUATION EUT Type: Dual-Band GSM Phone - Prototype Tx Frequency: 824.20 — 848.80 MHz (GSM850) 1850.20 — 1909.80 MHz (GSM1900) Rx Frequency: 869.20 — 893.80 MHz (GSM850) 1930.20 — 1989.80 MHz (GSM1900) Max. RF Output Power: 0.343 W ERP GSM850 (25.35dBm) / 0.352W EIRP GSM1900 (25.46 dBm) Trade Name/Model(s): NEWGEN Telecom / E1400 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] Maximum SAR: 0.698 W/kg GSM850 Brain SAR / 0.557W/kg GSM850 Body SAR 0.522 W/kg GSM1900 Brain SAR / 0.192W/kg GSM1900 Body SAR This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/ IEEE Std. C95.1- 1992 and had been tested in accordance with the measurement procedures specified in ANSI/ IEEE Std. C95.3- 1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Hyundai C-Tech Co., Ltd. Certifies that no party to this application has been denied FCC benefits pursuant to section 5301 of the Anti- Drug Abuse Act of 1998, 21 U.S. C. 853(a) Report prepared by : Ki-Soo Kim Manager of Product Compliance Team This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the HCT Co., Ltd. FCC ID : APPLICANT : R5WNGTE1400 NEWGEN Telecom CO., LTD Date of Issue : December 19, 2005 Test Report No.: HCT-SAR05-1209 Test Site: HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. FRN: 0005866421 NEWGEN Telecom CO., LTD 3rd FL, Samyoung Bldg., 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea FRN: 0010936045 Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Table of Contents 1.1 SCOPE ---------------------------------------------------------------------------------------------------------- 2.1 INTRODUCTION / SAR DEFINITION --------------------------------------------------------------------- 3.1 SAR MEASUREMENT SET-UP --------------------------------------------------------------------------- 4.1 E-FIELD PROBE SYSTEM --------------------------------------------------------------------------------- 5.1 EUT ARRANGEMENT ------------------------------------------------------------------------------------- 6.1 E-FIELD PROBE CALIBRATION PROCESS -------------------------------------------------------- 7.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE --------------------------------------------------- 8.1 SYSTEM SPECIFICATIONS ------------------------------------------------------------------------------ 9.1 MEASUREMENT PROCESS ------------------------------------------------------------------------------ 10.1 ANSI/ IEEE C95.1 - 1992 RF EXPOSURE LIMITS -------------------------------------------------------- 11.1 MEASUREMENT UNCERTAINTIES ------------------------------------------------------------------- 12.1 TEST DATA SUMMARY ---------------------------------------------------------------------------------- 13.1 SAR TEST EQUIPMENT LIST --------------------------------------------------------------------------- 14.1 CONCLUSION ------------------------------------------------------------------------------------------------ 15.1 REFERENCES -------------------------------------------------------------------------------------------- 3 4 5 6 7-8 9-10 11 12 13 14 15 16-19 20 21 22 Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in emulated human head and body tissues exposed to radio frequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 1. 2 Applicant • EUT Type: Dual-Band GSM Phone - Prototype • Trade Name: NEWGEN Telecom • Model(s): E1400 • FCC ID: R5WNGTE1400 • Serial Number(s): R5W20051200001 • Tx Frequency: 824.20 – 848.80 MHz (GSM850) 1850.20 – 1909.80 MHz (GSM1900) • Rx Frequency: 869.20 – 893.80 MHz (GSM850) 1930.20 – 1989.80 MHz (GSM1900) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093; FCC/ OET Bulletin Supplement C [July 2001] • Modulation(s): GSM • Αntenna Type: Intenna • Date(s) of Tests: December 17, 2005 • Place of Tests: Hyundai C-Tech. EMC Lab. Icheon, Kyounki-Do, KOREA • Report Serial No.: HCT-SAR05-1209 Figure 1. SAR System 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Company Name: NEWGEN Telecom CO., LTD Address: 3rd FL, Samyoung Bldg., 106-2, Banpo-Dong, Seocho-Gu, Seoul, 137-040, Korea Attention: Yady Dong / R&D Department Section Manager Tel. / Fax : 82- 2-596-6581 / 82-2-3481-5163 E-Mail : [email protected] Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI …

Text truncated - open the document above for the full version.

Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (1 of 3) Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (2 of 3) R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr R Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr

Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr ATTACHMENT O – SAR TEST PLOTS (3 of 3) Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATION & CERTIFICATION TECHNOLOGIES CO., LTD. SAN 136-1, AMI-RI , BUBAL-EUP, ICHEON-SI,KYOUNKI-DO, 467-701,KOREA TEL : +82 31 639 8518 FAX : +82 31 639 8525 www.hct.co.kr Report No.: HCT-SAR05-1209 FCC ID : R5WNGTE1400 DATE : December 19, 2005 HYUNDAI CALIBRATIO…

Text truncated - open the document above for the full version.
