R5XDW1001TX001Digital Wireless System

Digital Wireless System User & fitting guide User Guide & montage User & Einbau Anleitung Utente di montaggio e guida Guía de usuario y montaje User & montage handleiding Stock code 4047 2 1 Connections Connexions/Verbindungen/Connessioni/Conexiones/Aansluitingen 1 Red: PowerConnect to Reverse signal 12/24Vdc Rouge: PouvoirConnecter au signal de marche arrière 12/24 V c.c. Rot: MachtAnschluss an Rückwärtsfahrtsignal 12/24 V DC Rosso: PotenzaCollega a segnale di retromarcia 12/24 Vdc Rojo: PoderConectar a señal inversa 12/24Vcc Rood: VermogenAansluiten op omgekeerd signaal 12/24V DC C Monitor connection Connexion à moniteur Monitoranschluss Collegamento monitor Conexión de monitor Monitorverbinding A Camera connection Connexion à caméra Kameraanschluss Collegamento telecamera Conexión de la cámara Cameraverbinding 2 Black: Ground Noir: Terre Schwarz: Grund Nero: Terreno Negro: Terreno Zwart: Grond 3 AMP IP67 FUSE 3 AMP FUSE A12C12 3 2 Installation Installation/Zum Installieren/Montaggio/Instalación/Om te installeren RX TX +- +- TXRX TX RX TXRX = = MAX 50m MAX? MAX? = 4 3 Pairing operation Opération d’appariement/Pairing-Vorgang/Operazione di accoppiamento/ Operación de emparejamiento/Koppeling 2 Installation Installation/Zum Installieren/Montaggio/Instalación/Om te installeren Flashing green: Pairing Vert: Appariement Grün: Pairing Verde: Accoppiamento Verde: Emparejamiento Groen: Koppeling Solid green: Pairing complete Vert: Appariement terminé Grün: Pairing abgeschlossen Verde: Accoppiamento completato Verde: Emparejamiento concluido Groen: Koppelen voltooid Red: Power on, not paired Rouge: Sous tension, sans appariement Rot: Eingeschaltet, kein Pairing Rosso: Alimentazione presente, non accoppiato Rojo: Encendido, no emparejado Rood: Stroom aan, niet gekoppeld LED off: TX no power Rouge: Emetteur hors tension Rot: Sender ohne Strom Rosso: Alimentazione trasmettitore assente Rojo: TX sin alimentación Rood: Transmitter zonder stroom Alcohol Prep Pad 70% Isopropyl Alcohol Alcohol Doekjes Isopropyl Alcohol70% Prèps D’Alcool Alcool Isopropilique70% Alkoholtupfer Isopropilische Alkohol70% 5 3 Pairing operation Opération d’appariement/Pairing-Vorgang/Operazione di accoppiamento/ Operación de emparejamiento/Koppeling = NO VIDEO SIGNAL TX X = NO SIGNAL NO SIGNAL NO SIGNAL MANUAL PAIRING MANUAL PAIRING MANUAL PAIRING TXRX R x 2sec ✓ x 6sec x 6sec R R X Check power to RX/ Vérifier la tension de l'émetteur/ Stromversorgung von Empfänger prüfen/ Controlla alimentazione ricevitore/ Compruebe la alimentación al RX/ Controleer stroomtoevoer naar ontvanger Check RX fuse/ Vérifier le fusible de l'émetteur/ Sicherung von Empfänger prüfen/ Controlla fusibile ricevitore/ Comprobar el fusible del RX/ Controleer zekering ontvanger Move TX closer to RX (p7)/ Rapprocher l'émetteur du récepteur (p7)co/ Sender näher zum Empfänger bringen (S. 7)/ Avvicina trasmettitore a ricevitore (pag. 7)/ Mover el TX más próximo al RX (p.7)/ Zet transmitter dichter bij ontvanger (p7) Check camera/ Vérifier la caméra/ Kamera prüfen/ Controlla telecamera/ Compruebe la cámara/ Controleer camera 6 4 Specifications Spécifications/Spezifikationen/Specifiche/Especificaciones/Specificaties ENGLISH TV systemAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Current consumption TX 820+/-20mA @12V Current consumption RX 220+/-20mA @12V Output power12Vdc to camera Dimensions113.7(w) x 114.3(h) x 30.8(d)mm Environmental TX IP69K Environmental RX No IP rating Connector/fuse TX IP67 Operating temp-40°C ~ +85°C (-40°F ~ +185°F) FRANCAIS Système TVAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Consommation de TX 820+/-20mA @12V Consommation de RX 220+/-20mA @12V Output power12Vdc to camera Dimensions113.7(w) x 114.3(h) x 30.8(d)mm Environnement TX IP69K Environnement RX No IP rating Connecteur/fusible TX IP67 Température d’utilisation-40°C ~ +85°C (-40°F ~ +185°F) DEUTSCH TV-SystemAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Momentane Stromauf- nahme von TX 820+/-20mA @12V Momentane Stromauf- nahme von RX 220+/-20mA @12V Ausgangsleistung12Vdc to camera Abmessungen 113.7(w) x 114.3(h) x 30.8(d)mm Umgebung TX IP69K Umgebung RX No IP rating Verbinder/Sicherung TX IP67 Betriebstemperatur -40°C ~ +85°C (-40°F ~ +185°F) ITALIANO Sistema TVAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Consumo elettrico TX 820+/-20mA @12V Consumo elettrico RX 220+/-20mA @12V Potenza di uscita12Vdc to camera Dimensioni113.7(w) x 114.3(h) x 30.8(d)mm Ambiente TX IP69K Ambiente RX No IP rating Connettore/fusibile TX IP67 Temperatura di servizio-40°C ~ +85°C (-40°F ~ +185°F) ESPANOL Sistema de TVAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Potencia de salida12Vdc to camera Consumo de corriente del TX 820+/-20mA @12V Consumo de corriente del RX 220+/-20mA @12V Dimensiones113.7(w) x 114.3(h) x 30.8(d)mm Medioambiental TX IP69K Medioambiental RX No IP rating Conector / fusible TX IP67 Temperatura de servicio-40°C ~ +85°C (-40°F ~ +185°F) NEDERLANDS TV-SysteemAUTO NTSC/PAL Video input1.0 Vp-p 75Ω Audio input3.0Vp-p@1KHz (Tone) Voltage12~24Vdc input Stroomverbruik TX 820+/-20mA @12V Stroomverbruik RX 220+/-20mA @12V Stroomoutput12Vdc to camera Afmetingen 113.7(w) x 114.3(h) x 30.8(d)mm Milieu TX IP69K Milieu RX No IP rating Connector/zeker- ing TX IP67 Bedrijfstemperatuur -40°C ~ +85°C (-40°F ~ +185°F) 7 Serial No: Stock code: Specifications subject to change. Sous réserve de modifications techniques. Vorbehaltlich technischer Änderungen. Con riserva di modifiche tecniche. Reservadas las modificaciones técnicas. Technische wijzigingen voorbehouden. • Ensure correct camera view is displayed before manoeuvering! • Under specific power cycles it is possible for the RX to NOT pair automatically with a TX (no picture) or pair with an alternative TX. Re-pair using t…

Text truncated - open the document above for the full version.

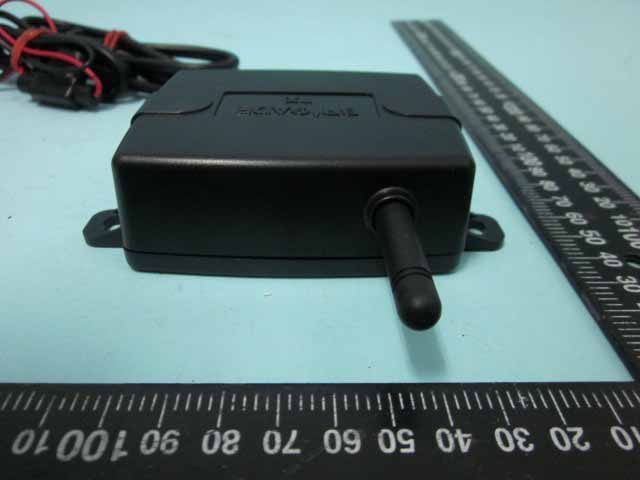

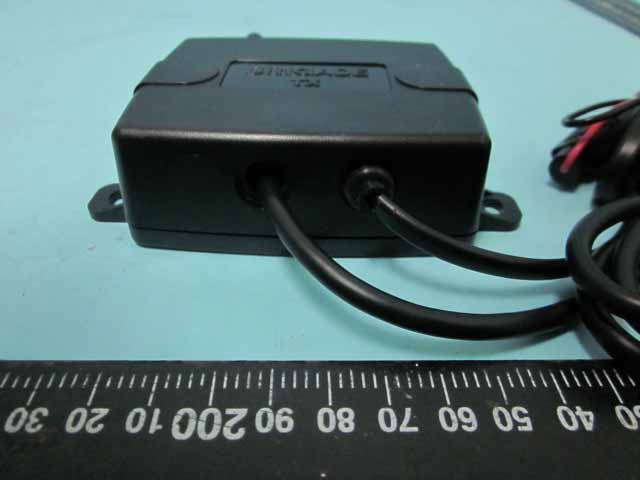

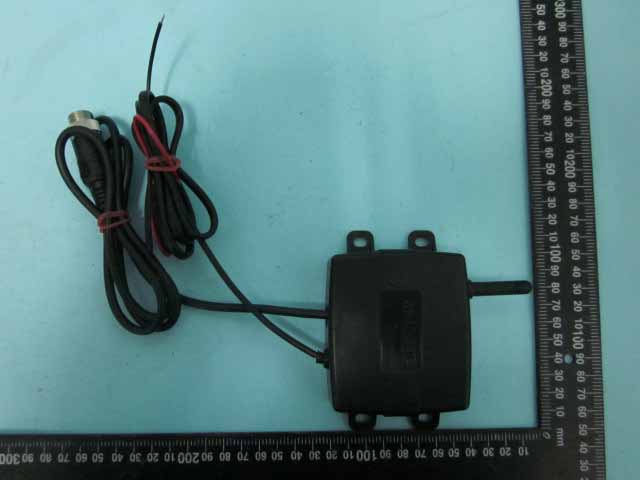

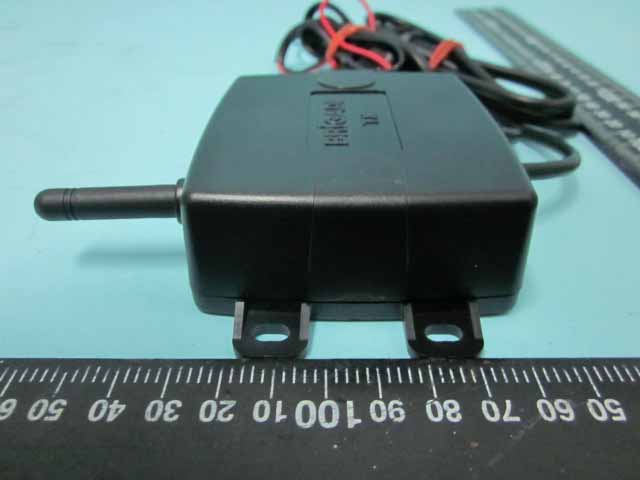

ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 1 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 1. 2. ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 2 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 3. 4. ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 3 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 5. 6.

30*5 mm

ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 4 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 7. 8. ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 5 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 9. 10. ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 6 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 11. 12. ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 7 of 7 Sheets Rev. No 2.1 CONSTRUCTED PHOTOS of EUT 13. 14.

FCC ID: R5XDW1001TX001 RF Exposure Evaluation of E.U.T. : Digital Wireless System FCC ID. : R5XDW1001TX001 MODEL : DW-1000TX for APPLICANT : Brigade Electronics Plc ADDRESS : Brigade House, The Mills,Station Roads, South Darenth, Kent, DA4 9BD Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-11-RBF-001-01-MPE FCC ID: R5XDW1001TX001 Product Information: Type of EUT: Digital Wireless System FCC ID: R5XDW1001TX001 Manufacturer: Brigade Electronics Plc Model: DW-1000TX Description: Frequency Range: 2403~2478MHz Step: 3MHz Chanel number: 26 Maximum conducted output power (measured): 20.92 dBm or 123.594mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric M28-FL-113-80-OPEN-V2 Monopole 1.0 1.26 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: R5XDW1001TX001 Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: R5XDW1001TX001 RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 123.594mW G = 1.26 R = 20 cm S = (123.594 * 1.26) / (4*π*20 2 ) = 0.031 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Digital Wireless System Model : DW-1000TX FCC ID : R5XDW1001TX001 for APPLICANT : Brigade Electronics Plc ADDRESS : Brigade House, The Mills,Station Roads, South Darenth, Kent, DA4 9BD Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5, DINGFU VIL., LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 12-11-RBF-001-01 ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Brigade Electronics Plc Brigade House, The Mills,Station Roads, South Darenth, Kent, DA4 9BD Manufacture : Brigade Electronics Plc Brigade House, The Mills,Station Roads, South Darenth, Kent, DA4 9BD Description of Device : a) Type of EUT : Digital Wireless System b) Trade Name : Brigade Electronics PLc c) Model No. : DW-1000TX d) Power Supply : DC 12V DC 24V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Summary of Tests Test Results Radiated Emission Pass Conducted Emission N/A Hopping Channel Separation Pass Number of Hopping frequencies used Pass Hopping Channel Bandwidth Pass Dwell Time of each frequency Pass Output Power Requirement Pass 100 kHz Bandwidth of Frequency Band Edges Requirement Pass Out-of-Band Conducted Emission Requirement Pass ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Rev. No 1.0 Date Test Item Received : Nov. 12, 2012 Date Test Campaign Completed : Feb. 04, 2013 Date of Issue : Feb. 04, 2013 Test Engineer : ( Jiapeng Chen, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Test Methodology ........................................................................................................................ 1 1.3 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 6 2.5 User Information .......................................................................................................................... 6 3 SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation.......................................................................................................... 21 4.6 Photos of Radiation Measuring Setup........................................................................................ 22 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 23 5.1 Standard Applicable ................................................................................................................... 23 6 ANTENNA REQUIREMENT .................................................................................................... 24 6.1 Standard Applicable ................................................................................................................... 24 6.2 Antenna Construction................................................................................................................. 24 7 HOPPING CHANNEL SEPARATION..................................................................................... 25 7.1 Standard Applicable ................................................................................................................... 25 7.2 Measurement Procedure...................................…

Text truncated - open the document above for the full version.

ETC Report No. : 12-11-RBF-001-01 FCC ID.: R5XDW1001TX001 Sheet 22 of 67 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup
