Page 6 Page 5 7258G 7257G WLAN WIFI function is not active. WIFI function is active. ETH1-4 Management channel (OMCI) not active. Management channel (OMCI) active. POTS MGMT ONEthernet link is operational. Flashing Indicates data transmission / reception. OFFNo Ethernet link or port is not equipped. ONLine is off hook (call active or in process). Flashing SlowIndicates ringing line. OFFLine is on hook (no call in process) or port is not equipped. Flashing FastSoftware upgrade has failed. OFFOptical signal is present and operating nor- mally. ON OFF ON Flashing Indicates data transmission / reception. OFF FunctionsSelect Model List Model 7259G 2POTS + 4GE + CATV + Return + WiFi 2POTS + 4GE + CATV + Return 2POTS + 4GE + CATV + WiFi 7253G 2POTS + 4GE + CATV 7281G 2POTS + 4GE + WiFi 7251G 2POTS + 4GE Indoor Type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit dif- ferent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Safety Caution Statement To satisfy FCC RF exposure requirement for mobile and base station transmission devices, a separation distance of 20cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Environmental Requirements Rated Voltage: DC 12V Rated Current: 2A Operating Temperature: +5°C to +40°C Operating Relative Humidity: 5% to 85% Storage Temperature: -40°C to +60°C Storage Relative Humidity: 0% to 95% FCC Notice -2 The 72xxG North America edition is limited using channel 1-11. This limited operation can be only set by software and was done before the product down from the product line. All the products for North America marketing were embedded this limited before shipping. Customers have no way to choose the channel 12 & 13. FCC Notice -1 The 72xx SFU residential ONT delivers high quality Please adopt UL certificated UPSNOTICE: which meets Limited Power Source standard. Pins for the connector are Molex 46235-5002 OVERVIEW VoIP voice service, Ethernet data service for high- speed internet access and IPTV broadcast video plus – 2 POTS ports - provide voice telephone service – 4 LAN ports - provide Ethernet connectivity – WIFI ports - provide WIFI connectivity INSTALLATION The 72xx SFU ONT can be mounted vertically or hor- izontally on any flat surface. Unpack Unpack the unit and verify that it is free from shipping damage.: Desk Mount 1.) Set the unit on a flat surface considering the follo- wing: – within reach of the power source – no thermal obstructions – not in direct sunlight – user ability to monitor/operate the unit Wall Mount 1.) Use wall anchors or wood screws (if mounting to plywood mounted on a wall), spaced 5.125” apart center to center. Fiber Connection 1.) On the back left side of the unit is a fiber cover. Slide the fiber cover off as shown. Page 1 2.) With the fiber connector exposed, remove the dust plug, clean the fiber ends and terminate the SC equipped fiber. Danger! . Exposure to invisible LASER radiation may cause serious retinal dam- age or even blindness. Verify the optical source is disabled through the use of an optical power meter before handling optical fibers . 3.) Insert the fiber into the cover slot and slide the cover back onto the 72xx unit. Power 1.) Connect the 2.5mm DC power plug to the port labeled PWR. UPS 1.) The UPS alarms are con- nected via a MOLEX 43025-0800 connector. The pin orientation as viewed from the back as shown below. Page 2 POTS Connections 1.) Connect up to 2 phones to the ports labeled POTS1 and POTS2 identified below. LAN Connections 1.) Connect the computers/routers to the ports labeled ETH1 thru ETH4. CATV Connections 1.) Connect the television to the port labeled WIFI Connections 1.) Connect the Notebook computers/WIFI terminals to the SSID named “iphotonix- ONT” which can be changed manually. Page 3 PINNAMEALM 1Power Input (+12 VDC)– 2UPS Status: On Battery1 3UPS Status: Battery Missing2 4Signal Return– 5Power 12V Return– 6UPS Status: Replace Bettery3 7UPS Status: Low Battery4 8No Connection (N/A)– video on demand services. They provide the follow- ing user features:(see Model List for exact features) CATV ports - provide CATV and Return service – – USB ports - provide data backups service – UPS ports - provide UPS service CATV. This port also supports Return se- rvice in some models. USB Connections 1.) Connect the flash-disk/portable hard…
Text truncated - open the document above for the full version.
MAG.LAYERS MSA-2715-2G4C1-A1_V01 March. 2011 APPROVAL SHEET APPROVAL SHEETAPPROVAL SHEET APPROVAL SHEET (RoHS) CUSTOMER : CUSTOMER’S PART NO. : DESCRIPTION : METAL STAMPING ANTENNA ASSEMBLY PART NO. : MSA-2715-2G4C1-A1 DATE : AUTHORIZED BY : Yunwei Lin Yunwei LinYunwei Lin Yunwei Lin FULLY APPROVED PARTIALLY APPROVED REJECTED SIGN SUGGESTION MAG. LAYERS SCIENTIFIC-TECHNICS CO., LTD HEAD OFFICE / HSINCHU PLANT No 18, Tz-Chiang Road, Hsin-Chu Industrial Park, Hsin-Chu, Taiwan TEL: +886-3-5972488 FAX: +886-3-5972477 http://www.maglayers.com.tw E-mail: :: :[email protected] MAG.LAYERS MSA-2715-2G4C1-A1_V01 March. 2011 Contents I I I t t t e e e m m m D D D e e e s s s c c c r r r i i i p p p t t t i i i o o o n n n P P P a a a g g g e e e 1 1 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A A A n n n t t t e e e n n n n n n a a a S S S p p p e e e c c c i i i f f f i i i c c c a a a t t t i i i o o o n n n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3 3 2 2 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . M M M e e e c c c h h h a a a n n n i i i c c c a a a l l l S S S p p p e e e c c c i i i f f f i i i c c c a a a t t t i i i o o o n n n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4 4 MAG.LAYERS MSA-2715-2G4C1-A1_V01 March. 2011 A A A n n n t t t e e e n n n n n n a a a S S S p p p e e e c c c i i i f f f i i i c c c a a a t t t i i i o o o n n n ■ E E E L L L E E E C C C T T T R R R I I I C C C A A A L L L P P P R R R O O O P P P E E E R R R T T T I I I E E E S S S 1 1 1 . . . 1 1 1 F F F r r r e e e q q q u u u e e e n n n c c c y y y R R R a a a n n n g g g e e e ... ... ... ... ... ... . . . . . . . . . . . . . . . 2 2 2 . . . 4 4 4 G G G H H H z z z ~ ~ ~ 2 2 2 . . . 5 5 5 G G G H H H z z z 1 1 1 . . . 2 2 2 I I I m m m p p p e e e d d d a a a n n n c c c e e e ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . . . . . 5 5 5 0 0 0 O O O h h h m m m N N N o o o m m m i i i n n n a a a l l l 1 1 1 . . . 3 3 3 V V V S S S W W W R R R ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . . . . . . . . 2 2 2 ( ( ( M M M a a a x x x ) ) ) 1 1 1 . . . 4 4 4 R R R e e e t t t u u u r r r n n n L L L o o o s s s s s s ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... - - - 1 1 1 0 0 0 d d d B B B ( ( ( M M M a a a x x x ) ) ) 1 1 1 . . . 5 5 5 R R R a a a d d d i i i a a a t t t i i i o o o n n n ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . . D D D i i i r r r e e e c c c t t t i i i o o o n n n a a a l l l 1 1 1 . . . 6 6 6 P P P e e e a a a k k k G G G a a a i i i n n n ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . . . . . . 3 3 3 . . . 1 1 1 2 2 2 d d d B B B i i i 1 1 1 . . . 7 7 7 P P P o o o l l l a a a r r r i i i z z z a a a t t t i i i o o o n n n ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... L L L i i i n n n e e e a a a r r r V V V e e e r r r t t t i i i c c c a a a l l l 1 1 1 . . . 8 8 8 A A A d d d m m m i i i t t t t t t e e e d d d P P P o o o w w w e e e r r r ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 1 1 1 W W W ■ P P P H H H Y Y Y S S S I I I C C C A A A L L L P P P R R R O O O P P P E E E R R R T T T I I I E E E S S S 2 2 2 . . . 1 1 1 A A A n n n t t t e e e n n n n n n a a a M M M a a a t t t e e e r r r i i i a a a l l l ... ... ... ... ... ... ... ... ... ... ... ... S S S U U U S S S 4 4 4 3 3 3 0 0 0 2 2 2 . . . 2 2 2 O O O p p p e e e r r r a a a t t t i i i n n n g g g T T T e e e m m m p p p . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - - - 2 2 2 0 0 0 °C °C°C °C °C °C°C °C °C °C°C °C ~ ~ ~ + + + 6 6 6 5 5 5 °C °C°C °C °C °C°C °C °C °C°C °C 2 2 2 . . . 3 3 3 S S S t t t o o o r r r a a a g g g e e e T T T e e e m m m p p p . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . - - - 3 3 3 0 0 0 °C °C°C °C °C °C°C °C °C °C°C °C ~ ~ ~ + + + 7 7 7 5 5 5 °C °C°C °C °C °C°C °C °C °C°C °C Ni-plated MAG.LAYERS MSA-2715-2G4C1-A1_V01 March. 2011

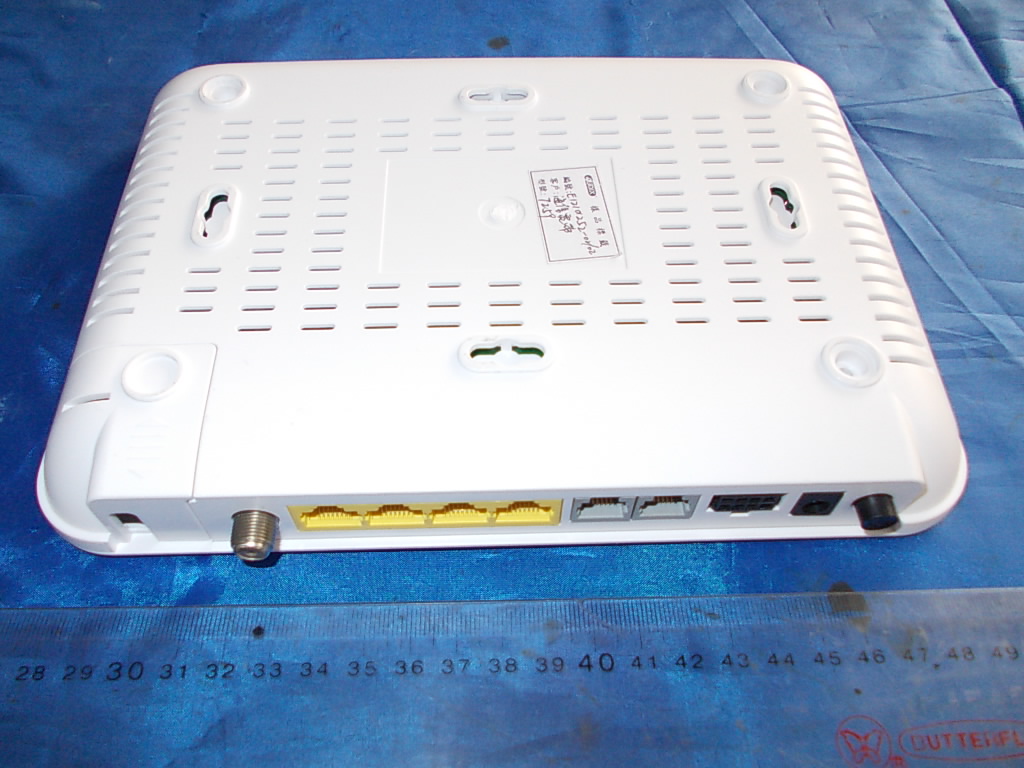

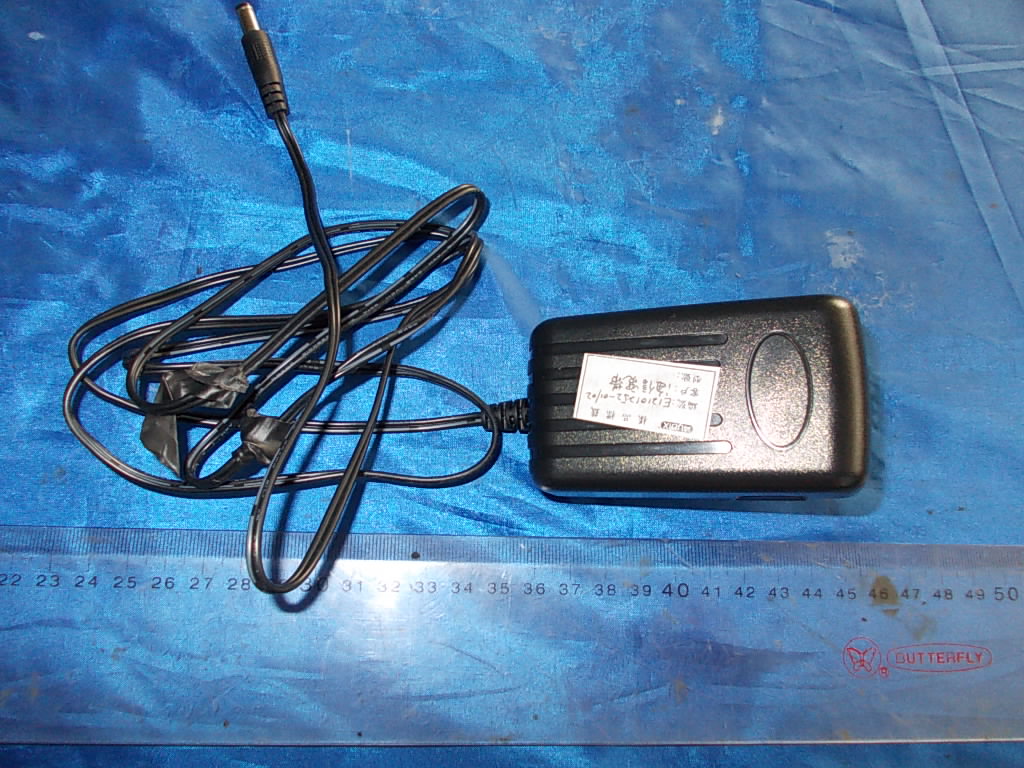

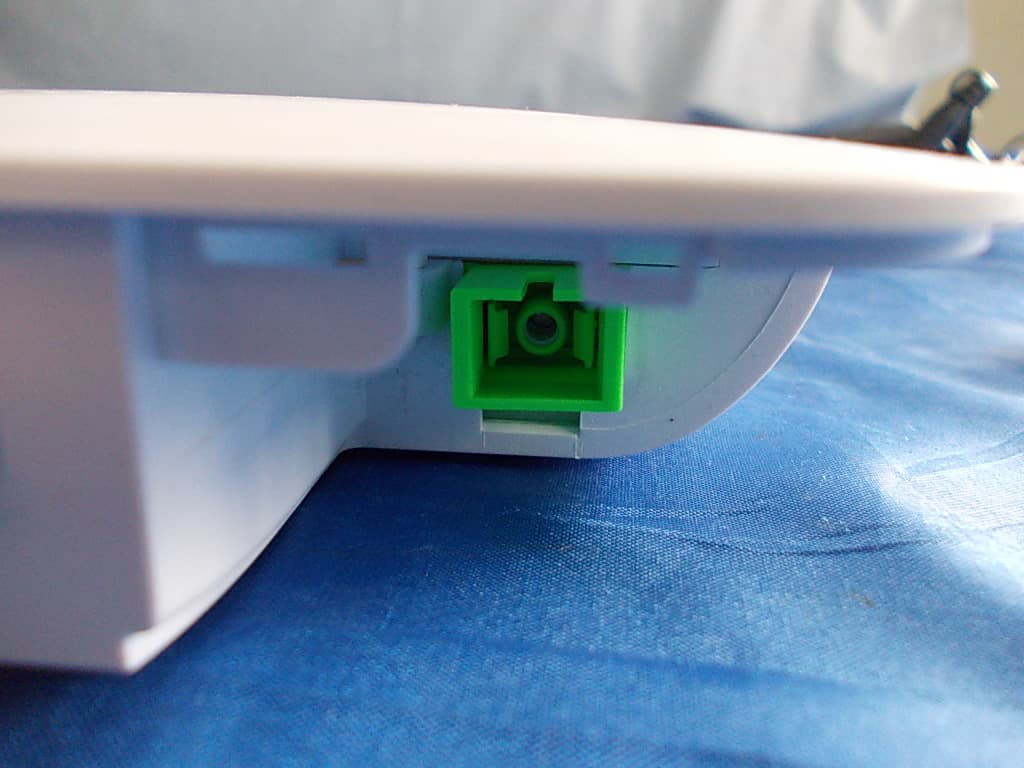

FIGURE 1 GPON SFU (M/N: 7259G) G ENERAL APPEARANCE (FRONT VIEW) F IGURE 2 GPON SFU (M/N: 7259G) GENERAL APPEARANCE (BACK VIEW) FIGURE 3 GPON SFU (M/N: 7259G) P ORTS #1 F IGURE 4 GPON SFU (M/N: 7259G) PORT #2 FIGURE 15 GPON SFU (M/N: 7259G) A DAPTER (FRONT VIEW) F IGURE 16 GPON SFU (M/N: 7259G) ADAPTER (BACK VIEW) FIGURE 17 GPON SFU (M/N: 7259G) A DAPTER (LABEL)
Label Location Information Refer to the below red arrow: (For example) Label 1 Label 2 Label 3 Label 1 Label 2 Label 3
FIGURE 5 GPON SFU (M/N: 7259G) C OVER REMOVED FIGURE 6 GPON SFU (M/N: 7259G) M AIN BOARD (COMPONENT SIDE) F IGURE 7 GPON SFU (M/N: 7259G) MAIN BOARD (SOLDERED SIDE) FIGURE 8 GPON SFU (M/N: 7259G) C HIPS AND CRYSTAL #1 ON MAIN BOARD F IGURE 9 GPON SFU (M/N: 7259G) CHIPS AND CRYSTAL #2 ON MAIN BOARD FIGURE 10 GPON SFU (M/N: 7259G) RF PART F IGURE 11 GPON SFU (M/N: 7259G) ANT1 FIGURE 12 GPON SFU (M/N: 7259G) ANT2 FIGURE 13 GPON SFU (M/N: 7259G) L ABEL ON OPTICAL MODULE F IGURE 14 GPON SFU (M/N: 7259G) OPTICAL MODULE (COVER REMOVED)
Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 1 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 Prepared For : Hisense Broadband Multimedia Technologies Co., Ltd 11 Jiangxi Road, Qingdao Shandong 266071 PR China Prepared By : Audix Technology (Shanghai) Co., Ltd. 3F and 4F, 34Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F13012 Date of Test : Nov. 20, 2012 Date of Report : Jan.18, 2013 Application for FCC Certification On behalf of Hisense Broadband Multimedia Technologies Co., Ltd Product Name: GPON SFU Model No.: G7259G, 7256G Brand Name: Hisense, iPHOTONIX, Ligent FCC ID: R66001 (MPE Calculation) Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 2 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 TABLE OF CONTENTS Page 1 GENERAL INFORMATION .......................................................................................................... 4 1.1 Description of Equipment Under Test ........................................................................................ 4 1.2 Description of Test Facility ........................................................................................................ 5 1.3 Measurement Uncertainty .......................................................................................................... 5 2 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 6 2.1 Applicable Standard ................................................................................................................... 6 2.2 Specification Limits ................................................................................................................... 6 2.3 MPE Calculation Method ........................................................................................................... 6 2.4 Calculated Result ........................................................................................................................ 7 Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 3 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 TEST REPORT FOR FCC CERTIFICATE Applicant : Hisense Broadband Multimedia Technologies Co., Ltd Manufacturer : Hisense Broadband Multimedia Technologies Co., Ltd EUT Description : GPON SFU (A) Model No. : 7259G, 7256G (B) Brand Name : Hisense, iPHOTONIX, Ligent (C) Test Voltage : AC 120V/60Hz Test Procedure Used: FCC OET Bulletin 65 August 1997 The device described above is tested by Audix Technology (Shanghai) Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC OET Bulletin 65. The test results are contained in this test report and Audix Technology (Shanghai) Co., Ltd. is assumed full responsibility for the accuracy and completeness of these measurements. This report also shows that the EUT (M/N: Refer to Sec2.1), which was tested on Nov. 20, 2012 is technically compliance with the FCC limits. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of Audix Technology (Shanghai) Co., Ltd. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Date of Test : Nov. 20, 2012 Date of Report : Jan. 18, 2013 Producer : YENNY YU / Assistant Review : DIO YANG / Assistant Manager Signatory : SAMMY CHEN / Deputy Manager Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 4 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 1 GENERAL INFORMATION 1.1 Description of Equipment Under Test Description : GPON SFU Type of EUT Production ; Pre-product Pro-type Model Number : 7259G, 7256G Brand Name : Hisense, iPHOTONIX, Ligent Note : The different list between these two models are as follows: M/N: 7259G 2POTS+4GE+RF+RF Return+WiFi M/N: 7256G 2POTS+4GE+RF +WiFi Radio Tech : IEEE 802.11b/g/n (2.4GHz) Freq. Band : 2412MHz ~ 2462MHz (Ch1-Ch11) for 802.11b/g 2412MHz ~ 2462MHz (Ch1-Ch11) for 802.11n 20MHz Band 2422MHz ~ 2452MHz (Ch3-Ch9) for 802.11n 40MHz Band Tested Freq. : for 802.11b/g/n HT20 2412MHz (Ch1), 2437MHz (Ch6), 2462MHz (Ch11) for 802.11n HT40 2422MHz (Ch3), 2437MHz (Ch6), 2452MHz (Ch9) Modulation : DSSS for 802.11b OFDM for 802.11g/n Antenna Gain : 3.12 dBi (both ANT1 & ANT2) Applicant : Hisense Broadband Multimedia Technologies Co., Ltd 11 Jiangxi Road, Qingdao Shandong 266071 PR China Manufacturer : Hisense Broadband Multimedia Technologies Co., Ltd 11 Jiangxi Road, Qingdao Shandong 266071 PR China Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 5 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 1.2 Description of Test Facility Site Description : Sept. 17, 1998 file on (Semi-Anechoic Chamber) Mar 16, 2012 Renewed Federal Communications Commission FCC Engineering Laboratory 7435 Oakland Mills Road Columbia, MD 21046, USA Name of Firm : Audix Technology (Shanghai) Co., Ltd. Site Location : 3F 34 Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China FCC registration Number : 91789 Accredited by NVLAP, Lab Code : 200371-0 1.3 Measurement Uncertainty Output Power Expanded Uncertainty : U = 0.30 dB Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 6 of 10 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F13012 2 SUMMARY OF STANDARDS AND RESULTS 2.1 Applicable Standard FCC OET Bulletin 65:1997 2.2 Specification Limits Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 …
Text truncated - open the document above for the full version.
Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 1 of 138 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12198F12198 Prepared For :Hisense Broadband Multimedia Technologies Co., Ltd 11 Jiangxi Road, Qingdao Shandong 266071 PR China Prepared By :Audix Technology (Shanghai) Co., Ltd. 3F and 4F, 34Bldg 680 Guiping Rd., Caohejing Hi-Tech Park, Shanghai 200233, China Tel: +86-21-64955500 Fax: +86-21-64955491 Report No. : ACI-F12198 Date of Test : Nov 19, 2012 – Jan 18, 2013 Date of Report : Jan 21, 2013 Application for FCC Certification On behalf of Hisense Broadband Multimedia Technologies Co., Ltd Product Name: GPON SFU Model No.: 7259G, 7258G Brand Name: Hisense, iPHOTONIX, Ligent FCC ID: R66001 Hisense Broadband Multimedia Technologies Co., Ltd FCC ID: R66001 Page 2 of 138 Audix Technology (Shanghai) Co., Ltd. Report No.: ACI-F12198F12198 TABLE OF CONTENTS Page 1 SUMMARY OF STANDARDS AND RESULTS .......................................................................... 5 1.1 Description of Standards and Results ......................................................................................... 5 2 GENERAL INFORMATION .......................................................................................................... 6 2.1 Description of Equipment Under Test ........................................................................................ 6 2.2 Description of Test Facility ........................................................................................................ 7 2.3 Measurement Uncertainty .......................................................................................................... 7 3 CONDUCTED EMISSION TEST .................................................................................................. 8 3.1 Test Equipment ........................................................................................................................... 8 3.2 Block Diagram of Test Setup ..................................................................................................... 8 3.3 Conducted Emission Limits [FCC Part 15 Subpart C 15.207] ................................................... 8 3.4 Test Configuration ...................................................................................................................... 8 3.5 Operating Condition of EUT ...................................................................................................... 9 3.6 Test Procedures .......................................................................................................................... 9 3.7 Test Results ................................................................................................................................ 9 4 RADIATED EMISSION TEST ..................................................................................................... 11 4.1 Test Equipment ......................................................................................................................... 11 4.2 Block Diagram of Test Setup ................................................................................................... 11 4.3 Radiated Emission Limit [FCC Part 15 Subpart C 15.209] ..................................................... 12 4.4 Test Configuration .................................................................................................................... 12 4.5 Operating Condition of EUT .................................................................................................... 12 4.6 Test Procedures ........................................................................................................................ 12 4.7 Test Results .............................................................................................................................. 14 5 6 dB BANDWIDTH MEASUREMENT ....................................................................................... 42 5.1 Test Equipment ......................................................................................................................... 43 5.2 Block Diagram of Test Setup ................................................................................................... 43 5.3 Specification Limits (§15.247(a)(2)) ........................................................................................ 43 5.4 Operating Condition of EUT .................................................................................................... 43 5.5 Test Procedure .......................................................................................................................... 43 5.6 Test Results .............................................................................................................................. 44 6 MAXIMUM PEAK OUTPUT POWER MEASUREMENT ...................................................... 57 6.1 Test Equipment ......................................................................................................................... 57 6.2 Block Diagram of Test Setup ................................................................................................... 57 6.3 Specification Limits ((§15.247(b)(3)) ...................................................................................... 57 6.4 Operating Condition of EUT .................................................................................................... 57 6.5 Test Procedure .......................................................................................................................... 57 6.6 Test Results .............................................................................................................................. 58 7 EMISSION LIMITATIONS MEASUREMENT ......................................................................... 59 7.1 Test Equipment .................................................................................................…
Text truncated - open the document above for the full version.
Page 6 Page 5 7258G 7257G WLAN WIFI function is not active. WIFI function is active. ETH1-4 Management channel (OMCI) not active. Management channel (OMCI) active. POTS MGMT ONEthernet link is operational. Flashing Indicates data transmission / reception. OFFNo Ethernet link or port is not equipped. ONLine is off hook (call active or in process). Flashing SlowIndicates ringing line. OFFLine is on hook (no call in process) or port is not equipped. Flashing FastSoftware upgrade has failed. OFFOptical signal is present and operating nor- mally. ON OFF ON Flashing Indicates data transmission / reception. OFF FunctionsSelect Model List Model 7259G 2POTS + 4GE + CATV + Return + WiFi 2POTS + 4GE + CATV + Return 2POTS + 4GE + CATV + WiFi 7253G 2POTS + 4GE + CATV 7281G 2POTS + 4GE + WiFi 7251G 2POTS + 4GE Indoor Type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful inter- ference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment to an outlet on a circuit dif- ferent from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. FCC RF Safety Caution Statement To satisfy FCC RF exposure requirement for mobile and base station transmission devices, a separation distance of 20cm or more should be maintained between the antenna of this device and persons during operation. To ensure compliance, operation at closer than this distance is not recommended. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Environmental Requirements Rated Voltage: DC 12V Rated Current: 2A Operating Temperature: +5°C to +40°C Operating Relative Humidity: 5% to 85% Storage Temperature: -40°C to +60°C Storage Relative Humidity: 0% to 95% FCC Notice -2 The 72xxG North America edition is limited using channel 1-11. This limited operation can be only set by software and was done before the product down from the product line. All the products for North America marketing were embedded this limited before shipping. Customers have no way to choose the channel 12 & 13. FCC Notice -1 The 72xx SFU residential ONT delivers high quality Please adopt UL certificated UPSNOTICE: which meets Limited Power Source standard. Pins for the connector are Molex 46235-5002 OVERVIEW VoIP voice service, Ethernet data service for high- speed internet access and IPTV broadcast video plus – 2 POTS ports - provide voice telephone service – 4 LAN ports - provide Ethernet connectivity – WIFI ports - provide WIFI connectivity INSTALLATION The 72xx SFU ONT can be mounted vertically or hor- izontally on any flat surface. Unpack Unpack the unit and verify that it is free from shipping damage.: Desk Mount 1.) Set the unit on a flat surface considering the follo- wing: – within reach of the power source – no thermal obstructions – not in direct sunlight – user ability to monitor/operate the unit Wall Mount 1.) Use wall anchors or wood screws (if mounting to plywood mounted on a wall), spaced 5.125” apart center to center. Fiber Connection 1.) On the back left side of the unit is a fiber cover. Slide the fiber cover off as shown. Page 1 2.) With the fiber connector exposed, remove the dust plug, clean the fiber ends and terminate the SC equipped fiber. Danger! . Exposure to invisible LASER radiation may cause serious retinal dam- age or even blindness. Verify the optical source is disabled through the use of an optical power meter before handling optical fibers . 3.) Insert the fiber into the cover slot and slide the cover back onto the 72xx unit. Power 1.) Connect the 2.5mm DC power plug to the port labeled PWR. UPS 1.) The UPS alarms are con- nected via a MOLEX 43025-0800 connector. The pin orientation as viewed from the back as shown below. Page 2 POTS Connections 1.) Connect up to 2 phones to the ports labeled POTS1 and POTS2 identified below. LAN Connections 1.) Connect the computers/routers to the ports labeled ETH1 thru ETH4. CATV Connections 1.) Connect the television to the port labeled WIFI Connections 1.) Connect the Notebook computers/WIFI terminals to the SSID named “iphotonix- ONT” which can be changed manually. Page 3 PINNAMEALM 1Power Input (+12 VDC)– 2UPS Status: On Battery1 3UPS Status: Battery Missing2 4Signal Return– 5Power 12V Return– 6UPS Status: Replace Bettery3 7UPS Status: Low Battery4 8No Connection (N/A)– video on demand services. They provide the follow- ing user features:(see Model List for exact features) CATV ports - provide CATV and Return service – – USB ports - provide data backups service – UPS ports - provide UPS service CATV. This port also supports Return se- rvice in some models. USB Connections 1.) Connect the flash-disk/portable hard…
Text truncated - open the document above for the full version.
3F 34Bldg 680 Guiping Rd., Caohejing Hi-Tech Park · Shanghai · China
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.41 GHz - 2.46 GHz | 180.70 mW |

TV Stick, Smart TV Stick
Equipment Class
DTS - Digital Transmission System
Gigabit-Capable Passive Optical Network Single Family Unit
Equipment Class
DTS - Digital Transmission System
