R74TC-500VTwo-Way Radio

1 THANK YOU! We are grateful for your purchase of HYT product. We believe this easy–to-use radio will provide you with dependable and reliable communications. This HYT portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation. 2 Contents User Safety Information Product Inspection Battery Information Accessory Installation Getting Started Features and Operation Basic Operations Time-out Timer (TOT) Battery Save Low Battery Alert Monitor CTCSS & CDCSS Channel Scan Busy Channel Lockout Troubleshooting Guide Care and Cleaning Optional Accessories Frequency Chart 3 User Safety Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO. ◇ Only qualified technicians are allowed to maintain this product. ◇ To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any place where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. When on aircraft, turn off your radio when airline crew instruct you to do so. ◇ When in vehicles with an airbag, do not place a portable radio in the area over an airbag or in the airbag deployment area. ◇ Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. ◇ To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps. ◇ Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn may result. ◇ Do not expose the radio in direct sunlight for a long time nor place it close to a heating source. ◇ When transmitting with a portable radio, hold the radio in a vertical position with its microphone about 5 centimeters away from your mouth. ◇ If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters from your body when transmitting. Product Inspection Thank you for your use of HYT portable two-way radio. Before use, you are recommended to inspect the product as follows. First check the shipping carton for any signs of damage. If any damage has occurred, please contact your dealer immediately. Confirm the supplied product against the packing slip to assure accuracy. Available Accessories Item Qty. (pcs) Antenna 1 Charger 1 AC Adapter 1 Ni-MH Battery Pack 1 Belt Clip 1 Strap 1 Owner’s Manual 1 *Antenna Mark： 400-420MHz: Red; 450-470MHz: White; 4 136-150MHz: Blue; 150-174MHz: Green. Battery Information Battery Charging Information The battery is not charged by the manufactory. Charge the newly purchased battery or out of use for more than 2 months battery before use. The battery capacity will be optimum only after being charged/discharged for two or three times. When the battery power is lower, please charge it or replace it with a new one. Notices:  Do not short out the battery terminals or dispose of the battery by fire.  Turn off the radio when charging the battery inside the radio.  Remove the radio and the battery from the charger when charging cycle is over. Overcharging will shorten the battery life.  Do not continue charging the battery if it is already fully charged. Or the battery life will be shortened.  Store the battery in a place about 25°C. Charging the battery in less than 10°C temperature will cause the electrolyte leakage and damage the battery.  Charging the battery in over 35°C temperature will affect the battery capacity. Battery Charging Insert the battery or the radio with battery in the charger, and make sure they connect well. Charging begins, red LED glows. The battery is fully charged in about 8 hours. If the battery is charged while the radio is turned on, fully charging time will prolong. Accessory Installation Attach the Battery 1. Insert the tabs, at the bottom of the battery, into the slots at the bottom of the radio chassis. 2. Press the top of the battery towards the radio until a click is heard. (See figure 1) 5 Figure 1 Remove the Battery 1. Turn off the radio. 2. Push the battery latch on the back panel towards the top of the radio. 3. Pull the top of the battery away from the radio chassis, and lift the battery from the radio. (See figure 2) Figure 2 Attach the Antenna 1. Align the threaded end of the antenna with the radio’s antenna connector. 2. Turn the antenna clockwise to tighten. (See figure 3) Removing the Antenna 1.Turn the antenna counter-clockwise until you can remove it. (See figure 3) Attach Remove Figure 3 Attach the Belt Clip 1. Align the grooves of the belt clip with those of the battery. 2. Press the belt clip down until a click is heard. (See figure 4) 6 Figure 4 Remove the Belt Clip 1. Pull the belt clip tab away from the battery. 2. Slide the belt clip upwards to remove it. (See figure 5) Figure 5 External Earphone (Optional) Remove the earphone cover and insert the earphone into the earphone jack. 7 Getting Started 1. Antenna 2. LED indicator The light will glow red during transmission. The light will glow green during receiving. The light flashes red when the battery voltage is low. 3. Channel selector knob Turn the channel selector knob to select from channels 1-16 (Channel 16 can be programmed by your dealer as scan function). 4. Power/Volume control knob Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on, fully counter clockwise until a “click” is heard to turn the radio off. When the radio is on, turn the knob to adjust volume. 5. PTT key Press and hold PTT key to talk, release to receive. 6. Monitor key In receive mode, press Monitor key to monitor activity on the current channel. 7. Microphone 8. Speaker 9. External jack Remove the jack cover and insert an earphone; or insert programming cable into the jack to programme the radio via programming software. 10. Battery 11. Belt clip Us…

Text truncated - open the document above for the full version.

1 THANK YOU! We are grateful for your purchase of HYT product. We believe this easy–to-use radio will provide you with dependable and reliable communications. This HYT portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation. 2 Contents User Safety Information Product Inspection Battery Information Accessory Installation Getting Started Features and Operation Basic Operations Time-out Timer (TOT) Battery Save Low Battery Alert Monitor CTCSS & CDCSS Channel Scan Busy Channel Lockout Troubleshooting Guide Care and Cleaning Optional Accessories Frequency Chart 3 User Safety Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO. ◇ Only qualified technicians are allowed to maintain this product. ◇ To avoid electromagnetic interference and/or compatibility conflicts, turn off your radio in any place where posted notices instruct you to do so. Hospitals or health care facilities may be using equipment that is sensitive to external RF energy. When on aircraft, turn off your radio when airline crew instruct you to do so. ◇ When in vehicles with an airbag, do not place a portable radio in the area over an airbag or in the airbag deployment area. ◇ Turn off your radio prior to entering any area with a potentially explosive atmosphere. Do not remove, install, or charge batteries in such areas. ◇ To avoid possible interference with blasting operations, turn off your radio when you are near electrical blasting caps. ◇ Do not use any portable radio that has a damaged antenna. If a damaged antenna comes into contact with your skin, a minor burn may result. ◇ Do not expose the radio in direct sunlight for a long time nor place it close to a heating source. ◇ When transmitting with a portable radio, hold the radio in a vertical position with its microphone about 5 centimeters away from your mouth. ◇ If you wear a portable two-way radio on your body, ensure that the antenna is at least 2.5 centimeters from your body when transmitting. Product Inspection Thank you for your use of HYT portable two-way radio. Before use, you are recommended to inspect the product as follows. First check the shipping carton for any signs of damage. If any damage has occurred, please contact your dealer immediately. Confirm the supplied product against the packing slip to assure accuracy. Available Accessories Item Qty. (pcs) Antenna 1 Charger 1 AC Adapter 1 Ni-MH Battery Pack 1 Belt Clip 1 Strap 1 Owner’s Manual 1 *Antenna Mark ： 400-420MHz: Red; 450-470MHz: White; 4 136-150MHz: Blue; 150-174MHz: Green. Battery Information Battery Charging Information The battery is not charged by the manufactory. Charge the newly purchased battery or out of use for more than 2 months battery before use. The battery capacity will be optimum only after being charged/discharged for two or three times. When the battery power is lower, please charge it or replace it with a new one. Notices:  Do not short out the battery terminals or dispose of the battery by fire.  Turn off the radio when charging the battery inside the radio.  Remove the radio and the battery from the charger when charging cycle is over. Overcharging will shorten the battery life.  Do not continue charging the battery if it is already fully charged. Or the battery life will be shortened.  Store the battery in a place about 25°C. Charging the battery in less than 10°C temperature will cause the electrolyte leakage and damage the battery.  Charging the battery in over 35 °C temperature will affect the battery capacity. Battery Charging Insert the battery or the radio with battery in the charger, and make sure they connect well. Charging begins, red LED glows. The battery is fully charged in about 8 hours. If the battery is charged while the radio is turned on, fully charging time will prolong. Accessory Installation Attach the Battery 1. Insert the tabs, at the bottom of the battery, into the slots at the bottom of the radio chassis. 2. Press the top of the battery towards the radio until a click is heard. (See figure 1) 5 Figure 1 Remove the Battery 1. Turn off the radio. 2. Push the battery latch on the back panel towards the top of the radio. 3. Pull the top of the battery away from the radio chassis, and lift the battery from the radio. (See figure 2) Figure 2 Attach the Antenna 1. Align the threaded end of the antenna with the radio’s antenna connector. 2. Turn the antenna clockwise to tighten. (See figure 3) Removing the Antenna 1.Turn the antenna counter-clockwise until you can remove it. (See figure 3) Attach Remove Figure 3 Attach the Belt Clip 1. Align the grooves of the belt clip with those of the battery. 2. Press the belt clip down until a click is heard. (See figure 4) 6 Figure 4 Remove the Belt Clip 1. Pull the belt clip tab away from the battery. 2. Slide the belt clip upwards to remove it. (See figure 5) Figure 5 External Earphone (Optional) Remove the earphone cover and insert the earphone into the earphone jack. 7 Getting Started 1. Antenna 2. LED indicator The light will glow red during transmission. The light will glow green during receiving. The light flashes red when the battery voltage is low. 3. Channel selector knob Turn the channel selector knob to select from channels 1-16 (Channel 16 can be programmed by your dealer as scan function). 4. Power/Volume control knob Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on, fully counter clockwise until a “click” is heard to turn the radio off. When the radio is on, turn the knob to adjust volume. 5. PTT key Press and hold PTT key to talk, release to receive. 6. Monitor key In receive mode, press Monitor key to monitor activity on the current channel. 7. Microphone 8. Speaker 9. External jack Remove the jack cover and insert an earphone; or insert programming cable into the jack to programme the radio via programming software. 10. Battery 11. Belt clip …

Text truncated - open the document above for the full version.

Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-500V APPENDIX C - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View

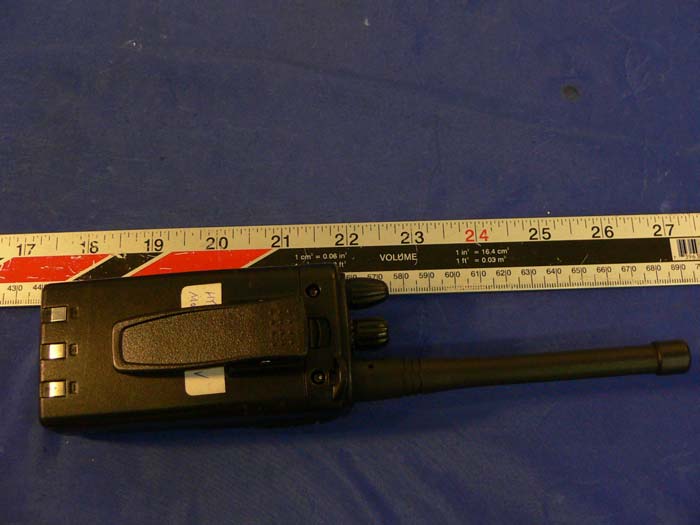

APPENDIX C – EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Battery removed, Rear Side of EUT / Proposed Label Location ATTENTION! Restricted to occupational use to satisfy FCC RF exposure limits. See users manual for o perating requirements.

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Battery removed, Rear Side of EUT / Proposed Label Location ATTENTION! Restricted to occupational use to satisfy FCC RF exposure limits. See users manual for operating requirements. FCC ID: R74TC-500V Model: TC-500V

Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-500V EUT – Battery Removed Back View Chassis – Cover off View Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-500V EUT – Component View EUT – Solder View

Circuit Description 1. Frequency Configuration The receiver utilizes double conversion superheterodyne. The first IF is 21.4MHz and the second is 455KHz. The first local oscillator signal is supplied from PLL circuit. Frequency needed in the transmitter is supplied from PLL circuit. Figure 1 shows the frequency configuration. Frequency Range: 400 MHz—420MHz 450 MHz—470MHz 136 MHz—150MHz 150 MHz—174MHz Figure 1 frequency configuration 2. Receiver The receiver utilizes double conversion superheterodyne. 1) Front-end RF Amplifier The input signal from antenna is amplified in RF amplifier (Q27) after passing through the receive/transmit switch circuit and a 3-stage LC band pass filter. The amplified signals are filtered by a band pass filter (a 3-stage LC BPF) to eliminate unwanted signals before they goes to the first frequency mixer. Figure 2 receiver section configuration 2) The First Mixer The signal from RF amplifier is mixed with the first local oscillator signal from PLL frequency synthesizer in the first mixer (Q23) to generate a 21.4MHz first IF signal. The first IF signal is then fed through two monolithic crystal filters (XF1) to remove spurious signals from adjacent channels. 3) IF Amplifier The first IF signal is amplified in Q22 and then enters the IF process chip IC1. The signal is mixed with the second local oscillator signal in IC1 to create a 455KHz second IF signal. The second IF signal is then fed to a 455KHz ceramics filter (CF1) to eliminate unwanted signals before it is amplified and FM detected in IC1. 4) AF Amplifier The demodulated AF signal obtained from IC1 is amplified in IC7 (1/4), and then filtered by low pass filter Q19 and high pass filter Q20, and then de-emphasized by R130 and C156. The resulting AF signal passes through a volume control circuit and then is amplified to a sufficient level to drive the speaker by AF power amplifier (IC8). 5) Squelch Part of the AF signal from IC1 enters IC1 again, and the noise component is amplified and rectified by a filter and an amplifier to produce a DC voltage corresponding to the noise level. The DC signal from IC1 goes to the analog port of the microprocessor (IC11). IC11 determines whether to output sounds from the speaker by detecting whether the input voltage is higher or lower than preset value. To output sounds from the speaker, IC11 sends a high level signal to the MUTE and AFCO lines and turns IC8 on through Q12. DET FM IF IC1 IF AMP HPF AMP IC7 AF LPF HPF DET 2 39 40 1 SW Q12 SW AF/PF AMP IC7 LPF IC11 MCU B U S Y M U T E A F C O T I IC8 SP Figure 3. AF amplifier and squelch circuit 6) Receive signaling CTCSS/CDCSS Audio frequencies over 300Hz of the output signal from IC1 is cut off by a low-pass filter. The resulting signal enters the microprocessor IC11. IC11 determines whether the CTCSS/CDCSS matches the preset value and controls the MUTE and AFCO and the speaker sound output according to the squelch results. 3. PLL Frequency Synthesizer PLL circuit generates the first local oscillator signal for reception and the RF signal for transmission. 1) PLL Circuit The step frequency of PLL circuit is 2.5KHz or 6.25 KHz. A12.8MHz reference oscillator signal is divided at IC2 by a fixed counter to produce a 2.5 KHz or 6.25 KHz reference frequency. Output signal from voltage control oscillator (VCO) passes through buffer amplifier Q14 and is divided at IC2 by the dual-module programmable counter. The divided signal is compared in the phase comparator IC2 with the 2.5 KHz or 6.25 KHz reference signal. The output signal from phase comparator is filtered through a low-pass filter and passed to the VCO to control the oscillator frequency. (See figure 4) Figure 4 PLL circuit 2) VCO The operating frequency is generated by Q16 in transmit mode and by Q8 in receive mode. The operation frequency generates a voltage through the phase comparator to control the varactor diodes, so as to keep the oscillator frequency consistent with the preset frequency in CPU (D2 and D3 in transmit mode and D7 and D8 in receive mode). T/R pin is set high in receive mode causing Q6 to turn off Q16 and turn Q7 on. The T/R pin is set low in transmit mode. The output from Q8 and Q16 is amplified by Q14 and sent to the buffer amplifier. 4. Transmitter 1) Transmit audio The audio signal from microphone is amplified through IC3, and then pre- emphasized , and then filtered by another low-pass filter（separate filter）(Q25 and Q24) to eliminate the frequencies over 3KHz. The resulting signal enters the VCO for direct FM modulation. (See figure 5) 2) CTCSS/CDCSS Encoder The necessary frequency for CTCSS/CDCSS encoder is generated by IC11 and FM-modulated to the PLL reference signal. Since the reference OSC does not modulate the loop characteristic frequency or higher, modulation is performed at the VCO side by splitter. (See figure 5) Fig ure 5 transmit CTCSS 3) RF amplifier The transmit signal obtained from VCO buffer amplifier Q14 is amplified by Q15 and Q17. This amplified signal is passed to power amplifier Q32 and Q31, and is capable of producing a 4.0W RF power. 4) Antenna Switch and LPF The RF amplifier output signal is passed through a low-pass filter network and a transmit/receive switch circuit before it is passed to the antenna terminal. The transmit/receive switch circuit is comprised of D11 and D12. D11 and D12 is turned on in transmit mode and off in receive mode. 5. Power The 5V reference power supply for the control circuit is derived from an internal battery. The reference power provides a 5V supply in transmit mode [T_V], a 5V supply in receive mode [R_V], and a 5V supply shared in both modes based the control signal from the microprocessor. 6. Control System The IC11 CPU operates at 7.3728MHz.

Adjustment Description The radio can be adjusted with PC programming software or by manual adjustment. Manual adjustment procedure of TC-500 is as follow. (Refer to “model set mode” and “manual adjust mode” in the section Software Specification.) Instrument: Radio Communication Test Set 1 set Scanner 1 set 3A/10V Power Supply 1 set Digital Voltmeter 1 set 3A Ammeter 1 set Adjustment: 1. Initializing: It’s necessary to set the model and initialize the radio before alignment because there is no needed information in EEPROM when the radio is manufactured. Please refer to the “model set mode” in the section Software Specification for details. 2. Adjustment: Some items can be adjusted in conventional communication mode and the others in manual adjust mode. Turn on the power, the radio enters conventional communication mode. If manual adjust mode is enabled, turn on the power while holding down PTT and MONI simultaneously, the radio enters manual adjust mode after 2 seconds. (Refer to the section Software Specification.) VCO Measurement Adjustment Item Condition Test InstrumentTermi nalPart Method Specification /Remarks 1.Power supply 1.power voltage DC 6V 1.TX High. Turn to CH15 in manual adjust mode and press PTT. 3.0V±0.1V 2.Transmit VCO lock voltage 2.TX Low. Turn to CH14 in manual adjust mode and press PTT. TC1 >0.4V 1.RX High. Turn to CH15 in manual adjust mode. 2.6V±0.1V 3. Receive VCO lock voltage 2.RX Low. Turn to CH14 in manual adjust mode. Digital Voltmeter CV TC2 >0.7V RECEIVER: (Enter the manual adjust mode) Measurement Adjustment Item Condition Test Instrument Termi nal Part Method Specification /Remarks 4. Band Pass Filter 1.RX Center. Turn to CH13 in manual adjust mode. Scanner ANT . TP2 TC3 TC4 TC5 Adjust the waveform to the top, and the top is flat, the bandwidth is about 20MHz, the sign of RX central frequency is at the middle of the waveform. 1.RX Center. Turn to CH13 in manual adjust mode. 2. RX Low. Turn to CH14 in manual adjust mode. 5.sensitivity 3.RX High. Turn to CH15 in manual adjust mode. Radio Communica- tion Test Set SSG output: -118dBm MOD:1KHz DEV:±3kHz FILTER: 0.3-3.4kHz ANT Speaker Jack Check SINAD: 12dB or higher 1.RX Center. Turn to CH2 in manual adjust mode. Adjust by pressing PTT or MONI. Radio Communic- ation Test Set SSG output: - 117dBm Level 9 Adjust to just close the squelch. Adjust squelch level 9 6.Squelch 2.RX Center. Turn to CH3 in manual adjust mode. Adjust by pressing PTT or MONI. Radio Communic- ation Test Set SSG output: - 125dBm ANT Speaker Jack Level 3 Adjust to just close the squelch. Adjust squelch level 3 Transmitter Measurement Adjustment Item Condition Test equipment Termi nalParts Method Specification /Remarks 7.Transmit frequency 1.TX Center. Turn to CH13 in manual adjust mode and press PTT. Radio Communica- tion Test Set ANT TC6 Adjust it to center frequency Error≤±250Hz 8.Max. Deviation 1.TX Center. Turn to CH13 in manual adjust mode and press PTT. Radio Communica- tion Test Set LPF: 15KHz AF:1KHz 120mV ANT MIC Jack VR2 Adjust deviation to: 4.2kHz±100Hz 9. Modulation Sensitivity 1.TX Center. Turn to CH13 in manual adjust mode and press PTT. Radio Communica- tion Test Set FILTER: 0.3-3.4KHz AF:1KHz 12mV ANT MIC Jack Check deviation: 2.2kHz- 3.6kHz 1. TX Center. CTCSS: 67.0Hz. Turn to CH4 in manual adjust mode. 67.0Hz CTCSS 10. CTCSS Balance 2. TX Center. CTCSS:250.3Hz. Turn to CH16 in manual adjust mode and press PTT. Radio Communica- tion Test Set LPF:300Hz ANT VR3 Adjust VR3, deviation tested on condition 1 and condition 2 are consistent, the difference≤200Hz 250.3Hz CTCSS 11. CTCSS Deviation 1. TX Center. CTCSS: 67.0Hz. Turn to CH4 in manual adjust mode. Adjust by pressing PTT or MONI. Adjust deviation to: 0.65kHz±100Hz 12. CDCSS Deviation 1. TX Center. CDCSS: 023. Turn to CH5 in manual adjust mode. Adjust by pressing PTT or MONI. Radio Communica- tion Test Set LPF: 300Hz ANT Adjust deviation to: 0.65kHz±100Hz 13. Low Battery Alert Level 1. Turn to CH1 in manual adjust mode. Adjust the power supply voltage at 5.3V. Adjust by pressing PTT or MONI. Digital Voltmete r Adjust the level to make LED just flash. Note: In manual adjust mode, when channel selector knob is positioned at channel 1-channel16, MIC jack can’t connect with external cables. After adjustment is completed, short out the two SELF points and then turn the power on, the radio enters model set mode. Then press PTT to disable the manual adjust mode.
