R74TC-700UTwo Way Radio

THANK YOU! We are grateful for your purchase of HYT product. We believe this easy–to-use radio will provide you with clear and reliable communications in high efficiency. This HYT portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation. MODELS COVERED IN THIS MANUAL TC700 VHF Two-way Radio TC700 UHF Two-way Radio 1 Contents User Safety, Training, and General Information Compliance with RF Energy Exposure Standards FCC Compliance Precautions Product Inspection Battery Information Accessory Installation Attaching/Removing the Battery Attaching/Removing the Antenna Attaching/Removing the Belt Clip Attaching Remote Earphone/Microphone Getting Acquainted Programmable Auxiliary Functions Basic Operation Advanced Operations Auto Dial Emergency Lone Worker Man Down (optional) Monitor/Squelch Off Scan SQL Check & Adjust Voice Encryption Talk Around Power Check & Adjust Whisper VOX Battery Power Indicator Rental Time Indicator 2 Communication Range Alarm Background Operations Time-out Timer (TOT) Busy Channel Lockout (BCL) and Busy Tone Lockout (BTL) Battery Save Low Battery Alert CTCSS/DCS DTMF 2-Tone/5-Tone Signaling Control PTT ID Troubleshooting Guide Care and Cleaning Optional Accessories Frequency Chart 3 User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards Your HYT two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle (5% talk-5% listen-90% standby), even though this radio complies with the FCC occupational RF exposure limits at duty cycles of up to 50% talk. SAR measured values of body-worn is 3.52 mW/g and face-held is 2.29 mW/g. Your HYT two-way radio complies with the following of R F e n e r g y exposure standards and guidelines: z United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J z American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: 4 Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Hand-held radio operation Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips. Body-worn operation z Always place the radio in an HYT approved clip, holder, holster, case, or body harness for this product. Use of non-HYT-approved accessories may exceed FCC RF exposure guidelines. Antennas & Batteries Use only HYT approved, supplied antenna or HYT approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. z Use only HYT approved, supplied batteries or HYT approved replacement batteries. Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines. Approved Accessories For a list of HYT approved accessories, see the accessories page of this user manual or visit the following website which lists approved accessories: http://www.HYT.com.cn FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the 5 receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. FCC Licensing Requirements Your radio must be properly licensed Federal Communications Commission prior to use. Your HYT Wireless dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. Precautions • Only qualified technicians are allowed to maintain this product. • Do not use the radio or charge a battery in explosive areas such as coal gas, dust, steam, etc. • Switch OFF the radio while refueling or parking at gas station. • Do not modify or adjust this radio without permission. • Do not expose the radio to direct sunlight over a…

Text truncated - open the document above for the full version.

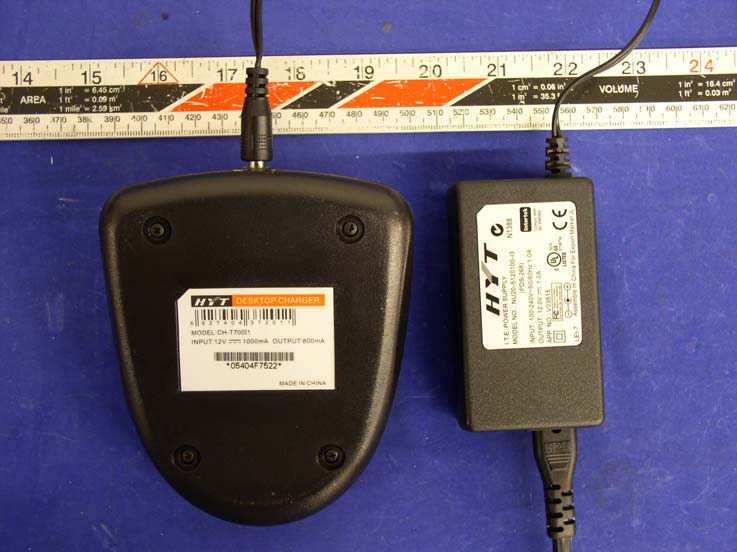

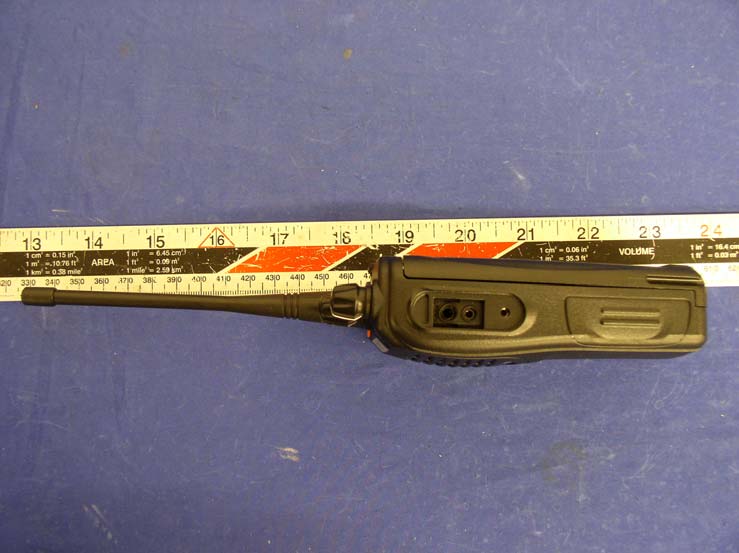

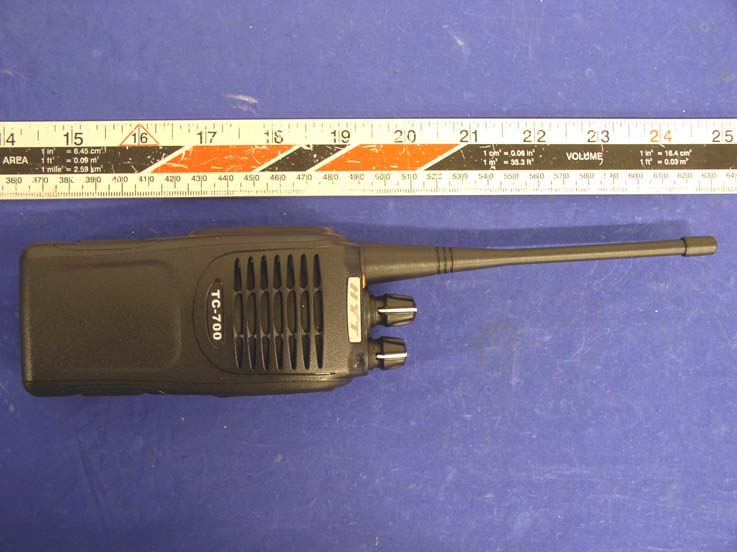

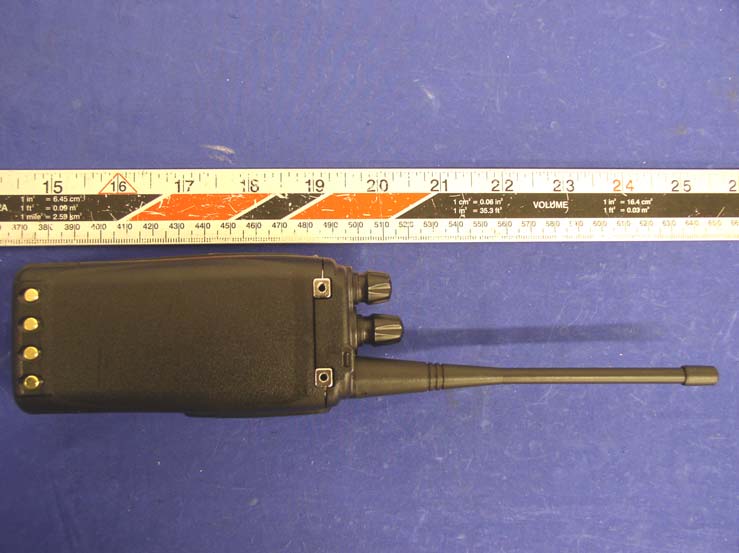

APPENDIX C - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Left Side View EUT – Right Side View Power Supply and Charger – Top View Power Supply and Charger – Bottom View Earphone and Microphone – Top View

APPENDIX A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location Battery removed, Rear Side of EUT / Proposed Label Location ATTENTION! Restricted to occupational use to satisfy FCC RF exposure limits. See users manual for operating requirements. FCC ID: R74TC-700U Model: TC-700U(2)

APPENDIX C - EUT INTERNAL PHOTOGRAPHS EUT – Battery Removed Back View EUT – Component View EUT – Solder View

Adjustment Description Adjust the radio by programmer, PC programming software or by manual adjustment. In manual adjustment mode, the adjustment method is shown as follows: (Refer to “Software Specification” for the manual adjustment mode) Required Test Instrument Radio Communication Test Set 1 set Scanner 1 set 3A/10V Power Supply 1 set Digital Voltmeter 1 set 3A Ammeter 1 set Adjustment 1. Adjustment in user mode Short circuit the two SELF points, turn on the power while holding down TK for 2 seconds, then the radio enters reset mode with green LED flashing twice. Turn the channel selector knob to the selected channel and press PTT, the radio data is all reset (All clone modes will be automatically activated when reset is completed). Refer to All Reset Mode in Software Specification for more details: VCO Measurement Adjustment Item Condition Test Instrument Terminal Parts Method Specification/ Remarks 1. Setting Power supply voltage 1. CH: TX high 3.8V±0.1V 2.Transmi t VCO lock voltage 2. TX Low Check >0.6V 1. CH: RX high 3.8V±0.1V 3.Receive VCO lock voltage 2. RX low Digital Voltmeter CV TC301 TC302 Check >0.6V 2. Manual Adjust Mode Description Turn the power on while holding down TK and SK2 key simultaneously for 2 seconds, the radio enters manual adjust mode with red LED flashes twice. (TK：Top key ；SK1：Side key1； SK2：Side key2) (1) Enter the manual adjust mode Turn the power on while holding down TK and SK2 key simultaneously. After 2 seconds, the radio enters manual adjust mode with red LED flashes 2 times. (2) Channel number on the channel selector knob Each channel number on the channel selector knob is defined a setting item. The bandwidth is 25KHz and low frequency (F1) each time when the channel selector knob is rotated. (3) SK2 key Used to set the frequency. 1 point tuning is used to adjust center frequency, 3 point tuning adjusts F1, F3, F5 and 5 point tuning adjusts F1-F5. The frequency toggles from low frequency to high frequency. Green LED flashes one time when F1 is selected. (4) TK key Use to toggle the channel bandwidth among 25KHz, 20KHz and 12.5KHz. Red LED flashes one time when the bandwidth is 25KHz. (5) PTT/SK1 PTT→Increase SK1→Decrease PTT/SK1 is pressed to adjust upward/downward. Red LED glows indicating the maximum adjust value and green LED indicating the minimum value. Hold down the key to increase/decrease the adjust value continuously. Press PTT key to save the BATT LOW, SQL and VOX setting, then green LED glows one time. (6) Select adjustment item group: The first group of adjustment item is selected when the radio enters the manual adjust mode. Turn to CH16 and press PTT key to enter the next group. Press again to return to the first group. Orange LED flashes one time when the first group is selected. Orange LED flashes two times when the second group is selected. (7) Frequency Setting () 5 point tuning（MHz） TX: { TX1,TX2,TX3,TX4,TX5} RX: { RX1,RX2,RX3,RX4,RX5} 3 point tuning（MHz） TX: { TX1, TX3, TX5} RX: { RX1, RX3, RX5} 1 point tuning（MHz） TX: { TX3} RX: { RX3} 3. Adjustment Method Turn the power on while holding down TK and SK2 key simultaneously for 2 seconds, the radio enters manual adjust mode with red LED flashes twice. Refer to Manual Adjust Mode in TC700 Software Specification for more details. (1) Transmitter Item Condition Test Instrument Method Purpose Adjust a channel Enter the adjust mode; Turn to CH1; TX mode. Radio Communication Test Set; TX Test Adjust VR1 Frequency Error≤100Hz 1. TX power Low Enter the adjust mode. Turn to CH1. Adjust at 5 point (wideband). PTT key (increase) SK1 key (decrease) Adjust power to: 1W±0.1W 2. CDCSS balance Enter the adjust mode. Turn to CH3. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) No adjustment 3. CDCSS deviation Enter the adjust mode. Turn to CH3. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) Group 1 4. CTCSS (67.0Hz) deviation Low Enter the adjust mode. Turn to CH4. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. Radio Communication Test Set TX TEST HPF ： 20HZ LPF ： 300HZ PTT key (increase) SK1 key (decrease) Adjust deviation to 750Hz (wideband), 600Hz (medium band) and 400Hz (narrowband) respectively. 5. CTCSS (136.5Hz) deviation Center Enter the adjust mode. Turn to CH5. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) 6. CTCSS (254.1Hz) deviation High Enter the adjust mode. Turn to CH6. Adjust at 3 point (wideband), 1 point (medium band) and 1 point (narrowband) respectively. PTT key (increase) SK1 key (decrease) 7. AK2346 Transmit Audio Deviation Enter the adjust mode. Turn to CH7. Adjust at 3 point (wideband), 1 point (medium band), 1 point (narrow band). Radio Communication Test Set HPF: 20Hz LPF: 15KHz 1KHz 120mV PTT key (increase) SK1 key (decrease) Adjust deviation to 4KHz (wideband), 3.2KHz (medium band) and 2KHz (narrowband) respectively. 8. 2 Tone deviation Enter the adjust mode. Turn to CH8. Adjust at 1 point (wideband), 1 point (medium band), 1 point (narrow band). PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. 9. DTMF deviati on Enter the adjust mode. Turn to CH9. Adjust at 1 point (wideband), 1 point (medium band), 1 point (narrow band). PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. 10. MSK deviati on Enter the adjust mode. Turn to CH10. Adjust at 3 point (wideband), 1 point (medium band), 1 point (narrow band). Radio Communication Test Set TX Test HPF: 20Hz LPF: 15KHz No modulation signal. PTT key (increase) SK1 key (decrease) Adjust deviation to 3.2KHz (wideband), 2.5KHz (medium band) and 1.8KHz (narrowband) respectively. …

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For SHENZHEN HYT SCIENCE&TECHNOLOGY CO.,LTD R2-High-Tech Industrial Park ShenZhen, China FCC ID: R74TC-700U This Report Concerns: Original Report Equipment Type: Two-way Radio Test Engineer: Daniel Deng Report No.: R0504126S Report Date: 2005-05-31 Reviewed By: Richard Lee Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-700U Report #R0504126S SAR Evaluation Report Page 2 of 55 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 & IEEE 1528 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Type: Two-way Radio Model Number: TC-700U(2) Modulation: FM TX Frequency Range: 440MHz – 470MHz Max. Conducted Power Tested: 37.50dBm Antenna Type(s): External Antenna Body-Worn Accessories: Earphone & Microphone Face-Head Accessories: None 3.52 mW/g (1g, 450MHz, Body-Worn) 2.29 mW/g (1g, 450MHz, Head) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in EN 50361:2001 and has been tested in accordance with the measurement procedures specified in ANSI IEEE C95.3:2002 All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Hang Tan Bay Area Compliance Laboratory Corp. Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-700U Report #R0504126S SAR Evaluation Report Page 3 of 55 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES .............................................................................................. 4 SAR LIMITS................................................................................................................................................................ 5 EUT DESCRIPTION.................................................................................................................................................... 6 DESCRIPTION OF TEST SYSTEM.......................................................................................................................... 7 MEASUREMENT SYSTEM DIAGRAM............................................................................................................................. 9 SYSTEM COMPONENTS.............................................................................................................................................. 11 TESTING EQUIPMENT ........................................................................................................................................... 20 EQUIPMENTS LIST & CALIBRATION INFO.................................................................................................................. 20 SAR MEASUREMENT SYSTEM VERIFICATION.............................................................................................. 21 SYSTEM ACCURACY VERIFICATION.......................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY................................................................................................. 22 SAR EVALUATION PROCEDURE................................................................................................................................22 CONCLUSION ........................................................................................................................................................... 23 SAR BODY WORST-CASE TEST DATA...................................................................................................................... 23 APPENDIX A – MEASUREMENT UNCERTAINTY............................................................................................24 APPENDIX B – PROBE CALIBRATION CERTIFICATES ................................................................................ 26 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES............................................................................... 37 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS ................................................................................ 42 LIQUID MEASUREMENT RESULT................................................................................................................................42 APPENDIX E - EUT SCANS..................................................................................................................................... 45 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT............................................................... 47 PROVISION APPLICABLE............................................................................................................................................ 47 TEST PROCEDURE...................................................................................................................................................... 47 TEST EQUIPMENT....................................................................................................................................................... 47 TEST RESULTS.....................................................................................................................…

Text truncated - open the document above for the full version.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 90 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For SHENZHEN HYT SCIENCE&TECHNOLOGY CO., LTD R2-High-Tech Industrial Park ShenZhen, China FCC ID: R74TC-700U This Report Concerns: Original Report Equipment Type: Two-way Radio Test Engineer: Hang Tan Report No.: R0504126 Report Date: 2005-05-27 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 Shenzhen HYT Science&Technology Co.,Ltd FCC ID: R74TC-700U Report # R0504126RptRpt Page 2 of 28 FCC Part 90 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................6 SUMMARY OF TEST RESULTS ...............................................................................................................................7 §2.1046 - CONDUCTED OUTPUT POWER..............................................................................................................8 PROVISION APPLICABLE...............................................................................................................................................8 TEST PROCEDURE........................................................................................................................................................8 TEST EQUIPMENT.........................................................................................................................................................8 ENVIRONMENTAL CONDITIONS....................................................................................................................................8 TEST RESULTS.............................................................................................................................................................8 §2.1046 AND §90.205 – RF OUTPUT POWER........................................................................................................10 PROVISION APPLICABLE.............................................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................11 ENVIRONMENTAL CONDITIONS..................................................................................................................................11 TEST RESULTS...........................................................................................................................................................11 §2.1047, §90.207 - MODULATION CHARACTERISTIC ......................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT.......................................................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................12 TEST RESULTS...........................................................................................................................................................12 §2.1049, AND § 90.209 – OCCUPIED BANDWIDTH .............................................................................................16 APPLICABLE STANDARD...................................................................…

Text truncated - open the document above for the full version.
