R74TC3600KU6Two Way Radio

1 THANK YOU! We are grateful for your purchase of HYT product. We believe this easy-to-use radio will provide you with dependable and reliable communications. This HYT portable two-way radio is a precision device. Treat it with care, and you will enjoy years of reliable operation. MODELS COVERED IN THIS MANUAL TC3600-KU (6) Two-way Radio 2 Content User Safety, Training, and General Information Compliance with RF Energy Exposure Standards FCC Compliance Precautions Product Inspection Battery Information Accessory Installation Getting Started Features and Operation Chinese/English Menu Troubleshooting Guide Care and Cleaning Optional Accessories Specification Frequency Chart 3 User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR HYT PORTABLE TWO-WAY RADIO. Compliance with RF Energy Exposure Standards Yo u r HYT two-way radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE (FCC) and ICNIRP exposure limits for occupational/controlled RF exposure environment at duty cycles of up to 50% talk-50% listen and should be used for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Note: The approved batteries supplied with this radio are rated for a 5-5-90 duty cycle (5% talk-5% listen-90% standby), even though this radio complies with the FCC occupational RF exposure limits at duty cycles of up to 50% talk. Your HYT two-way radio complies with the following of R F e n e r g y exposure standards and guidelines: z United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J z American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. Hand-held radio operation Hold the radio in a vertical position with the microphone one to two inches (2.5 to 5 cm) away from the lips. Body-worn operation z Always place the radio in an HYT approved clip, holder, holster, case, or body harness for this product. Use of non-HYT-approved accessories may exceed FCC RF exposure guidelines. Antennas & Batteries 4 z Use only HYT approved, supplied antenna or HYT approved replacement antenna. Unauthorized antennas, modifications, or attachments could damage the radio and may violate FCC regulations. z Use only HYT approved, supplied batteries or HYT approved replacement batteries. Use of non- HYT -approved batteries may exceed FCC RF exposure guidelines. Approved Accessories For a list of HYT approved accessories, see the accessories page of this user manual or visit the following website which lists approved accessories: http://www.HYT.com.cn FCC Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z  Reorient or relocate the receiving antenna. z  Increase the separation between the equipment and receiver. z  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z  Consult the dealer or an experienced radio/TV technician for help. Modifications not authorized by the manufacturer may void users authority to operate this device. FCC Requirements Your radio must be properly licensed by the Federal Communications Commission prior to use. Your HYT dealer can assist you in meeting these requirements. Your dealer will program each radio with your authorized frequencies, signaling codes, etc., and will be there to meet your communications needs as your system expands. Note The term "IC": before the certification / registration number only signifies that the Industry Canada technical specification were met. SAR Information SAR: THIS MODEL DEVICE MEETS THE GOVERN-MENTS REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. For body worm operation, this phone has been tested and meets the FCC RF exposure guidelines when used with an accessory that contains no metal,and that positions the antenna of the two-way radio a minimum of 2.5cm from the body.The SAR values of this two-way radio are 0.93 w/kg (Face Hold) and 1.74 w/kg (Body Worn). Use of other accessories may not ensure compliance with the FCC RF exposure guidelines 5 The FCC has granted an Equipment Authorization for this model device with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines.SAR information on this model device is on files with the FCC and can be found under the Dis…

Text truncated - open the document above for the full version.

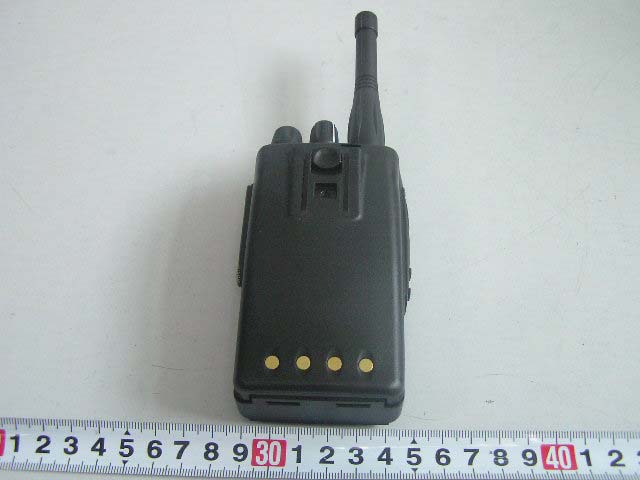

EXHIBIT B - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location FCC ID Label Location ATTENTION! Restricted to occupational use to satisfy FCC RF exposure limits. See users manual for operating requirements. FCC ID: R74TC3600KU6 Model: TC3600-KU (6)

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Inside View (1) EUT –Inside View (2) Battery View EUT – Main PCB Front View (1) EUT – Main PCB Rear View (1) EUT – Main PCB Front View (2) EUT – Main PCB Rear View (2) EUT – Keyboard PCB Front View EUT – Keyboard PCB Rear View (1) EUT – Keyboard PCB Rear View (2) EUT – LCD PCB Front View EUT – LCD PCB Rear View

Circuit Description 1. Power Supply Power supply of the radio is derived from the battery, which supplies battery B+ after passing through fuse 3A and then feeds through power switch. The power supplies voltage for three AVRs. IC505 supplies 5V (5M) voltage for the control circuit. IC9 supplies 5V (5C) voltage for the shared circuit. And IC6 supplies voltage for the transmit/receive circuit. In transmit mode, 5TC becomes low voltage and Q3 is turned on to supply 5V(5T) voltage for the transmit circuit. In receive mode, 5RC becomes low voltage and Q2 is turned on to supply 5V (5R) voltage for the receive circuit. BATTFUSE PROTECT 5C 5M BUFF 1/2BIA S AVR AVR SW 5R 5T AVR SW SW SAVE 5RC 5TC Fig. 1 Power Supply Block Diagram 2. PLL Frequency Synthesizer PLL circuit generates the first local oscillator signal for reception and RF signal for transmission. CPU Q416 UL X401 IC400 PLL IC500 CV CLK,DAT,EN TCXO VCO BUFFSW MB D100 T/R To Drive Amp BUFF D103 SW To Mixer Q310 Fig2. PLL circuit 1) PLL IC400 is divider. Step frequency of PLL circuit is 2.5KHz or 6.25KHz. A 16.8MHz reference oscillator signal is divided at IC400 by a fixed counter to generate a 2.5KHz or 6.25KHz reference frequency. Output signal from VCO is buffer amplified by Q416 and divided at IC400 by a frequency divider. Divided signal is compared in the phase comparator with 20KHz or 50KHz reference signal of IC400. Output signal from phase comparator is filtered through a low pass filter and passed to the VCO to control oscillator frequency. 2) VCO The operating frequency is generated by Q352 in transmit mode and by Q350 in receive mode. Operating frequency generates a control voltage by phase comparator to control varactor diodes so that the oscillator frequency is consistent with the MCU preset frequency (D350, D352, D354 and D355 in transmit mode and D351, D353, D356 and D357 in receive mode). T/R pin is set high level in receive mode and low in transmit mode. The output from Q352 and Q350 is amplified by Q354 and sent to buffer amplifier. 3) Unlock Detector An unlock condition appears if low level appears at LOCK pin of IC400. Transmission is forbidden if this condition is detected by microprocessor. 3. Receiver The receiver utilizes double conversion superheterodyne. C ANT ANT SW BPFQ201 RF AMP BPF MCF XF201 IF AMP Q222 MIXER IC218 CF201,202 IF,MIX,DET IC204 AF AMP IC720SP 1st Local OSC (PLL) 2nd Local OSC IF AMP Q216 Fig.3 Receiver Section Configuration 1) Front-end Amplifier The signal from antenna is amplified at RF amplifier (Q201) after passing through a transmit/receive switch circuit and a band pass filter. The amplified signal is filtered through a band pass filter to remove unwanted signals before it passes the first mixer. 2) First Mixer The signal from RF amplifier is mixed with the first local oscillator signal from PLL frequency synthesizer circuit at the first mixer (IC218) to create a 44.85MHz first IF signal. The first IF signal is then fed through a crystal filter (XF201) to further remove spurious signals from adjacent channel. 3) IF Amplifier The first IF signal is amplified by Q216 before passing through crystal filter and by Q222 after crystal filter and then enters IF processing chip IC204. The signal is mixed with the second local oscillator signal again in IC204 to create a 455KHz second IF signal. The second IF signal then passes through a 455KHz ceramic filter (wideband: CF201/narrowband: CF202) to eliminate unwanted signals before it is amplified and detected in IC204. 4) Narrowband/Wideband Switch Circuit Turn on ceramic filter CF201 (wideband)/CF202 (narrowband) to set each channel as wideband or narrowband. W/N pin of IC500 outputs wideband (high level) and narrowband (low level) signal. 5) AF Amplifier The result AF signal from IC204 is amplified by IC606, and then passes through AF processing chip IC601 and compander IC603. The processed AF signal is then amplified by an AF power amplifier (IC720) to drive the speaker. 4. Transmitter 1) AF and Signaling Modulating signal from the microphone passes through Q700 switch and compander IC603 before it enters AF processing chip IC601. CPU generates CTCSS/CDCSS signaling and IC601 produces DTMF/2-Tone/5-Tone signaling, which then pass through MOD and enter VCO together with the modulating signal for direct FM modulation. (See fig.5) 2) RF Amplifier The transmit signal from VCO buffer amplifier (Q310) is amplified by Q101 and Q102. The amplified signal is then amplified by the power amplifier Q105 and Q107 (include a two-stage FET amplifier) to create 4.0W RF power. (See fig.4) D C B A Title AMP Q101.102 5T DRIVE AMP Q105 FINAL AMP Q107 ANT SW D101LPF ANT ANT SW D201.202 RX Q106 SW Q109 SW 5T IC100 APC DET Q103.Q104 B SW B APC 5T TH101 SW Q110 5T Q108 SW 5TC Fig.4 APC System 3) Antenna Switch and LPF Output signal from RF amplifier passes through a low-pass filter network and a transmit/receive switch circuit comprised of D101, D201 and D202 before it reaches the antenna terminal. D201 and D202 is turned on (conductive) in transmit mode and off (isolated) in receive mode. 4) APC The automatic power control (APC) circuit stabilizes the transmit output power by detecting the drain current of final stage amplifier FET. IC100 (2/2) compares the preset reference voltage with the voltage obtained from final current. APC voltage is proportional to the difference between auto detect voltage and reference voltage output from IC100 (1/2). The output voltage controls FET power amplifier and keeps the transmitter output power constant. The output voltage can be varied by the microprocessor, which hence controls the transmitter output power. 5. Signalling Section The block diagram of signaling section is shown as figure 5. D601 LIMITTER X601 BASEBAND PROCESSOR IC601 BBP_IRQN BBP_RPL SP MIC SW Q700 AF PA IC710 SW Q710 MIC AUDIO_EN EXT_SPK+ EXT_MIC BBP_CSN BBP_CMD BBP_CLK Q701 SW EXT_MIC_SELEXT_SP_SEL IC605 BUFFER Ver Vbias COMPANDER IC603 BYPATH MOD MB COMPRESSOR E…

Text truncated - open the document above for the full version.

1 Tune-up procedure Required Test Instrument Radio communication test set 1 set Scanner 1 set 3A/10V power supply 1 set Digital voltmeter 1 set 3A Ammeter 1 set Preparation Open the programming software in PC and operate as the following instructions. 1. Programme Download: Connect the radio with the computer via programming cable. And then turn the power on. LED glows orange. Click “Programme” → “Download” on the interface to choose programme. Click “Open” to begin download and LED flashes red. When download is complete, click “End” and turn the power off. And then disconnect the programming cable. 2. Initialization: Turn the power on while holding down [PTT] and [A] key simultaneously. LED glows orange and a BEEP sounds. Radio channel frequency and setting data are initialized. 3. Destination Set: Turn the power on. And then connect the radio with the computer via programming cable. Set “frequency range” on the programming software interface. And then click “Programme” → “ Writing”. 4. Factory Setting The compander is enabled. Squelch level 2. Adjustment mode is disabled. Adjustment Procedure & Method 1) Turn the power on while holding down PTT and programmable key C, after two seconds, the radio enters adjustment mode. 2) CH1-CH16 are defined as following: 2 CH1: Keyboard and Display Detect; CH2: Transmitting VCO; CH3: Receiving VCO; CH4: Frequency Accuracy; CH5: High power; CH6: Low power; CH7: CDCSS balance; CH8: MIC sensitivity; CH9: Maximum frequency deviation; CH10: CTCSS/CDCSS deviation; CH11: FFSK deviation; CH12: TONE deviation; CH13: Receiving sensitivity; CH14: Squelch level; CH15: Low battery alert level; CH16: VOX sensitivity. 3) Keyboard and display detect: Enter adjustment mode. Turn to CH1. Press PTT. A black screen is displayed. And then press keys on the keyboard to check the display. VCO Measurement Adjustment Item Condition Te s t Instrument Terminal Part Method Specification/ Remarks 1. Setting Power supply 7.5V 1.Turn to CH2. Press PTT. TX High Check 3.1V±0.2V 2.Transmit VCO loc k voltage 2. Press PTT again. TX Low Check 1.0V±0.2V 1. Turn to CH3. Press PTT. TX High Check 3.1V±0.2V 3. Receiving VCO loc k voltage 2. Press PTT again. TX Low Digital Voltmeter CV TC350 TC351 Check 1.0V±0.2V 3 Transmitter Measurement Adjustment Item Condition Test Instrument Terminal Part Method Specification /Remarks 1. Transmit frequency Turn to CH4. Press PTT. Radio Communication Test Set ANT [B] (up) [C] (down) Adjust to center frequency. Press [A] to save. Error≤ 150Hz 1. Turn to CH5. Press PTT. Center frequency Adjust to 4.0 W, I≤1.6A. Press [A] to save. 2. Press PTT. Frequency changes to low frequency. Adjust to 4.0 W, I≤1.6A. Press [A] to save. High 3. Press PTT again. Frequency changes to high frequency. Adjust to 4.0 W, I≤1.6A. Press [A] to save. 4.0W±0.3W 1. Turn to CH6. Press PTT. Center frequency. Adjust to 1.0 W, I≤0.7A. Press [A] to save. 2. Press PTT. Frequency changes to low frequency. Adjust to 1.0 W, I≤0.7A. Press [A] to save. 2. Power Low 3. Press PTT again. Frequency changes to high frequency. Radio Communication Test Set Ammeter ANT [B] (up) [C] (down) Adjust to 1.0 W, I≤0.7A. Press [A] to save. 1W±0.3W 1. Turn to CH7. Press PTT. Wideband. Center frequency. 2. Press PTT. Frequency changes to low frequency. 3. Press PTT again. Frequency changes to high frequency. 3. CDCSS balance Wideba- nd Narrow- band 4. Press PTT for two seconds. LED flashes indicating that the radio operates with narrowband. Center frequency. Adjust narrowband following the above steps. Radio Communication Te s t S e t LPF: 15KHz ANT [B] (up) [C] (down) Rectify the waveform to square wave. Press [A] to save. 4 1. Turn to CH8. Press PTT. Wideband. Center frequency. 2. Press PTT. Frequency changes to low frequency. 4. MIC Sensitivity (Wideband) 3. Press PTT again. Frequency changes to high frequency. Radio Communication Te s t S e t LPF: 15KHz AF: 1KHz 24mV ANT MIC Jack [B] (up) [C] (down) Check Frequenc y deviation 2.9±0.1KHz. Press [A] to save. Adjust as wideband. 1. Turn to CH9. Press PTT. Wideband. Center frequency. 2. Press PTT. Frequency changes to low frequency. Wideba- nd 3. Press PTT again. Frequency changes to high frequency. Adjust it to 4.0KHz±100Hz. Press [A] to save. 5. Maximu- m frequenc -y deviation Narrow- band 4. Press PTT for two seconds. LED flashes indicating that the radio operates with narrowband. Center frequency. Adjust narrowband following the above steps. Radio Communication Te s t S e t LPF: 15KHz AF: 1KHz 500mV ANT MIC Jack [B] (up) [C] (down) Adjust it to 2.0KHz±100Hz. Press [A] to save. 1. Turn to CH10. Press PTT to adjust CTCSS deviation. Wideband. Center frequency. 2. Press PTT. Frequency changes to low frequency. 6. CTCSS ／ CDCSS deviation Wideba- nd 3. Press PTT again, frequency changes to high frequency. Radio Communication Test Set LPF: 3KHz ANT [B] (up) [C] (down) Adjust deviation to 0.70KHz± 50Hz. Press [A] to save. 5 4. Press PTT to adjust CDCSS deviation. Wideband. Center frequency. 5. Press PTT. Frequency changes to low frequency. 6. Press PTT again, frequency changes to high frequency. 7. Press A key for two seconds. LED flashes indicating that the radio operates with narrowband. Adjust CDCSS deviation. High frequency. 8. Press PTT. Frequency changes to center frequency. 9. Press PTT. Frequency changes to low frequency. 10. Press PTT to adjust CTCSS deviation. Narrowband. Center frequency. 11. Press PTT. Frequency changes to low frequency. Narrow- band 12. Press PTT again, frequency changes to high frequency. Adjust deviation to 0.35KHz± 50Hz. Press [A] to save. 1. Turn to CH11. Press PTT. Cente r frequency. 2. Press PTT. Frequency changes to low frequency. 7. FFSK deviation Wideba- nd 3. Press PTT again, frequency changes to high frequency. Radio Communication Te s t S e t LPF: 3KHz ANT [B] (up) [C] (down) Adjust deviation to 3KHz± 0.1KHz. Press [A] to save. 6 Narrowb -and 4. Press A key for two seconds. LED flashes indicating that the radio operates wit…

Text truncated - open the document above for the full version.

Note: This test report is specially limited to the above client company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the U.S. Government. SAR EVALUATION REPORT For Shenzhen HYT Science & Technology Co., Ltd. HYT Tower,Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen,Guangdong,P.R.C. FCC ID: R74TC3600KU6 This Report Concerns: Original Report Equipment Type: Two-way Radio Test Engineer: Eric Hong Report No.: R06050914S Report Date: 2006-07-12 Reviewed By: Daniel Deng Prepared By: Bay Area Compliance Laboratory Corporation 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Shenzhen HYT Science & Technology Co., Ltd FCC ID:R74TC3600KU6 Report #R06050914 SAR Evaluation Report Page 2 of 57 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): FCC §2.1093 & IEEE 1528 Test Procedure(s): FCC OET Bulletin 65 Supplement C & IEEE 1528 Device Type: Two-way Radio Model Number: TC3600KU6 Modulation: FM TX Frequency Range: 480MHz – 512MHz Max. Conducted Power Tested: 4.25 Watts Antenna Type(s): External Antenna Body-Worn Accessories: Earphone and Belt clip Face-Head Accessories: None 1.74 mw/g (1g, 500.0125MHz, Body-Worn), 0.93 mw/g (1g, 500.0125MHz, Face hold) BACL Corp. declares under its sole responsibility that this wireless portable device has been determined to be in compliance for localized specific absorption rate (SAR) for uncontrolled exposure and general population exposure limits specified in FCC OET Bulletin 65 Supplement C and has been tested in accordance with the measurement procedures specified in ANSI IEEE C95.3:2002 & IEEE 1528. All measurements reported herein were performed under my supervision and believed to be accurate to the best of my knowledge. I further attest for the completeness of these measurements and vouch for the qualifications any and all personnel performing such measurements. The results and statements contained in this report pertain only to the device(s) evaluated. /signature/ Eric Hong Bay Area Compliance Laboratory Corp. Shenzhen HYT Science & Technology Co., Ltd FCC ID:R74TC3600KU6 Report #R06050914 SAR Evaluation Report Page 3 of 57 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES .............................................................................................. 4 SAR LIMITS................................................................................................................................................................ 5 EUT DESCRIPTION.................................................................................................................................................... 6 DESCRIPTION OF TEST SYSTEM.......................................................................................................................... 7 MEASUREMENT SYSTEM DIAGRAM............................................................................................................................. 9 SYSTEM COMPONENTS.............................................................................................................................................. 11 TESTING EQUIPMENT ........................................................................................................................................... 20 EQUIPMENTS LIST & CALIBRATION INFO.................................................................................................................. 20 SAR MEASUREMENT SYSTEM VERIFICATION.............................................................................................. 21 SYSTEM ACCURACY VERIFICATION.......................................................................................................................... 21 EUT TEST STRATEGY AND METHODOLOGY................................................................................................. 22 SAR EVALUATION PROCEDURE................................................................................................................................22 CONCLUSION ........................................................................................................................................................... 23 SAR BODY WORST-CASE TEST DATA...................................................................................................................... 23 APPENDIX A – MEASUREMENT UNCERTAINTY............................................................................................24 APPENDIX B – PROBE CALIBRATION CERTIFICATES ................................................................................ 26 APPENDIX C – DIPOLE CALIBRATION CERTIFICATES............................................................................... 37 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS ................................................................................ 43 LIQUID MEASUREMENT RESULT................................................................................................................................43 APPENDIX E - EUT SCANS..................................................................................................................................... 46 APPENDIX F – CONDUCTED OUTPUT POWER MEASUREMENT............................................................... 48 PROVISION APPLICABLE............................................................................................................................................ 48 TEST PROCEDURE...................................................................................................................................................... 48 TEST EQUIPMENT....................................................................................................................................................... 48 TEST …

Text truncated - open the document above for the full version.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 90 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Shenzhen HYT Science & Technology Co., Ltd HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. FCC ID: R74TC3600KU6 June 23, 2006 This Report Concerns: Original Report Equipment Type: Two-way radio Test Engineer: Charmi Peng Deny Xiong Report No.: RSZ06043001 Test Date: May 23-29, 2006 Reviewed By: Boni Baniqued Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Shenzhen HYT Science & Technology Co., Ltd FCC ID: R74TC3600KU6 Report # RSZ06043001Revised Page 2 of 41 FCC PART 90 TYPE APPROVAL Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §2.1046 - CONDUCTED OUTPUT POWER..............................................................................................................9 APPLICABLE STANDARD..............................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST DATA................................................................................................................................................................10 §2.1046, and §90.205 – RADIATED OUTPUT POWER .........................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST DATA................................................................................................................................................................13 §2.1047, and §90.207 - MODULATION CHARACTERISTIC ...............................................................................14 APPLICABLE STANDARD............................................................................................................................................14 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................14 TEST PROCEDURE..................................................................…
