R74TM-800Umobile Radio

1 THANK YOU! Thank you for your purchase of HYT mobile radio TM-800. We believe this easy-to-use radio will provide you with dependable and reliable communications at peak efficiency. Please read this manual carefully before use. The information presented herein will help you to derive maximum performance from your radio. MODELS COVERED IN THIS MANUAL TM-800 VHF Mobile Radio TM-800 UHF Mobile Radio 2 HOT SURFACE Avoid contact durin g prolonged use Do not touch the metal surface of the radio while it is in use. Do not mount the radio such that the chassis can come in contact with skin. High temperatures may burn you skin. MANDATORY SAFETY INSTRUCTIONS TO INSTALLERS AND USERS ════════════════════════════════════════════════════════════════ ● Use Only manufacturer or dealer supplied antennas. ● Antenna minimum safe distance: 82cm (32 inches). ● Antenna used for this transmitter must not exceed an antenna gain of 3 dBi. The FCC (Federal Communications Commission) has adopted a safety standard for human exposure to RF energy which is below the OSHA (Occupational Safety and Health Act) limits. ● Antenna mounting: The antenna supplied by the manufacturer or radio dealer must not be mounted at a location such that during radio transmission, any person can come closer than the above indicated minimum safe distance to the antenna (i.e. 82cm/32inches). ● To comply with current FCC RF Exposure limitations, the antenna must be installed at or exceeding the minimum safe distance indicated above, and in accordance with the requirements of the antenna manufacturer or supplier. ● Vehicle installation: The antenna can be mounted at the center of a vehicle metal roof or trunk lid if the minimum safe distance is observed. Antenna substitution: Don’t substitute any antenna for the one supplied or recommended by the manufacturer or radio dealer. You may be exposing person(s) to excessive radio 3 frequency radiation. You may contact your radio dealer or the manufacturer for further instructions. Warning Maintain a separation distance from the antenna to person(s) at least 82cm (32inches). “This transmitter is authorized to operate with a maximum duty factor of 50%, in a typical push-to-talk mode, for satisfying FCC RF exposure compliance requirements.” 4 Contents Caution MANDATORY SAFETY INSTRUCTIONS User Safety, Training, and General Information Compliance with RF Energy Exposure Standards FCC Compliance Precautions Product Inspection Radio Installation and Warnings Radio Overview Basic Operations Turn the Radio On/Off Adjust the Volume Monitor Select a Channel Select a Zone Receive Transmit Selectable Power Level Beginning / End of Transmission ID Channel Scan Busy Channel Lockout (BCL) BCL Override DTMF Call Code Squelch Time-Out-Timer (TOT) Emergency Call Stun Programmable Auxiliary Functions Reverse Frequency Talkaround Selectable Squelch Level User Selectable Tone (UST) Public Address Dual Home Channels Horn Alert Selectable 2-Tone Encode Selectable 5-Tone Encode 5 Display Frequency Display Label Display Mode LCD Backlight Compander Scrambler Short Message GPS Report Optional Signalling User Set Mode Appendix 1 Entering Characters Optional Accessories 6 User Safety, Training, and General Information READ THIS IMPORTANT INFORMATION ON SAFE AND EFFICIENT OPERATION BEFORE USING YOUR HYT MOBILE RADIO. „ Compliance with RF Energy Exposure Standards Your HYT mobile radio is designed and tested to comply with a number of national and international standards and guidelines (listed below) regarding human exposure to radio frequency electromagnetic energy. This radio complies with the IEEE and ICNIRP exposure limits for occupational/controlled RF exposure environment at operating duty factors of up to 50% transmitting and is authorized by the FCC for occupational use only. In terms of measuring RF energy for compliance with the FCC exposure guidelines, your radio radiates measurable RF energy only while it is transmitting (during talking), not when it is receiving (listening) or in standby mode. Your HYT mobile radio complies with the following of R F e n e r g y exposure standards and guidelines: z United States Federal Communications Commission, Code of Federal Regulations; 47CFR part 2 sub-part J z American National Standards Institute (ANSI)/Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1992 z Institute of Electrical and Electronic Engineers (IEEE) C95. 1-1999 Edition z International Commission on Non-Ionizing Radiation Protection (ICNIRP) 1998 Operational Instructions and Training Guidelines To ensure optimal performance and compliance with the occupational/controlled environment RF energy exposure limits in the above standards and guidelines, users should transmit no more than 50% of the time and always adhere to the following procedures: Transmit and Receive To transmit (talk), push the Push-To-Talk (PTT) button; to receive, release the PTT button. 7 Approved Accessories For a list of HYT approved accessories, see the accessories page of this user manual or visit the following website which lists approved accessories: http://www.hyt.com.cn . „ FCC Compliance Part 15 Compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving anten…

Text truncated - open the document above for the full version.

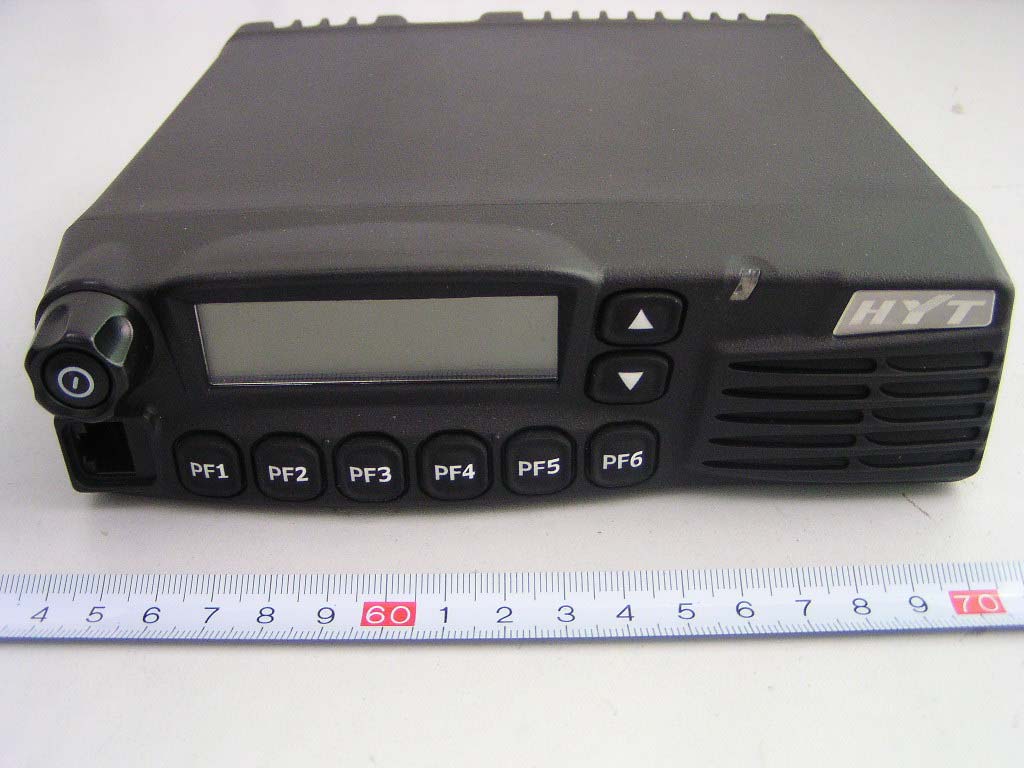

EXHIBIT B - EUT PHOTOGRAPHS EUT – Front View EUT – Rear View

EXHIBIT A - FCC ID LABELING AND LOCATION Proposed FCC ID Labeling Proposed FCC ID Location FCC ID Label Location ATTENTION! Restricted to occupational use to satisfy FCC RF exposure limits. See users manual for operating requirements. FCC ID: R74TM-800U Model: TM-800U

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View (1) EUT – Uncovered View (2) EUT – Uncovered View (3) EUT – Main PCB Top View EUT – Main PCB Bottom View EUT –Control PCB Top View EUT –Control PCB Bottom View EUT –Control Unit Top View EUT –Control Unit Bottom View

Circuit Description 1. Frequency Configuration The receiver utilizes double conversion superheterodyne. The first IF is 49.95MHz and the second is 450KHz. The first local oscillator signal is supplied from PLL circuit. The second local oscillator signal 50.4MHzis generated from the frequency tripling of TCXO (16.8MHz). The PLL circuit generates the frequencies needed in the transmitter (See Fig.1). Frequency Range: 450 MHz—512MHz 2. Receiver The receiver section configuration is shown as Fig. 1. Figure 1 Receiver Section Configuration 2.1 RF AMP BP It consists of BPF (D603, D602, D601) and RF amplifier (Q601). The bandpass frequency ranges from 136MHz to 174MHz. The signal is filtered by a bandpass filter to eliminate unwanted signals before going to the first mixer. 2.2 The Fist Mixer The signal from RF AMP BPF is mixed with the first local oscillator signal from PLL circuit in the double-balance mixer (Q138, Q144, Q145, Q146) to generate a 49.95MHz first IF signal. The first IF signal is then fed through two crystal filters (NXF101XF103WXF102XF104) to further remove spurious signals. 2.3 IF Amplifier The first IF signal is amplified in Q125, Q118 and then enters IC119TA31136FN. The signal is mixed with the second local oscillator signal 50.4MHzto create a 450KHz second IF signal. The second IF signal is then fed to a ceramic filter (NCF101CF103WCF102CF104) to eliminate unwanted signals. The resulting signal is detected by IC119 and output from Pin9 as an AF signal. 2.4 AF Amplifier The AF signal from IC119 is amplified by IC109 before being filtered. The resulting AF signal passes through Q108AF MUTEand IC121(electronic switch) , then is amplified by IC106 ( the received signaling is inputted into CPU for decoding) and IC104. The amplified signal is fed to IC125 (volume control) and Q114 (SP MUTE) before entering AF AMP (IC126). The outputted AF signal is then delivered to the speaker through control panel. 2.5 Squelch The AF signal from IC119 is amplified by IC109 again, then filtered to remove noise signals. The noise signal is amplified by Q121 and rectified by D110 to produce an ASQ level. The ASQ level is then compared in CPU (IC120) to generate a level which controls AF MUTE and SP MUTE. IC120 determines whether to output sounds from the speaker by controlling Q108, Q114. 3. Transmitter Figure 2 Transmitter Section Configuration 3.1 MIC Circuit and Modulation Circuit The AF signal from MIC is amplified by IC204 after passing through the MIC control switch (Q507). The resulting signal is then amplified by IC106 and pre-emphasized, encoded. It is passed to IC121 (electronic switch) before reaching IC125. The signaling is inputted into IC125 and enters VCO for modulation. 3.2 Power AMP and Post AMP TX-RF signal is outputted from Q703 in VCO circuit and amplified by Q126, Q127 and Q128. The amplified signal is then fed to IC102 and passes through LPF before reaching the antenna terminal. 3.3 APC The APC is used to keep the power output at a constant preset value. D105 and D106 transform the signal from detector into DC voltage which is then compared with the reference voltage from CPU in IC118 and outputted as DC control voltage. The DC control voltage controls the output power by controlling the grid of IC102. 4. PLL PLL circuit generates the first local oscillator signal for reception and the RF signal for transmission. PLL circuit consists of TX frequency oscillator (Q701), RX frequency oscillator (Q702), buffer amplifier (Q703), RF amplifier (Q124), PLL IC (IC801), LPF (Q804, Q805) and TX/RX VCO control switch (Q704, Q706). In transmit mode, IC120 transmits the frequency data to PLL IC. Q704 is turned on to activate TX VCO. The outputted signal is amplified by Q703, Q124, then divided by PLL IC into 2.5KHz, 5KHz or 6.25KHz signal. The divided signal is compared with 2.5KHz, 5KHz or 6.25KHz reference signal from 16.8MHz crystal oscillator (2.5 PPM frequency stability) in the phase comparator. The frequency control voltage outputted from the phase comparator is sent to TX VCO after passing through LPF (Q804, Q805). In the meantime, modulation signal (TX) is passed to TX VCO for frequency modulation. The working principle in receive mode is similar to that in transmit mode.

 Note Dimension HxWxL Weight Front Panel Knob Volume Knob UP DN Channel(Group) select PF1 PF2 PF3 PF4 PF5 PF6 TX/BUSY LED indicators Red when transimitting Green when receiving voice Orange when receiving message LED Microphone Antenna Power External speaker Accessories Microphone Mounting Bracket DC Power Cable Keypad Microphone Functions Extension Cable External speaker Remote Mounting Kit Others To design shield according to PCB requirement LCD Note 6 DTMF Encode and ANI Encode/Decode.7 2 Tone Sequential Encode/Decode.8 5 Tone ANI Encode/Decode.5 50 CTCSS/104 CDCSS Encode/Decode. External Connector Optional Accessories 9 Channel Scan Features: Single/Double Priority channels,revert channel selectable; channel & group add/delete; Muliple/Single group scanning. Physical Sepecifications Mobile Radio Specifications 1 Compandor Technology2 LCD can display character, channel number & name, DTMF number,frequency, menu and settings. Main Functions 48 X 180 X 164 mm 1 knob8 programmable function buttonsdot matrix LCDFront-mounted speaker Key Programmable key (icon customize) Reserved connector 4 MSK Modemscrambler3 LED indicator: Red when transimittingGreen when receiving voiceOrange when receiving code squelch, selective call, two/five-tone and DTMF signal.  1  3   Note Model V HF 25 W V HF 50 W UHF 25 W UHF 45 W General Frequency Range 136-174MHz 136-174MHz 450-512MHz 450-512MHz Number of Channels 256 256 256 256 Number of Groups Max.256 Max.256 Max.256 Max.256 Channel Spacing Wide/Narrow 2530KHz /12.515KHz 2530KHz /12.515KHz 2530KHz /12.515KHz 2530KHz /12.515KHz Channel Increments 2.5/5/6.25/7.5 2.5/5/6.25/7.5 2.5/5/6.25/7.5 2.5/5/6.25/7.5 Operating. Frequency Spread 38MHz 38MHz 62MHz 62MHz Antenna Impedence 50 Ω 50 Ω 50 Ω 50 Ω Operating Voltage 13.6V±15% 13.6V±15% 13.6V±15% 13.6V±15% Current Drain - Standby 0.4A 0.4A 0.4A 0.4A Current Drain - Receive <2.0A <2.0A <2.0A <2.0A Current Drain - Transmit <8A <12A <8A <12A 12 Repeater/Talk around13 9 Level User Adjustable Squelch16 Wire Clonable18 Soft Key Programming14 Test and Tuning via front panel15 PC Programming (program, test and tuning)10 TOT: Time Out Timer. Value definable. 17 Programmable Accessorial Functions11 Per Channel Hi/Med/Lo Power Setting19 Hang up remote speaker/microphone to begin channel scan, pick off to stop channel scan (This feature can be disabled/enabled)21 Message Function Extended Functions 12Mbit Flash ROM allow for future updatesreserved updates interface2Reserved LTRMDC1200 signaling circuit, reserved SmarTrunk connection port3External 15-pin extension port20 Emergency Alarm Technical Specification 4Internal GPS connection portreserved GPS unit circuitenable internal GPS installation)5Internal extension portextended functions option board installable68 programmable CPU I/O ports for upgrading radio functions in future  2  3   Operating Temperature Range -30+60 -30+60 -30+60 -30+60 Frequency stability ±2.0ppm ±2.0ppm ±2.0ppm ±2.0ppm Receiver Sensitivity Wide/Narrow 0.25/0.33μV 0.25/0.33μV 0.28/0.35μV 0.28/0.35μV Selectivity Wide/Narrow 75/65dB 75/65dB 75/65dB 75/65dB Intermodulation Wide/Narrow 70/65dB 70/65dB 70/65dB 70/65dB Spurious Response 80 80 80 80 Internal 5W Internal 5W Internal 5W Internal 5W External 12W External 12W External 12W External 12W Audio Distortion3W/5W <3% / <10% <3% / <10% <3% / <10% <3% / <10% Receiver Attack Time <150mS <150mS <150mS <150mS Receiver Closing Time <250mS <250mS <250mS <250mS Receiver Resume Time <150mS <150mS <150mS <150mS Audio Sensitivity >80dB >80dB >80dB >80dB transimitter High 25W High 50W High 25W High 45W Medium 10W Medium 25W Medium 10W Medium 25W Low 5W Low 5W Low 5W Low 5W adjacent channel power 70/60dB 70/60dB 70/60dB 70/60dB Carrier Attack Time <100mS <100mS <100mS <100mS CTCSS/CDCSS Modulation Limiting 5/2.5KHz 5/2.5KHz 5/2.5KHz 5/2.5KHz CTCSS/CDCSS Tone Distortion 500-1000Hz 350-600Hz 500-1000Hz 350-600Hz 500-1000Hz 350-600Hz 500-1000Hz 350-600Hz CTCSS Distortion <5% <5% <5% <5% CTCSS/CDCSS Response Time <150mS <150mS <150mS <150mS spurious emissions 80dB 80dB 80dB 80dB FM S/N 48/42dB 48/42dB 48/42dB 48/42dB AM S/N 34dB 34dB 34dB 34dB 35dB 35dB 35dB 35dB 30dB 30dB 30dB 30dB MIC Sensitivity 91dB 91dB 91dB 91dB Modulation Distortion <3% <3% <3% <3% Audio Output RF Output Power CTCSS/CDCSS Modulation S/N  3  3

Adjustment Description The radio can be adjusted by PC programming software or by manual adjustment. Manual adjustment procedure of TM800 is as follows. (Refer to “Test Mode” and “Adjustment mode” in the section Radio Modes.) Instrument: Radio Communication Test Set 1 set Scanner 1 set 30A/30V Power Supply 1 set Digital Voltmeter 1 set Power Meter 1 set Adjustment: 1. Download ● Connect the radio with PC by programming cable; Turn the radio on. ● Click “Download” on software interface; ● Select the desired program and click “Open”, download starts. ● Click “End” when download is completed. ● Turn the radio off and remove the programming cable. 2. Initialization It’s necessary to set the frequency and initialize the radio before adjustment because there is no needed information in FLASHROM when the radio is manufactured. ● Turn the power on while holding down [PF2], then press [PF3], [PF4] and [PF6] in sequence. ● The LED on control panel turns green from red, indicating that the initialization is completed. 3. Adjustment Some items can be adjusted in conventional mode and the others in manual adjust mode. ● Turn the power on to enter conventional mode. ● Switch the power off and back on while holding down [PF6], the radio enters manual adjust mode. The channel number is displayed on the LCD. VCO Measurement Adjustment Item Condition Test Instrument TerminalPart Method Specification / Remarks 1. Power supply 1.Power supply voltage DC13.6V 2. VCO lock voltage (TX) 1.CH: TX HI Digital Voltmeter CV TC1 8.0V±0.1V 2.CH: TX LO Check 1.5V 1.CH: RX HI 8.0V±0.1V 3. VCO lock voltage (RX) 2.CH: RX LO TC2 Check 1.5V Receiver Measurement Adjustment Item Condition Test Instrument TerminalPart Method Specificati on /Remarks 4. bandpass filter Enter adjustment item “10”, each Ch corresponds to a specific RX Freq Scanner ANT . TP1 Adjust software settings Adjust the gain to the Max. value, the corresponding freq is on the rightmost to bandpass waveform. Press [PF6] to save. 1.CH: RX Center  turn to CH1(C) in manual adjust mode 2. CH: RX LO turn to CH2(L) in manual adjust mode 5. Sensitivity 3.CH:RX HI turn to CH3(H) in manual adjust mode Radio Communication Te s t S e t SSG output: -118dBm MOD:1KHz DEV:±3KHz(W) ±1.5KHz(N) FILTER: 0.3-3.4KHz ANT SP Jack W/N turn on power while holding down [PF6] to enter Channel Set Mode [UP]/ [DOWN] to change channel Check SINAD: 12dB or higher Radio Communication Te s t S e t SSG output: -121dBmlevel 3 6.SQ Open Enter adjustment item “11” SSG output -113dBm  level 9 Adjust to open the SP at SQL3 and SQL9 Adjust to open the squelch Radio Communication Test Set SSG output: -123dBmlevel 3 7.SQ Close Enter adjustment item “12” SSG output: -115dBm  level 9 ANT SP Jack [UP]/ [DOWN] to change channel Adjust to close the SP at SQL3 and SQL9 Adjust to close the squelch 8.Distorsion DIS≤5% 9.S/N 1.CH: RX Center Radio Communication Test Set SSG output: -60dBm ANT SP Jack FILTER: 0.3-3.4K Hz Check S/N≥46W  S/N≥40N Transmitter Measurement Adjustment Item Condition Test Instrument TerminalPart Method Specific ation /Remark s 10.TX Frequency Enter adjustment item “1”, each Ch corresponds to a specific TX Freq Radio Communication Test Set ANT Adjust software settings Adjust to Ch frequency Error <100Hz High power: PO> 50W I≤12.0A Check High power Middle power: PO>25W I≤8.0A Check Middle power 11.TX Power Each Ch corresponds to a specific TX Freq enter adjustment item “2”adjust H/M/L power Radio Communication Te s t S e t Ammeter ANT Adjust software settings press [PF6] to save. Low power: PO>10W I≤6.0A Check Low power Check deviation at CH L/C/H: 4.0±0.1KHz(W) 12.Max. Deviation 1. Each Ch corresponds to a specific TX Freq  enter adjustment item “3” Radio Communication Te s t S e t FILTER: 0.3-3.4KHz AF:1KHz 100mV ANT MIC Jack Adjust software settings, press [PF6] to save and enters the next item Check deviation at CH L/C/H: 2.0±0.1KHz (N) 13. Modulation Sensitivity Check deviation: 2.5KHz-3.5KHzW  1.3KHz-1.7KHzN  14. Modulation Distortion 1. Each Ch corresponds to a specific TX Freq Radio Communication Te s t S e t FILTER: 0.3-3.4KHz AF:1KHz 6mV ANT MIC Jack ≤5% Check 15.CTCSSD eviation Each Ch corresponds to a specific TX Freq enter adjustment item “5”, adjust 67Hz/127.3Hz/251H zCTCSS Radio Communication Te s t S e t FILTER LPF: 300Hz ANT Change CTCSS settings with Selector Knob Adjust deviation to 0.75KHz±0.10KHz W 0.35KHz±0.05KHz N 16.CDCSSB alance Each Ch corresponds to a specific TX Freq  enter adjustment item “4” Radio Communication Te s t S e t FILTER LPF: 300Hz ANT Change CDCSS settings with Selector Knob Check wavefor m 17. CDCSS Deviation Each Ch corresponds to a specific TX Freq  enter adjustment item“6” Radio Communication Te s t S e t FILTER LPF: 300Hz ANT Change CDCSS settings with Selector Knob Adjust deviation to 0.75KHz±0.10KHz W 0.35KHz±0.05KHz N 18.DTMF Deviation Each Ch corresponds to a specific TX Freq  enter adjustment item “7” Radio Communication Te s t S e t FILTER LPF: 3KHz ANT Change DTMF settings with Selector Knob 3.0KHz±0.2KHz W 1.5KHz±0.1KHz N 19.MSK Each Ch corresponds to a specific TX Freq  enter adjustment item “8” ANT Change DTMF settings with Selector Knob 20.2TONE/5 TONE Each Ch corresponds to a specific TX Freq  enter adjustment item “9” Radio Communication Te s t S e t FILTER LPF: 3KHz ANT Change 2-tone/ 5-tone settings with Selector Knob Adjust deviation to 3.0KHz±0.10KHz W 1.5KHz±0.05KHz N

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Lab Corp. (ShenZhen). This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 90 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For Shenzhen HYT Science & Technology Co., Ltd HYT Tower, Shenzhen Hi-Tech Industrial Park North, Beihuan Rd., Nanshan District, Shenzhen, P.R.C. FCC ID: R74TM-800U January 17, 2006 This Report Concerns: Original Report Equipment Type: Mobile Radio Test Engineer: Jandy Su Louise Lu Report No.: RSZ05120202 Test Date: December 19, 2005-January 16, 2006 Reviewed By: Chris Zeng Prepared By: Bay Area Compliance Lab Corp. (ShenZhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone, ShenZhen, Guangdong 518038, P.R.China Tel: +86-755-33320018 Fax: +86-755-33320008 Shenzhen HYT Science & Technology Co., Ltd FCC ID: R74TM-800U Report # RSZ05120202 Page 2 of 68 FCC PART 90 TYPE APPROVAL Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................4 EXTERNAL I/O CABLE.................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 DESCRIPTION OF TEST CONFIGURATION......................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 CONFIGURATION OF TEST SETUP.................................................................................................................................7 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................7 SUMMARY OF TEST RESULTS...............................................................................................................................8 §2.1091 - RF EXPOSURE .............................................................................................................................................9 LIMIT...........................................................................................................................................................................9 TEST DATA..................................................................................................................................................................9 §2.1046, and §90.205 - CONDUCTED OUTPUT POWER .....................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................10 TEST PROCEDURE......................................................................................................................................................10 TEST DATA................................................................................................................................................................10 §2.1047, and §90.207 - MODULATION CHARACTERISTIC ...............................................................................17 APPLICABLE STANDARD............................................................................................................................................17 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................17 T EST P ROCEDURE ......................................................................................................................................................17 T EST D ATA ................................................................................................................................................................17 §2.1049, and § 90.209 – OCCUPIED BANDWIDTH ...............................................................................................23 APPLICABLE STANDARD............................................................................................................................................23 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................23 TEST PROCEDURE......................................................................................................................................................24 TEST DATA.............................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission - Front View (30 MHz- 1000 MHz) Radiated Emission - Rear View (30 MHz- 1000 MHz) Radiated Emission - Front View (Above 1000 MHz) Radiated Emission - Rear View (Above 1000 MHz) Frequency Stability
