R8DDP-1300MP3 Player

CONTENTS Getting Started ① Do not use the player for any other purpose than as listed within the contents of this manual.Avoid severe impact/vibration. ② Avoid using or storing in places with high humidity, drastic temperature changes, severemovements, or high magnetic intensity. Also, ensure that liquids do not enter the player.Failure to meet these warnings may result in product damage or malfunction. ③ Unauthorized disassembly or modification will void warranty. ④ Daewoo Electronics does not hold responsibility over data loss or disintegration that occurs during data transfer, due to mechanical malfunctions, due to software malfunctions, or any other cause (external impact, power outages, etc). Please backup any important data stored within the player. ⑤ Use soft cloth or rag to clean. Avoid using chemical solutions. ⑥ Match the battery terminals (+/-) when inserting into the player. Remove the batteries if theplayer is not in use for extended periods of time to prevent damages caused by battery leak. ⑦ Check the direction when connecting the USB cable to either the player or a PC. ⑧ Do not leave the USB cable connected to the PC or apply pressure onto it while connectedto a PC. ⑨ Always keep the player's USB port clean. Safety Precautions Getting Started Computer Connection Software Installation 11 Connecting the Player to a PC 12 USB Driver Installation 13 Removable Disk Feature 14 Formatting Removable Disk 15 Disconnecting the USB Cable 16 Customer Support Troubleshooting 35 Specifications 36 Basic Features Play 17 Voice Recording 21 Direct Encoding 22 FM Radio 23 Recording FM Radio 27 Additional Features Menu Configuration 28 Playback Support 28 Recording Support 30 Navigation 31 File Delete 31 Lyrics Support Program 32 Firmware Upgrade 34 Safety Precautions 2 Features 3 Accessories 5 Overview 6 Main Button Functions 7 LCD Screen 8 Replacing the Battery 9 System Requirements 10 DIGITAL AUDIO PLAYER 3 1. Compact Design Thanks to its ultra slim and minimalist design, this player is highlymobile. 2. Direct Encoding Simply connect the player directly to regular CD or cassette players todigitally record and store music files without using a computer. 3. USB Mass Storage This player connects to PCs as a removable disk for simpler datatransfers that do not require a separate manager program. 4. Voice Recorder Directional MIC, Recording Quality Adjustment, Monitor Feature, andmuch more... 5. FM Radio Feature A high performance FM radio built right inside!Listen to FM radio anytime, anywhere, and even record in digitalquality! 6. User-Friendly Graphic Interface The player's LCD is comprised of graphic icons, a simplified menustructure, and an easy approach method for greater user-friendliness. 7. Seven Backlight Colors Seven shades of the rainbow as your backlight!Select from seven different color settings to match your individual style or mood. 8. Ultimate SRS WOW Sound The next level of sound - SRS WOW. Feel the deep, rich, and uniquesounds by SRS WOW. 9. Play Speed Control With single touch play and lyric scroll adjustment feature, the player ishighly useful for language studies and other learning purposes.(Firmware Version 2.0) 10. Firmware Upgrade Always have the latest software version with Daewoo Electronics'Firmware Upgrade Service. Getting Started 4 Getting Started F eatures HOLDPLAY/STOPREC/MODE NECKSTRAP HOOK 6 5 Getting Started Getting Started Note: Accessories included with the product may change without prior notice for functional or quality enhancement purposes. DIGITAL AUDIO PLAYER REW/LEFTUP/VOL+NAVI/MENU RIGHT/FFDOWN/VOL- EARPHONE MIC LCD LINE IN BAT. COVERUSB COVER Battery(1.5V AAA 1EA) Main Unit Ac c essories Overview Neckstrap USB Cable Stereo Earphone User Manual Direct Cable Master CD 8 7 Getting Started LCD Screen DIGITAL AUDIO PLAYER EqualizerPlayback ModeHold Status Indicator Play Icon Track Number File Format Track Title Current Folder Track Time PowerIndicator M ain Button Functions ① Player Status ② MP3 Mode: Previous Track FM Mode: Previous Channel ③ Volume Up ④ File Navigation/Menu Selection ⑤ MP3 Mode: Next Track FM Mode: Next Channel ⑥ Volume Down ⑦ Hold Switch ⑧ Play/Stop Power ON/OFF ⑨ Record/Mode Selection ①②③④⑤⑥⑦⑧⑨ Getting Started DIGITAL AUDIO PLAYER 10 Getting Started • Pentium 133MHz • 64MB of Memory • CD-ROM Drive • USB Interface • 20MB of Available Disk Space (Additional space is needed to store music files) • Supported Operating Systems: Windows 98SE/ME/2000/XP Minimum System Requirements: Actual internal disk space available for use is less than as indicated due to partialuse by firmware for systems operation. R eplacing the Battery System Requirements 1. Push in the direction of the arrow to open the batter cover. (A->B)2. Match up the battery's terminals (+, -) and insert.3. Push to replace the batter cover. (A->B) 건전지 교체하기 9 Getting Started Note : Please ensure that the player is powered off before replacing the battery.Replacing the battery while the power is on may damage the player. DIGITAL AUDIO PLAYER C omputer Connection 12 11 1. Insert Master CD and select "Next" from the prompting window. 2. Designate an installationfolder and select "Next." Use the USB cable (enclosed) to connect the player to aPC as show in the diagram before transferring databetween them.Connect the USB cable to the computer's USB port.Connect the opposite end of the USB cable to the player'sUSB port located at the bottom of the player. Software Installation C onnecting the Player to a PC 3. Select "Next" to continue the installation. 4. Select "Finish" to complete the installation process. C omputer Connection CautionDisconnecting the USB cable while installing the device driver may cause computer malfunction. DIGITAL AUDIO PLAYER C omputer Connection 14 13 C omputer Connection Because the PC recognizes the player as a removable disk once the software and driverhave been fully installed, the player can double as an external storage device.• Turn the player on and c…

Text truncated - open the document above for the full version.

Appendix E. Block Diagram ETL Inc. #584 Sangwhal-ri, Kanam-myon, 1 of 1 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 32.768kHz 32.768kHz

Appendix C. External Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 1 of 1 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Front View of EUT Rear View of EUT

Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, 1 of 2 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. WAVESYSTEC CO., LTD. MP3 Player FCC ID : R8DDP-1300 Model NO : DP-1300 POWER : DC 1.5V, AAA Battery 1EA Serial No : N/A This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer : WAVESYSTEC CO., LTD. Made in Korea Appendix A. FCC ID Label and Location ETL Inc. #584 Sangwhal-ri, Kanam-myon, 2 of 2 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

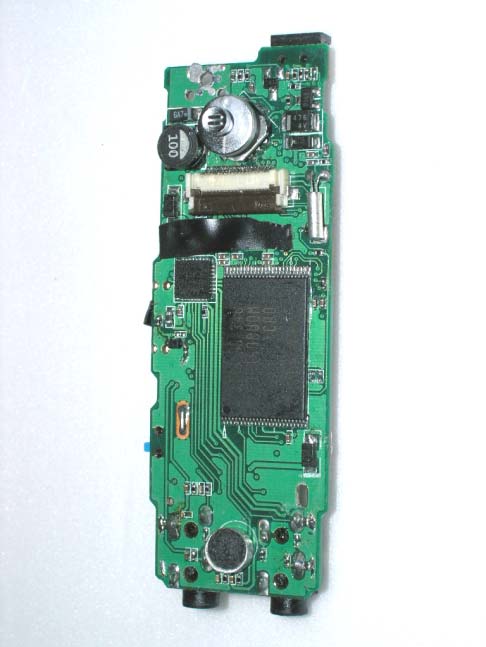

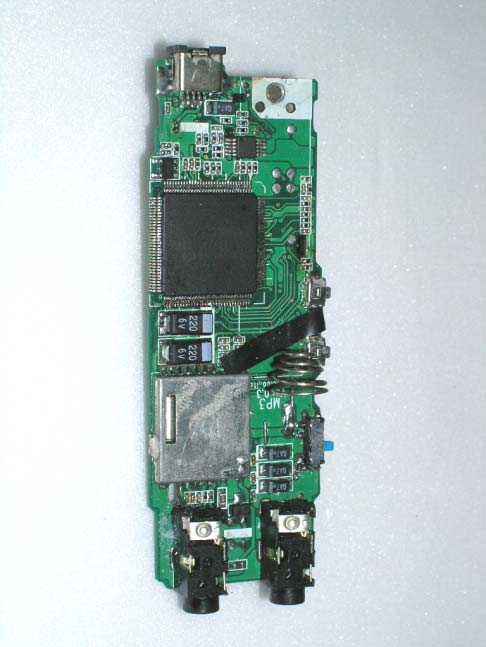

Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 1 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 View of Inside Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 2 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Inside View of Main Board & LCD Board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 3 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Component side View of Main Board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 4 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Solder side View of Main Board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 5 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Component side View of LCD Board Solder side View of LCD Board Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 6 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 View of USB Cable View of Audio Cable Appendix D. Internal Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 7 of 7 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 View of Ear Phone

FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 5 of 16 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 2.1 Equipment Description The tested model is DP-1300. Model DP-1*00 is same as model DP-1100 and DP-1200, DP-1300 for all electric and electronics components. The difference between models is only Memory Chip set equipment, model designation. The “*” in the designation model name may be 1 and 2, 3 denoting a Memory Chip set’s equipment. DP-1100 equip 128MB Memory and DP-1200 equip 256MB Memory, DP-1300 equip 512MB Memory. 2.2 General Specification Model DP Serise Supported Compression Formats MP3(8.320kbps), ADPCM(32kbps), WMA Internal Storage Capacity 128 / 256/ 512 Display FSTN Type Graphic (128 *64) LCD (7 Color LED Back Light) Supported Languages 36 User Interface Language English File Transfer Rate Max. 2.4Mbps Earphone Output 12mW(L) + 12mW(R) Signal to Noise Ratio 85dB Output Frequency Range 20Hz to 20kHz Battery AAA Battery 1EA Playing Time 10hrs (MP3 Mode) FM Frequency Range 87.5MHz to 108.0MHz Dimensions / Weight 32(W) * 78(H) * 23(D)mm/48g (Including Battery)

www.etl.re.kr E-RAE Testing Laboratory This report only responds to the tested sample and may not be reproduced, except in full, without written approval of the ETL,Inc. Electromagnetic Emission FCC MEASUREMENT REPORT CERTIFICATION OF COMPLIANCE FCC Part 15 Certification Measurement This MP3 Player, Model DP-1300 has been tested in accordance with the measurement procedures specified in ANSI C63.4-1992 at the ETL/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart B : I attest to the accuracy of data. All measurement herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Yo Han, Park / Chief Engineer ETL Inc. #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea PRODUCT : MP3 Player MODEL/TYPE NO : DP-1300 FCC ID : R8DDP-1300 APPLICANT : WAVESYSTEC CO., LTD Daeryung Techno Tower 6-901, Gasan-dong, Geumchun-gu, Seoul, Korea Attn. : Choung, Lee / Engineer FCC CLASSIFICATION: Class B personal computers and peripherals FCC RULE PART(S) : FCC Part 15 Subpart B FCC PROCEDURE : Certification TRADE NAME : WAVESYSTEC TEST REPORT No. : E04.0604.FCC.308N DATES OF TEST : May 31 ~ June 04, 2004 DATES OF ISSUE : June 04, 2004 TEST LABORATORY : ETL Inc ( FCC Registration Number : 95422) #584 Sangwhal-ri, Kanam-myon, Yoju-kun, Kyounggi-do, 469-880, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 2 of 16 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3.Description of Tests 4.Test Condition 5.Test Results 5.1 Summary of Test Results 5.2 Conducted Emissions Measurement 5.3 Radiated Emissions Measurement 6. Sample Calculations 7. List of test Equipment used for Measurement Appendix A. FCC ID Label and Location Appendix B. Test Setup Photographs Appendix C. External Photographs Appendix D. Internal Photographs Appendix E. Block Diagram Appendix F. User Manual FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 3 of 16 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information z EUT Type : MP3 Player z Model Number : DP-1300 z FCC ID : R8DDP-1300 z S/N : N/A z FCC Rule Part(s) : FCC Part 15 Subpart B z Test Procedure : ANSI C63.4-1992 z FCC Classification : Class B personal computers and peripherals z Dates of Tests : June 04, 2004 z Place of Tests : ETL Inc EMC Testing Lab (FCC Registration Number : 95422) 584, Sangwhal-Ri, Kanam-Myun, Yoju-Kun, Kyounggi-Do, Korea Tel : (031) 885-0072 Fax : (031) 885-0074 z Test Report No. : E04.0604.FCC.308N Applicant Name : WAVESYSTEC CO., LTD. Address : Daeryung Techno Tower 6-901, Gasan-dong, Gumchun-gu, Seoul, Korea Attention : Choung, Lee / Engineer FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 4 of 16 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 The measurement test for radiated and conducted emission test were conducted at the open area test site of E-RAE Testing Laboratory Inc. facility located at 584, Sangwhal-ri, Ganam-myun, Youju-kun, Kyoungki-do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-1992 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 and 10 meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission(Registration Number : 95422 ). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-1992) was used in determining radiated and conducted emissions from the WAVESYSTEC CO., LTD. Model : DP-1300 FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 5 of 16 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 2.1 Equipment Description The tested model is DP-1300. Model DP-1*00 is same as model DP-1100 and DP-1200, DP-1300 for all electric and electronics components. The difference between models is only Memory Chip set equipment, model designation. The “*” in the designation model name may be 1 and 2, 3 denoting a Memory Chip set’s equipment. DP-1100 equip 128MB Memory and DP-1200 equip 256MB Memory, DP-1300 equip 512MB Memory. 2.2 General Specification Model DP Serise Supported Compression Formats MP3(8.320kbps), ADPCM(32kbps), WMA Internal Storage Capacity 128 / 256/ 512 Display FSTN Type Graphic (128 *64) LCD (7 Color LED Back Light) Supported Languages 36 User Interface Language English File Transfer Rate Max. 2.4Mbps Earphone Output 12mW(L) + 12mW(R) Signal to Noise Ratio 85dB Output Frequency Range 20Hz to 20kHz Battery AAA Battery 1EA Playing Time 10hrs (MP3 Mode) FM Frequency Range 87.5MHz to 108.0MHz Dimensions / Weight 32(W) * 78(H) * 23(D)mm/48g (Including Battery) FCC TEST REPORT ETL Inc. #584 Sangwhal-ri, Kanam-myon, 6 of 16 Yoju-kun, Kyounggi-…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 1 of 2 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Radiated Emission Test Setup Appendix B. Test Setup Photographs ETL Inc. #584 Sangwhal-ri, Kanam-myon, 2 of 2 Yoju-kun, Kyounggi-do, 469-880, Korea WAVESYSTEC CO., LTD. MP3 Player Model: DP-1300 Form NO: ETL(E)004A4001201-0 Conducted Emission Test Setup
