R8Y7RC04-CF100001Remote control for ceiling fan

1 User’s Manual Product Name ：Remote control for ceiling fan 7RC04-CF100001 FCC ID: R8Y7RC04-CF100001 The Remote control buttons are defined below： ● Speed Buttons Choose higher speed Choose lower speed ● Ceiling fan turn on/turn off ● forward/reverse from rotation Speed buttons： Forward/Reverse Power on/off Light ON/OFF 2 ● Light turn on/ turn off Operating remote control： Install two 1.5 volt batteries into the hand-held remote control. Press any speed button to start fan operation. Note： ：： ：If not using for long period of time, remove batteries to prevent damage of remote control. Store the remote control away from human body. Operating Frequency： 2410 MHz、2420 MHz、2425 MHz Warming ！ ！！ ！ Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

Request for Supercede TO: Federal Communication Commission Please kindly be notified that we, Pan-World Control Technologies, Inc. herein request to supersede the MPE report under FCC ID: R8Y7RC04-CF100001 for the following reason: There is one typo for 433.92MHz in the 6 page of the original MPE report. The correct statement in the MPE report should be “The EUT operates in the 2.4GHz” which we have corrected in the revised MPE report, instead the statement “The EUT operates in the 433.92GHz” in the original MPE report. Pan-World Control Technologies, Inc. attests that the product that were certified under FCC ID: R8Y7RC04-CF100001 hasn’t been marked in the U.S. Please kindly permit the supersede. Thank you. Sincerely,

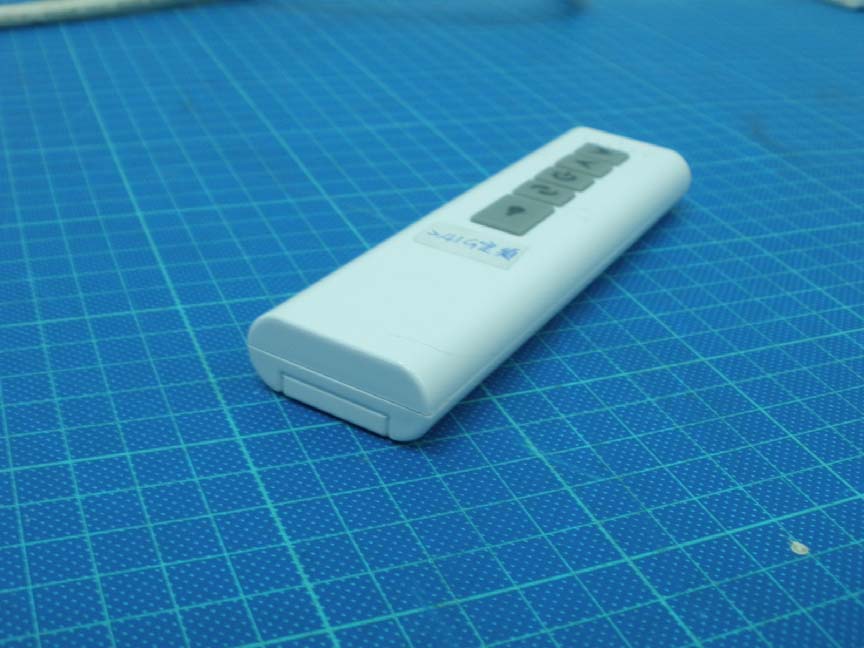

External photo of EUT

Label Location

Internal photo of EUT Internal photo of EUT Antenna

FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 1 of 17 0597 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : TS13100089-EME Model No. : 7RC04-CF100001 Issued Date : Nov. 18, 2013 Applicant: Pan-World Control Technologies, Inc. 5F, No. 81, Sec. 1,Sintai 5 th . RD., Sijhih, New Taipei City 22101, Taiwan Test Method/ Standard: FCC 1.1310 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Candy Liu/ Assistant These measurements were taken by: Chester Cheng/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 2 of 17 Table of Contents Summary of Tests ..............................................................................................................3 1. General information ......................................................................................................4 1.1 Identification of the EUT ........................................................................................4 1.2 Additional information about the EUT....................................................................4 1.3 Antenna description.................................................................................................5 2. Test specifications .........................................................................................................6 2.1 Introduction .............................................................................................................6 2.2 RF Exposure Limit ..................................................................................................7 2.3 RF Exposure calculations........................................................................................9 2.4 Operation mode .....................................................................................................10 2.5 Test equipment ......................................................................................................10 2.6 Test Set-up .............................................................................................................11 3. Test results ...................................................................................................................12 Appendix A1: External photo of EUT.............................................................................13 Appendix A2: Internal photo of EUT..............................................................................14 Appendix B1: Test Set-up ...............................................................................................16 FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 3 of 17 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997, IEEE C95.1-2005 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1Complies FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 4 of 17 1. General information 1.1 Identification of the EUT Product: Remote control for ceiling fan Model No.: 7RC04-CF100001 FCC ID.: R8Y7RC04-CF100001 Frequency Range: 2410MHz, 2420MHz, 2425MHz Channel Number: 3 channels Frequency of Each Channel: Low channel: 2410 MHz, Middle channel: 2420 MHz, High channel: 2425 MHz Type of Modulation: FSK Rated Power: DC 3V Power Cord: N/A Data Cable: N/A Sample Received: Oct. 22, 2013 Test Date(s): Nov. 07, 2013 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. 1.2 Additional information about the EUT The EUT is a Remote control for ceiling fan, and was defined as information technology equipment. For more detail features, please refer to User's manual as file name “Installation guide.pdf” FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 5 of 17 1.3 Antenna description The EUT uses a permanently connected antenna. Antenna Gain : 0 dBi Antenna Type : Print antenna Connector Type : Fixed FCC ID. : R8Y7RC04-CF100001 Report No.: TS13100089-EME Page 6 of 17 2. Test specifications 2.1 Introduction The EUT operates in the 2.4 GHz. Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance is determined by the smallest distance…
