1 User’s Manual Product Name ：Remote control for ceiling fan 7RC04-CF100002 FCC ID: R8Y7RC04-CF100002 The Remote control buttons are defined below： ● Six-speed buttons-No.1 is the highest speed,No.6 is the lowest speed ● Light button-Light turn on/turn off ● F/R button-forward/reverse from rotation ● OFF button-Power turn off ● Set button-learning setting 2 Operating remote control： Install two 1.5 volt batteries into the hand-held remote control. Press any speed button to start fan operation. Note： ：： ：If not using for long period of time, remove batteries to prevent damage of remote control. Store the remote control away from human body. Operating Frequency： 2410 MHz、2420 MHz、2425 MHz Warning ！ ！！ ！ Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

Lettery of Agency "I, an officer of PAN-WORLD CONTROL TECHNOLOGIES, INC. do hereby authorize Jimmy Yang, who is Chief. Engineer in Intertek Testing Services Taiwan Ltd. to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and Part 18 of the FCC Rules until further notice." I further certify that no party (as defined in §1.2002(b) of CFR 47, 1992) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.,853(a). By: Eric Yen Signature Printed Title: Specialist Date: 2014-03-26

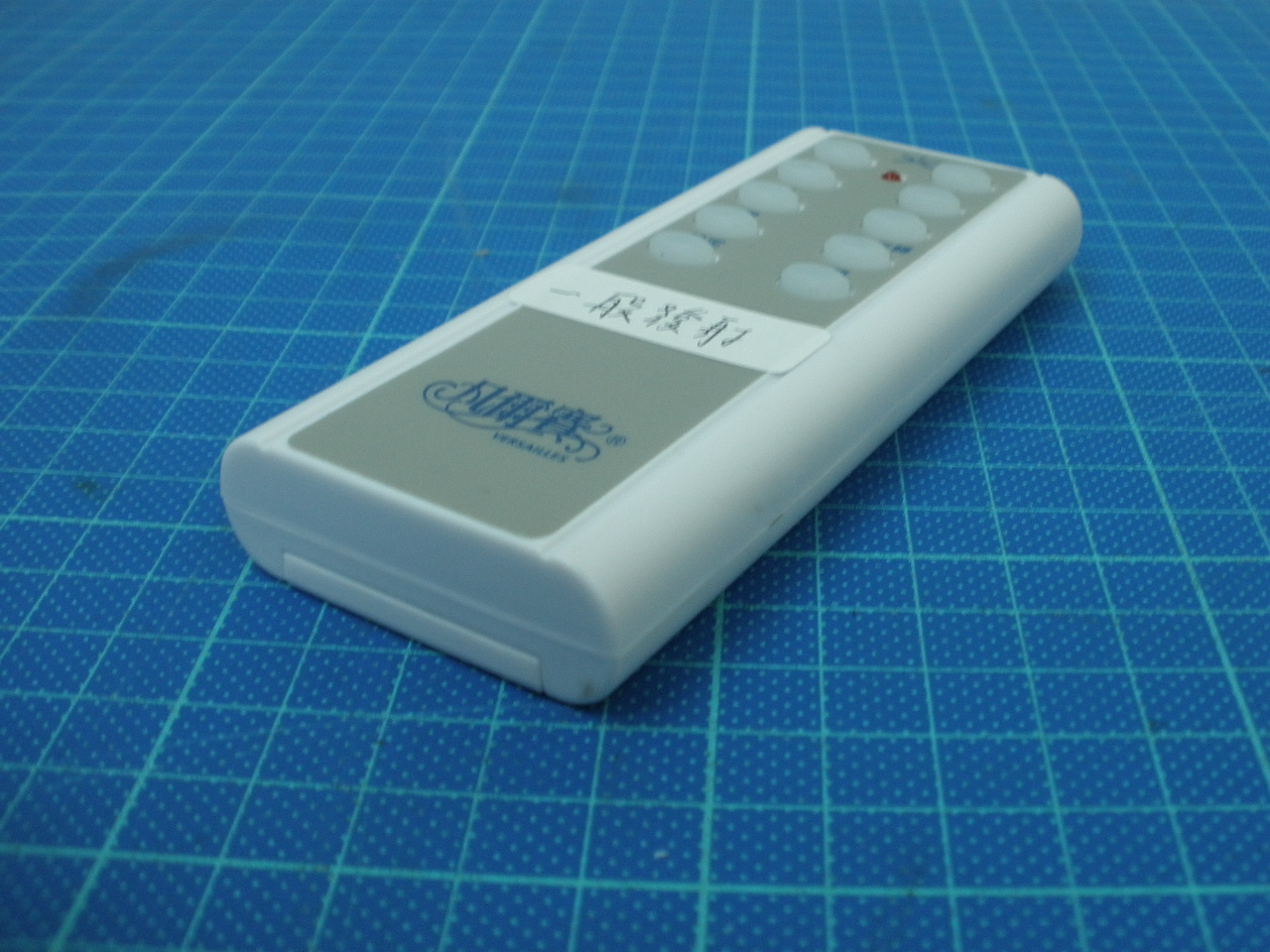

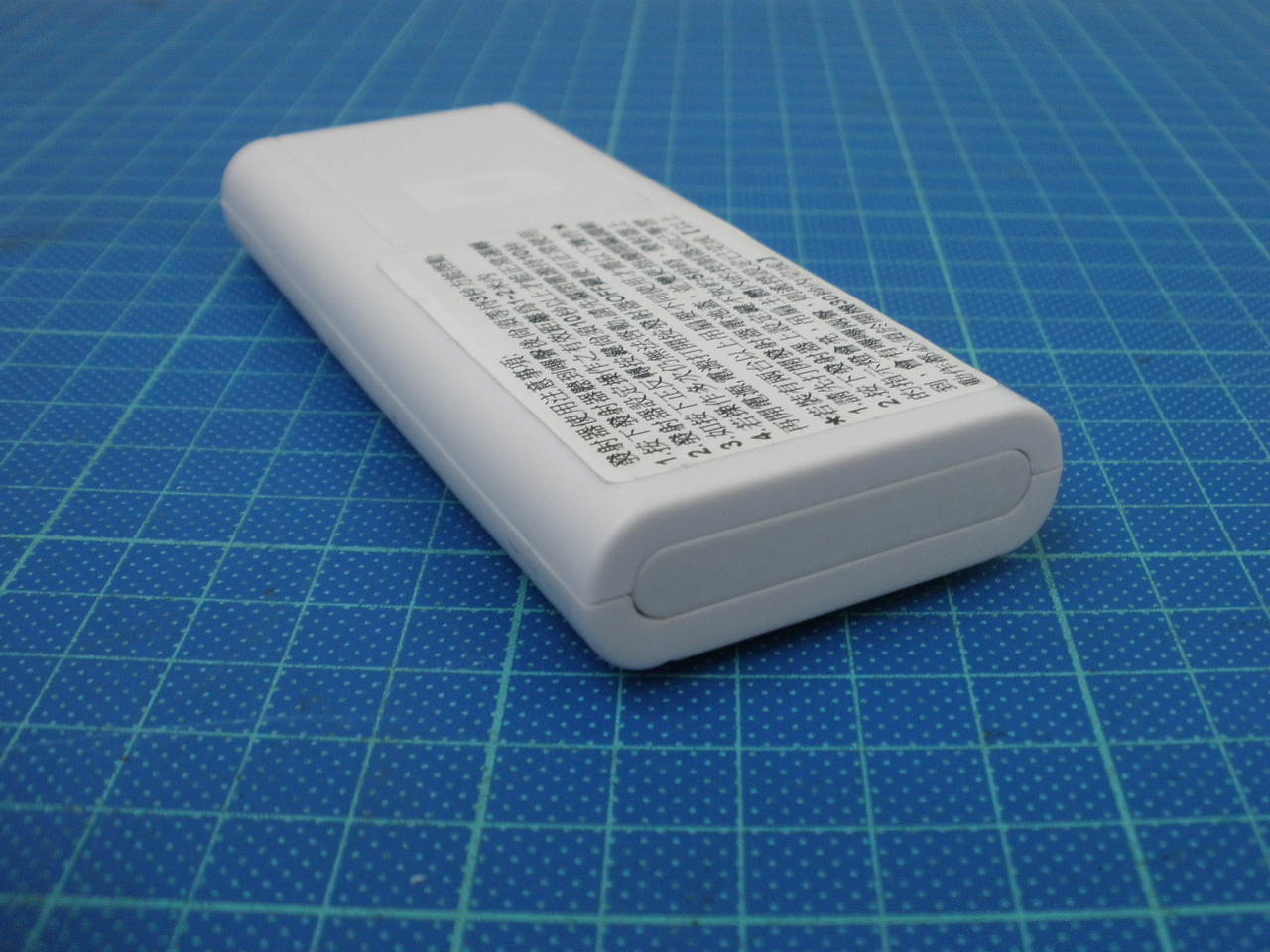

External photo of EUT External photo of EUT

5F, No.81, Sec.1, Sintai 5 th . Rd., Sijhih, New Taipei City 22101, Taiwan. TEL：+886-2-86983896 FAX：+886-2-86983897 Web：www.pwctek.com.tw Label Drawing Model number：7RC04-CF100002 FCC ID：R8Y7RC04-CF100002 Un-licenese band: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Model： ：： ： 7RC04-CF100002 FCCID： ：： ：R8Y7RC04-CF100002 Pan-World Control Technolodies, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Model： ：： ： 7RC04-CF100002 FCCID： ：： ：R8Y7RC04-CF100002 Pan-World Control Technolodies, Inc. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photo of EUT Internal photo of EUT Antenna

FCC ID. :R8Y7RC04-CF100002 Report No.: TW14040007 Page 1 of 22 EMC TEST REPORT Report No. : TW14040007 Model No. : 7RC04-CF100002 Issued Date : Apr. 25, 2014 Applicant: Pan-World Control Technologies, Inc. 5F, No. 81, Sec. 1, Sintai 5 th . RD., Sijhih, New Taipei City 22101, Taiwan Test Method/ Standard: 47 CFR FCC Part 15.249 & ANSI C63.4 2003 Test By: Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result(s) in this report only applies to the tested sample(s). The test report was prepared by: Candy Liu/ Assistant These measurements were taken by: Chester Cheng/ Engineer The test report was reviewed by: Name Jimmy Yang Title Senior Engineer FCC ID. :R8Y7RC04-CF100002 Report No.: TW14040007 Page 2 of 22 Table of Contents Summary of Tests ............................................................................................................. 3 1. General information...................................................................................................... 4 1.1 Identification of the EUT .................................................................................................... 4 1.2 Additional information about the EUT ............................................................................... 5 1.3 Antenna description ............................................................................................................ 5 2. Test specifications.........................................................................................................6 2.1 Test standard ....................................................................................................................... 6 2.2 Operation mode................................................................................................................... 6 2.3 Test equipment .................................................................................................................... 7 3. Radiated emission test FCC 15.249 (C) ....................................................................... 8 3.1 Operating environment .......................................................................................................8 3.2 Test setup & procedure ....................................................................................................... 8 3.3 Emission limit ..................................................................................................................... 9 3.3.1 Fundamental and harmonics emission limits ................................................................... 9 3.3.2 General radiated emission limits...................................................................................... 9 3.4 Radiated spurious emission test data ................................................................................ 10 3.4.1 Measurement results: frequencies equal to or less than 1 GHz ..................................... 10 3.4.2 Measurement results: frequency above 1GHz ............................................................... 11 3.4.3 Measurement results: Fundamental and harmonics emission ........................................ 14 4. Radiated emission on the band edge FCC 15.249(d) ................................................. 16 5. Conducted emission test FCC 15.207 ........................................................................ 19 6. 20dB Bandwidth test .................................................................................................. 20 6.1 Operating environment ..................................................................................................... 20 6.2 Test setup & procedure .....................................................................................................20 6.3 Measured data of modulated bandwidth test results ......................................................... 20 FCC ID. :R8Y7RC04-CF100002 Report No.: TW14040007 Page 3 of 22 Summary of Tests Test Reference Results Radiated Emission test 15.249(c), 15.209 Pass Emission on the Band Edge 15.249(d) Pass Conducted Emission of AC Power 15.207 N/A 20dB Bandwidth 15.215(c) Pass FCC ID. :R8Y7RC04-CF100002 Report No.: TW14040007 Page 4 of 22 1. General information 1.1 Identification of the EUT Product: Remote control for ceiling fan Model No.: 7RC04-CF100002 FCC ID.: R8Y7RC04-CF100002 Frequency Range: 2410MHz, 2420MHz, 2425MHz Channel Number: 3 channels Frequency of Each Channel: Low channel: 2410 MHz, Middle channel: 2420 MHz, High channel: 2425 MHz Type of Modulation: GFSK Rated Power: DC 3V Power Cord: N/A Data Cable: N/A Sample Received: Mar. 24, 2014 Test Date(s): Mar. 26, 2014~ Apr. 23, 2014 Note 1: This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Note 2: When determining the test conclusion, the Measurement Uncertainty of test has been considered. FCC ID. :R8Y7RC04-CF100002 Report No.: TW14040007 Page 5 of 2…
