R96REGOSATELLITE RADIO

-1- ReGo XTR-5 Satellite Radio Owners Manual (DRAFT rev.21) June 8, 2005 XACT Communication -2- This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the Manufacturer for compliance could void the user’s authority to operate the equipment. NOTE! Use only the appropriate accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty. COPYRIGHT / TRADEMARKS No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. is a registered trademark of SIRIUS ® Satellite Radio. To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). -3- SAFETY PRECAUTIONS Warning Follow these notifications to avoid any traffic accidents or personal injury: 1. Installation must be performed according to this user guide. 2. Do not install the device where it may obstruct your view through the windshield or of your vehicle’s indicator displays. 3. Do not install the device where it may hinder the function of safety devices such as an airbag. Doing so may prevent the airbag from functioning properly in the event of an accident. 4. The installation and usage suggestions contained in this user guide are subject to any restrictions or limitations that may be imposed by applicable law. The purchaser should check applicable law for any restrictions or limitations before installing and/or operating this device. 5. Failure to follow these safety instructions and warnings may result in a severe accident. Danger Be aware of the following precautions to prevent fire and avoid personal injury: 1. To avoid short circuits, never put or leave any metallic objects (coins, tools, etc.) inside the device. 2. If the device emits smoke or strange smells, turn the power off immediately and contact your dealer. 3. Do not drop the device or subject it to strong shocks. 4. If the LCD display becomes damaged or broken, do not touch the liquid crystal fluid. The fluid may be dangerous to your health or even fatal. If the liquid crystal fluid contacts your body or clothing, immediately wash it off with soap and water. Caution Do not operate this device in a way that might divert your attention from driving safely. As a driver, you are responsible for safely operating your vehicle in accordance with traffic safety laws at all times. -4- THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. TABLE OF CONTENTS (Needs to Be Updated) Introduction Page 3 Product Overview Page 3 Package Contents Page 3 Components Guide Page 4 ReGo SIRIUS ®Radio Page 4 Wireless Remote Control Page 5 Getting Started Page 6 Mounting Your ReGo Satellite Radio at Home Page 6 Mounting Your ReGo Satellite Radio in a Vehicle Page 6 Activating Your SIRIUS ® Subscription Page 7 Basic Operations Page 10 Tuning to Different Entertainment Categories Page 10 Searching for Music Page 11 Searching For Music By Channel Page 11 Searching For Music By Artist/Composer Page 11 Searching For Music By Song Page 12 Direct Tuning Page 12 Presetting Channels Page 13 -5- Searching for a Preset Channel/Artist/Song Page 14 S-Seek Function Memo (Memory Search) Button Page 15 Performing S-Seek Function Page 16 Menu Options Settings Page 18 Basic Setting Procedure Page 18 SIRIUS ® ID Page 18 Display Settings Page 19 FM Transmitter Page 20 Channel Add/Skip Page 21 Lock Options Page 21 Audio Level Page 23 Antenna Aiming Page 24 SIRIUS ® Satellite Map Page 24 Memory Options Page 25 Time Features Page 26 Clock Page 27 Format Page 27 Time Zone Page 27 1 Daylight Saving Time Page 28 Alarm Clock Page 28 Time Page 28 Program Alert Page 29 Program Day/Time Page 29 Channel Selection Page 30 Auto Shutdown Page 30 -6- Sleep Mode Page 31 Factory Default Page 31 Display Messages Page 33 Problem Solving Page 35 Warranty Page 36 2 INTRODUCTION Product Overview Thank you for purchasing this product! Your new plug and play XACT ReGo Satellite Radio is specifically designed to mount in a vehicle or indoor/outdoor location. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. Your Xact ReGo Satellite Radio Receiver must be used in conjunction with any one of the following Xact Kits, such as the Universal kit, Home kit or Boom Box as required by your specific needs. • Xact Vehicle Kit: Model Number XS___ • Xact Home Kit: Model Number XS___ • Xact Portable Boom Box: Model Number XS___ The easiest way to activate your Sate…

Text truncated - open the document above for the full version.

’

Report No. : F690501/LF-EMC001044 Page : 1 of 1 Label Location and Label z Label Location z Label

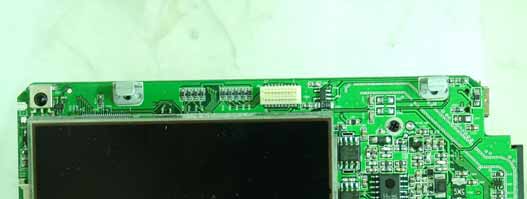

Report No. : F690501/LF-EMC001044 Page : 1 of 11 Photographs of Product z Inside View of Product Report No. : F690501/LF-EMC001044 Page : 2 of 11 z Front View of AC Adapter z Rear View of AC Adapter Report No. : F690501/LF-EMC001044 Page : 3 of 11 z Front View of Antenna z Rear View of Antenna Report No. : F690501/LF-EMC001044 Page : 4 of 11 z Front View of Battery z Rear View of Battery Report No. : F690501/LF-EMC001044 Page : 5 of 11 z Front View of Battery Board z Rear View of Battery Board Report No. : F690501/LF-EMC001044 Page : 6 of 11 z Front View of Cradle z Rear View of Cradle Report No. : F690501/LF-EMC001044 Page : 7 of 11 z Front View of DC Adapter z Rear View of DC Adapter Report No. : F690501/LF-EMC001044 Page : 8 of 11 z Front View of Keypad z Rear View of Keypad Report No. : F690501/LF-EMC001044 Page : 9 of 11 z Front View of Main Board z Rear View of Main Board Report No. : F690501/LF-EMC001044 Page : 10 of 11 z Front View of Remocon z Rear View of Remocon Report No. : F690501/LF-EMC001044 Page : 11 of 11 z Front View of Speaker z Rear View of Speaker

–

Report No. : F690501/LF-EMC001044 Page : 1 of 31 FCC COMPLIANCE REPORT Order No. : STE-05-0408/E Reference No. : F690501/LF-EMC001044 Applicant : CHUNGLAM DIGITAL CO., LTD. Address of Applicant : #453-4, Yongdu-Ri, Gongdo-Eup, Ansuug-si, Kyunggi-do, Korea Manufacturer : CHUNGLAM DIGITAL CO., LTD. Address of Manufacturer : #453-4, Yongdu-Ri, Gongdo-Eup, Ansuug-si, Kyunggi-do, Korea Equipment Under Test (EUT) : Name : Satellite radio Model No. : XACT REGO Serial No. : None Standards : FCC Part 15, Subpart B, Class B/ Subpart C ANSI C63.4:2003 Date of Receipt : 13 April 2005 Date of Test : 24 May 2005 to 25 May 2005 Date of Issue : 30 May 2005 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Carl Lee EMC DIV. Manager SGS Testing Korea Co., Ltd. Report No. : F690501/LF-EMC001044 Page : 2 of 31 Contents 1. General Information 1.1 Manufacturer Information 3 1.2 General Description of EUT 3 1.3 Details of EUT 3 1.4 Description of Support Units 3 1.5 Cable List 3 1.6 System Configuration 4 1.7 Test Set-Up Configuration 4 1.8 Measurement Procedure 5 1.9 Standards Applicable for Testing 5 1.10 Summary of Results 5 2. Radio Disturbance 2.1 Test Results 6 2.2 Frequency Range 6 2.3 Limit Of Conducted And Radiated Emission 6 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart B 6 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart B 6 2.3.3 Limit Of Radiated Emission Of FCC Part 15, Subpart C --------- 7 2.4 Test of Conducted Emission 7 2.4.1 Test Instruments 7 2.4.2 Test Site 7 2.4.3 Operating Environment 7 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 2.5.4 Measurement Data 10 3.Photographs of Test 11 4.Photographs of Product 14 Appendix A,B : Conducted Emission Test Data(Including Attachments) .. 26 Appendix C,D : Conducted Emission Test Data(Including Attachments) .. 28 Appendix E,F : 200KHz Band Plotting for Lowest Operation Frequency ...30 Report No. : F690501/LF-EMC001044 Page : 3 of 31 1. General Information 1.1 Applicant & Manufacturer Information Applicant : CHUNGLAM DIGITAL CO., LTD. Address of Applicant : #453-4, Yongdu-Ri, Gongdo-Eup, Ansuug-si, Kyunggi-do, Korea Manufacturer : CHUNGLAM DIGITAL CO., LTD. Address of Manufacturer : #453-4, Yongdu-Ri, Gongdo-Eup, Ansuug-si, Kyunggi-do, Korea 1.2 General Description of EUT Product Name : Satellite radio Model No. : XACT REGO Serial No : None 1.3 Details of EUT Tested Power Supply : DC 12V Port : DC IN, Headset, USB, Satellite Description of Operating : MP3 Play, Satellite Receiving, FM Transmission, USB Storage 1.4 Description of Support Units 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT USB Personal Computer USB 1.8 Shielded DC IN AC Adapter DC OUT 1.0 Unshielded Adapter DC OUT EUT DC IN 1.0 Unshielded AC IN LISN - - - PC RGB LCD Monitor - 1.8 Shielded USB EUT - 1.8 Shielded PS/2 Mouse PS/2 Mouse - 1.8 Shielded Keyboard Keyboard - 1.7 Shielded Product Model No. Serial No. Manufacturer PS/2 MOUSE OK-520 N/A TECH Keyboard SEM-DT35 05068271 SAMSUNG LCD Monitor TGL 170PX FFSJ330232176 Trigem Computer Personal Computer DreamSys/J4TU N/A TriGerm Computer Inc. Report No. : F690501/LF-EMC001044 Page : 4 of 31 1.6 System Configuration Description Model Serial No. Manufacturer Mainboard PDM04012-01G N/A N/A Battery Board PSS04017-01A N/A N/A Keypad N/A N/A N/A Remocon XACT N/A SIRIUS AC Adapter TSA11-050200WK T12W0411000101 59 TECH-POWER ELECTRIC (SHEN ZHEN) CO., LTD. Antenna MAANAT0089 T089E043616214 SIRIUS Battery N/A N/A N/A Cradle N/A N/A N/A DC Adapter N/A N/A N/A Speaker N/A N/A N/A 1.7 Test Set-Up Configuration EUT Keyboard PS/2 MOUSE PC A LCD Monitor A Report No. : F690501/LF-EMC001044 Page : 5 of 31 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 10meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart B, Class B/ Subpart C Test Standards Status FCC Part 15, Subpart B, Class B/ Subpart C Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model XACT REGO complies with of the FCC Part 15, Subpart B, Subpart C, CLASS B. The highest emission level observed was at 0.23MHz ted emission with a margin of 13.8dB for Q/P value on MP3 mode and at 0.92 MHz with a margin of 19.1dB for A/V value on USB mode. The highest radiated emission level observed was at 699.38 MHz with a margin of 4.18 dB on USB mode. Report No. : F690501/LF-EMC001044 Page : 6 of 31 Radio Disturbance 2.1 Test Results Results Conducted Emission PASS Radiated Emission PASS 2.2 …

Text truncated - open the document above for the full version.

Report No. : F690501/LF-EMC001044 Page : 1 of 3 Photographs of Test z Front View of Conducted Emission z Rear View of Conducted Emission Report No. : F690501/LF-EMC001044 Page : 2 of 3 z Front View of Radiated Emission z Rear View of Radiated Emission Report No. : F690501/LF-EMC001044 Page : 3 of 3 z Front View of Radiated Emission (FM Radio) z Rear View of Radiated Emission (FM Radio)
