R96SR-04SATELLITE RADIO

-- 1 -/28 Blaupunkt SIRIUS America SR-04 Operating Instructions Copyright ⓒ 2003 Chunglam Digital CO.,LTD. All rights reserved. June 18, 2004 The 2 nd R&D Team of Chunglam Digital ’ - - - - -- 2 -/28 CONTENTS 1. REVISION HISTORY................................................................................- 4 - 2. Front Panel and Remote Control Unit........................................................- 5 - 2.1. Front Panel.........................................................................................................- 5 - 2.2. Remote Control Unit.............................................................................................- 6 - 3. Getting Started.....................................................................................- 8 - 3.1. Common Operation..............................................................................................- 8 - 3.1.1. Power On ............................................................................................................................ - 8 - 3.1.2. Power OFF .......................................................................................................................... - 9 - 3.1.3. Tuning status Display Information .......................................................................................- 9 - 3.1.4. Tuning Status Message..................................................................................................... - 10 - 3.1.5. Update (GSV, PSV) Message ........................................................................................... - 10 - 3.1.6. Change Band .................................................................................................................... - 11 - 3.1.7. Direct Number Input .......................................................................................................... - 11 - 3.1.8. Favorite Channel............................................................................................................... - 13 - 3.1.8.1. Preset.................................................................................................................................. - 13 - 3.1.8.2. Recall.................................................................................................................................. - 13 - 3.1.8.3. Favorite List....................................................................................................................... - 13 - 3.1.9. PDT(Program Descriptive Text or Program Display Text) Information..............................- 14 - 3.1.9.1. Preset.................................................................................................................................. - 14 - 3.1.9.2. Recall.................................................................................................................................. - 15 - 3.1.9.3. Horizontal Scroll Function................................................................................................ - 16 - 3.1.10. List................................................................................................................................... - 17 - 3.1.10.1. Channel List..................................................................................................................... - 17 - 3.1.10.2. Category List................................................................................................................... - 17 - 3.1.10.3. PDT List (Artist or Song Title)....................................................................................... - 18 - 3.2. Main Setup Menu...............................................................................................- 18 - 3.2.1. Main Menu ........................................................................................................................ - 18 - 3.2.2. Channel Mode ................................................................................................................... - 19 - 3.2.3. Category Mode.................................................................................................................. - 19 - 3.2.4. Setup Password .......................................................................................................... ...... - 20 - 3.2.5. FM Transmitter .................................................................................................................. - 21 - 3.2.6. Time Features ................................................................................................................... - 21 - 3.2.6.1. Clock................................................................................................................................... - 21 - 3.2.6.1.1. Format..................................................................................................................... - 21 - -- 3 -/28 3.2.6.1.2. Time Zone............................................................................................................... - 22 - 3.2.6.1.3. DST Observance................................................................................................... - 22 - 3.2.6.2. Auto Shutdown.................................................................................................................. - 23 - 3.2.6.3. Sleep Mode........................................................................................................................ - 23 - 3.2.7. System .............................................................................................................................. - 24 - 3.2.7.1. Audio Level........................................................................................................................ - 24 - 3.2.7.2. Display Option................................................................................................................... - 24 - 3.2.7.2.1. Dimming Control.............................................................................…

Text truncated - open the document above for the full version.

’

Report No. : F690501/LF-EMC000494 Exterior Photographs z Front View z Rear View

Report No. : F690501/LF-EMC000494 Label Location z Label

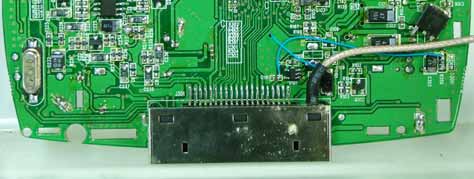

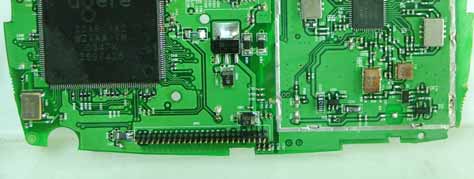

Report No. : F690501/LF-EMC000494 Interior Photographs z Top View of Tuner Board z Bottom View of Tuner Board Report No. : F690501/LF-EMC000494 z Top View of LCD Board z Bottom View of LCD Board Report No. : F690501/LF-EMC000494 z Top View of Remote Controller z Bottom View of Remote Controller Report No. : F690501/LF-EMC000494 z Inside View

Operational Description This Product receives 2322.293MHz-2330.207MHz RF Signal from a Satellite. This signal is converted as PCM Data through ADC and DBC. This PCM Data is converted as Audio Signal through D/A Converter. This Audio Signal passes through AMP and outputs from Line out and FM Transmitter. FM Transmitter receives Audio Signal and modulate this signal as FM and transmits 88.MHz – 108MHz frequency band.

Report No. : F690501/LF-EMC000494 Page : 1 of 15 FCC COMPLIANCE REPORT Order No. : SKE-04-0505/E Reference No. : F690501/LF-EMC000494 Applicant : CHUNGLAM DIGITAL CO., LTD. Address of Applicant : #453-4, Yongdu-ri, Kongdo-eup, Kyunggi-do, Korea Equipment Under Test (EUT) : Name : Satellite Receiver Model No. : America SR - 04 FCC ID : Standards : FCC Part 2 & Part 15, Subpart C, Subpart B ANSI C63.4:2001 Date of Receipt : 11 June 2004 Date of Test : 16 June 2004 Date of Issue : 18 June 2004 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Kew-Seung, Lim EMC DIV. Manager SGS KES CO., LTD. EMC Laboratory Report No. : F690501/LF-EMC000494 Page : 2 of 15 Contents 1. General Information 1.1 Manufacturer Information 4 1.2 General Description of EUT 4 1.3 Details of EUT 4 1.4 Description of Support Units 4 1.5 Cable List 5 1.6 System Configuration 5 1.7 Test Set-Up Configuration 5 1.8 Measurement Procedure 6 1.9 Standards Applicable for Testing 6 1.10 Summary of Results 6 2. Radio Disturbance 2.1 Test Results 7 2.2 Frequency Range 7 2.3 Limit Of Conducted And Radiated Emission 7 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart C 7 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart C 7 2.4 Test of Conducted Emission 8 2.4.1 Test Instruments 8 2.4.2 Test Site 8 2.4.3 Operating Environment 8 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 3.Photographs of Test 11 4.Measured Bandwith 13 Report No. : F690501/LF-EMC000494 Page : 3 of 15 1. General Information 1.1 Applicant & Manufacturer Information Applicant : CHUNGLAM DIGITAL CO., LTD. Address : #453-4, Yongdu-ri, Kongdo-eup, Kyunggi-do, Korea Manufacturer : CHUNGLAM DIGITAL CO., LTD. Address : #453-4, Yongdu-ri, Kongdo-eup, Kyunggi-do, Korea 1.2 General Description of EUT Name : Satellite Receiver Model No. : America SR-04 FCC ID : 1.3 Details of EUT Operating Frequency : Receiving Mode : 2.3GHz Transmitting Mode : 88MHz ~ 108MHz Tested Power Supply : DC 6V Port : DC 6V, ANT, AUDIO Description of Operating : Receive satellite Radio Broadcast and transmit FM Frequencies to a car radio receiver. Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer DC Power Supply M5P60-10A 864420 TET Electronics Corp. Speaker N/A N/A N/A Report No. : F690501/LF-EMC000494 Page : 4 of 15 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT DC 6V DC Power SupplyDC Out 2.0 Unshielded ANT Antenna - 5.2 Unshielded Audio Speaker - 2.0 Unshielded 1.6 System Configuration Description Model Serial No. Manufacturer Tuner Board N/A N/A N/A LCD Board N/A N/A N/A Remote Controller RS-SIR1 N/A N/A 1.7 Test Set-Up Configuration Speaker Antenna DC Power Supply EUT Remote Controller Report No. : F690501/LF-EMC000494 Page : 5 of 15 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2001 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2001 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3 meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart C, Subpart B Test Standards Status FCC Part 15.109 & 15.209 & 15.239 Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model America SR-04 complies with Part 15.109, Part 15.209 and 15.239 of FCC Technical Rules. The highest emission level observed was at 88.1MHz radiated emission with a margin of 1.71dB. Emissions from the intentional radiator is confined within a band 200 kHz wide centered on the operating frequency. The 200kHz band lies wholly within the frequency range of 88-108 MHz The field strength of any emissions within the permitted 200kHz band is not Exceed 250μV/m(48dBuV) at 3 meters with average detector and 68 dBμV with peak detector. Report No. : F690501/LF-EMC000494 Page : 6 of 15 Radio Disturbance 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS Not applied because it is powered from an automobile 12VDC System. 2.2 Frequency Range Conducted Emission : 450 kHz - 30 MHz Radiated Emission : 0kHz – 1000 MHz 2.3 Limits Of Radiated Emission 2.3.1 Limit Of Radiated Emission Of FCC Part 15.109 Class B Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.5) 200(46) Above 960 300(49.0) 500(54) 2.3.2 Limit Of Radiated Emission Of FCC Part 15.209 Field Strength* Measurement Distance FREQUENCY (MHz) Microvolts/Meter Meters 0.009 – 0.490 2400/F(kHz) 300 0.490 – 1.705 2400/F(kHz) 30 1.705 – 30.0 30 30 30 – 88 100** 3 88 – 216 150** 3 216 - 960 200** 3 Above 960 500 3 Note : (1) The l…

Text truncated - open the document above for the full version.

Report No. : F690501/LF-EMC000494 Test Set-Up Photos z Front View of Radiated Emission (Transmitting Mode) z Rear View of Radiated Emission Report No. : F690501/LF-EMC000494 z Front View of Radiated Emission (Receiving Mode) z Rear View of Radiated Emission
