R9P86B947000500RC Car

FCC ID: R9P86B947000500 Ophoto1 Ophoto2 FCC ID: R9P86B947000500 Ophoto3 Ophoto4 FCC ID: R9P86B947000500 Ophoto5

FCC ID: R9P86B947000500 Iphoto1 Iphoto2 FCC ID: R9P86B947000500 Iphoto3 Iphoto4 FCC ID: R9P86B947000500 Iphoto5 Iphoto6

FCC ID: R9P86B947000500 Technical Description : The brief circuit description is listed as follows : - Y1 and associated circuit act as 27.145 MHz Oscillator. - U1 and associated circuit act as Encoder, Modulator and RF Amplifier. - Q1, Z1 and associated circuit act as Voltage Regulator. - SW2 to SW6 act as Control Keys. - C10, C11 and T1 and associated circuit act as Low-Pass Filter. Antenna Used : An extendable antenna has been used.

• The test results reported in this report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • The evaluation data of the report will be kept for 3 years from the date of issuance. FCC ID : R9P86B947000500 Meccano (Hong Kong) Limited Application For Certification (FCC ID: R9P86B947000500) Transmitter Sample Description : Tuning Radio Control Vehicle (B886/B945-RC27 Light & Sound Plastic Chassis + Wheels, B906-RC27 TX with Light & Sound) Model : 868950 Additional Model : 868950E, 868951, 868951E We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [4-5-2005] 0606970 TL/at May 15, 2006 INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 ii MEASUREMENT/TECHNICAL REPORT Meccano (Hong Kong) Limited - MODEL: 868950 FCC ID: R9P86B947000500 May 15, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [4-5- 2005 Edition] provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services 2/F., Garment Center, 576, Castle Peak Road, HONG KONG Phone: 852-2173-8502 Fax: 852-2742-9149 INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 iii Table of Contents 1.0 General Description................................................................................................ 2 1.1 Product Description ............................................................................................. 2 1.2 Related Submittal(s) Grants................................................................................. 2 1.3 Test Methodology................................................................................................ 3 1.4 Test Facility ......................................................................................................... 3 2.0 System Test Configuration..................................................................................... 5 2.1 Justification.......................................................................................................... 5 2.2 EUT Exercising Software ..................................................................................... 5 2.3 Special Accessories............................................................................................. 5 2.4 Equipment Modification ....................................................................................... 6 2.5 Support Equipment List and Description .............................................................. 6 3.0 Emission Results .................................................................................................... 8 3.1 Field Strength Calculation .................................................................................... 9 3.1 Field Strength Calculation (cont’d) ..................................................................... 10 3.2 Radiated Emission Configuration Photograph .................................................... 11 3.3 Radiated Emission Data .................................................................................... 12 4.0 Equipment Photographs ....................................................................................... 15 5.0 Product Labelling .................................................................................................. 17 6.0 Technical Specifications....................................................................................... 19 7.0 Instruction Manual ................................................................................................ 21 8.0 Miscellaneous Information................................................................................... 23 8.1 Measured Bandwidth......................................................................................... 24 8.2 Discussion of Pulse Desensitization................................................................... 25 8.3 Calculation of Average Factor ............................................................................ 26 8.4 Emission Test Procedures ................................................................................ 27 8.4 Emission Test Procedures (Cont’d).................................................................... 28 INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Average Factor af.pdf INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: R9P86B947000500 2 1.0 General …

Text truncated - open the document above for the full version.

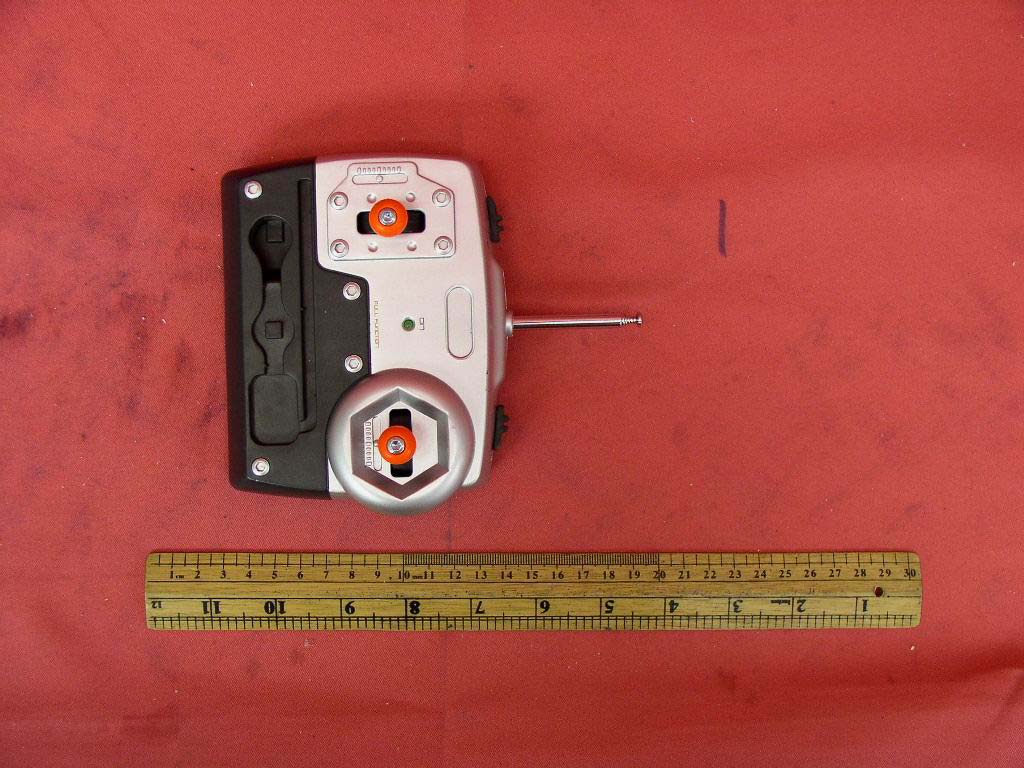

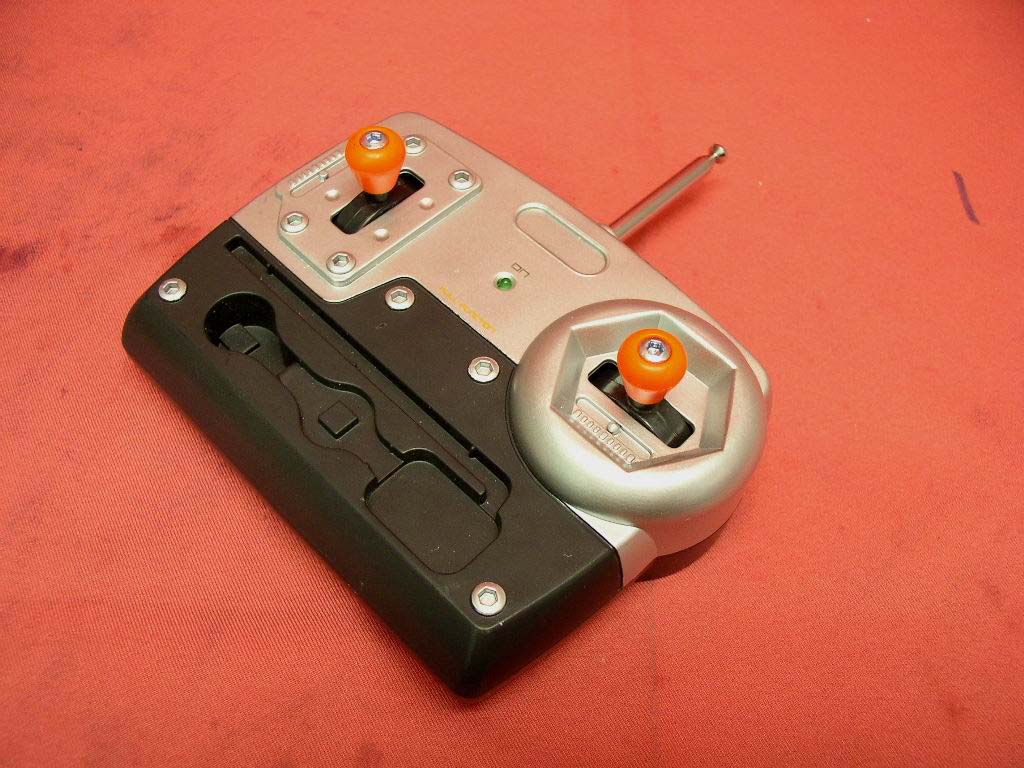

INTERTEK TESTING SERVICES Front View Back View
