R9P88C613000500Turbo RC Pro

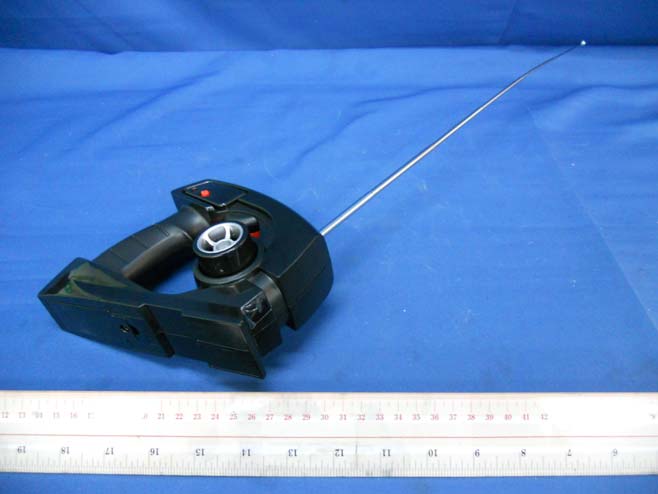

INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model : 888350 (External)

INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal) INTERTEK TESTING SERVICE Report No.: HK11060100-1 FCC ID: R9P88C613000500 Equipment Photographs Model: 888350 (Internal)

FCC ID: R9P88C613000500 Model: 888350 Technical Description of Transmitter The transmitter operating at 27.145 MHz governed by a crystal, can control the motion of a receiver when the user activates the control keys. The circuit of the transmitter comprises of, 1. SW2-SW5, U1 (SPR205A) and associated network act as the Encoder, Modulator and RF amplifer. 2. Crystal Y1 (27.145MHz) and associated network act as 27.145MHz RF Oscillator 3. L6, T1, C10, C11 and associated network act as the antenna matching network. 4. Z1, Q1 and associated network act as the Power Supply Volatge Regulator. The transmitter uses an external, integral and non-detachable antenna.

COMPANY: TITLE: Model:Date: 27.145 MHZ TX MACCANO (HONG KONG) LIMITED 888350/ 888350E/ 830350EC 2011.5.28 Turbo RC Pro TX CIRCUIT DIAGRAM For 27MHZ R11 10Ω R1 330Ω R10 2.2MΩ C5 47PF Z1 4.3V A1 Anttenna C11 110PF C10 68PF C9 47PF C2 0.1uF SW4 LEFT C7 0.1uF L3 1uH SW2 FORWARD R4 200Ω D2 5MM Red LED BATTL1 DC 9.0V Y1 27.145MHZ SW3 BACKWARD L2 1uH C4 22PF C6 0.1uF SW5 RIGHT 1 VDD 2 D10 3 OSCI 4 OSCO 5 RFO 6 VSS 7 NC 8 NC 9 DOUT 10 D11 11 D12 12 ROSC 13 D13 14 D14 U1 SPR205A R3 200KΩ Q1 8050D R2 75Ω C3 0.1uF R7 1KΩ R8 1KΩ R9 1KΩ R5 1KΩ C8 47PF SW1 1P2T C1 0.1uF L6 1uH T1 18uH C12 0.1uF C13 0.1uF C19 100uF

INTERTEK TESTING SERVICES Report No. : HK11060100-1 Sample No. : 1/2 Bandedge Plot – Pursuant to FCC Part 15 Section 15. 227 Requirement

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11060100-1 Meccano (Hong Kong) Limited Application For Certification (Original Grant) (FCC ID: R9P88C613000500) Transmitter Prepared and Checked by: Approved by: Signed On File Wong Cheuk Ho, Herbert Engineer Chan Chi Hung, Terry Assistant Supervisor Date: June 20, 2011 INTERTEK TESTING SERVICES Report No.: HK11060100-1 FCC ID: R9P88C613000500 i GENERAL INFORMATION MECCANO (HONG KONG) LIMITED MODEL: 888350 FCC ID: R9P88C613000500 Grantee: Meccano (Hong Kong) Limited Grantee Address: Room 1503-4, Chinachem Golden Plaza, 77 Mody Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Garry Ng Tel: 852-31523725 Fax: 852-31523969 e-mail: [email protected] Manufacturer: N/A Manufacturer Address: N/A Brand Name: Meccano Model: 888350 Additional Model: 880350E, 830350, 830000, 265200, 884202 Type of EUT: Transmitter Description of EUT: Turbo RC Pro Serial Number: N/A FCC ID: R9P88C613000500 Date of Sample Submitted: June 01, 2011 Date of Test: June 13, 2011 Report No.: HK11060100-1 Report Date: June 20, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11060100-1 FCC ID: R9P88C613000500 ii SUMMARY OF TEST RESULT MECCANO (HONG KONG) LIMITED MODEL: 888350 FCC ID: R9P88C613000500 TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 N/A Hopping Channel Carrier Frequencies Separation (for 2.4GHz Digital) 15.247(e) / RSS-210 A8.1 N/A 20dB Bandwidth of the Hopping Channel 15.247(a) / RSS-210 A8.1 N/A Number of Hopping Frequencies 15.247(e) / RSS-210 A8.1 N/A Average Time of Occupancy of Hopping Frequency 15.247(e) / RSS-210 A8.1 N/A Anteann Conducted Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 N/A RF Exposure Compliance 15.247(i) / RSS-Gen 5.5 N/A Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 7.2.2 N/A Transmitter Field Strength (for 27MHz) 15.227 / RSS-310 3.8 Pass Transmitter Field Strength (for 40MHz) 15.229 / RSS-210 A2.7 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for Remote Control) 15.231(a) / RSS-210 A1.1.1 N/A Transmitter Field Strength, Bandwidth and Timing Requirement (for 433MHz) 15.231(e) / RSS-210 A1.1.5 N/A Transmitter Field Strength and Bandwidth Requirement(for 88-108MHz) 15.239 / RSS-210 A2.8 N/A Transmitter Field Strength and Bandwidth Requirement(for 902- 928MHz or 2.4GHz) 15.249 / RSS-210 A2.9 N/A Transmitter Field Strength and Bandwidth Requirement (for 49MHz) 15.235 / RSS-310 3.9 N/A Receiver / Digital Device Radiated Eissions 15.109 / ICES-003 N/A Digital Device Conducted Emissions 15.107 / ICES-003 N/A Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. INTERTEK TESTING SERVICES Report No.: HK11060100-1 FCC ID: R9P88C613000500 iii Table of Contents 1.0 General Description....................................................................................... 1 1.1 Product Description .......................................................................................... 1 1.2 Related Submittal(s) Grants.............................................................................. 1 1.3 Test Methodology............................................................................................. 1 1.4 Test Facility ...................................................................................................... 1 2.0 System Test Configuration ............................................................................ 2 2.1 Justification ...................................................................................................... 2 2.2 EUT Exercising Software.................................................................................. 2 2.3 Special Accessories ......................................................................................... 2 2.4 Equipment Modification .................................................................................... 2 2.5 Measurement Uncertainty................................................................................. 2 2.6 Support Equipment List and Description ........................................................... 3 3.0 Emission Results ............................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11060100-1 FCC ID: R9P88C613000500 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model: 888350 INTERTEK TESTING SERVICE Report No: HK11060100-1 FCC ID: R9P88C613000500 Configuration Photographs Worst-Case Radiated Emissions (Rear View) Model: 888350
