RA383222TYPE PAD

FCC Statement: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Caution! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment. MODIFICATION: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device.

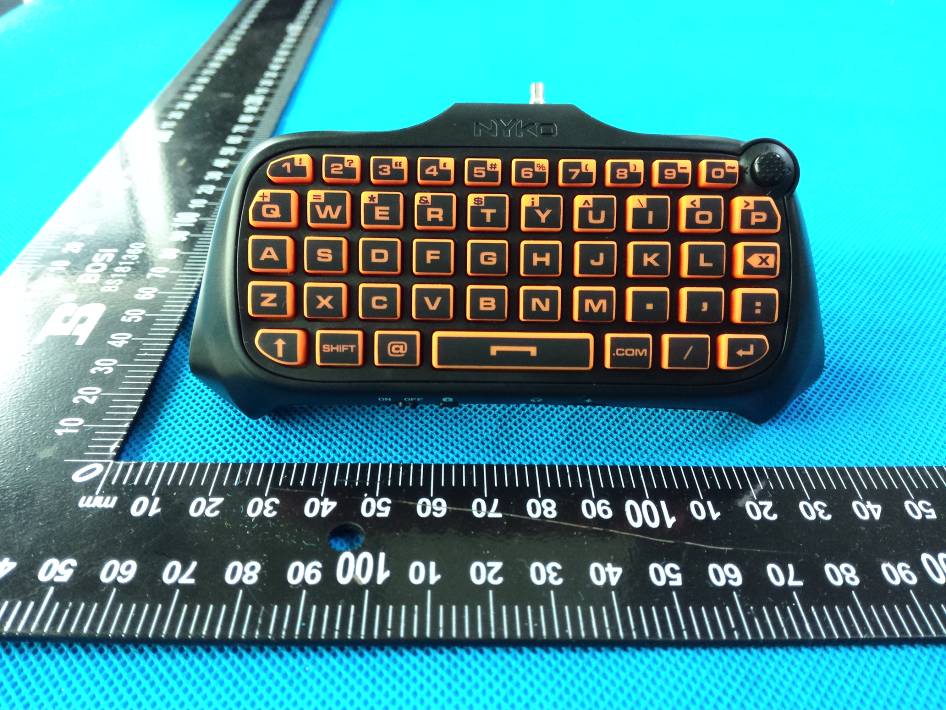

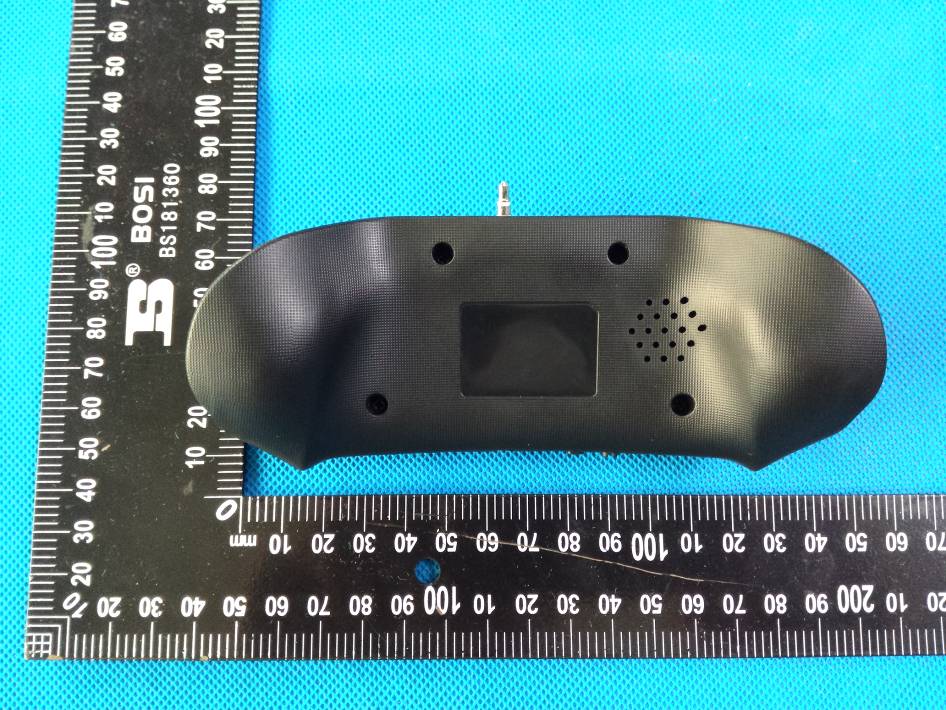

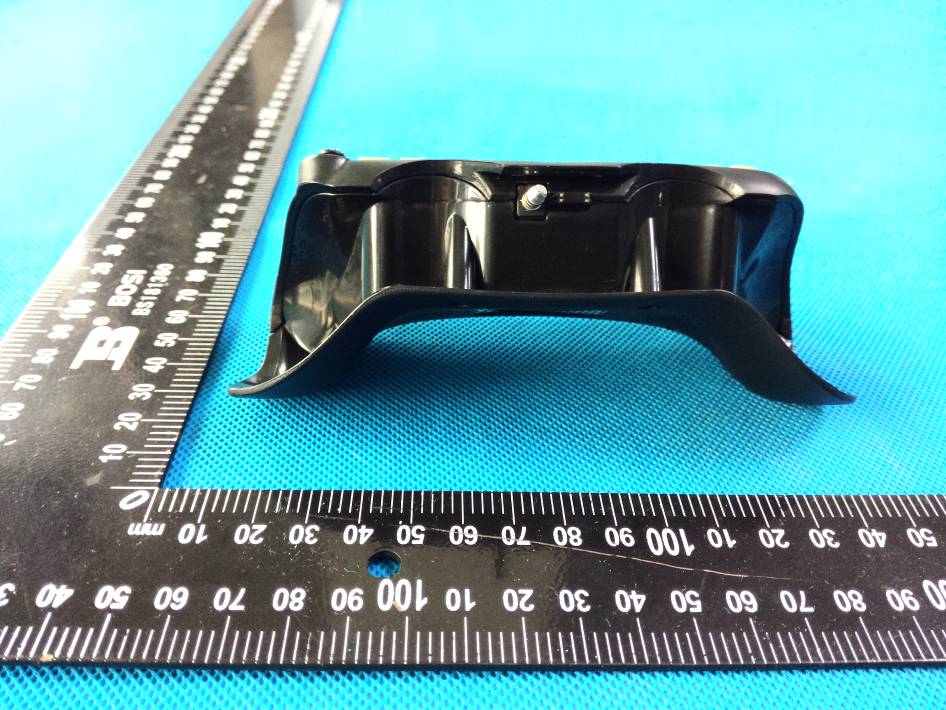

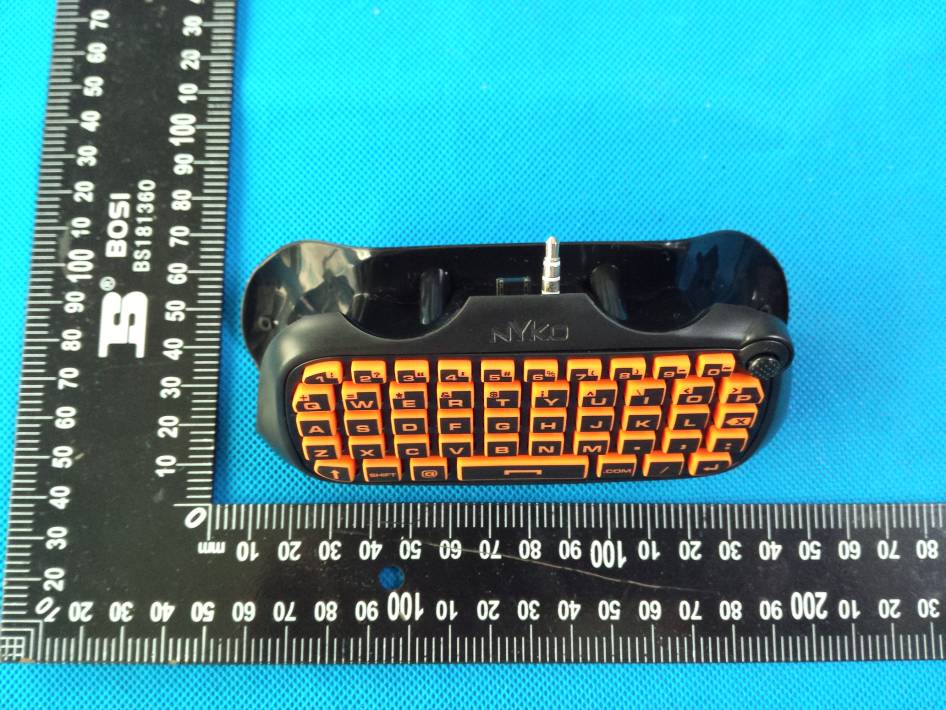

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

5.0*3.0cm Nyko Technologies, Inc. Model: TYPE PAD FCC ID: RA383222 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that my cause undesired operation.

Photo 9 Photo 10 Photo 11 Photo 12 BT ANT Photo 13 Photo 14

FCC ID: RA383222 RF EXPOSURE EVALUATION METHOD KDB 447498 D01 V05 R02, clause 4.3.1 SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. FCC ID: RA383222 Maximum measured transmitter power. frequency Maximum Peak Conducted Output Power Max Antenna Gain GHz dBm dBi 2.402 1.68 0 Remark: The best case gain of the antenna is 0dBi. 1.0dBi logarithmic terms convert to numeric result is nearly 1.0 1.68dbm=1.47mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1.47/5*√2.402=0.46≤3.0 Threshold at which no SAR required is 10mw and ≤ 3.0 for 1-g SAR, Separation distance is 5mm. Conclusion: No SAR is required.

FCC Part 15C Measurement And Test Report For Nyko Technologies, Inc. 1990 Westwood Blvd, Penthouse Suite, Los Angeles, CA 90025, United States FCC ID: RA383222 May 30, 2015 This Report Concerns: Original Report Equipment Type: TYPE PAD Report Number: MTI150522001RF Test Engineer: Bill Chen Reviewed By: Jason Zheng Approved & Authorized By: Hebe Lee Test Date: May 22, 2015 – May 30, 2015 Prepared By: Shenzhen Microtest Technology Co.,Ltd 6F, Zhongbao Building, Gushu, Bao’ an District, Shenzhen, P.R.China Tel: +86-755-8885 0135 Fax: +86-755-8885 0136 Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior written consent of Shenzhen Microtest Technology Co.,Ltd. TEST RESULT CERTIFICATION Applicant’s name ................. : NYKO Technologies Inc. Address .................................. : 1990 Westwood Blvd, Penthouse Suite, Los Angeles, CA 90025, United States Manufacture's Name ............ : Shenzhen Yuyuanxin Electronic Technology Co, Ltd. Address .................................. : 3F, NO.11, Tianluohu Industry, GuiHua Industrial, GuanGuang Road, GuanLan Town, Baoan District, Shenzhen, GuangDong, China. Product description Product name ......................... : TYPE PAD Trade Name ........................... : N/A Model and/or type reference : 83222 Serial Model ........................... : N/A Standards ............................... : FCC Part15.247 Test procedure ..............................ANSI C63.4-2009 Contents 1. General Information ........................................................................................... 5 1.1. General description of EUT ..............................................................................5 1.2. Description of test modes .....................................................................................6 1.3. Test Facility ..........................................................................................................6 2. Summary of test ................................................................................................... 7 2.1. Summary of test result .........................................................................................7 2.2. Assistant equipment used for test .........................................................................7 2.3. Block Diagram .....................................................................................................8 2.4. Test mode .............................................................................................................8 2.5. Test Conditions .....................................................................................................9 2.6. Measurement Uncertainty (95% confidence levels, k=2) ....................................9 2.7. Test Equipment ...................................................................................................10 3. Maximum Peak Output power .................................................................... 11 3.1. Limit ................................................................................................................... 11 3.2. Test Procedure .................................................................................................... 11 3.3. Test Setup ........................................................................................................... 11 3.4. Test Result .......................................................................................................... 11 4. Bandwidth ........................................................................................................... 12 4.1. Limit ...................................................................................................................12 4.2. Test Procedure ....................................................................................................12 4.3. Test Result ..........................................................................................................12 5. Carrier Frequency Separation .................................................................... 18 5.1. Limit ...................................................................................................................18 5.2. Test Procedure ....................................................................................................18 5.3. Test Result ..........................................................................................................18 6. Number Of Hopping Channel ...................................................................... 21 6.1. Limit ...................................................................................................................21 6.2. Test Procedure ....................................................................................................21 6.3. Test Result ..........................................................................................................21 7. Dwell Time .......................................................................................................... 24 7.1. Test limit ............................................................................................................24 7.2. Test Procedure ....................................................................................................24 7.3. Test Results ........................................................................................................24 8. Radiated emissions .......................................................................................... 30 8.1. Limit ...................................................................................................................30 8.2. Block Diagram of Test setup ..............................................................................31 8.3. Test Procedure ....................................................................................................32 …

Text truncated - open the document above for the full version.

1. EUT TEST PHOTO Radiated Measurement Photos Conducted Measurement Photo
