RA8-BA530Bluetooth Audio Transmitter

Product Specification and User Manual BA530 www.sunitec.com.twᅮ 3亥,ޡ 4亥 ϟ 1. Product Specifications: Bluetooth compliance: Specification V2.1+EDR Support A2DP profile Output Power: Class 2 device (up to 10M) Operating frequency: 2.402GHz~2.480GHz One bluetooth device paired. Support Simple pairing Support Faststream Audio Codec: SBCǃFastStream Audio input sensitivity: 0.9V ouput 0dB, Power Type: DC 5V_200mA. Connectors: 3.5mm Jack for stereo audio input Size: 44x69x15mm 2. Product Appearance: BA530 3.Button and LED Functionality: Item Functions Description “Power” key Power, Pair and Connect Passkey Code 0000 LED Blue 4. Operating Functionality Product Specification and User Manual BA530 www.sunitec.com.twᅮ 4亥,ޡ 4亥 ϟ Power ON/OFF  To power on, plug the USB cable into the power connector at the device, and connect the charger to a wall outlet. the audio Transmitter will power on and try to connect to a last paired audio device and blink the led by 0.5Hz (On: 2000ms; OFF 2000ms).  Remove the power connector, the audio Transmitter will go to power off and turn off the led. Remark: 1. Once Power on the Audio Transmitter will search one time the last connected devices and connection automatically. 2. If the audio Transmitter don’t save any audio device ,it will go to pairing mode instead of the connecting mode Pair the Audio Transmitter Before user can use the audio Transmitter with a compatible audio device that supports Bluetooth wireless technology, you need to pair it.  To pair the audio Transmitter with a headset or Speaker, do as follows: 1.At Power on mode, press and hold the “Power” key 5 scond, the audio Transmitter will goto the pairing mode and blink led by 2Hz(ON: 500ms ;OFF :500ms) . 2. Setup the Headset OR Speaker for pairing as instructed in the user guide. 3.The audio transmitter is paired automatically with the headset or speaker. 4.Under pairing mode, if pairing procedures are not completed within 10 minutes, the audio transmitter will go to waiting mode. Only a Bluetooth device can be paired & added into the memory.  After 1 devices are paired and stored in t he memory, any next newly paired device added in will delete the Before no use device from the memory. Connect the audio Transmitter to headset or Speaker: Ensure that the audio Transmitter is switched off before making any connections to it.  To play music on your audio system through a paired headset or speaker, plug the audio cables to the audio inputs on the audio Transmitterand to the audio outputs on your audio system. 5. LED States: Blue LED Comment Power OFF OFF Power ON Go to pairimg mode or Conecting mode, the led blink same as it. Pairing mode ON:500ms ;OFF :500ms Connecting ON:2000ms ;OFF :2000ms Connected ON Disconnected ON:2000ms ;OFF :2000ms Compliance statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

RA8-BA530 Schematics and BOM

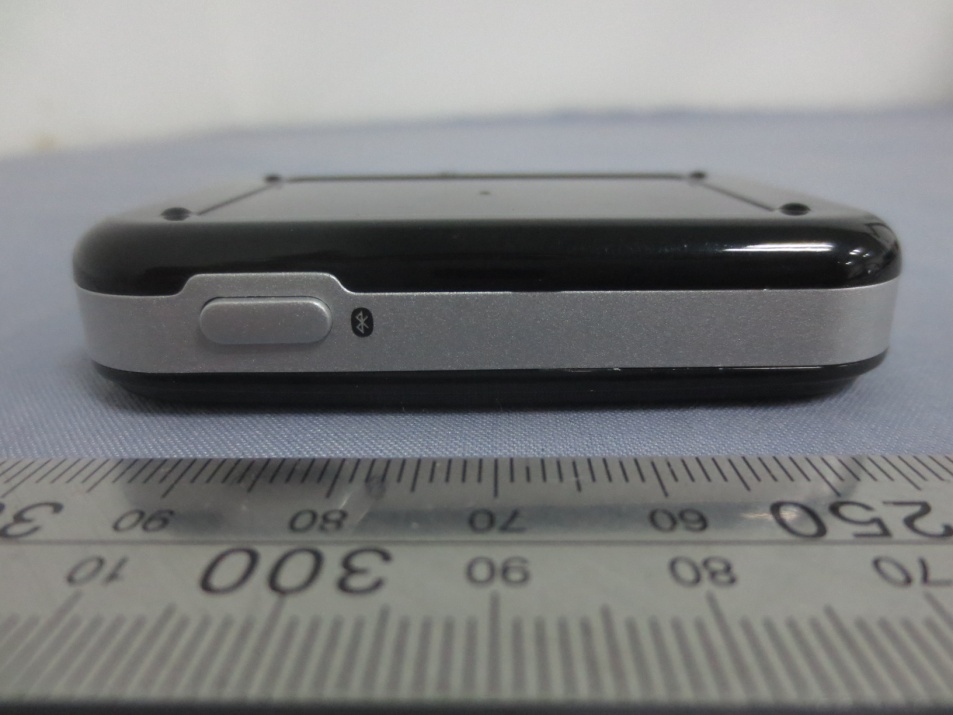

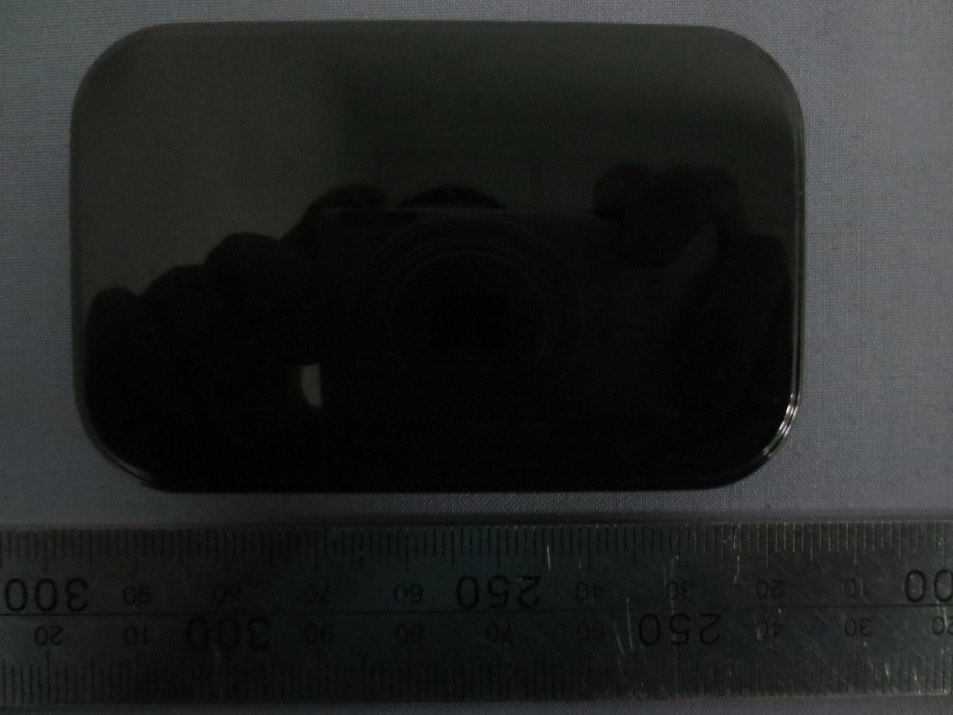

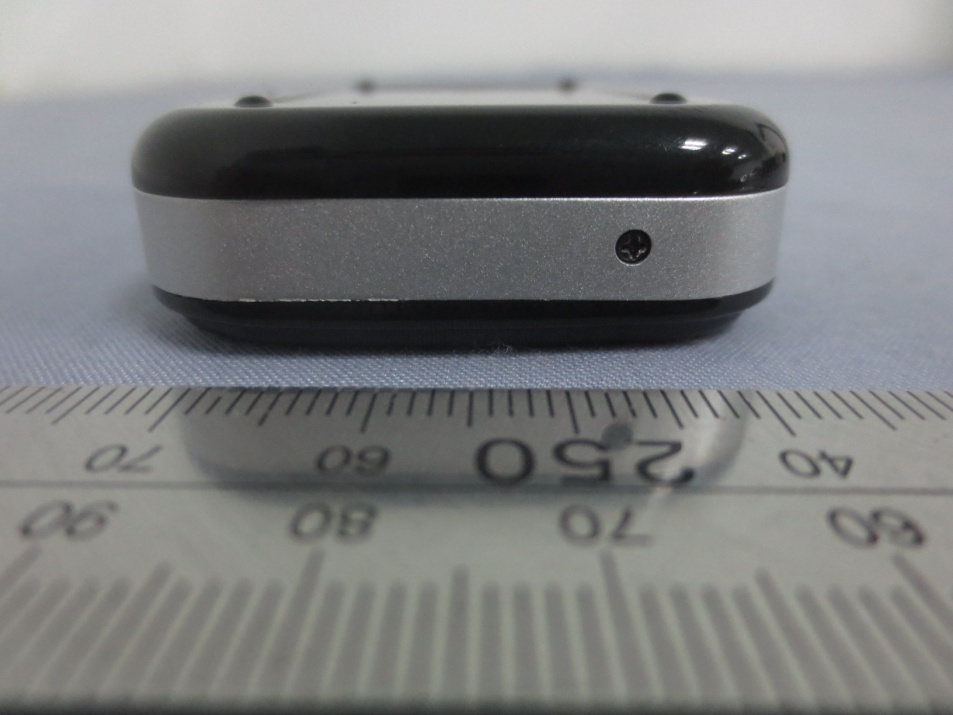

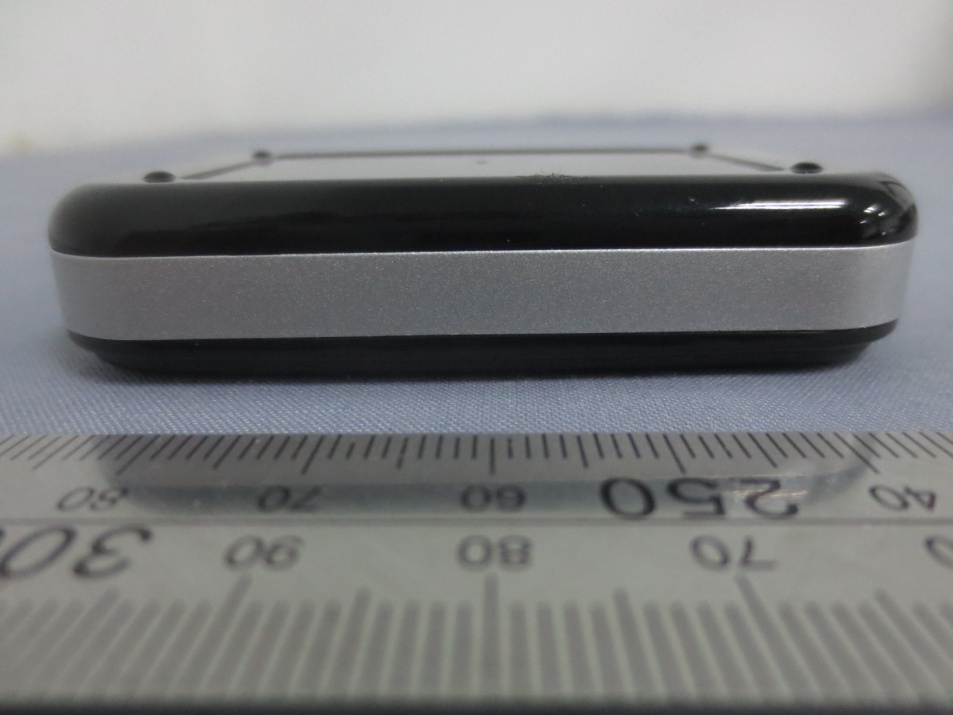

Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 78 of 82 8 EUT Constructional Details Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 79 of 82 Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 80 of 82

Label and label location Size：46.9mm X 30.4mm Label location

Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 81 of 82 Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 82 of 82 ------End of report------

SAR Evaluation According to 447498 D01 General RF Exposure Guidance v05. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [ f(GHz) ] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: [2442MHz / 2.21dBm (1.66 mW) output power] (1.66 mW /5mm) •[√2.442(GHz)]=0.519 <3.0 for 1‐g SAR Then SAR evaluation is not required

Shenzhen Zhongjian Nanfang Testing Co., Ltd. Report No: CCIS14040025201 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the CCIS product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page FCC REPORT Applicant: Sunitec Enterprise Co., Ltd. Address of Applicant: 10F.-1, No.200, Jingping Rd., Jhonghe City, Taipei County, Taiwan,23581 Equipment Under Test (EUT) Product Name: Bluetooth Audio Transmitter Model No.: BA530 FCC ID: RA8-BA530 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: 24 Apr., 2014 Date of Test: 25 Apr., to 09 May., 2014 Date of report issued: 12 May., 2014 Test Result: PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 82 2 Version Version No. Date Description 0012 May., 2014 Original Prepared by: Date: 12 May., 2014 Report Clerk Reviewed by: Date: 12 May., 2014 Project Engineer Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 82 3 Contents Page 1 COVER PAGE ................................................................................................................................................... 1 2 VERSION ........................................................................................................................................................... 2 3 CONTENTS ....................................................................................................................................................... 3 4 TEST SUMMARY .............................................................................................................................................. 4 5 GENERAL INFORMATION .............................................................................................................................. 5 5.1 CLIENT INFORMATION ...................................................................................................................................................... 5 5.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................................... 5 5.3 TEST MODE .................................................................................................................................................................... 7 5.4 LABORATORY FACILITY ...................................................................................................................................................... 7 5.5 LABORATORY LOCATION ................................................................................................................................................... 7 5.6 TEST INSTRUMENTS LIST .................................................................................................................................................... 8 6 TEST RESULTS AND MEASUREMENT DATA ............................................................................................. 9 6.1 ANTENNA REQUIREMENT .................................................................................................................................................. 9 6.2 CONDUCTED EMISSIONS ................................................................................................................................................. 10 6.3 CONDUCTED OUTPUT POWER .......................................................................................................................................... 13 6.4 20DB OCCUPY BANDWIDTH ............................................................................................................................................ 17 6.5 CARRIER FREQUENCIES SEPARATION .................................................................................................................................. 21 6.6 HOPPING CHANNEL NUMBER .......................................................................................................................................... 26 6.7 DWELL TIME ................................................................................................................................................................. 28 6.8 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................................................. 32 6.9 BAND EDGE .................................................................................................................................................................. 33 6.9…

Text truncated - open the document above for the full version.

Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 76 of 82 7 Test Setup Photo Radiated Spurious Emission Report No: CCIS14040025201 Shenzhen Zhongjian Nanfang Testing Co., Ltd. Project No.: CCIS140400252RF No.B-C, 1/F., Building 2, Laodong No.2 Industrial Park, Xixiang Road, Bao’an District, Shenzhen, Guangdong, China Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 77 of 82 Conducted Emission
