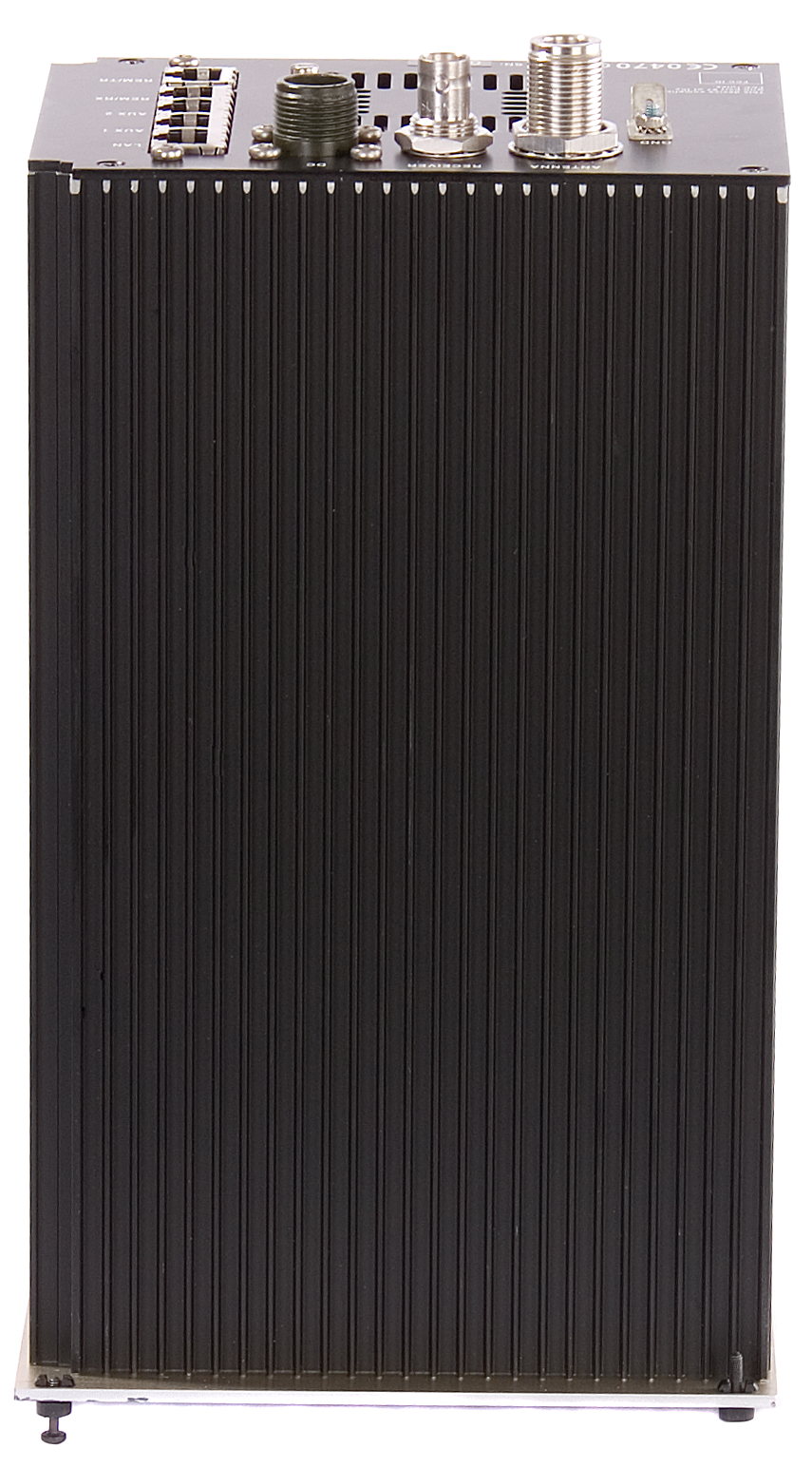

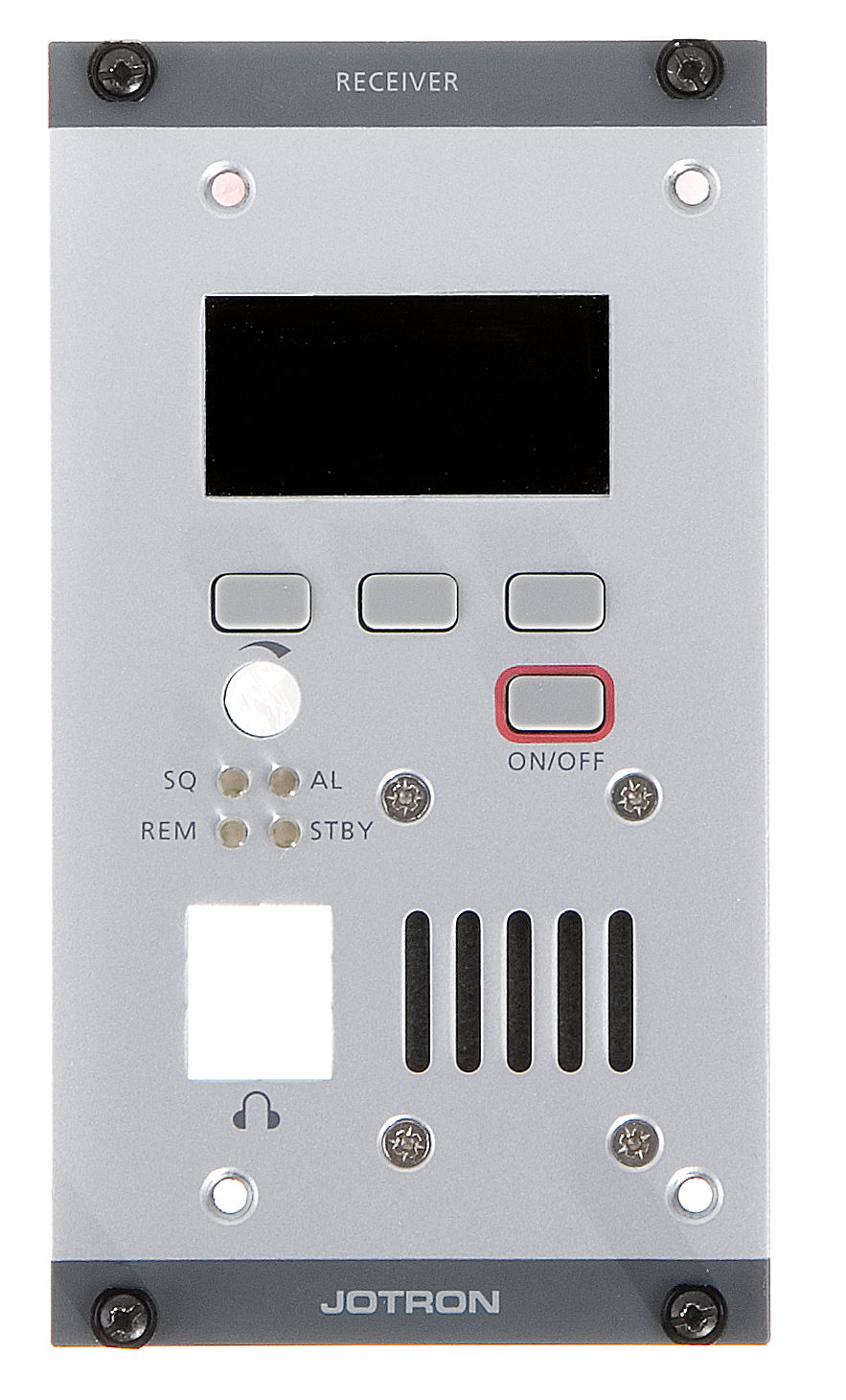

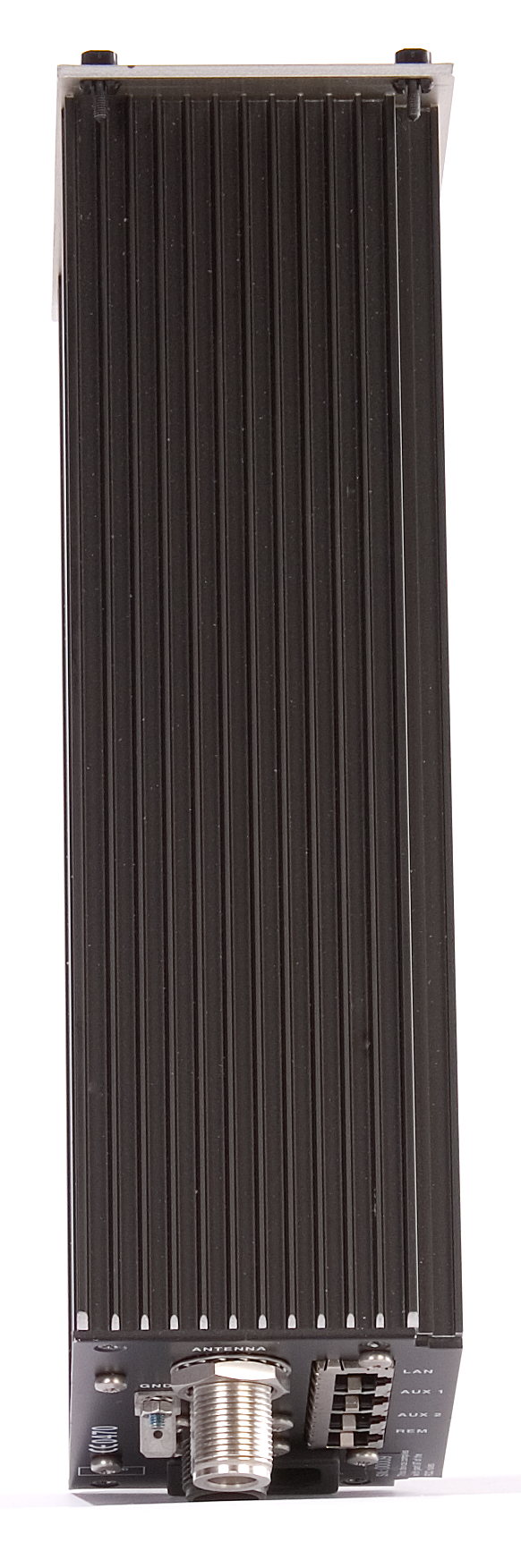

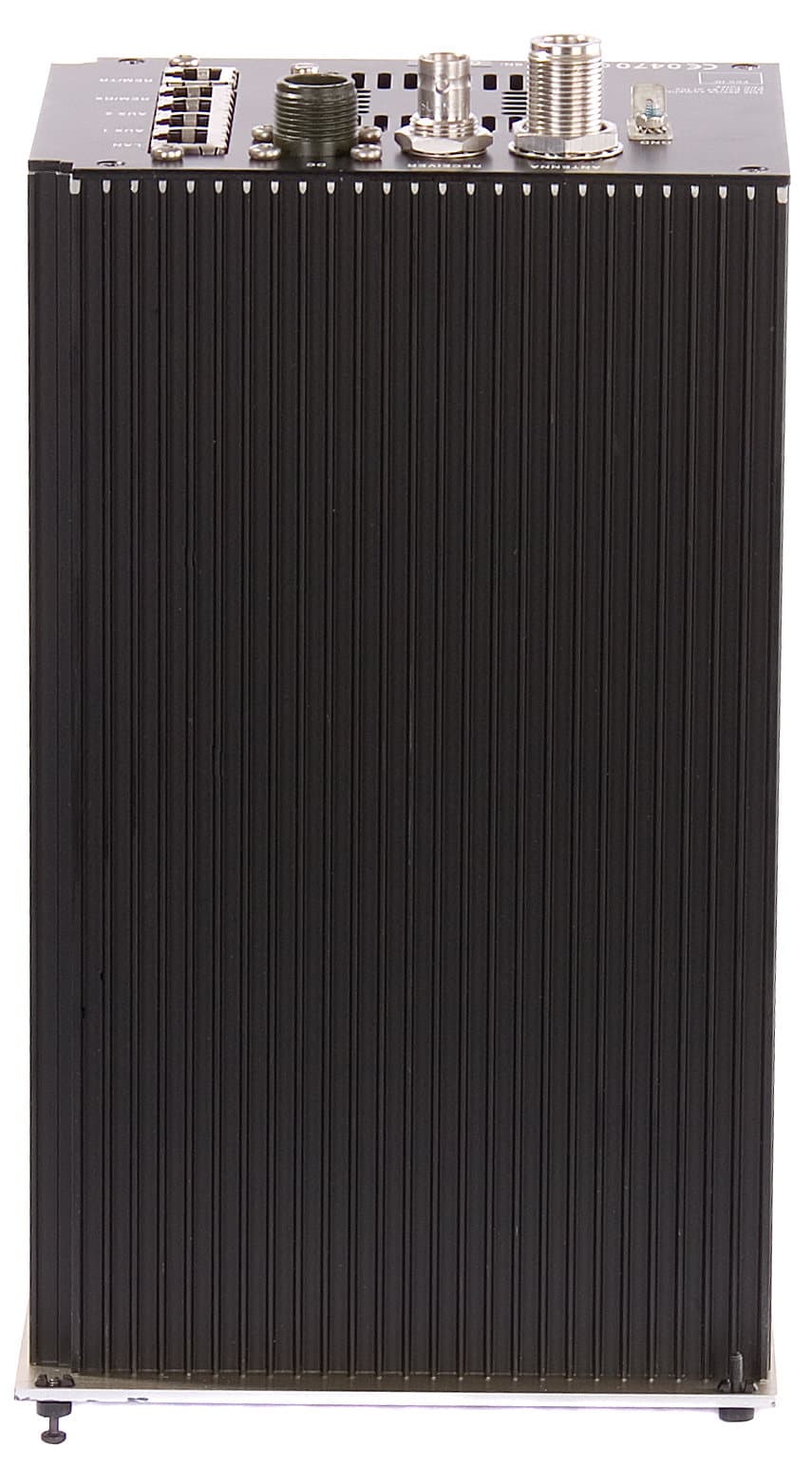

RA9RA-7203CVHF Receiver 156.300-162.000MHz for coast stations and offshore installations requiring high quality FM voice and digital selective calling (DSC)

Jotron AS| TR7750C: Operators Manual  Introduction Page ii P/N: 84748 (G) Approvals The equipment is designed to meet the essential requirements of European Directives 1999/5/EC, 89/336EEC as amended by Directive 93/68/EEC and 72/23/EEC Standards The following standards are applied: EMC: EN301843-1 and EN301843-2 FCC part 80 Health and Safety: EN60950 Radio specifications: EN301929-1 and EN301929-2 For an updated list of approvals and statements of conformity, these are available on: www.jotron.com Jotron AS| TR7750C: Operators Manual  Introduction Page iii P/N: 84748 (G) List of abbreviations and definitions BITE Built In Test Equipment bps Bits Per Second. DSP Digital Signal Processor ETSI European Telecommunication Standardisation Institute ICAO International Civil Aviation Organization IEC International Electro-technical Commission. LAN Local Area Network PA Power Amplifier PSU Power Supply Unit. Separate unit to power the equipment. PTT Push To Talk RF Radio Frequency S/N SIGNAL- TO-NOISE RATIO SNMP Simple Network Management Protocol, a network protocol used to control the radio equipment. This equipment is defined as an AGENT in a SNMP system. VSWR Voltage Standing Wave Ratio Jotron AS| TR7750C: Operators Manual  Introduction Page iv P/N: 84748 (G) Amendment Record NO INIT DATE CHAPTERS VERSION REASONFOR CHANGE 1 ES 13.08.08 All 84748_O perators _TR7000 C_A New product 2 OH 11.11.08 3.2.5, 3.2.6, 3.2.7, 3.4.4, 3.4.5, 3.4.6 B Information regarding Frequency stability, Hardware Key and protection of I/O lines added. 3 ES 29.06.09 3-5 C Information regarding type of LAN cable 4 OH 10.11.09 3.4.5, 1.1 D Pin 8 Aux 2 is N/C, Output power configuration range in radio model table. 5 BA 05.04.13 3.2.7, 3.2.8, 3.4.6, 4.6.1 E Fixed RS485 polarity error. 6 BR 28.04.14 4.4 F FCC and IC approval 7 BA 04.06.14 Page vi G Added warning statement, modification warning statement and digital device statement. 8 9 10 11 12 13 14 15 16 17 18 19 20 The information in this book has been carefully checked and is believed to be accurate. However, no responsibility is assumed for inaccuracies. Jotron AS reserves the right to make changes without further notice to any products or modules described herein to improve reliability, function or design. Jotron AS does not assume any liability arising out of the application or use of the described product. Jotron AS| TR7750C: Operators Manual  Introduction Page v P/N: 84748 (G) SAFETY INSTRUCTIONS CAUTION! This equipment contains CMOS integrated circuits. Observe handling precautions to avoid static discharges which may damage these devices. WARNING! Some RF semiconductor devices used in this equipment may contain Beryllium Oxide. If inhaled, dust from this oxide can be toxic. No danger will arise from normal handling but no attempt should be made to tamper with these devices. On no account must these transistors be destroyed or discarded with industrial or domestic waste, but should be returned to the manufacturers for subsequent disposal. Jotron AS| TR7750C: Operators Manual  Introduction Page vi P/N: 84748 (G) WARNING STATEMENT This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. MODIFICATION WARNING STATEMENT Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. DIGITAL DEVICE STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and transceiver. --Connect the equipment into an outlet on a circuit different from that to which the transceiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Jotron AS| TR7750C: Operators Manual  Introduction Page viii P/N: 84748 (G) TABLE OF CONTENTS 1 INTRODUCTION ....................................................................................................................... 1-1 1.1 MODELS COVERED BY THIS MANUAL ..................................................................................... 1-1 1.2 LAYOUT OF THE TRANSCEIVER .............................................................................................. 1-1 1.3 APPLICATIONS ........................................................................................................................ 1-2 2 TECHNICAL SPECIFICATIONS ............................................................................................ 2-1 2.1 GENERAL SPECIFICATION, TRANSCEIVER UNITS, TR-7750C ................................................ 2-1 2.2 TRANSMITTER UNITS, TA-7650C .......................................................................................... 2-1 2.3 RECEIVER UNIT, RA-7203C ................................................................................................... 2-2 2.4 POWER SUPPLY UNIT, PSU-7002 ........................................................................................... 2-2 3 FUNCTIONAL DESCRIPTION .........................................................…

Text truncated - open the document above for the full version.

Colour base: RAL 9004 Signal Black Satin Colour text: White Rev.Description/ChangeDate AFirst version.10.09.13 Sign. AD BIC-ID removed.10.05.14AD 1 : 1 B Scale: 1 / 1 REAR PLATE 10.09.13 RA-7203 VDL 7000 SERIES Surface Treatment: Draft: Approved: Date: Replaces draft: Repl. by draft: Material: herein without permission from Jotron AS This drawing is a property of Jotron AS and must not be duplicated or used for manufacture of the parts disclosed Rev: Sheet: G-87787 AD 115/230VAC 50-60Hz 100/50mA RA-7203C GND LAN 28 VDC 300 mA 28 VDC 300 mA SN: FCC ID: RA9RA-7203C AUX 1 AUX 2 REM 0470 This device complies with part15 subpart B of the FCC rules.

Item Bill Of Material Version Date 15.03.2010 82410 CN06055 Jotron AS RX Power ModuleProduction ItemName / DescriptionMakes no. / Additional nameSub pos. 82411 VDL001 VDL Power Board R0934 82479 002 Nutpiece Rev.B 82467 003 Rear Plate VDL RA-7203 Rev.E 98245 M3x6 DIN 7985MRX-SR-A4-POZ004 SCREW M3x6 PANH. 98240 AMP 0-181949-2 005 Ground tag 97607 DIN 7985 M3x10,ID-P1-P2 A4006 SCREW M3x10 96530 M3 DIN934 A4007 Nut M3 96699 M3 DIN 6798A A4008 Washer ,Star, 3mm 85371 CNT E2088 009 Coaxcable MCX - N chassis 300mm 96599 ELFA 44-529-75 010 Connector 24V DC chassis 92374 ELFA 43-302-70 011 Connector AC male chassis 81803 016 Cable set for RA 7202 96569 Helavia 201-052, SORT 017 Rubber Sleeve Revision date RevisionRequested by Reference 02.09.2009CN06055BAPos. 009 Item Bill Of Material Version Date 20.05.2010 84557 CN06017 Jotron AS Modulator Module TA-7650CProduction ItemName / DescriptionMakes no. / Additional nameSub pos. 84556 001 Modulator Board TA-7650C 82621 MODULATOR MODUL002 Presspan VDL Vers.B 82569 003 SCREEN BOX 71x85mm Rev.A 82612 004 SCREEN BOX VCO Rev.A 99419 005 Top cover for box for PCB 71x85mm Rev.A 82300 3M 5490 HD 5060-11008 TEFLONTAPE 12,5MM 82969 Rubber sealing white 2x8mm009 Rubber Sealing 2x8mm KISO 141 85354 010 SCREEN BOX Trackingfilter 85531 TAPE 3M 9473PC 19mm011 TAPE 3M DOUBLESIDED 84023 CNT MCX1215005 (MCX-KHD4) PL004 MCX Conn PCB Jack 84023 CNT MCX1215005 (MCX-KHD4) PL005 MCX Conn PCB Jack Revision date RevisionRequested by Reference 08.06.2009CN06017BAPos.010 Item Bill Of Material Version Page 1 of 9 Date 20.05.2010 84556 CN06094 Jotron AS Modulator Board TA-7650CProduction ItemName / DescriptionMakes no. / Additional nameSub pos. 98300 MURATA GRM188R71H102KA01D C001 Chip cap 1n 50V - 0603 99080 NIPPON CHEMI-CON MV16VC47M F55 C002 47uF/16V El.lytt. Nippon, SMD F55 99796 MURATA GRM21BR71C105KA01L C003 Chip cap 1uF 16v X7R 0805 98300 MURATA GRM188R71H102KA01D C004 Chip cap 1n 50V - 0603 98300 MURATA GRM188R71H102KA01D C005 Chip cap 1n 50V - 0603 98284 MURATA GRM1885C1H101JA01D C006 Chip cap 100p 50V - 0603 98300 MURATA GRM188R71H102KA01D C007 Chip cap 1n 50V - 0603 98322 MURATA GRM188R71E104KA01D C008 Chip cap 100n 25V - 0603 98276 MURATA GRM1885C1H150JA01D C009 Chip cap 15p 50V - 0603 98300 MURATA GRM188R71H102KA01D C010 Chip cap 1n 50V - 0603 98300 MURATA GRM188R71H102KA01D C011 Chip cap 1n 50V - 0603 98310 MURATA GRM188R71H103KA01D C012 Chip cap 10n 50V - 0603 (X7R) 81585 MURATA GQM1885C2A2R7CB01D C013 Chip cap 2p7 - Hi Q 0603 98274 MURATA GRM1885C1H100JA01D C014 Chip cap 10p 50V - 0603 98274 MURATA GRM1885C1H100JA01D C015 Chip cap 10p 50V - 0603 98322 MURATA GRM188R71E104KA01D C016 Chip cap 100n 25V - 0603 81581 MURATA GQM1885C2A1R0CB01D C017 Chip cap 1p0 - Hi Q 0603 98310 MURATA GRM188R71H103KA01D C018 Chip cap 10n 50V - 0603 (X7R) 98310 MURATA GRM188R71H103KA01D C019 Chip cap 10n 50V - 0603 (X7R) 80971 MURATA GQM1885C1H220JB01D C020 Chip cap 22p - Hi Q 0603 94433 AVX TAJA105K016R C021 Chip tantal 1u 16V LTA-A 98310 MURATA GRM188R71H103KA01D C022 Chip cap 10n 50V - 0603 (X7R) 98300 MURATA GRM188R71H102KA01D C023 Chip cap 1n 50V - 0603 98284 MURATA GRM1885C1H101JA01D C024 Chip cap 100p 50V - 0603 98284 MURATA GRM1885C1H101JA01D C025 Chip cap 100p 50V - 0603 98310 MURATA GRM188R71H103KA01D C026 Chip cap 10n 50V - 0603 (X7R) 98322 MURATA GRM188R71E104KA01D C027 Chip cap 100n 25V - 0603 98322 MURATA GRM188R71E104KA01D C028 Chip cap 100n 25V - 0603 98322 MURATA GRM188R71E104KA01D C029 Chip cap 100n 25V - 0603 98310 MURATA GRM188R71H103KA01D C030 Chip cap 10n 50V - 0603 (X7R) 98310 MURATA GRM188R71H103KA01D C031 Chip cap 10n 50V - 0603 (X7R) 98310 MURATA GRM188R71H103KA01D C032 Chip cap 10n 50V - 0603 (X7R) 98284 MURATA GRM1885C1H101JA01D C033 Chip cap 100p 50V - 0603 98322 MURATA GRM188R71E104KA01D C034 Chip cap 100n 25V - 0603 98322 MURATA GRM188R71E104KA01D C035 Chip cap 100n 25V - 0603 98303 MURATA GRM188R71H182KA01D C036 Chip cap 1n8 50v - 0603 98284 MURATA GRM1885C1H101JA01D C037 Chip cap 100p 50V - 0603 99796 MURATA GRM21BR71C105KA01L C038 Chip cap 1uF 16v X7R 0805 98300 MURATA GRM188R71H102KA01D C039 Chip cap 1n 50V - 0603 98509 MURATA GRM1885C1H1R5CZ01D C040 Chip cap 1p5 50V - 0603 98303 MURATA GRM188R71H182KA01D C041 Chip cap 1n8 50v - 0603 OMIT C042 Utgår 98300 MURATA GRM188R71H102KA01D C043 Chip cap 1n 50V - 0603 98519 MURATA GRM1885C1H5R6DZ01D C044 Chip cap 5p6 50V - 0603 98274 MURATA GRM1885C1H100JA01D C045 Chip cap 10p 50V - 0603 Item Bill Of Material Version Page 2 of 9 Date 20.05.2010 84556 CN06094 Jotron AS Modulator Board TA-7650CProduction ItemName / DescriptionMakes no. / Additional nameSub pos. 98274 MURATA GRM1885C1H100JA01D C046 Chip cap 10p 50V - 0603 98519 MURATA GRM1885C1H5R6DZ01D C047 Chip cap 5p6 50V - 0603 98314 MURATA GRM188R71H333KA61D C048 Chip cap 33n 16V - 0603 (X7R) 98303 MURATA GRM188R71H182KA01D C049 Chip cap 1n8 50v - 0603 98314 MURATA GRM188R71H333KA61D C050 Chip cap 33n 16V - 0603 (X7R) 82079 MURATA GQM1885C2AR50CB01D C051 Chip cap 0p5 - Hi Q 0603 80968 MURATA GQM1885C1H120JB01D C052 Chip cap 12p- Hi Q 0603 80968 MURATA GQM1885C1H120JB01D C053 Chip cap 12p- Hi Q 0603 98303 MURATA GRM188R71H182KA01D C054 Chip cap 1n8 50v - 0603 98310 MURATA GRM188R71H103KA01D C055 Chip cap 10n 50V - 0603 (X7R) 98308 MURATA GRM188R71H562KA01D C056 Chip cap 5n6 50v - 0603 98305 MURATA GRM188R71H272KA01D C057 Chip cap 2n7 50v - 0603 98284 MURATA GRM1885C1H101JA01D C058 Chip cap 100p 50V - 0603 98308 MURATA GRM188R71H562KA01D C059 Chip cap 5n6 50v - 0603 98305 MURATA GRM188R71H272KA01D C060 Chip cap 2n7 50v - 0603 98300 MURATA GRM188R71H102KA01D C061 Chip cap 1n 50V - 0603 98284 MURATA GRM1885C1H101JA01D C062 Chip cap 100p 50V - 0603 98300 MURATA GRM188R71H102KA01D C063 Chip cap 1n 50V - 0603 98300 MURATA GRM188R71H102KA01D C064 Chip cap 1n 50V - 0603 99796 MURATA GRM21BR71C105KA01L C065 Chip cap 1uF 16v X7R 0805 99796 MURATA GRM21BR71C105KA01L C066 Chip cap 1uF 16v X7R 0805 98322 MURATA GRM188R71E104KA01D C067 Chip cap 100n 25V - 0603 98322 MURATA …

Text truncated - open the document above for the full version.

Report No. 244647-2 Template version: A Nemko Norway Nemko AS, Instituttveien 6, P.O. Box 96 Kjeller, 2027 Kjeller, Norway TEL +47 22 96 03 30 FAX +47 22 96 05 50 EMAIL [email protected] ENTERPRISE NUMBER NO974404532 nemko.com/no Test Report Product Maritime VHF Base Station Receiver Name and address of the applicant Jotron AS Østbyveien 1, 3280 Tjodalyng, Norway Name and address of the manufacturer Same as above Model RA-7203C Rating 120V AC Trademark Jotron Serial number 00468 Additional information Maritime VHF Receiver Tested according to FCC Part 15, subpart B Other Class B Digital Device Industry Canada RSS-310, Issue 2 Low Power Licence-exempt Radiocommunications Devices Industry Canada ICES-003, Issue 5 Information Technology Equipment (ITE) Order number 244647 Tested in period 2014.02.05 to 2014.02.07 Issue date 2014.02.11 Name and address of the testing laboratory Instituttveien 6 Kjeller, Norway FCC No: 994405 IC OATS: 2040D-1 TEL: (+47) 22 96 03 30 FAX: (+47) 22 96 05 50 Prepared by [Frode Sveinsen] Approved by [Jan G Eriksen] This report shall not be reproduced except in full without the written approval of Nemko. Opinions and interpretations expressed within this report are not part of the current accreditation. This report was originally distributed electronically with digital signatures. For more information contact Nemko. TEST REPORT FCC Part 15B Report no.: 244647-2 FCC ID: RA9RA-7203C Nemko Norway, Instituttveien 6, Kjeller, Norway Page 2 (13) CONTENTS 1 INFORMATION ................................................................................................................................. 3 1.1 Tested Item........................................................................................................................................ 3 1.2 Test Environment .............................................................................................................................. 4 1.3 Test Engineer(s) ................................................................................................................................ 4 1.4 Test Equipment ................................................................................................................................. 4 1.5 Other Comments ............................................................................................................................... 4 2 TEST REPORT SUMMARY .............................................................................................................. 5 2.1 General .............................................................................................................................................. 5 2.2 Test Summary ................................................................................................................................... 5 3 TEST RESULTS ................................................................................................................................ 6 3.1 Power Line Conducted Emissions ..................................................................................................... 6 3.2 Spurious Emissions (Radiated) ......................................................................................................... 8 4 TEST SETUPS ................................................................................................................................ 12 4.1 Radiated Emissions Test ................................................................................................................. 12 4.2 Power Line Conducted Emissions Test ........................................................................................... 12 5 TEST EQUIPMENT USED .............................................................................................................. 13 TEST REPORT FCC Part 15B Report no.: 244647-2 FCC ID: RA9RA-7203C Nemko Norway, Instituttveien 6, Kjeller, Norway Page 3 (13) 1 INFORMATION 1.1 Tested Item Name : JOTRON Model name : RA-7203C FCC ID : RA9RA-7203C Industry Canada ID : 2131A-TA7650C FCC / IC Class B Serial number : 00468 Hardware identity and/or version: / Software identity and/or version : / Frequency Range : 156.000 – 162.500 MHz Antenna Connector : 50 Ohm N connector Power Supply : 120 V AC (Mains) Description of Tested Devices The EUT is a VHF base station receiver for communication in the maritime VHF frequency bands. Labeling The Device must be labeled with the two-part warning statement: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” Canada: The device must be labeled according to RSS-310 clause 2.2 with the words: “Canada 310”. TEST REPORT FCC Part 15B Report no.: 244647-2 FCC ID: RA9RA-7203C Nemko Norway, Instituttveien 6, Kjeller, Norway Page 4 (13) 1.2 Test Environment Temperature: 20.4 – 21.1 °C Relative humidity: 40 – 44 % Normal test voltage: 120 V AC The values are the limit registered during the test period. The EUT was powered from a regulated AC power source during all tests. 1.3 Test Engineer(s) Frode Sveinsen 1.4 Test Equipment See list of test equipment in clause 6. 1.5 Other Comments All tests were performed with all ports populated and operating. TEST REPORT FCC Part 15B Report no.: 244647-2 FCC ID: RA9RA-7203C Nemko Norway, Instituttveien 6, Kjeller, Norway Page 5 (13) 2 TEST REPORT SUMMARY 2.1 General All measurements are traceable to national standards. All tests were performed is accordance with ANSI C63.4-2003 where applicable. Radiated emissions are made in a 10m semi-anechoic chamber. A description of the test facility is on file with FCC and Industry Canada. New Submission Production Unit Class II Permissive Change Pre-production Unit CXX Equipment Code Family Listing THIS TEST REPORT APPLIES ONLY TO THE ITEM(S) A…

Text truncated - open the document above for the full version.

TEST SET-UP PHOTOS Project no.: 244647 FCC ID: RA9RA-7203C Page 1 (1) PHOTOS OF TEST SET-UP – RA-7203C
