RAS-MT7630E802.11b/g/n 1T1R Combo Card

802.11b/g/n 1T1R Combo Card MT7630E User’s Manual Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna, 3) For all products market in US, OEM has to limit the operation channels in CH1 to CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: RAS-MT7630E Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning as show in this manual. Industry Canada Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device This device has been designed to operate with an antenna having a maximum gain of 3.5dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This device is intended only for OEM integrators under the following conditions: 1. The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2. The transmitter module may not be co-located with any other transmitter or antenna, 3. For all products market in CANADA, OEM has to limit the operation channels in CH1 to CH11 for 2.4GHz band by supplied firmware programming tool. OEM shall not supply any tool or info to the end-user regarding to Regulatory Domain change. As long as 3 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the IC authorization is no longer considered valid and the IC ID can not be used on the final p…

Text truncated - open the document above for the full version.

FCC ID: RAS-MT7630E Report No.: RF121108E08 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch December 27, 2012 Dear Application Examiner, MediaTek Inc., It’s an 802.11b/g/n 1T1R Combo Card, FCC ID: RAS-MT7630E would like to have your authorization as a modular device. The requirements of section 15.212 of FCC rules have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip MT7630E. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is MT7630E. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAS-MT7630E Report No.: RF121108E08 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, signature Hank Chung Assistant Manager Bureau Veritas Consumer Products Services (H.K.) Ltd., Hsinchu Branch

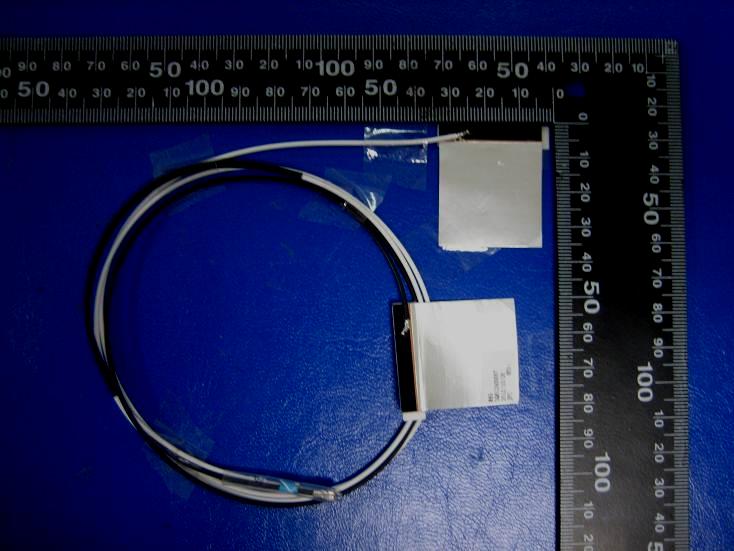

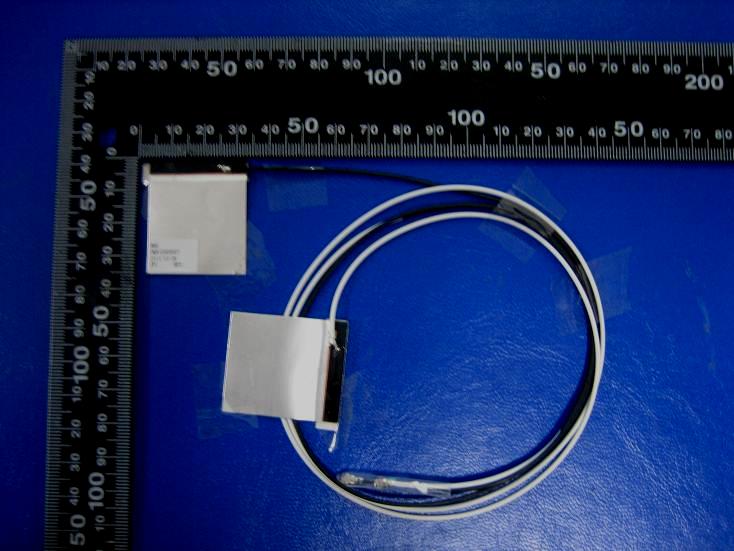

Report No.: 121108E08 Page 1 CONSTRUCTION PHOTOS OF EUT Model No.: MT7630E With PMU Report No.: 121108E08 Page 3 Without PMU Report No.: 121108E08 Page 5 Ant. No.: 1 (Brand name: ACON, Model No.: APP6P-700119) Report No.: 121108E08 Page 6 Report No.: 121108E08 Page 7 Ant. No.: 2 (Brand name: Joymax, Model No.: IWX-1451RSXX-9999) Report No.: 121108E08 Page 8 Report No.: 121108E08 Page 9 Report No.: 121108E08 Page 10 Ant. No.: 3 (Brand name: HONGLIN TECHNOLOGY GROUP LIMITED, Model No.: Main_DQ602347300/ Aux_ DQ602347300) Report No.: 121108E08 Page 11 Ant. No.: 4 (Brand name: JESS-LINK PRODUCTS CO., LTD, Model No.: Main_ DQ612A00007/ Aux_ DQ612A00007) Report No.: 121108E08 Page 12 Ant. No.: 5 (Brand name: Wistron Neweb Corp., LTD, Model No.: Main_DQ6K15G1100 (81EAAK15.G11)/ Aux_DQ6K15G1100 (81EAAK15.G11)) Report No.: 121108E08 Page 13 Report No.: 121108E08 Page 14 Ant. No.: 6 (Brand name: Yageo Corporation, LTD, Model No.: Main_DQ64313HQ06 / CAN4313HQ0729LLB1 Aux_DQ64313HQ06 / CAN4313HQ0729LLB1) Report No.: 121108E08 Page 15 Report No.: 121108E08 Page 16 Ant. No.: 7 (Brand name: ADVANCED-CONNECTEK INC., Model No.: Main_C-APP6P-700744/ Aux_C-APP6P-700745) Report No.: 121108E08 Page 17 Ant. No.: 8 (Brand name: Smart Approach, Model No.: Main_SE-EIPNA-001 Aux_SE-EIPNA-002) Report No.: 121108E08 Page 18 Ant. No.: 9 (Brand name: HONGLIN TECHNOLOGY GROUP LIMITED, Model No.: Main_DQ602347400/ Aux_DQ602347400) Report No.: 121108E08 Page 19 Ant. No.: 10 (Brand name: JESS-LINK PRODUCTS CO., LTD, Model No.: Main_DQ612A00006/ Aux_DQ612A00006) Report No.: 121108E08 Page 20 Ant. No.: 11 (Brand name: Wistron Neweb Corp., Model No.: Main_DQ6K15G1300 (81EAAK15.G13)/ Aux_DQ6K15G1300 (81EAAK15.G13)) Report No.: 121108E08 Page 21 Report No.: 121108E08 Page 22 Ant. No.: 12 (Brand name: Yageo Corporation, Model No.: Main_DQ64313HQ05 / CAN4313HQ0730LLB1 Aux_DQ64313HQ05 / CAN4313HQ0730LLB1) Report No.: 121108E08 Page 23

MediaTek 802.11b/g/n 1T1R Combo Card Model: MT7630E Label location ============================================================= Label Sample 14.6mm 27.5mm 10627A-MT7630E RAS-MT7630E Label Here

Report No.: 121108E08 Page 2 With PMU Report No.: 121108E08 Page 4 Without PMU

Report No.: SA121108E08 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA121108E08 MODEL NO.: MT7630E FCC ID: RAS-MT7630E RECEIVED: Nov. 08, 2012 TESTED: Dec. 18, 2012 ISSUED: Dec. 27, 2012 APPLICANT: MediaTek Inc. ADDRESS: No. 1, Dusing 1st Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: SA121108E08 2 of 6 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD .................................................................................... 3 1. CERTIFICATION ...................................................................................................... 4 2. RF EXPOSURE LIMIT .............................................................................................. 5 3. MPE CALCULATION FORMULA ............................................................................. 5 4. CLASSIFICATION .................................................................................................... 5 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER ........................... 6 Report No.: SA121108E08 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA121108E08 Original release Dec. 27, 2012 Report No.: SA121108E08 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: 802.11b/g/n 1T1R Combo Card BRAND NAME: MediaTek MODEL NO.: MT7630E TEST SAMPLE: MASS-PRODUCTION APPLICANT: MediaTek Inc. STANDARDS: FCC Part 2 (Section 2.1091) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment (Model: MT7630E) has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE: Dec. 27, 2012 ( Midoli Peng, Specialist ) APPROVED BY : , DATE: Dec. 27, 2012 ( May Chen, Deputy Manager ) Report No.: SA121108E08 5 of 6 Report Format Version 5.0.0 2. RF EXPOSURE LIMIT LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) FREQUENCY RANGE (MHz) ELECTRIC FIELD STRENGTH (V/m) MAGNETIC FIELD STRENGTH (A/m) POWER DENSITY (mW/cm 2 ) AVERAGE TIME (minutes) LIMITS FOR GENERAL POPULATION / UNCONTROLLED EXPOSURE 300-1500 ... ... F/1500 30 1500-100,000 ... ... 1.0 30 F = Frequency in MHz 3. MPE CALCULATION FORMULA Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm 4. CLASSIFICATION The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. So, this device is classified as Mobile Device. Report No.: SA121108E08 6 of 6 Report Format Version 5.0.0 5. CALCULATION RESULT OF MAXIMUM CONDUCTED POWER For WLAN: 11bgn FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2412-2462 288.403 3.5 20 0.12845 1.00 BT-LE(GFSK) FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 6.561 3.5 20 0.00292 1.00 For Bluetooth: FREQUENCY BAND (MHz) MAX POWER (mW) ANTENNA GAIN (dBi) DISTANCE (cm) POWER DENSITY (mW/ cm 2 ) LIMIT (mW/cm 2 ) 2402-2480 10.280 3.5 20 0.00458 1.00 CONCLUSION: Both of the WLAN and Bluetooth can transmit simultaneously, the formula of calculated the MPE is: CPD 1 / LPD 1 + CPD 2 / LPD 2 + ......etc. < 1 CPD = Calculation power density LPD = Limit of power density Therefore, the worst-case situation is 0.12845 / 1 + 0.00458 / 1= 0.13303, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit. --- END ---

Report No.: RF121108E08-1 1 of 61 Report Format Version 5.0.0 FCC TEST REPORT(Bluetooth) REPORT NO.: RF121108E08-1 MODEL NO.: MT7630E FCC ID: RAS-MT7630E RECEIVED: Nov. 08, 2012 TESTED: Nov. 30 to Dec. 20, 2012 ISSUED: Dec. 27, 2012 APPLICANT: MediaTek Inc. ADDRESS: No. 1, Dusing 1st Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS: No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling,Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. TEST LOCATION (2): No.49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121108E08-1 2 of 61 Report Format Version 5.0.0 TABLE OF CONTENTS RELEASE CONTROL RECORD ............................................................................................ 4 1 CERTIFICATION ..................................................................................................... 5 2 SUMMARY OF TEST RESULTS.............................................................................. 6 2.1 ME ASUREMENT UNCERTAINTY .......................................................................... 7 3 GENERAL INFORMATION ...................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT(BLUETOOTH) ................................................. 8 3.2 DESCRIPTION OF TEST MODES ........................................................................ 11 3.3 TEST MODE APPLICABLITY AND TESTED CHANNEL DETAIL: ......................... 12 3.4 GENERAL DESCRIPTION OF APPLIED STANDARDS ........................................ 14 3.5 DESCRIPTION OF SUPPORT UNITS ................................................................... 15 3.6 CONFIGURATION OF SYSTEM UNDER TEST .................................................... 15 4 TEST PROCEDURES AND RESULTS .................................................................. 16 4.1 CONDUCTED EMISSION MEASUREMENT ......................................................... 16 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ....................................... 16 4.1.2 TEST INSTRUMENTS ........................................................................................... 16 4.1.3 TEST PROCEDURES ........................................................................................... 17 4.1.4 DEVIATION FROM TEST STANDARD .................................................................. 17 4.1.5 TEST SETUP ........................................................................................................ 18 4.1.6 EUT OPERATING CONDITIONS........................................................................... 18 4.1.7 TEST RESULTS .................................................................................................... 19 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................. 21 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ............... 21 4.2.2 TEST INSTRUMENTS ........................................................................................... 22 4.2.3 TEST PROCEDURES ........................................................................................... 23 4.2.4 DEVIATION FROM TEST STANDARD .................................................................. 23 4.2.5 TEST SETUP ........................................................................................................ 24 4.2.6 EUT OPERATING CONDITIONS........................................................................... 24 4.2.7 TEST RESULTS (PIFA ANTENNA) ........................................................................ 25 4.2.8 TEST RESULTS (DIPOLE ANTENNA) .................................................................. 32 4.3 NUMBER OF HOPPING FREQUENCY USED ...................................................... 39 4.3.1 LIMIT OF HOPPING FREQUENCY USED ............................................................ 39 4.3.2 TEST INSTRUMENTS ........................................................................................... 39 4.3.3 TEST PROCEDURES ........................................................................................... 39 4.3.4 DEVIATION FROM TEST STANDARD .................................................................. 39 4.3.5 TEST SETUP .......................................................................................…

Text truncated - open the document above for the full version.

Report No.: RF121108E08 1 of 79 Report Format Version 5.1.0 FCC TEST REPORT (WLAN / DTS) REPORT NO.: RF121108E08 MODEL NO.: MT7630E FCC ID: RAS-MT7630E RECEIVED: Nov. 08, 2012 TESTED: Nov. 30 to Dec. 20, 2012 ISSUED: Dec. 27, 2012 APPLICANT: MediaTek Inc. ADDRESS: No. 1, Dusing 1st Rd., Hsinchu Science Park, Hsinchu City 30078, Taiwan ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory LAB ADDRESS : No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (1): No. 81-1, Lu Liao Keng, 9th Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. TEST LOCATION (2): No. 49, Ln. 206, Wende Rd., Shangshan Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien 307, Taiwan, R.O.C. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification Report No.: RF121108E08 2 of 79 Report Format Version 5.1.0 Table of Contents RELEASE CONTROL RECORD..............................................................................4 1. CERTIFICATION ...........................................................................................5 2. SUMMARY OF TEST RESULTS ...................................................................6 2.1 MEASUREMENT UNCERTAINTY ................................................................7 3. GENERAL INFORMATION ...........................................................................8 3.1 GENERAL DESCRIPTION OF EUT(WLAN / DTS) .......................................8 3.2 DESCRIPTION OF TEST MODES .............................................................. 11 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL ..............12 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................15 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................16 3.5 CONFIGURATION OF SYSTEM UNDER TEST .........................................16 4. TEST TYPES AND RESULTS .....................................................................17 4.1 CONDUCTED EMISSION MEASUREMENT ..............................................17 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................17 4.1.2 TEST INSTRUMENTS ................................................................................17 4.1.3 TEST PROCEDURES .................................................................................18 4.1.4 DEVIATION FROM TEST STANDARD .......................................................18 4.1.5 TEST SETUP ..............................................................................................19 4.1.6 EUT OPERATING CONDITIONS ................................................................19 4.1.7 TEST RESULTS(WLAN mode) ...................................................................20 4.1.8 TEST RESULTS(BT<LE> mode) ................................................................22 4.2 RADIATED EMISSION AND BANDEDGE MEASUREMENT ......................24 4.2.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ...24 4.2.2 TEST INSTRUMENTS ................................................................................25 4.2.3 TEST PROCEDURES .................................................................................26 4.2.4 DEVIATION FROM TEST STANDARD .......................................................26 4.2.5 TEST SETUP ..............................................................................................27 4.2.6 EUT OPERATING CONDITIONS ................................................................27 4.2.7 TEST RESULTS(WLAN MODE – PIFA ANTENNA) ....................................28 4.2.8 TEST RESULTS(WLAN MODE – DIPOLE ANTENNA)...............................41 4.2.9 TEST RESULTS (BT <LE> MODE – PIFA ANTENNA) ...............................54 4.2.10 TEST RESULTS (BT <LE> MODE – DIPOLE ANTENNA) ..........................58 4.3 6dB BANDWIDTH MEASUREMENT ..........................................................62 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT ........................................62 4.3.2 TEST INSTRUMENTS ................................................................................62 4.3.3 TEST PROCEDURE ...................................................................................62 4.3.4 DEVIATION FROM TEST STANDARD .......................................................62 Report No.: RF121108E08 3 of 79 Report Format Version 5.1.0 4.3.5 TEST SETUP ..............................................................................................62 4.3.6 EUT OPERATING CONDITIONS ................................................................62 4.3.7…

Text truncated - open the document above for the full version.

Report No.: 120810E25C 1 of 2 Reference No.: 121009E05 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST Report No.: 120810E25C 2 of 2 Reference No.: 121009E05 RADIATED EMISSION TEST
