RAX-WN8522B11n wireless USB module

Product Specification WN8522B 1 Product Specification WN8522B-LF-ZZ IEEE Dual Band 802.11n USB2.0 Adapter v.01 draft Product Specification WN8522B 2 Table of Contents Chapter 1 Introduction ________________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 Chapter 3 Software _______________________________________________________ 5 3.1 Operating System Supported __________________________________________ 6 3.2 Wireless Mode Supported ____________________________________________ 6 3.3 Security___________________________________________________________ 6 3.4 Configuration ______________________________________________________ 6 Chapter 4 Appearance _____________________________________________________ 7 Chapter 5 Specifications ___________________________________________________ 7 Table 1: Modulation Scheme and Nominal Transmit Power _________________________ 11 Product Specification WN8522B 3 Revision History Edition # Reason for revision Issue date Written by V 01 ♦ Initial Document Dec 22th 2009 Troy Chen ♦ Product Specification WN8522B 4 Chapter 1 Introduction 1. Introduction WN8522B is a dual band wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE 802.11n standards. WN8522B will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, RX up at 300 Mbps data rate. ♦ Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure. ♦ User-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption with 64, 128 encryption for security. ♦ Internal antenna ♦ Support USB v2.0 ♦ Key type housing ♦ WPS Button for easy security 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, Desktop PC, Monitor, PDA with USB port ready device. Product Specification WN8522B 5 Chapter 2 Hardware 2.1 General Overview ♦ USB 2.0 Interface and 802.11 n chipset-on-board design. ♦ Antenna: 2 Internal Antenna on board 2.2 Hardware Architecture Broadcom 4323 single chip USB2.0 2.3 Main Chipset Information BCM4323: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. 2.4 PCB dimension PCB dimension : 2.0 cm x 5.2 cm WPS button should be supported Product Specification WN8522B 6 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 2000 , Windows XP, Windows Vista 3.2 Wireless Mode Supported ♦ AP (Infrastructure) Client mode ♦ Ad-hoc mode 3.3 Security ♦ AP (Infrastructure) mode supports ♦ Static WEP that support both 64 and 128 bit keys. ♦ WPA(TKIP) with PSK ♦ Ad-hoc mode supports ♦ None (plaintext) ♦ Static WEP that supports both 64 and 128 bit keys. 3.4 Configuration ♦ User should be able to select ♦ Mode of operations: AP or ad-hoc mode ♦ Different security modes: none (plaintext), static WEP, WPA(TKIP)/PSK or 802.1X/LEAP as supported by the respective operating mode. ♦ Channel to operate on ♦ User should be able to perform key management on WPA/PSK and static WEP as supported by the respective operating mode ♦ A Utility to set SSID, WEP key, site survey, profile manager and dynamically view configuration and receiving signal quality. ♦ Support for transmitting power configurable. ♦ WPS support(Pin code) ♦ WPS Hard Button Product Specification WN8522B 7 Chapter 4 Appearance LED1 One Power/Link (Green/Blue) OFF All others states ON Radio On and Associated Blink Radio On and Scanning Flash Radio On and Associated and TX/RX Data LED2 WPS/Security Blue OFF No security/Not connected ON Connected with security Blink In the process of connecting Product Specification WN8522B 8 Product Specification WN8522B 9 Chapter 5 Specifications ♦ Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz ♦ Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan) ♦ Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 18.5 +/- 1 dBm 11g 14.5 +/- 1 dBm@54Mbps 11n 14.5 +/- 1 dBm Rx Sensitivity:(Typical) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing ♦ Modulation DBPSK @1Mbps DQPSK@2Mbp Product Specification WN8522B 10 [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and…

Text truncated - open the document above for the full version.

Page No. : 18 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2010/3/10 FCC ID: RAX-WN8522B Dear Reviewer, We, Sporton International Inc., are authorized by Arcadyan Technology Corporation to have their state-of-the-art 11n wireless USB module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip BCM4323. 3. The requirement of power supply regulation: The part number of the power regulator is RT8020. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager


       ! "#$ %&&'()&) *%&&'(')+(


   Date: 2010/4/14 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc.











!"
# $
%


&


!'

(&
%'

 &)*   + % "
,
%
-
* '
-

+
-

**'+
% '
*
-

*+-

.*%
/ 0 122

/ 0 11
1
,3
#4/ 0

5 +
%
11n wireless USB module
1
6
+ +
*
- %
**'+7
+ %*
%

+
!+ ' &
 *
**'+7
+ %*


1
 8
59
:
,,
++
,'
59
+

!"
# $
&



!'

3*

%

;
(&

<('

% =')+ + %
!'

>0

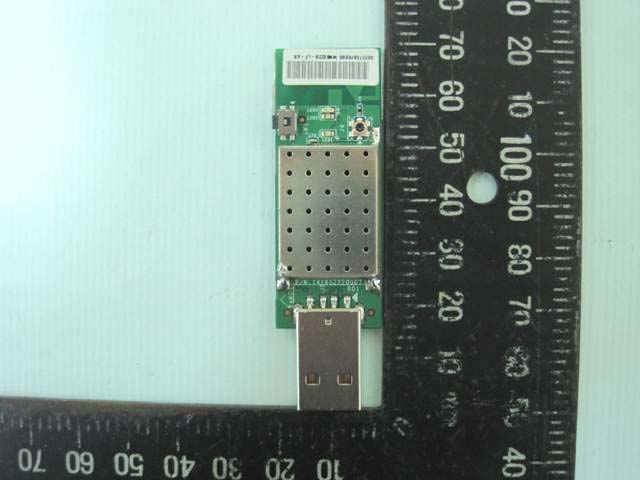

SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT

For WN8522B-LF-ZZ: For WN8522B-LF-FA:

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 09, 2010 FAX : 886-2-2696-2255

Report No.: FR982208-02 FCC ID: RAX-WN8522B Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR982208-02 FCC ID: RAX-WN8522B Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.25 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.25m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR982208-02 FCC ID: RAX-WN8522B Page No. : C3 of C3 1.3. Calculated Result and Limit <For 5GHz Band>: Antenna Type : PCB Antenna Max Conducted Power for 802.11a Draft n MCS8 20MHz Ant. A + Ant. B : 16.91 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 16.9084 49.0726 0.015481 1 Complies <For 2.4GHz Band>: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11g Ant. A: 19.29 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 19.2881 84.8805 0.026777 1 Complies
