RAXWR3210Standalone Router

1 User Manual Model number: HL1120W-IDU 2 WI-FI RF FREQUENCY BANDS AND PERFORMANCE The Module shall be compliant with the 802.11n (2.4GHz band) and 802.11ac (5GHz band) Wi-Fi standards. The Module shall be compliant with the 802.11ax (2.4GHz band and 5GHz band) Wi-Fi standard. The Module shall cover an unobstructed indoor range of Vertical 15M and Horizontal 50M. Wi-Fi Software Functions 3 Setup SOP:  EUT LAN IP：192.168.42.1  EUT WiFi 2.4G SSID：HUGHES_24G  EUT WiFi 5G SSID：HUGHES_5G 1. The is currently connected to the Test Board(simulation of end-product), please connect the Test Board to the Adapter to power on the EUT 2. Set NB1 WiFi IP to 192.168.42.x1, and connect to module 2.4G SSID through WiFi function (connection password: xxxxxxxx) 3. Set the NB2 WiFi IP to 192.168.42.x2, and connect to the SSID of module 5G through the WiFi function (connection password: xxxxxxxx) 4. Set the NB3 LAN IP to 192.168.42.x3, and connect to the Ethernet port on the module mainboard via RJ45 cable 5. Set the NB4 LAN IP to 192.168.42.x4, and connect to the Ethernet port on the module mainboard via RJ45 cable 6. After NB1~NB4 are all connected to EUT, all NBs can continue to ping module IP (192.168.42.x). 4 Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules. 5 FOR MOBILE DEVICE USAGE (>20cm/low power) Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This module is intended for OEM integrators only. Per FCC KDB 996369 D03 OEM Manual v01 guidance, the following conditions must be strictly followed when using this certified module: KDB 996369 D03 OEM Manual v01 rule sections: 2.2 List of applicable FCC rules This module has been tested for compliance to FCC Part 15.247, Part 15E 2.3 Summarize the specific operational use conditions The module is tested for standalone mobile RF exposure use condition. Any other usage conditions such as co-location with other transmitter(s) or being used in a portable condition will need a separate reassessment through a class II permissive change application or new certification. 2.4 Limited module procedures Not applicable. 2.5 Trace antenna designs Not applicable. 2.6 RF exposure considerations This equipment complies with FCC mobile radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body. If the module is installed in a portable host, a separate SAR evaluation is required to confirm compliance with relevant FCC portable RF exposure rules. 2.7 Antennas The following antennas have been certified for use with this module; antennas of the same type with equal or lower gain may also be used with this module. The antenna 6 must be installed such that 20 cm can be maintained between the antenna and users. Brand Model A n t e nna Net Gain(dBi) Frequency range Antenna Type Connector Type Cable Length PSA RFPCA370706IMAB303 1.86 2.4~2.4835GHz Dipole ipex(MHF) 60 mm PSA RFPCA330707IMAB301 1.94 2.4~2.4835GHz Dipole ipex(MHF) 70 mm PSA RFPCA220904IM5B301 2.26 5.15~5.85GHz Dipole ipex(MHF) 40 mm PSA RFPCA220904IM5B305 2.91 5.15~5.85GHz Dipole ipex(MHF) 41 mm 2.8 Label and compliance information The final end product must be labeled in a visible area with the following: “Contains FCC ID: RAXWR3210”. The grantee's FCC ID can be used only when all FCC compliance requirements are met. 2.9 Information on test modes and additional testing requirements This transmitter is tested in a standalone mobile RF exposure condition and any co-located or simultaneous transmission with other transmitter(s) or portable use will require a separate class II permissive change re-evaluation or new certification. 2.10 Additional testing, Part 15 Subpart B disclaimer This transmitter module is tested as a subsystem and its certification does not cover the FCC Part 15 Subpart B (unintentional radiator) rule requirement applicable to the final host. The final host will still need to be reassessed for compliance to this portion of rule requirements if applicable. As long as all conditions above are met, further tr…

Text truncated - open the document above for the full version.

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071 Taiwan Tel: 886-3-572-7000 Fax: 886-3-572-7063 Date: June 27, 2023 We, Arcadyan Technology Corporation declare that the device does not support channel 12 ~ 13 in 2.4GHz band and any non-US channels in all the operational mode(s) for the following product. FCC ID: RAXWR3210 If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ----------------------------------------------- Simon Liu / Manager Arcadyan Technology Corporation Tel: 886-3-5727000 #14250 Fax: 886-3-5727063 E-mail: [email protected]

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071 Taiwan Tel: 886-3-572-7000 Fax: 886-3-572-7063 Date: 2023-06-27 FCC ID: RAXWR3210 To the attention of Federal Communications Commission Authorization and Evaluation Division Attestation Statements Attestation Statements Part 2.911(d)(5)(i) Filing Arcadyan Technology Corporation certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receivingan equipment authorization pursuant to section 2.903 of the FCC rules. Attestation Statements Part 2.911(d)(5)(ii) Filing Arcadyan Technology Corporation certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely yours, ----------------------------------------------- Simon Liu / Manager Arcadyan Technology Corporation Tel: 886-3-5727000 #14250 Fax: 886-3-5727063 E-mail: [email protected]

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071 Taiwan Tel: 886-3-572-7000 Fax: 886-3-572-7063 Date: 2023-06-27 FCC ID: RAXWR3210 To the attention of Federal Communications Commission Authorization and Evaluation Division Permanent Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description Software Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------------------- Simon Liu / Manager Arcadyan Technology Corporation Tel: 886-3-5727000 #14250 Fax: 886-3-5727063 E-mail: [email protected]

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071 Taiwan Tel: 886-3-572-7000 Fax: 886-3-572-7063 Date: 2023-06-27 FCC ID: RAXWR3210 To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the commission’s rules, we request short-term confidential treatment for the following information until 30 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External photos Test Setup photos User’s manual Internal Photos Sincerely yours, ----------------------------------------------- Simon Liu / Manager Arcadyan Technology Corporation Tel: 886-3-5727000 #14250 Fax: 886-3-5727063 E-mail: [email protected]

Arcadyan Technology Corporation No.8, Sec.2, Guangfu Rd., Hsinchu 30071 Taiwan Tel: 886-3-572-7000 Fax: 886-3-572-7063 Date: 2023-06-27 FCC ID: RAXWR3210 A U T H O R I Z A T I O N L E T T E R To Whom It May Concern: Arcadyan Technology Corporation hereby authorizes Emerald Chen / Specialist of Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (“BV CPS Taoyuan”), to act on its behalf in all matters relating to the Federal Communication Commission (“FCC”) application for equipment authorization in connection with the FCC ID listed above, including signing of all documents relating to these matters. Any and all acts carried out by Emerald Chen / Specialist of BV CPS Taoyuan on Arcadyan Technology Corporation’s behalf, within the scope of the powers granted herein, shall have the same effect as acts of its own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, ----------------------------------------------- Simon Liu / Manager Arcadyan Technology Corporation Tel: 886-3-5727000 #14250 Fax: 886-3-5727063 E-mail: [email protected]

FCC ID: RAXWR3210 Modular Approval Request Letter Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch July 4, 2023 Dear Application Examiner, Arcadyan Technology Corporation, FCC ID: RAXWR3210 would like to have your authorization as a modular approval specific to the mobile RF exposure condition. The requirements of KDB996369 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.” The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip QCN5022 and QCN5052. 3. “The modular transmitter must have its own power supply regulation.” The part number of this regulator is QCN5022 and QCN5052. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration via a USB extender. Please see section Photographs of Test Configuration in the test report, the EUT was plugged in this extender. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAXWR3210 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Emerald Chen / Specialist Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch

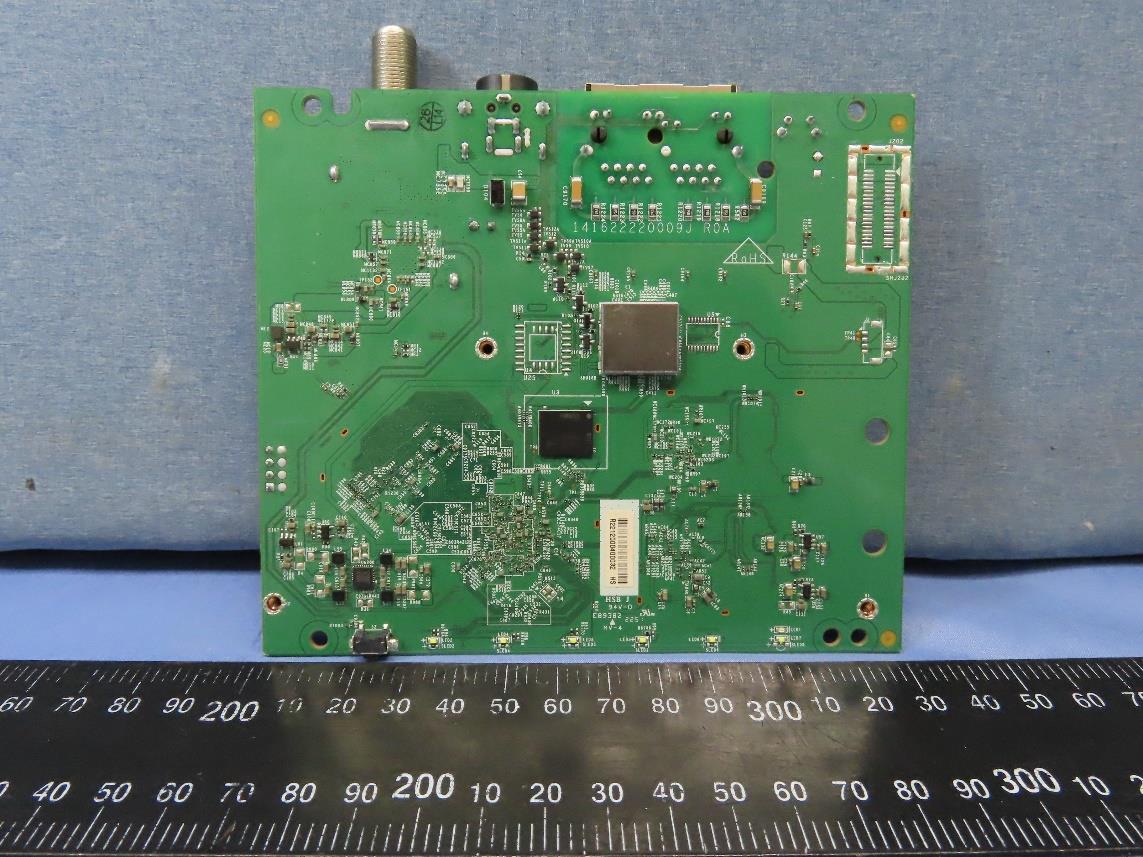

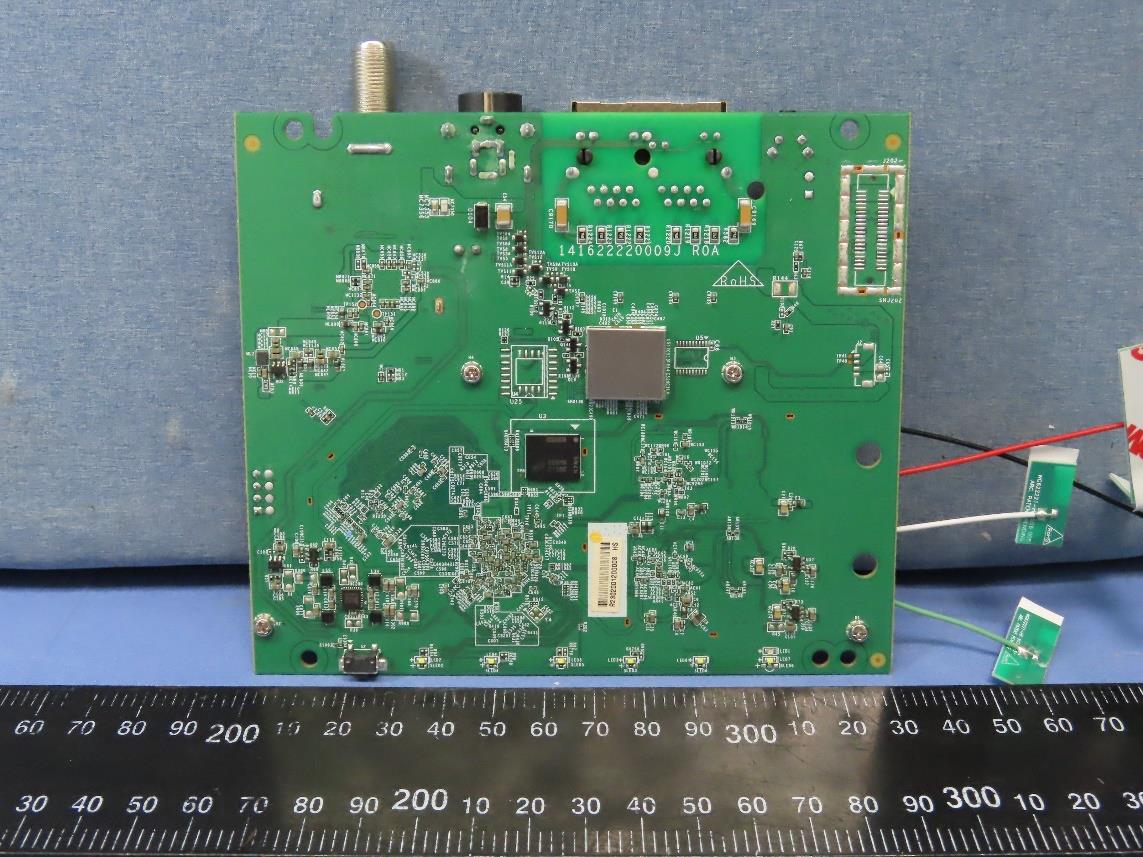

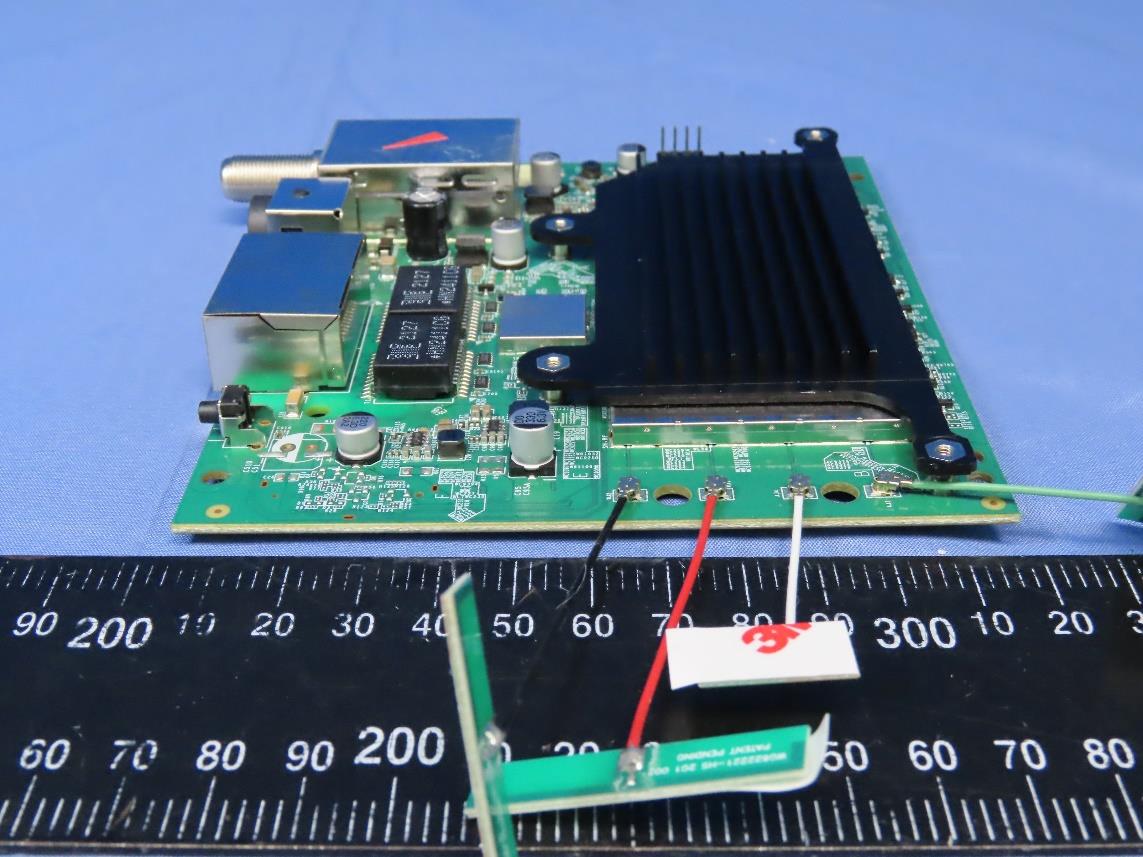

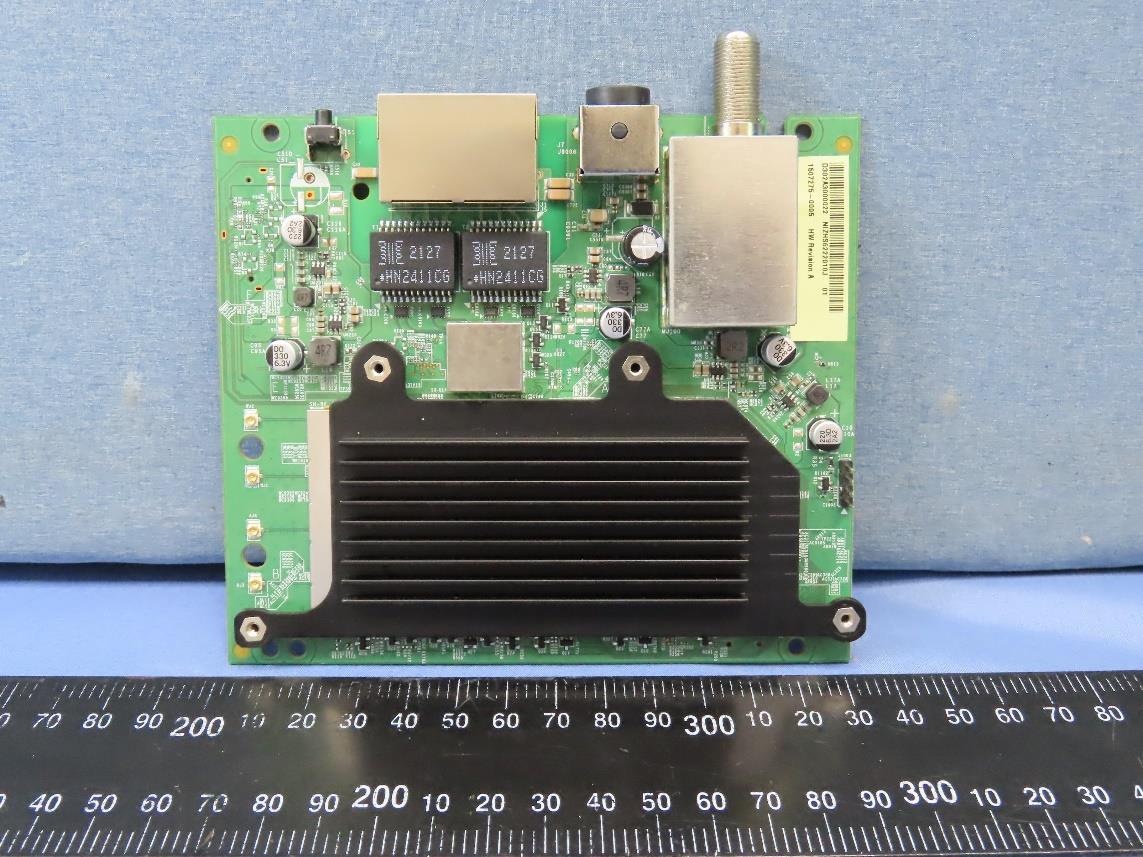

Reference No.: BCMA-WTW-P23040055_EXT Page 1/12 CONSTRUCTION PHOTOS OF EUT Reference No.: BCMA-WTW-P23040055_EXT Page 2/12 Reference No.: BCMA-WTW-P23040055_EXT Page 3/12 EUT Module Reference No.: BCMA-WTW-P23040055_EXT Page 4/12 Reference No.: BCMA-WTW-P23040055_EXT Page 5/12 Reference No.: BCMA-WTW-P23040055_EXT Page 6/12 Brand: PSA, Model: RFPCA220904IM5B305 Reference No.: BCMA-WTW-P23040055_EXT Page 7/12 Brand: PSA, Model: RFPCA370706IMAB303 Reference No.: BCMA-WTW-P23040055_EXT Page 8/12 Reference No.: BCMA-WTW-P23040055_EXT Page 9/12 Brand: PSA, Model: RFPCA330707IMAB301 Reference No.: BCMA-WTW-P23040055_EXT Page 10/12 Brand: PSA, Model: RFPCA220904IM5B301 Reference No.: BCMA-WTW-P23040055_EXT Page 11/12 Reference No.: BCMA-WTW-P23040055_EXT Page 12/12

Label Here

Reference No.: BCMA-WTW-P23040055_INT Page 1/8 CONSTRUCTION PHOTOS OF EUT Reference No.: BCMA-WTW-P23040055_INT Page 2/8 Reference No.: BCMA-WTW-P23040055_INT Page 3/8 Reference No.: BCMA-WTW-P23040055_INT Page 4/8 Reference No.: BCMA-WTW-P23040055_INT Page 5/8 Reference No.: BCMA-WTW-P23040055_INT Page 6/8 Reference No.: BCMA-WTW-P23040055_INT Page 7/8 Reference No.: BCMA-WTW-P23040055_INT Page 8/8

Report No.: MFBCMA-WTW-P23040055 Page No. 1 / 11 Report Format Version: 7.1.0 RF EXPOSURE REPORT CERTIFICATE OF CONFORMITY FCC Rule Part: FCC Part 2 (Section 2.1091) Report No.: MFBCMA-WTW-P23040055 FCC ID: RAXWR3210 Product: Standalone Router Brand: Hughes Model No.: HL1120W-IDU Received Date: 2023/3/27 Test Date: 2023/5/22 Issued Date: 2023/7/3 Applicant: Arcadyan Technology Corporation Address: No.8, Sec.2, Guangfu Rd.,Hsinchu City 30071, Taiwan, R.O.C. Issued By: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch Hsin Chu Laboratory Lab Address: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan Test Location: E-2, No.1, Li Hsin 1st Road, Hsinchu Science Park, Hsinchu City 300, Taiwan FCC Registration / Designation Number: 723255 / TW2022 Approved by: , Date: 2023/7/3 May Chen / Manager This test report consists of 11 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. Prepared by : Vito Lung / Specialist This report is governed by, and incorporates by reference, the Conditions of Testing as posted at the date of issuance of this report at http://www.bureauveritas.com/home/about-us/our- business/cps/about-us/terms-conditions/ and is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. Measurement uncertainty is only provided upon request for accredited tests. Statements of conformity are based on simple acceptance criteria without taking measurement uncertainty into account, unless otherwise requested in writing. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence or if you require measurement uncertainty; provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Report No.: MFBCMA-WTW-P23040055 Page No. 2 / 11 Report Format Version: 7.1.0 Table of Contents Release Control Record ....................................................................................................................................................... 3 1 Certificate .................................................................................................................................................................... 4 2 Measurement Uncertainty ......................................................................................................................................... 5 3 Test Instruments ........................................................................................................................................................ 5 4 Applicable RF Exposure Limit .................................................................................................................................. 6 5 Test Results ................................................................................................................................................................ 9 5.1 RF Exposure ............................................................................................................................................................. 9 6 Conclusion ................................................................................................................................................................ 10 7 Information of the Testing Laboratories ................................................................................................................ 11 Report No.: MFBCMA-WTW-P23040055 Page No. 3 / 11 Report Format Version: 7.1.0 Release Control Record Issue No. Description Date Issued MFBCMA-WTW-P23040055 Original release. 2023/7/3 Report No.: MFBCMA-WTW-P23040055 Page No. 4 / 11 Report Format Version: 7.1.0 1 Certificate Product: Standalone Router Brand: Hughes Test Model: HL1120W-IDU Sample Status: Engineering sample Applicant: Arcadyan Technology Corporation Test Date: 2023/5/22 FCC Rule Part: FCC Part 2 (Section 2.1091) Standard: KDB 447498 D04 Interim General RF Exposure Guidance v01 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s RF characteristics under the conditions specified in this report. Report No.: MFBCMA-WTW-P23040055 Page No. 5 / 11 Report Format Version: 7.1.0 2 Measurement Uncertainty Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the EUT. Measurement Specification Expanded Uncertainty (k=2) (±) RF Exposure 1 GHz ~ 2.5 GHz 1.2 dB 2.5 GHz ~ 8 GHz 1.3 dB 3 Test Instruments Description Manufacturer Model No. Serial No. Calibrated Date Calibrated Until * Broadband Field Meter Narda NBM-550 B-0872 2022/3/18 2024/3/17 * E-Field Probe(100MHz~60GHz) Narda EF60…

Text truncated - open the document above for the full version.

Approval sheet Page 1 of 10 RFPCA220904IM5B301_V03 Jun. 2023 Dipole ANTENNA 5.15 ~5.85 GHz Band Working Frequency Halogens Free Product P/N: RFPCA220904IM5B301 Customer： 智易科技股份有限公司 Customer ‘s Part No.： 120800084900J Test Personnel： Kerry Wu Test Date： 2023/04/20 Production： 佳邦科技股份有限公司竹南分公司 INPAQ TECHNOLOGY CO., LTD. CHUNAN BRANCH Address： 350402 苗栗縣竹南鎮公義里11鄰科 義街11號 No. 11, Keyi St., Zhunan Township, Miaoli County 350402 , Taiwan (R.O.C.) *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 10 RFPCA220904IM5B301_V03 Jun. 2023 Version Date Description Author V01 2021 JUL. New Release HWCHAN V02 2023 APR. 更新測報 HWCHAN V03 2023 JUN. 取消端子保護套 HWCHAN Approval sheet Page 3 of 10 RFPCA220904IM5B301_V03 Jun. 2023 ELECTRICAL CHARACTERISTICS Item Specification Frequency Range 5.18 ~ 5.85 GHz Impedance 50 Ohm Nominal VSWR 2.0 (Max) Gain 2.26 dBi Radiation Omni-directional Polarization Linear Vertical Admitted Power 1W Operation Temperature －20°C ～ ＋65°C *note-1: Electrical characteristics will depend on customer’s final application. MATERIAL TABLE Items Description Dipole Antenna FR4(Single Layer);綠漆;T=0.8mm Coaxial cable ψ1.13 Coaxial Cable ; Green Connector IPEX Compatible(Gold) Double Tape 3M9888T ORDERING RULE RF PCA 2209 04 I M 5 B 3 01 Type Code Product Code Dipole Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device Dipole Antenna Per 2 digits of length, width e.g.:2209 Length 22.2mm, Width9.8mm 2 digits for cable length e.g.: 04 Cable Length: 4.3cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band N: NFC T: LTE band W: WCDMA band B: MP T:Durin g Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 4:∅1.13 Low Loss 6:RG316 7:∅1.37 8:RG178 79∅1.37 Low Loss 01~99 series number Approval sheet Page 4 of 10 RFPCA220904IM5B301_V03 Jun. 2023 DIMENSIONS Approval sheet Page 5 of 10 RFPCA220904IM5B301_V03 Jun. 2023 Approval sheet Page 6 of 10 RFPCA220904IM5B301_V03 Jun. 2023 ■ELECTRICAL CHARACTERISTICS Approval sheet Page 7 of 10 RFPCA220904IM5B301_V03 Jun. 2023 ■Antenna Efficiency & Peak Gain Approval sheet Page 8 of 10 RFPCA220904IM5B301_V03 Jun. 2023 ■RADIATION PATTERN 5150~5850 MHz X-Z Plane Phi=0.00deg Gain . dB Approval sheet Page 9 of 10 RFPCA220904IM5B301_V03 Jun. 2023 Y-Z Plane Phi=90.00deg Gain . dB Approval sheet Page 10 of 10 RFPCA220904IM5B301_V03 Jun. 2023 X-Y Plane Theta=90.00deg Gain . dB

Approval sheet Page 1 of 10 RFPCA220904IM5B305_V04 Jun. 2023 Dipole ANTENNA 5.15 ~5.85 GHz Band Working Frequency Halogens Free Product P/N: RFPCA220904IM5B305 Customer： 智易科技股份有限公司 Customer ‘s Part No.： 120800085100J Test Personnel： Kerry Wu Test Date： 2023/04/20 Production： 佳邦科技股份有限公司竹南分公司 INPAQ TECHNOLOGY CO., LTD. CHUNAN BRANCH Address： 350402 苗栗縣竹南鎮公義里11鄰科 義街11號 No. 11, Keyi St., Zhunan Township, Miaoli County 350402 , Taiwan (R.O.C.) *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 10 RFPCA220904IM5B305_V04 Jun. 2023 Version Date Description Author V01 2020 SEP. New Release HWCHAN V02 2021 JUL. 變更線長(由35改為41mm);變更端子方向(由 朝外改為朝內) HWCHAN V03 2023 APR. 更新測報 HWCHAN V04 2023 JUN. 取消端子保護套 HWCHAN Approval sheet Page 3 of 10 RFPCA220904IM5B305_V04 Jun. 2023 ELECTRICAL CHARACTERISTICS Item Specification Frequency Range 5.18 ~ 5.85 GHz Impedance 50 Ohm Nominal VSWR 2.0 (Max) Gain 2.91 dBi Radiation Omni-directional Polarization Linear Vertical Admitted Power 1W Operation Temperature －20°C ～ ＋65°C *note-1: Electrical characteristics will depend on customer’s final application. MATERIAL TABLE Items Description Dipole Antenna FR4(Single Layer);綠漆;T=0.8mm Coaxial cable ψ1.13 Coaxial Cable ; White Connector IPEX Compatible(Gold) Double Tape 3M9888T ORDERING RULE RF PCA 2209 04 I M 5 B 3 05 Type Code Product Code Dipole Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device Dipole Antenna Per 2 digits of length, width e.g.:2209 Length 18.0mm, Width9.8mm 2 digits for cable length e.g.: 04 Cable Length: 4.1cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band N: NFC T: LTE band W: WCDMA band B: MP T:Durin g Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 4:∅1.13 Low Loss 6:RG316 7:∅1.37 8:RG178 79∅1.37 Low Loss 01~99 series number Approval sheet Page 4 of 10 RFPCA220904IM5B305_V04 Jun. 2023 DIMENSIONS Approval sheet Page 5 of 10 RFPCA220904IM5B305_V04 Jun. 2023 Approval sheet Page 6 of 10 RFPCA220904IM5B305_V04 Jun. 2023 ■ELECTRICAL CHARACTERISTICS Approval sheet Page 7 of 10 RFPCA220904IM5B305_V04 Jun. 2023 ■Antenna Efficiency & Peak Gain Approval sheet Page 8 of 10 RFPCA220904IM5B305_V04 Jun. 2023 ■RADIATION PATTERN 5150~5850 MHz X-Z Plane Phi=0.00deg Gain . dB Approval sheet Page 9 of 10 RFPCA220904IM5B305_V04 Jun. 2023 Y-Z Plane Phi=90.00deg Gain . dB Approval sheet Page 10 of 10 RFPCA220904IM5B305_V04 Jun. 2023 X-Y Plane Theta=90.00deg Gain . dB

Approval sheet Page 1 of 10 RFPCA330707IMAB301_V03 Jun. 2023 Dipole ANTENNA 2.4~2.5 GHz Band Working Frequency Halogens Free Product P/N: RFPCA330707IMAB301 Customer： 智易科技股份有限公司 Customer ‘s Part No.： 120800084800J Test Personnel： Kerry Wu Test Date： 2023/04/20 Production： 佳邦科技股份有限公司竹南分公司 INPAQ TECHNOLOGY CO., LTD. CHUNAN BRANCH Address： 350402 苗栗縣竹南鎮公義里11鄰科 義街11號 No. 11, Keyi St., Zhunan Township, Miaoli County 350402 , Taiwan (R.O.C.) *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 10 RFPCA330707IMAB301_V03 Jun. 2023 Version Date Description Author V01 2021 JUL. New Release HWCHAN V02 2023 APR. 更新測報 HWCHAN V03 2023 JUN. 取消端子保護套 HWCHAN Approval sheet Page 3 of 10 RFPCA330707IMAB301_V03 Jun. 2023 ELECTRICAL CHARACTERISTICS Item Specification Frequency Range 2.4 ~2.5 GHz Impedance 50 Ohm Nominal VSWR 2.0 (Max) Gain 1.94 dBi Radiation Omni-directional Polarization Linear Vertical Admitted Power 1W Operation Temperature －20°C ～ ＋65°C *note-1: Electrical characteristics will depend on customer’s final application. MATERIAL TABLE Items Description Dipole Antenna FR4(Single Layer);綠漆;T=0.8mm Coaxial cable ψ1.13 Coaxial Cable ; Black Connector IPEX Compatible(Gold) Double Tape 3M9888T ORDERING RULE RF PCA 3307 07 I M A B 3 01 Type Code Product Code Dipole Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device Dipole Antenna Per 2 digits of length, width e.g.3307 Length 33.0mm, Width7.7mm 2 digits for cable length e.g.: 07 Cable Length: 7.0cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hirose I: IPEX M: MMCX S: SMA T: TNC U:MURATA N: None A: Reverse Female B: Reverse Male F: Female M: Male N: None 0: 0GHz 3: 3GHz 5: 5GHz 6: 6GHz A: 2.4GHz ISM band B: GSM 900/1800 dual band G: GPS band L: 2.4/5.2/5.8 GHz tri-band N: NFC T: LTE band W: WCDMA band B: MP T:Durin g Test X: Pile Run 0:None 1:∅0.81 3:∅1.13 4:∅1.13 Low Loss 6:RG316 7:∅1.37 8:RG178 79∅1.37 Low Loss 01~99 series number Approval sheet Page 4 of 10 RFPCA330707IMAB301_V03 Jun. 2023 DIMENSIONS Approval sheet Page 5 of 10 RFPCA330707IMAB301_V03 Jun. 2023 Approval sheet Page 6 of 10 RFPCA330707IMAB301_V03 Jun. 2023 ■ELECTRICAL CHARACTERISTICS Approval sheet Page 7 of 10 RFPCA330707IMAB301_V03 Jun. 2023 ■Antenna Efficiency & Peak Gain Approval sheet Page 8 of 10 RFPCA330707IMAB301_V03 Jun. 2023 ■RADIATION PATTERN 2400~2500 MHz X-Z Plane Phi=0.00deg Gain . dB Approval sheet Page 9 of 10 RFPCA330707IMAB301_V03 Jun. 2023 Y-Z Plane Phi=90.00deg Gain . dB Approval sheet Page 10 of 10 RFPCA330707IMAB301_V03 Jun. 2023 X-Y Plane Theta=90.00deg Gain . dB

Approval sheet Page 1 of 10 RFPCA370706IMAB303_ V03 Jun. 2023 Dipole ANTENNA 2.4~2.5 GHz Band Working Frequency Halogens Free Product P/N: RFPCA370706IMAB303 Customer： 智易科技股份有限公司 Customer ‘s Part No.： 120800085000J Test Personnel： Kerry Wu Test Date： 2023/04/20 Production： 佳邦科技股份有限公司竹南分公司 INPAQ TECHNOLOGY CO., LTD. CHUNAN BRANCH Address： 350402 苗栗縣竹南鎮公義里11鄰科 義街11號 No. 11, Keyi St., Zhunan Township, Miaoli County 350402 , Taiwan (R.O.C.) *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 10 RFPCA370706IMAB303_ V03 Jun. 2023 Version Date Description Author V01 2021 JUL. New Release HWCHAN V02 2023 APR. 更新測報 HWCHAN V03 2023 JUN. 取消端子保護套 HWCHAN Approval sheet Page 3 of 10 RFPCA370706IMAB303_ V03 Jun. 2023 ELECTRICAL CHARACTERISTICS Item Specification Frequency Range 2.4 ~2.5 GHz Impedance 50 Ohm Nominal VSWR 2.0 (Max) Gain 1.86 dBi Radiation Omni-directional Polarization Linear Vertical Admitted Power 1W Operation Temperature －20°C ～ ＋65°C *note-1: Electrical characteristics will depend on customer’s final application. MATERIAL TABLE Items Description Dipole Antenna FR4(Single Layer);綠漆;T=0.8mm Coaxial cable ψ1.13 Coaxial Cable ;Red Connector IPEX Compatible(Gold) Double Tape 3M9888T ORDERING RULE RF PCA 3307 06 I M A B 3 03 Type Code Product Code Dipole Dimension (Unit: mm) Cable Length (unit: cm) Connector Brand Type of Connector Application Project status Wire Diameter Project Walsin RF Device Dipole Antenna Per 2 digits of length, width e.g.3307 Length 33.0mm, Width7.7mm 2 digits for cable length e.g.: 06 Cable Length: 6.0cm A: N C:MCX D:IPEX III E: IPEX IV F: IPEX A13 H: Hiro…
