RAX-WN8522B65802.11n Dual Band WLAN Adapter

Product Specification WN8522B 1 Product Specification WN8522B IEEE Dual Band 802.11n USB2.0 Adapter v.01 draft Product Specification WN8522B 2 Table of Contents Chapter 1 Introduction ________________________________________________________ 4 1. Introduction ________________________________________________________ 4 1.1 Product Features ____________________________________________________ 4 1.2 Applications _______________________________________________________ 4 Chapter 2 Hardware _______________________________________________________ 5 2.1 General Overview __________________________________________________ 5 2.2 Hardware Architecture _______________________________________________ 5 2.3 Main Chipset Information ____________________________________________ 5 Chapter 3 Software _______________________________________________________ 5 3.1 Operating System Supported __________________________________________ 6 3.2 Wireless Mode Supported ____________________________________________ 6 3.3 Security ___________________________________________________________ 6 3.4 Configuration ______________________________________________________ 6 Chapter 4 Appearance _____________________________________________________ 7 Chapter 5 Specifications ___________________________________________________ 7 Table 1: Modulation Scheme and Nominal Transmit Power _________________________ 11 Product Specification WN8522B 3 Revision History Edition # Reason for revision Issue date Written by V 01  Initial Document Dec 22th 2009 Troy Chen  Product Specification WN8522B 4 Chapter 1 Introduction 1. Introduction WN8522B is a dual band wireless 802.11n USB Adapter which enables wireless networking systems to attain data communication speeds up to 300 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of Wi-Fi systems worldwide. It supports operation to the IEEE 802.11a/b and IEEE 802.11g ,and draft IEEE 802.11n standards. WN8522B will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers. It is compatible with 802.11g standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g and draft 802.11n. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features  High speed for wireless LAN connection, RX up at 300 Mbps data rate.  Backward compatible to the existing IEEE 802.11a/b/g WLAN infrastructure.  User-friendly utility to configure SSID, security setup and site survey.  Wireless data encryption with 64, 128 encryption for security.  Internal antenna  Support USB v2.0  Key type housing  WPS Button for easy security 1.2 Applications  Home networking for device sharing.  Wireless multimedia.  Wireless office for extension Ethernet range.  Mobile networking for notebook PC, Desktop PC, Monitor, PDA with USB port ready device. Product Specification WN8522B 5 Chapter 2 Hardware 2.1 General Overview  USB 2.0 Interface and 802.11 n chipset-on-board design.  Antenna: 2 Internal Antenna on board 2.2 Hardware Architecture Broadcom 4323 single chip USB2.0 2.3 Main Chipset Information BCM4323: MIMO MAC + Baseband processor and RF with fully forward compatible with IEEE 802.11n draft2.0 standard. 2.4 PCB dimension PCB dimension : 2.0 cm x 5.2 cm WPS button should be supported Product Specification WN8522B 6 Chapter 3 Software 3.1 Operating System Supported  Windows 2000 , Windows XP, Windows Vista 3.2 Wireless Mode Supported  AP (Infrastructure) Client mode  Ad-hoc mode 3.3 Security  AP (Infrastructure) mode supports  Static WEP that support both 64 and 128 bit keys.  WPA(TKIP) with PSK  Ad-hoc mode supports  None (plaintext)  Static WEP that supports both 64 and 128 bit keys. 3.4 Configuration  User should be able to select  Mode of operations: AP or ad-hoc mode  Different security modes: none (plaintext), static WEP, WPA(TKIP)/PSK or 802.1X/LEAP as supported by the respective operating mode.  Channel to operate on  User should be able to perform key management on WPA/PSK and static WEP as supported by the respective operating mode  A Utility to set SSID, WEP key, site survey, profile manager and dynamically view configuration and receiving signal quality.  Support for transmitting power configurable.  WPS support(Pin code)  WPS Hard Button Product Specification WN8522B 7 Chapter 4 Appearance LED1 One Power/Link (Green/Blue) OFF All others states ON Radio On and Associated Blink Radio On and Scanning Flash Radio On and Associated and TX/RX Data LED2 WPS/Security Blue OFF No security/Not connected ON Connected with security Blink In the process of connecting Product Specification WN8522B 8 Product Specification WN8522B 9 Chapter 5 Specifications  Frequency Band: Draft 802.11n Radio: 2.4 GHz 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Japan – STD-T66/STD-33 2412~2484MHz (Ch1~Ch14) 802.11a Radio : 5 GHz 5.150~5.250GHz 5.250~5.350 GHz 5.470~5.725 GHz 5.725~5.850GHz  Operating Channels: IEEE 802.11b/g/n compliant: 11 channels (US, Canada) 13 channels (ETSI) 14 channels (Japan)  Transmit Power and Sensitivity: TX Output Power:(Typical) 11b 18.5 +/- 1 dBm 11g 14.5 +/- 1 dBm@54Mbps 11n 14.5 +/- 1 dBm Rx Sensitivity:(Typical) -84 dBm @11 Mbps -72 dBm @54 Mbps -64 dBm @64-QAM, 20MHz channel spacing -61 dBm @64-QAM, 40MHz channel spacing  Modulation DBPSK @1Mbps DQPSK@2Mbp Product Specification WN8522B 10 [email protected]/11Mbps BPSK@6/9 Mbps QPSK@12/18Mbps 16-QAM@24Mbps 64-QAM@48/54Mpb and abov…

Text truncated - open the document above for the full version.






Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325








 ! "

"

# $!%& $"
$'!


()
*+$'

,
$% -
.
$
/
0#

 )1  $
0!2# %
 $

 1
0!2# %3
&!$%"



4!

5!%
 0! 3
55' -%
5

: Arcadyan Technology Corporation 55' -%
5
$$!%%
: 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. 1& #!
: 67
'
 $
53
: Simon Liu / Manager , RD Center (+'
: [email protected] '3
: +886-3-578-7000






Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 Confidential Letter Date: 2010/3/5 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAX-WN8522B65 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000






Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 DoC Attestation Letter Date: 2010/3/5 We, Arcadyan Technology Corporation, as the grantee of this project FCC ID: RAX-WN8522B65, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000






Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Tel: +886-3-578-7000 Fax: +886-3-563-7325 Power of Attorney Date: 2010/3/5 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Arcadyan / WN8522B FCC ID: RAX-WN8522B65 Product name: 802.11n Dual Band WLAN Adapter FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : Job Title and Dept. : Simon Liu / Manager , RD Center E-Mail : [email protected] Tel. : +886-3-578-7000

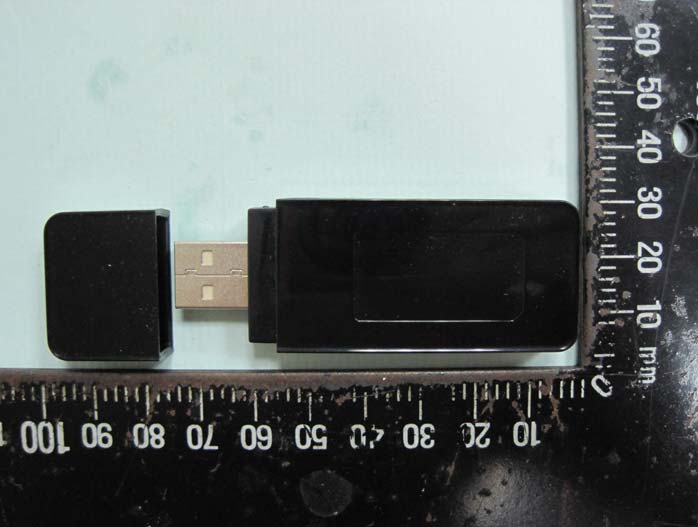

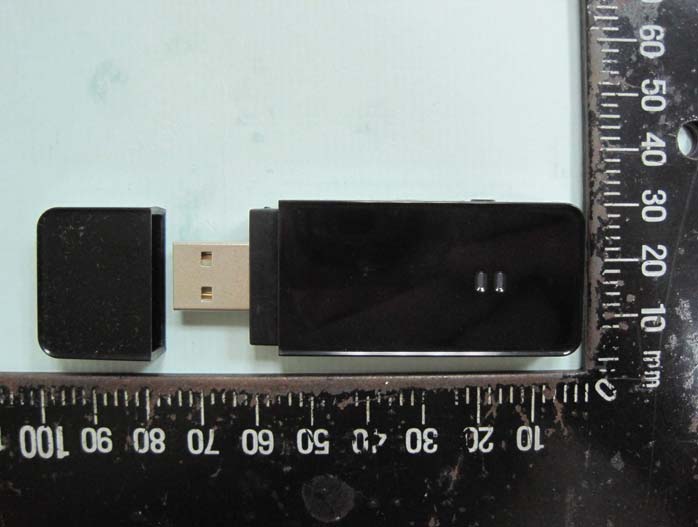

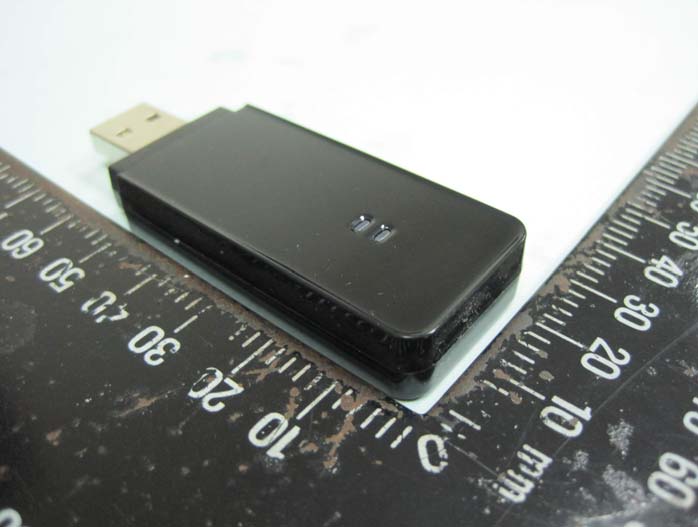

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255

Label size: 28.60*14.60mm

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 18, 2010 FAX : 886-2-2696-2255

SPORTON INTERNATIONAL INC. Page Number : 1 of 33 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAX-WN8522B65 FCC SAR Test Report Report No. : FA022550 FCC SAR Test Report APPLICANT : Arcadyan Technology Corporation EQUIPMENT : 802.11n Dual Band WLAN Adapter BRAND NAME : Arcadyan MODEL NAME : WN8522B FCC ID : RAX-WN8522B65 STANDARD : FCC 47 CFR Part 2 (2.1093) IEEE C95.1-1999 IEEE 1528-2003 FCC OET Bulletin 65 Supplement C (Edition 01-01) The product was received on Feb. 25, 2010 and completely tested on Mar. 12, 2010. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and shown the compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Reviewed by: Roy Wu / Manager SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. SPORTON INTERNATIONAL INC. Page Number : 2 of 33 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAX-WN8522B65 FCC SAR Test Report Report No. : FA022550 Table of Contents Revision History ................................................................................................................................................................ 3 1. Statement of Compliance .......................................................................................................................................... 4 2. Administration Data ................................................................................................................................................... 5 2.1 Testing Laboratory ............................................................................................................................................ 5 2.2 Applicant ........................................................................................................................................................... 5 2.3 Application Details ............................................................................................................................................ 5 3. General Information ................................................................................................................................................... 6 3.1 Description of Device Under Test (DUT) ........................................................................................................... 6 3.2 Product Photos ................................................................................................................................................. 6 3.3 Applied Standards ............................................................................................................................................ 7 3.4 Device Category and SAR Limits ..................................................................................................................... 7 3.5 Test Conditions ................................................................................................................................................. 7 3.5.1 Ambient Condition .................................................................................................................................. 7 3.5.2 Test Configuration ................................................................................................................................... 7 4. Specific Absorption Rate (SAR) ................................................................................................................................ 8 4.1 Introduction ....................................................................................................................................................... 8 4.2 SAR Definition .................................................................................................................................................. 8 5. SAR Measurement System ........................................................................................................................................ 9 5.1 E-Field Probe...................................................................................................................................................10 5.1.1 E-Field Probe Specification ...................................................................................................................10 5.1.2 E-Field Probe Calibration ....................................................................................................................... 11 5.2 Data Acquisition Electronics (DAE) .................................................................................................................. 11 5.3 Robot ............................................................................................................................................................... 11 5.4 Measurement Server .......................................................................................................................................12 5.5 Phantom ..........................................................................................................................................................13 5.6 Device Holder ..................................................................................................................................................14 5.7 Data Storage and Evaluation ...........................................................................................................................16 5.7.1 Data Storage .........................................................................................................................................16 5.7.2 Data Evaluation ..…

Text truncated - open the document above for the full version.

0 dB = 1.23mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/3/11 #03 802.11a_Vertical Front_0.5cm_Ch36 DUT: 022550 Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: MSL_5G_100311 Medium parameters used: f = 5180 MHz; σ = 5.1 mho/m; ε r = 47.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV3 - SN3514; ConvF(4.27, 4.27, 4.27); Calibrated: 2010/1/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch36/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.520 mW/g Ch36/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 3.64 V/m; Power Drift = 0.169 dB Peak SAR (extrapolated) = 1.12 W/kg SAR(1 g) = 0.387 mW/g; SAR(10 g) = 0.179 mW/g Maximum value of SAR (measured) = 0.662 mW/ g 0 dB = 0.662mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/3/11 #04 802.11a_Vertical Back_0.5cm_Ch36 DUT: 022550 Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: MSL_5G_100311 Medium parameters used: f = 5180 MHz; σ = 5.1 mho/m; ε r = 47.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV3 - SN3514; ConvF(4.27, 4.27, 4.27); Calibrated: 2010/1/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch36/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.611 mW/g Ch36/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 5.08 V/m; Power Drift = 0.163 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.515 mW/g; SAR(10 g) = 0.246 mW/g Maximum value of SAR (measured) = 0.862 mW/ g 0 dB = 0.862mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/3/11 #05 802.11a_Tip Mode_0.5cm_Ch36 DUT: 022550 Communication System: 802.11a; Frequency: 5180 MHz;Duty Cycle: 1:1 Medium: MSL_5G_100311 Medium parameters used: f = 5180 MHz; σ = 5.1 mho/m; ε r = 47.5; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV3 - SN3514; ConvF(4.27, 4.27, 4.27); Calibrated: 2010/1/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch36/Area Scan (31x31x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.621 mW/g Ch36/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 8.84 V/m; Power Drift = -0.145 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.385 mW/g; SAR(10 g) = 0.159 mW/g Maximum value of SAR (measured) = 0.690 mW/g 0 dB = 0.690mW/g Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2010/3/11 #23 802.11a_Horizontal Up_1cm_Ch104_Back-Off SAR DUT: 022550 Communication System: 802.11a; Frequency: 5520 MHz;Duty Cycle: 1:1 Medium: MSL_5G_100311 Medium parameters used : f = 5520 MHz; σ = 5.54 mho/m; ε r = 47; ρ = 1000 kg/m 3 DASY5 Configuration: - Probe: EX3DV3 - SN3514; ConvF(3.86, 3.86, 3.86); Calibrated: 2010/1/26 - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2009/9/18 - Phantom: ELI 4.0; Type: QDOVA001BA; Serial: 1029 - Measurement SW: DASY5, V5.0 Build 125; SEMCAD X Version 13.4 Build 125 Ch104/Area Scan (31x51x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.532 mW/g Ch104/Zoom Scan (8x8x8)/Cube 0: Measurement grid: dx=4.3mm, dy=4.3mm, dz=3mm Reference Value = 4.27 V/m; Power Drift = 0.132 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.378 mW/g; SAR(10 g) = 0.200 mW/g Maximum value of SAR (measured) = 0.618 mW/g 0 dB = 0.618mW/g SPORTON INTERNATIONAL INC. Page Number : C1 of C1 TEL : 886-3-327-3456 Report Issued Date : Mar. 18, 2010 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : RAX-WN8522B65 FCC SAR Test Report Report No. : FA022550 Appendix C. DASY Calibration Certificate The DASY calibration certificates are shown as follows. SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORTON INTERNATIONAL INC. Calibration Certificate of DASY SPORT…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C FCC ID RAX-WN8522B65 Statement Test result included is only for the 802.11n, 802.11b/g part and 802.11a (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Product Name 802.11n Dual Band WLAN Adapter Brand Name Arcadyan Model Name WN8522B Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz / 5725 ~ 5850MHz Received Date Feb. 25, 2010 Final Test Date Mar. 17, 2010 Submission Type Original Equipment Report No.: FR022550AB Report Format Version: 01 Page No. : i of ii FCC ID: RAX-WN8522B65 Issued Date : Mar. 19, 2010 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................5 3.3. Table for Filed Antenna.......................................................................................................................................................................6 3.4. Table for Carrier Frequencies .............................................................................................................................................................7 3.5. Table for Test Modes ...........................................................................................................................................................................8 3.6. Table for Testing Locations..................................................................................................................................................................9 3.7. Table for Supporting Units ...................................................................................................................................................................9 3.8. Table for Parameters of Test Software Setting ...................................................................................................................................10 3.9. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 13 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................13 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................17 4.3. Power Spectral Density Measurement ..............................................................................................................................................29 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................37 4.5. Radiated Emissions Measurement ....................................................................................................................................................46 4.6. Band Edge Emissions Measurement .................................................................................................................................................72 4.7. Antenna Requirements .....................................................................................................................................................................84 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 85 6. TEST LOCATION.............................................................................................................................................. 86 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 87 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B6 Report No.: FR022550AB Report Format Version: 01 Page No. : ii of ii FCC ID: RAX-WN8522B65 Issued Date : Mar. 19, 2010 History of This Test Report Origin…

Text truncated - open the document above for the full version.

Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 1 of 6 Appendix B. Test Photos Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 2 of 6 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 3 of 6 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 4 of 6 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 5 of 6 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR022550 FCC ID: RAX-WN8522B65 Page No. : 6 of 6 SIDE VIEW
