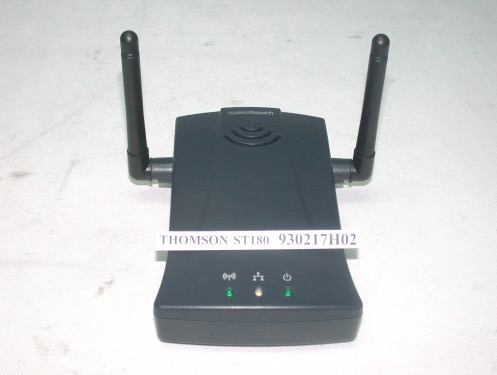

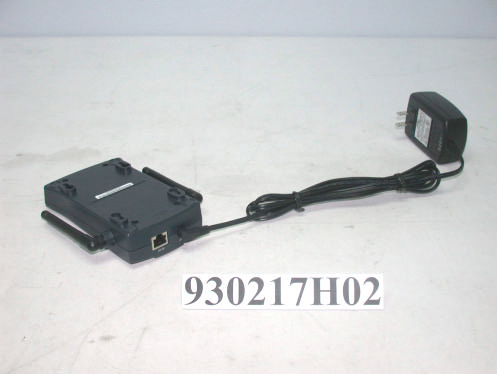

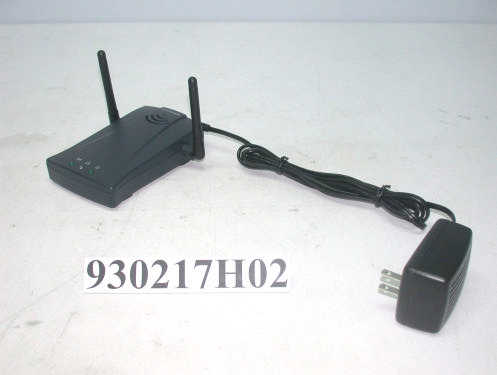

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: RAXWA4001AARC LABEL LOCATION Label

58 3 0

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8

FCC ID: RAXWA4001AARC Report No. 920909H01B Operational Description This device is a SpeedTouch 180 Wireless Access Point, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (SpeedTouch 180 Wireless Access Point) is powered by power adapter. The antenna type used in this product is Dipole Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: RAXWA4001AARC Report No. 920909H01B 1 RF EXPOSURE REPORT REPORT NO.:RF920909H01B MODEL NO.:ST180 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: RAXWA4001AARC Report No. 920909H01B 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAXWA4001AARC Report No. 920909H01B 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWA4001AARC Report No. 920909H01B 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 1.5dBi or 1.41 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: FOR DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241287.0960.02451.0 6243789.1250.02501.0 11246289.1250.02501.0 FOR OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241270.7950.01991.0 62437141.2540.03971.0 11246267.6080.01901.0

Report No. 920909H01B 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100037May. 06, 2004 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 920909H01B 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 920909H01B 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 920909H01B 4 Ch1 Report No. 920909H01B 5 Ch11 Report No. 920909H01B 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 920909H01B 7 Ch1 Report No. 920909H01B 8 Ch11

FCC ID: RAXWA4001AARC Report No.: RF920909H01B1 Issued: Mar. 23, 2004 FCC TEST REPORT REPORT NO.: RF920909H01B MODEL NO.: ST180 RECEIVED: Feb. 17, 2004 TESTED: Mar. 12 to 13, 2004 APPLICANT:Arcadyan Technology Corporation ADDRESS:4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 58 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: RAXWA4001AARC Report No.: RF920909H01B2 Issued: Mar. 23, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST SETUP .............................................................................................. 10 4.1.4EUT OPERATING CONDITIONS.................................................................11 4.1.5TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 22 4.36dB BANDWIDTH MEASUREMENT .......................................................... 25 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 FCC ID: RAXWA4001AARC Report No.: RF920909H01B3 Issued: Mar. 23, 2004 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 4.4.6TEST RESULTS- DSSS.............................................................................. 37 4.4.7TEST RESULTS- OFDM ............................................................................. 37 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 38 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 38 4.5.2TEST INSTRUMENTS ................................................................................ 38 4.5.3TEST PROCEDURE ................................................................................... 39 4.5.4TEST SETUP .............................................................................................. 39 4.5.5EUT OPERATING CONDITIONS................................................................ 39 4.5.6TEST RESULTS-DSSS............................................................................... 40 4.5.7TEST RESULTS-OFDM .............................................................................. 44 4.6BAND EDGES MEASUREMENT ................................................................ 48 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 48 4.6.2TEST INSTRUMENTS ................................................................................ 48 4.6.3TEST PROCEDURE ................................................................................... 48 4.6.4EUT OPERATING CONDITION…

Text truncated - open the document above for the full version.

FCC ID: RAXWA4001AARC Report No.: RF920909H01B56 Issued: Mar. 23, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWA4001AARC Report No.: RF920909H01B57 Issued: Mar. 23, 2004 RADIATED EMISSION TEST
