RAXWA4001C802.11g Wireless Repeater

Philips Model Name: SNR6500 Arcadyan Model Name: WA4001C-LF-B7 Wireless Repeater 11g True Turbo Quick Installation Guide Contents A BOUT THE Wireless Repeater Congratulations on your purchase of the IEEE 802.11g Wireless Router. The SNR6500 is a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. LED Indicators The IEEE 802.11g Wireless Repeater includes status LED indicators, as described in the following figure and table. LED Status Description Power On The Wireless Repeater is receiving power. Modem/PC On The WAN link is connected. Wireless On The Wireless LAN is enabled. Flashing The Wireless Repeater is transmitting or receiving traffic via a wireless connection. Features and Benefits • Local network connection via 10/100 Mbps Ethernet ports or 54 Mbps wireless interface • IEEE 802.11g Compliant – interoperable with multiple vendors • Advanced security through 64/128-bit WEP encryption, 802.1x, SSID broadcast disabled, and MAC address filtering features to protect your sensitve data and authenticate only authorized users to your network • Provides seamless roaming within 802.11g WLAN environment • DHCP for dynamic IP configuration, and DNS for domain name mapping • Firewall with Stateful Packet Inspection, client privileges, hacker prevention, DoS, and NAT • NAT also enables multi-user access with a single-user account, and virtual server functionality such as web, mail, FTP, and Telnet • Virtual Private Network support using PPTP, L2TP, or IPSec pass-through, ISP permitting • Parental controls allow the user to restrict web browsing • Automatic email alerts when the network is being attacked • Easy setup through a web browser on any operating system that supports TCP/IP • Compatible with all popular Internet applications I NSTALLING THE Wireless Repeater Before installing the Wireless Repeater, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local distributor. Also be sure that you have all the necessary cabling before installing the Wireless Repeater. After installing the Wireless Repeater, refer to the web-based configuration program in “Configuring the IEEE 802.11g Wireless Repeater” on page 20 for information on configuring the Wireless Repeater. Package Contents After unpacking the Wireless Repeater, check the contents of the box to be sure you have received the following components: • IEEE 802.11g Wireless Repeater • Power adapter • One CAT-5 Ethernet cable • Installation CD containing the User Guide and installation wizard • Quick Installation Guide Hardware Description The Wireless Repeater can be connected to the Internet or to a remote site using its WAN port. It can be connected directly to your PC or to a local area network using any of the Fast Ethernet LAN ports. Although access speed to the Internet is determined by your service type and the modem type connected to the Wireless Router, data passing between the devices connected to your local area network can run up to 100 Mbps over the Fast Enternet ports. The Wireless Repeater includes an LED display on the front panel for system power and port indications that simplifies installation and network troubleshooting. It also provides four RJ-45 LAN ports and one RJ-45 WAN port on the rear panel. • Four Ethernet ports for connection to a 10BASE-T/ 100BASE-TX Ethernet Local Area Network (LAN). These ports can auto-negotiate the operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X (i.e., allowing these ports to be connected to any network device with straight-through cable). These ports can be connected directly to a PC or to a server equipped with an Ethernet network interface card, or to a networking device such as an Ethernet hub or switch. • One RJ-45 port for connection to a DSL or cable modem (WAN). This port also auto-negotiates operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X. The following figure shows the components of the Wireless Figure 1. Front and Rear Panels System Requirements • Internet access from your local telephone company or Internet Service Provider (ISP) using a DSL modem or cable modem. • A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a gateway server address and DNS server address from your service provider. • A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or a USB-to-Ethernet converter. • TCP/IP network protocol installed on each PC that needs to access the Internet. • A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above, Firefox 1.0 or Mozilla 1.7 installed on one PC at your site for configuring the Wireless Repeater. Connect the System The Wireless Repeater can be positioned at any convenient location in your office or home. No special wiring or cooling requirements are needed. You should, however comply with the following guidelines: • Keep the Wireless Repeater away from any heating devices. • Do not place the Wireless Repeater in a dusty or wet environment. You should also remember to turn off the power, remove the power cord from the outlet, and keep your hands dry when you install the Wireless Repeater. Basic Installation Procedure 1. Connect the LAN: Connect the Wireless Repeater to your PC, or to a hub or switch. Run Ethernet cable from one of the LAN ports on the rear of the Wireless Repeater to your computer’s network adapter or to another network device. You may also connect the Wireless Repeater to your PC (using a wireless client adapter) via radio signals. 2. Connect the WAN: Use an Ethernet cable for connecting the Wireless Repeater to a cable/xDSL modem or Ethernet router. 3. Power on: Connect the power adapter to the Wireless Router. Attach to Your Network Using Ethernet Cabling Use twisted-pair cable to connect any of the four LAN ports on the Wireless Repeater to an Etherne…

Text truncated - open the document above for the full version.

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan 1/1 Date: 03/ 31 / 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAXWA4001C Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Simon Liu / Manager Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan TEL: 886.3.505.1719 FAX: 886.3.563.7325 E-mail: [email protected]

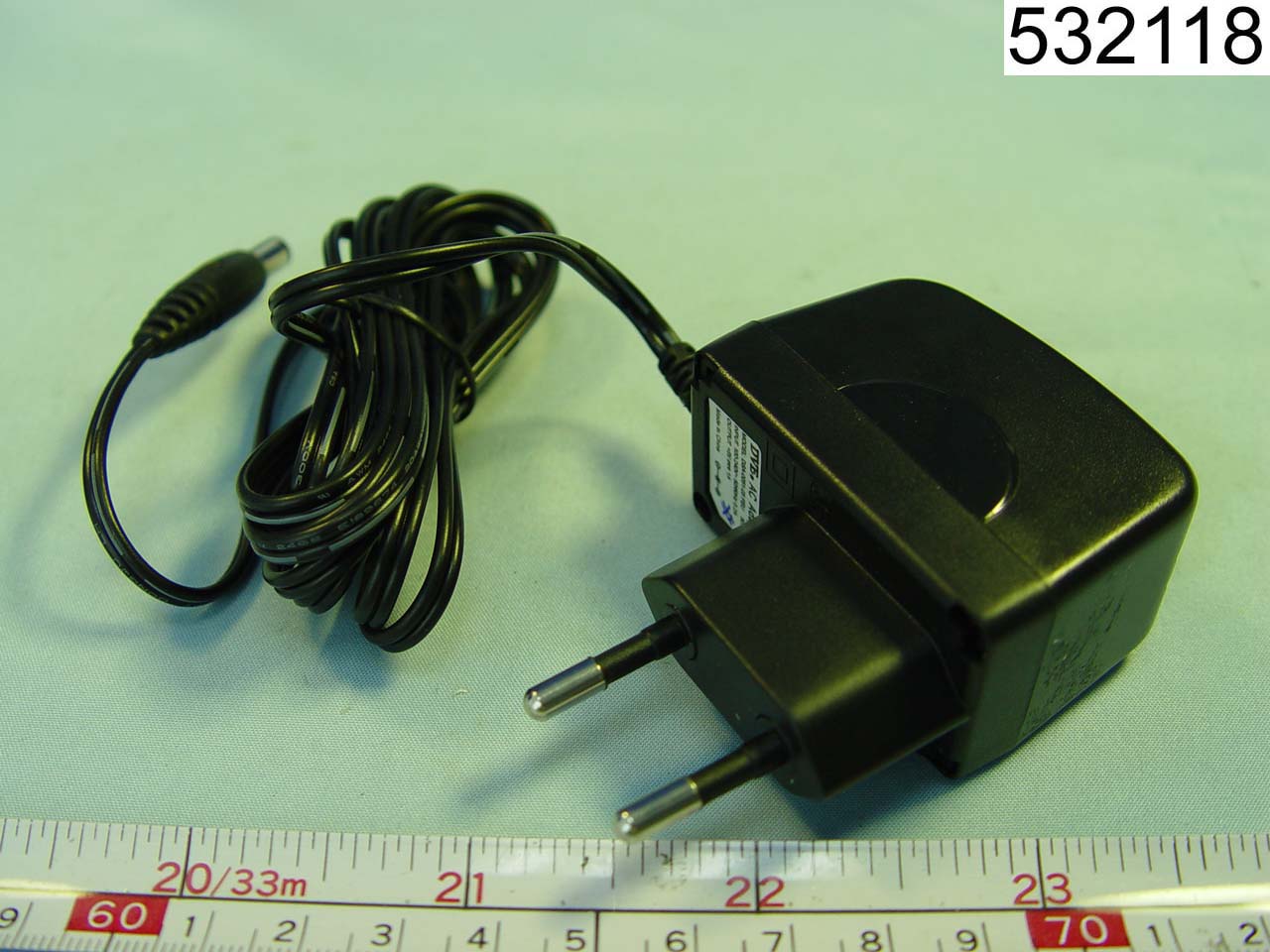

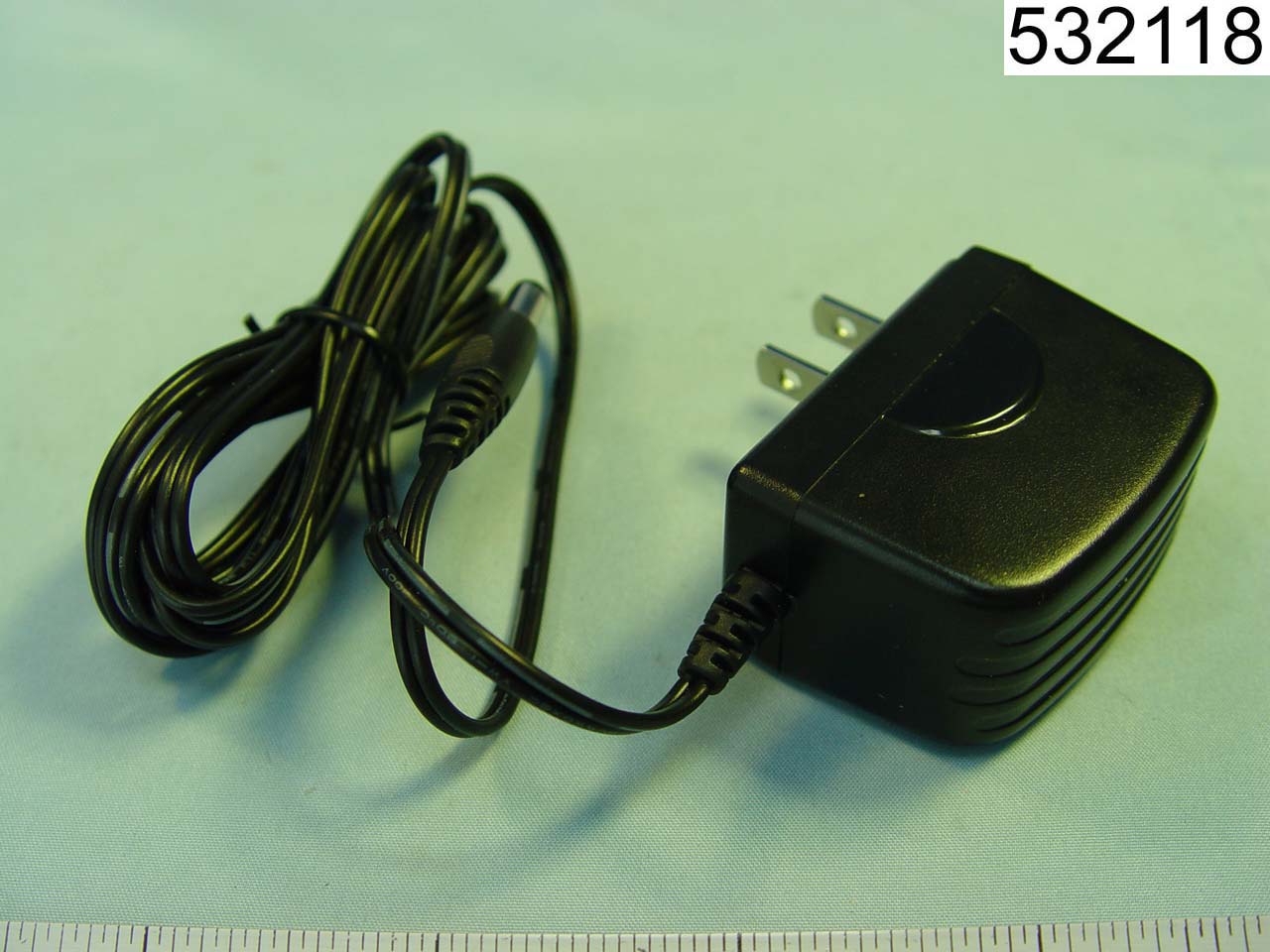

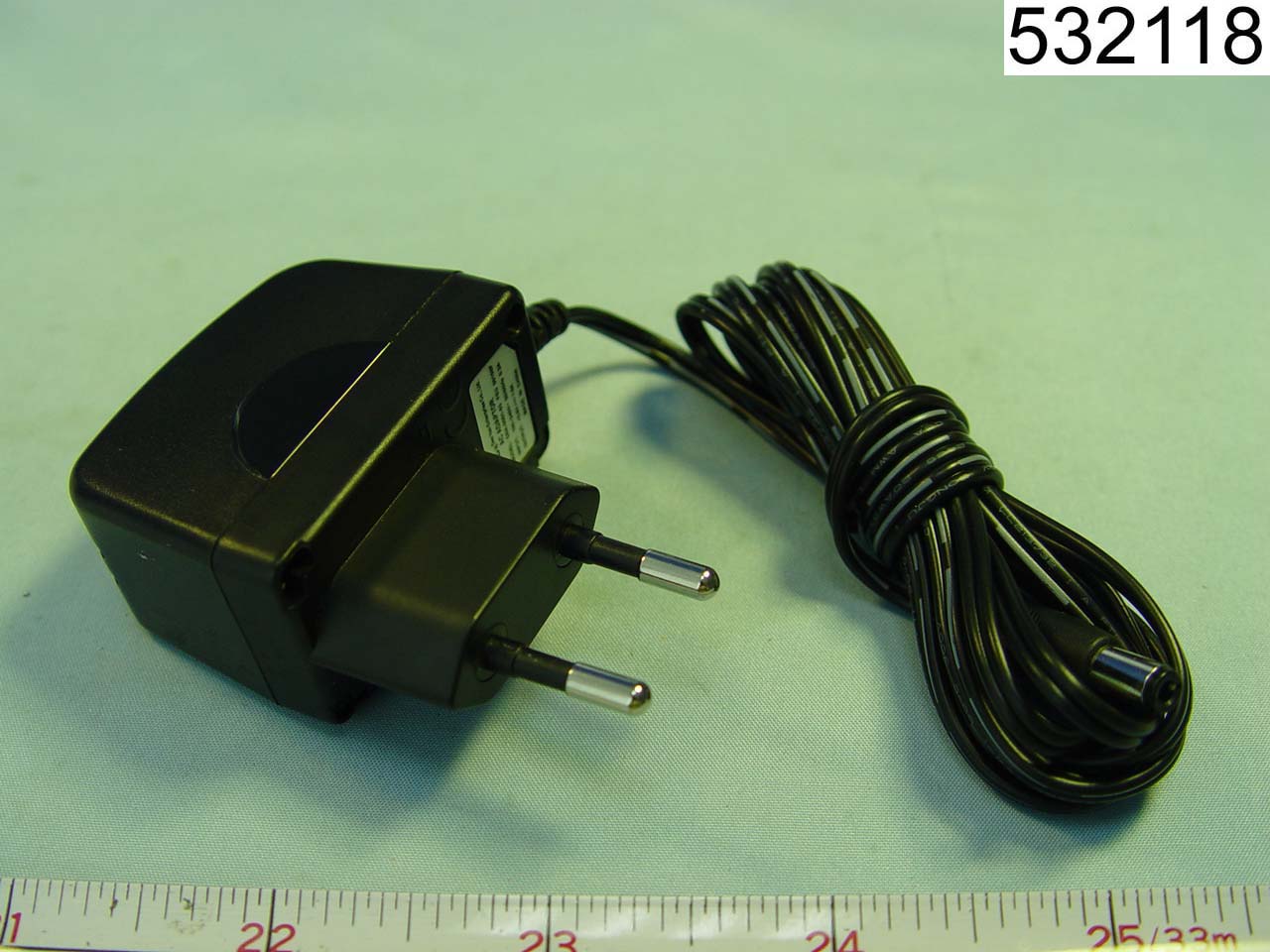

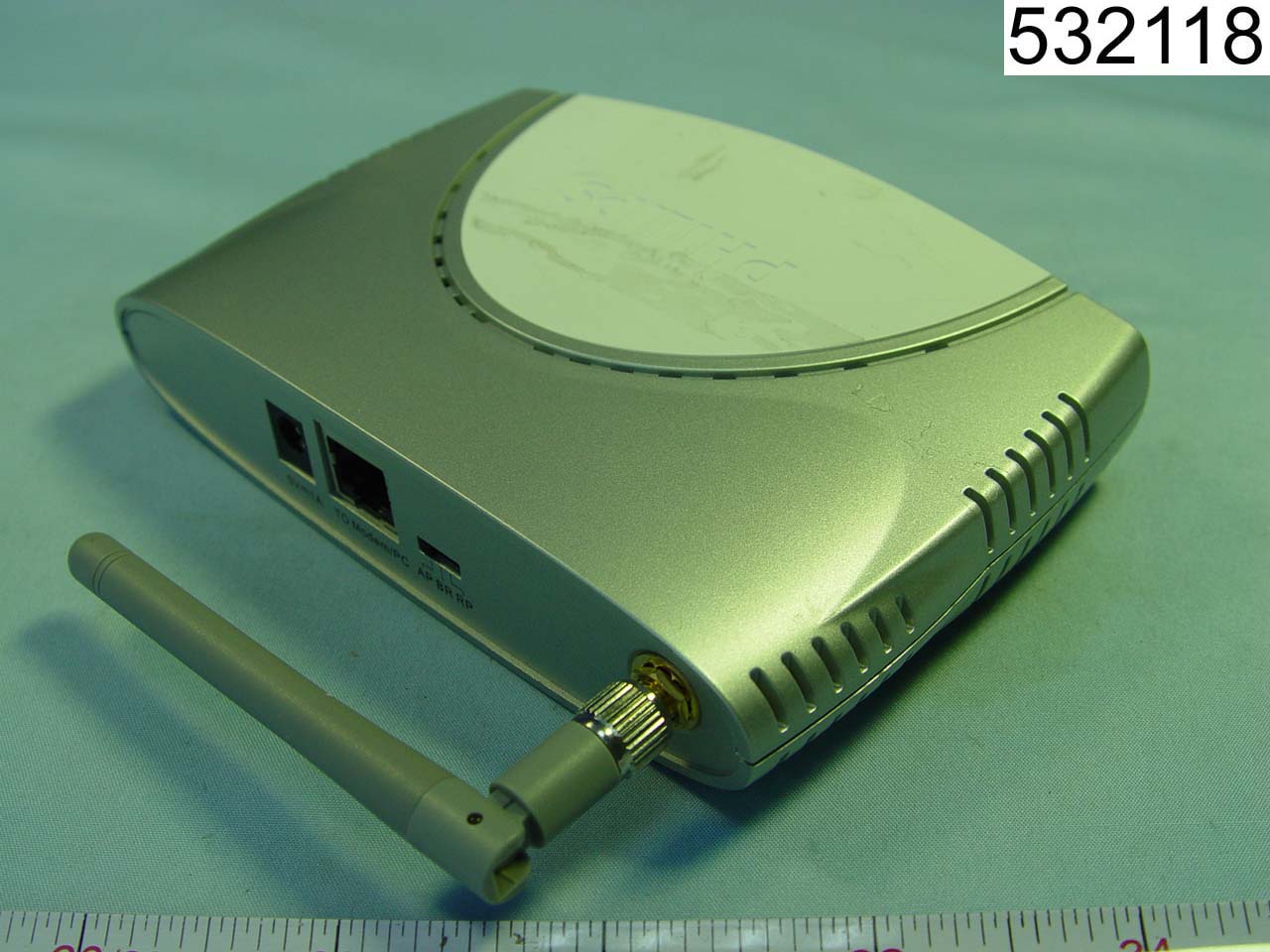

FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A1 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT External FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A2 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A3 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A4 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A5 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A6 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A7 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A8 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A9 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A10 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A11 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A12 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A13 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A14 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : A15 OF A15 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255

Label

FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B3 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B4 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR532118 SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 30, 2005 FAX : 886-2-2696-2255

Document No.: 532118 RF Exposure Test Report Date: Apr. 01, 2005 FCC ID: RAXWA4001C Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Arcadyan Technology Corporation SNR6500 Equipment : Wireless Repeater 11g True Turbo Trade Name : Philips Model No. : SNR6500 FCC ID : RAXWA4001C Filing Type : Certification Applicant : Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Par, Hsinchu 300, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 532118 RF Exposure Test Report Date: Apr. 01, 2005 FCC ID: RAXWA4001C Sporton International Inc. Maximum Permissible Exposure Test Report for SNR6500 1.0 Introduction The report has been prepared on behalf of Arcadyan Technology Corporation SNR6500 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Arcadyan Technology Corporation SNR6500 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 532118 RF Exposure Test Report Date: Apr. 01, 2005 FCC ID: RAXWA4001C Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Wireless Repeater 11g True Turbo is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 532118 RF Exposure Test Report Date: Apr. 01, 2005 FCC ID: RAXWA4001C Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². 801.11b Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm ²) Channel 01 1.50 1.41 17.84 60.81 0.0171 1.00 Channel 06 1.50 1.41 17.69 58.75 0.0165 1.00 Channel 11 1.50 1.41 17.12 51.52 0.0145 1.00 802.11g Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm ²) Channel 01 1.50 1.41 17.44 55.46 0.0156 1.00 Channel 06 1.50 1.41 18.14 65.16 0.0183 1.00 Channel 06 (Turbo) 1.50 1.41 17.99 62.95 0.0177 1.00 Channel 11 1.50 1.41 17.20 …

Text truncated - open the document above for the full version.

SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : i Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................4 2.4 Ancillary Equipment List.................................................................................................................................................................4 3. RF Utility ...........................................................................................................................................................5 4. General Information of Test............................................................................................................................6 4.1 Test Voltage ...................................................................................................................................................................................6 4.2 Standard for Methods of Measurement..........................................................................................................................................6 4.3 Test in Compliance with .................................................................................................................................................................6 4.4 Frequency Range Investigated ......................................................................................................................................................6 4.5 Test Distance .................................................................................................................................................................................6 5. Test Data and Test Result...............................................................................................................................7 5.1 List of Measurements and Examinations .......................................................................................................................................7 5.2 6dB Bandwidth Measurement ........................................................................................................................................................8 5.3 Power Spectral Density Measurement .........................................................................................................................................17 5.4 Band Edges Measurement...........................................................................................................................................................26 5.5 Peak Output Power Measurement ...............................................................................................................................................34 5.6 Conducted Emission Measurement .............................................................................................................................................36 5.7 Radiated Emission Measurement ................................................................................................................................................41 5.8 Antenna Requirements ................................................................................................................................................................53 6. List of Measuring Equipments Used ...........................................................................................................54 7. Uncertainty Evaluation..................................................................................................................................55 Appendix A. Photographs of EUT External Appendix B. Photographs of EUT Internal Appendix C. Photographs of Setup SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : ii Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 History of this test report Original Report Issue Date: Mar. 30, 2005 No additional attachment. Additional attachment were issued as following record: Attachment No.Issue Date Description SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 1 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR53211…

Text truncated - open the document above for the full version.

SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 36 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 5.6 Conducted Emission Measurement 5.6.1 Measuring Instruments As described in chapter 6 of this test Report. 5.6.2 Test Procedures a. The EUT was placed 0.4 meter from the conducting wall of the shielding room was kept at least 80 centimeters from any other grounded conducting surface. b. Connect EUT to the power port of the line impedance stabilization network (LISN). c. All the support units are connect to the other LISN. d. The LISN provides 50 ohm coupling impedance for the measuring instrument. e. The FCC states that a 50 ohm, 50 microhenry LISN should be used. f. Both sides of AC line were checked for maximum conducted interference. g. The frequency range from 150 kHz to 30 MHz was searched. h. Set the test-receiver system to Peak Detect Function and specified bandwidth with Maximum Hold Mode. SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 37 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 5.6.3 Test Data 5.4.1 Frequency Range of Test : 150kHz to 30 MHz ‚ Test Mode : Mode 1 ‚ Temperature : 26°C ‚ Relative Humidity : 53% The test that passed at minimum margin was marked by the frame in the following table. SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 38 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 Test Engineer : Jay SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 39 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 5.4.2 Frequency Range of Test : 150kHz to 30 MHz ‚ Test Mode : Mode 2 ‚ Temperature : 26°C ‚ Relative Humidity : 53% The test that passed at minimum margin was marked by the frame in the following table. LEADER SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 40 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 Test Engineer : Jay LEADER SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 41 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 5.7 Radiated Emission Measurement 5.7.1 Measuring Instruments As described in chapter 6 of this Report. 5.7.2 Test Procedures 1. The EUT was placed on a rotatable table top 0.8 meter above ground. 2. The EUT was set 3 meters from the interference receiving antenna which was mounted on the top of a variable height antenna tower. 3. The table was rotated 360 degrees to determine the position of the highest radiation. 4. The antenna is a broadband antenna and its height is varied between one meter and four meters above ground to find the maximum value of the field strength for both horizontal polarization and vertical polarization of the antenna. 5. For each suspected emission, the EUT was arranged to its worst case and then tune the antenna tower (from 1 m to 4 m) and turntable (from 0 degree to 360 degrees) to find the maximum reading. 6. Set the test-receiver system to Peak or CISPR quasi-peak Detect Function and specified bandwidth with Maximum Hold Mode. 7. For testing below 1GHz, If the emission level of the EUT in peak mode was 3 dB lower than the limit specified, then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be repeated one by one using the quasi-peak method and reported. 8. For testing above 1GHz, the emission level of the EUT in peak mode was 20dB lower than average limit (that means the emission level in average mode also complies with the limit in average mode), then testing will be stopped and peak values of EUT will be reported, otherwise, the emissions will be measured in average mode again and reported. 5.7.3 Typical Test Setup Layout of Radiated Emission Antenna 0.8 M EUT 3 m TurnTable Ground Plane Spectrum Analyzer / Test Receiver 1~4m SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 42 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 5.7.4 Test Data ‚ Temperature : 25°C ‚ Relating Humidity : 60 ‚ Test Enginner : Jay ‚ Test Mode : Mode 1 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #4 and #5 Fundamental Signal ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: # 3 and #4 Fundamental Signal SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 43 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 ‚ Test Mode : Mode 2 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 44 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 45 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 ‚ Test Mode : Mode 3 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. SPORTON International Inc. FCC ID : RAXWA4001C TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 46 of 56 Issued Date : Mar. 30, 2005 FCC TEST REPORT Report No. : FR532118 ‚ Test Mode : Mode 4 ‚ Polarization : Horizontal T…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : FR532118 SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Issued Date : Mar. 30, 2005 FAX : 886-2-2696-2255 Conducted Emission FRONT VIEW REAR VIEW Appendix C. Set up Photograph FCC TEST REPORT Report No. : FR532118 SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Issued Date : Mar. 30, 2005 FAX : 886-2-2696-2255 SIDE VIEW FCC TEST REPORT Report No. : FR532118 SPORTON International Inc. Page No. : C3 of C3 TEL : 886-2-2696-2468 Issued Date : Mar. 30, 2005 FAX : 886-2-2696-2255 Radiation Emission FRONT VIEW REAR VIEW
