RAXWA4001CBWLAN ACCESS POINT

User Manual F5D7233 Share your hotel broadband Internet connection Wireless G Travel Router ����� �������� ������� ������� �� � � ������ ����� ������ � ����� �������� �������������� Table of Contents 3 1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Advantages of a Wireless Network . . . . . . . . . . . . . . . . . . . . . . . . . 1 Placement of your Router for Optimal Performance. . . . . . . . . . . . . 2 2. Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3. Knowing your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Package Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Product Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 4. Connecting and Configuring your Router . . . . . . . . . . . . . . . . . . . . . 12 Router Mode Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Adapter Mode Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Access Point Mode Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 5. Using the Web-Based Advanced User Interface . . . . . . . . . . . . . . . . 20 Logging into the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Logging out of the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Setting your Connection Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Setting Custom Domain Name Server (DNS) Settings . . . . . . . . . . 30 Configuring your WAN Media Access Controller (MAC) Address . . 30 Viewing LAN Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Changing LAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Viewing the DHCP Client List Page . . . . . . . . . . . . . . . . . . . . . . . . 35 Configuring the Wireless Network Settings . . . . . . . . . . . . . . . . . . 36 Securing your Wi-Fi Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 WEP Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 Changing the Wireless Security Settings . . . . . . . . . . . . . . . . . 44 WPA Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 WPA/WPA2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45 Utilities Tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Restarting the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 Updating the Firmware. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 6. Manually Configuring Network Settings . . . . . . . . . . . . . . . . . . . . . 62 7. Recommended Web Browser Settings . . . . . . . . . . . . . . . . . . . . . . . 64 8. Using the Access Point Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 9. Using the Adapter Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67 10. Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 11. Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 Thank you for purchasing the Belkin Wireless G Travel Router (the Router). Please be sure to read through this User Manual completely, and pay special attention to the section entitled “Placement of your Router for Optimal Performance” on page 2. Advantages of a Wireless Network • Mobility – you no longer need a dedicated “computer room”—now you can work on a networked laptop or desktop computer anywhere within your wireless range • Easy installation– The Belkin Easy Installation Wizard makes setup simple • Flexibility– set up and access printers, computers, and other networking devices from anywhere in your home • Easy expansion– the wide range of Belkin networking products let you expand your network to include devices such as printers and gaming consoles • No cabling required– you can spare the expense and hassle of retrofitting Ethernet cabling throughout the home or office • Widespread industry acceptance– choose from a wide range of interoperable networking products Introduction 2 1 3 4 5 6 7 8 9 10 11 section 1 2 IntroductionIntroduction Placement of your Router for Optimal Performance Important Factors for Placement and Setup Your wireless connection will be stronger the closer your computer is to your Router. Typical indoor operating range for wireless devices is between 100 and 200 feet. In the same way, your wireless connection and performance will degrade somewhat as the distance between your Router and connected devices increases. This may or may not be noticeable to you. As you move farther from your Router, connection speed may decrease. Factors that can weaken signals simply by getting in the way of your network’s radio waves are metal appliances or obstructions, and walls. If you have concerns about your network’s performance that might be related to range or obstruction factors, try moving the computer to a position between five and 10 feet away from the Router in order to see if distance is the problem. If difficulties persist even at close range, please contact Belkin Technical Support. Note:While some of the items listed below can affect network performance, they will not prohibit your wireless network from functioning; if you are concerned that your network is not operating at its maximum effectiveness, this checklist may help. 1.Wireless Router Placement Place your Router, the central connection point of your network, as close as possible to the center of your wireless network devices. To achieve the best wireless net…

Text truncated - open the document above for the full version.

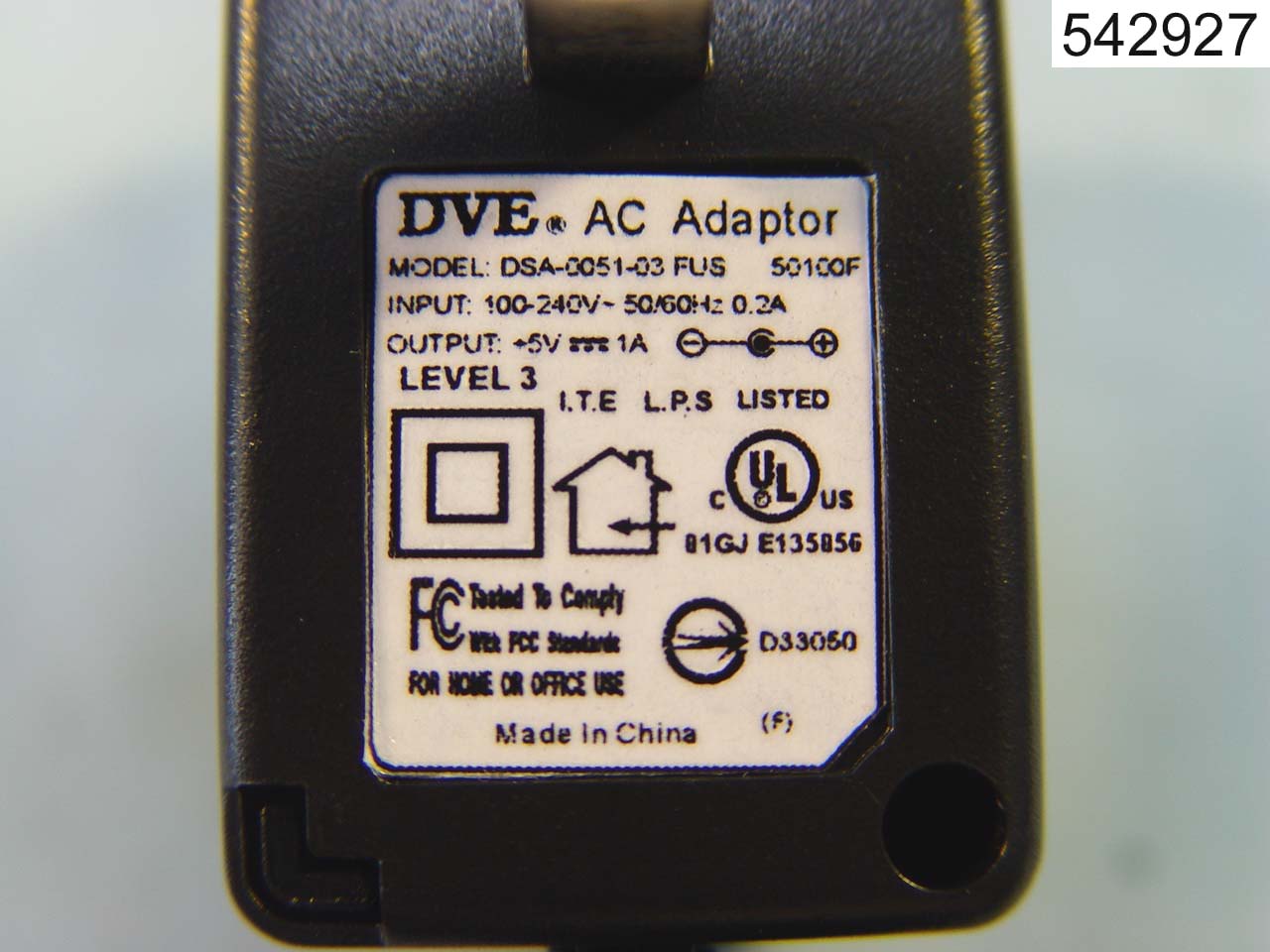

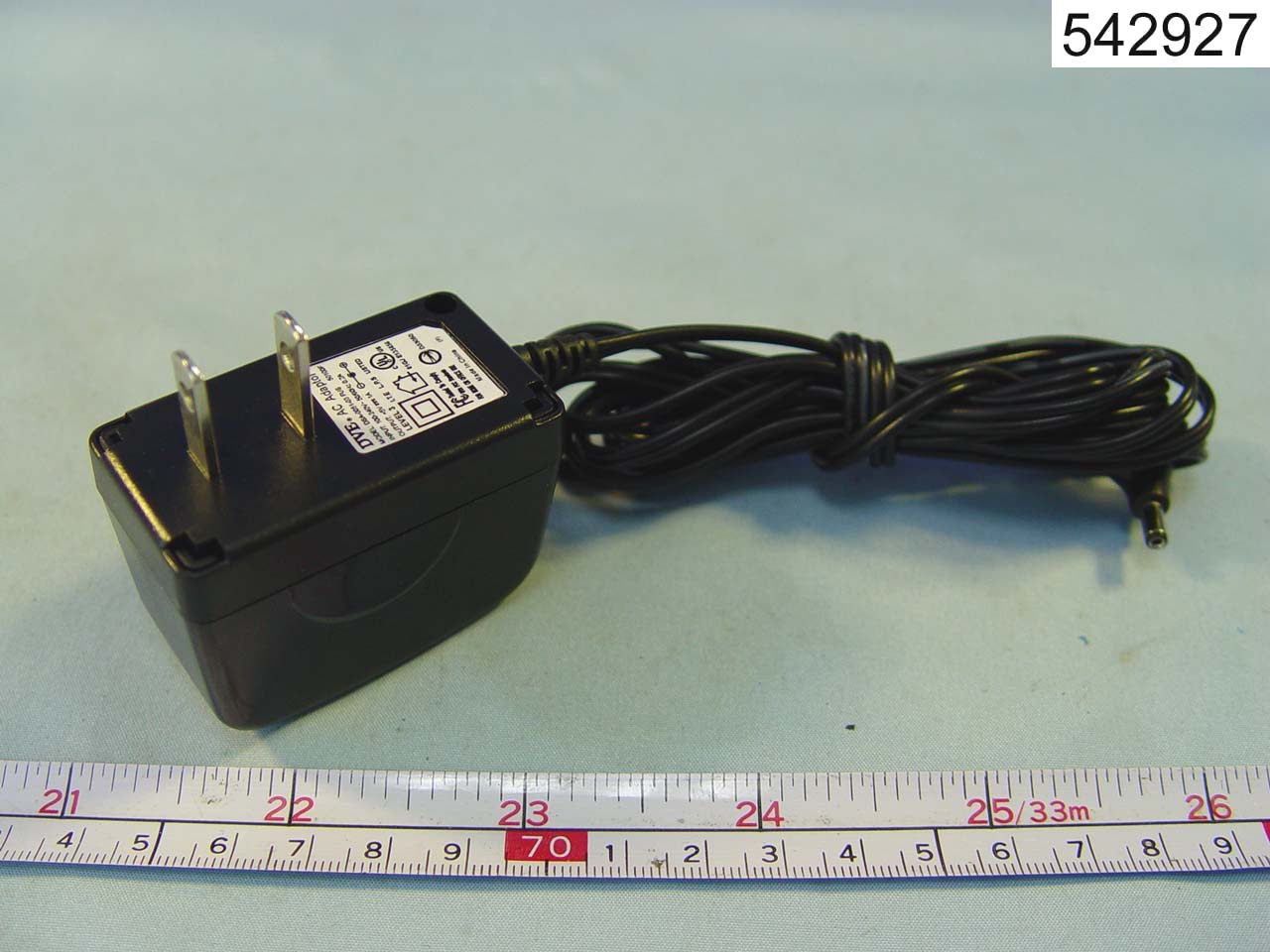

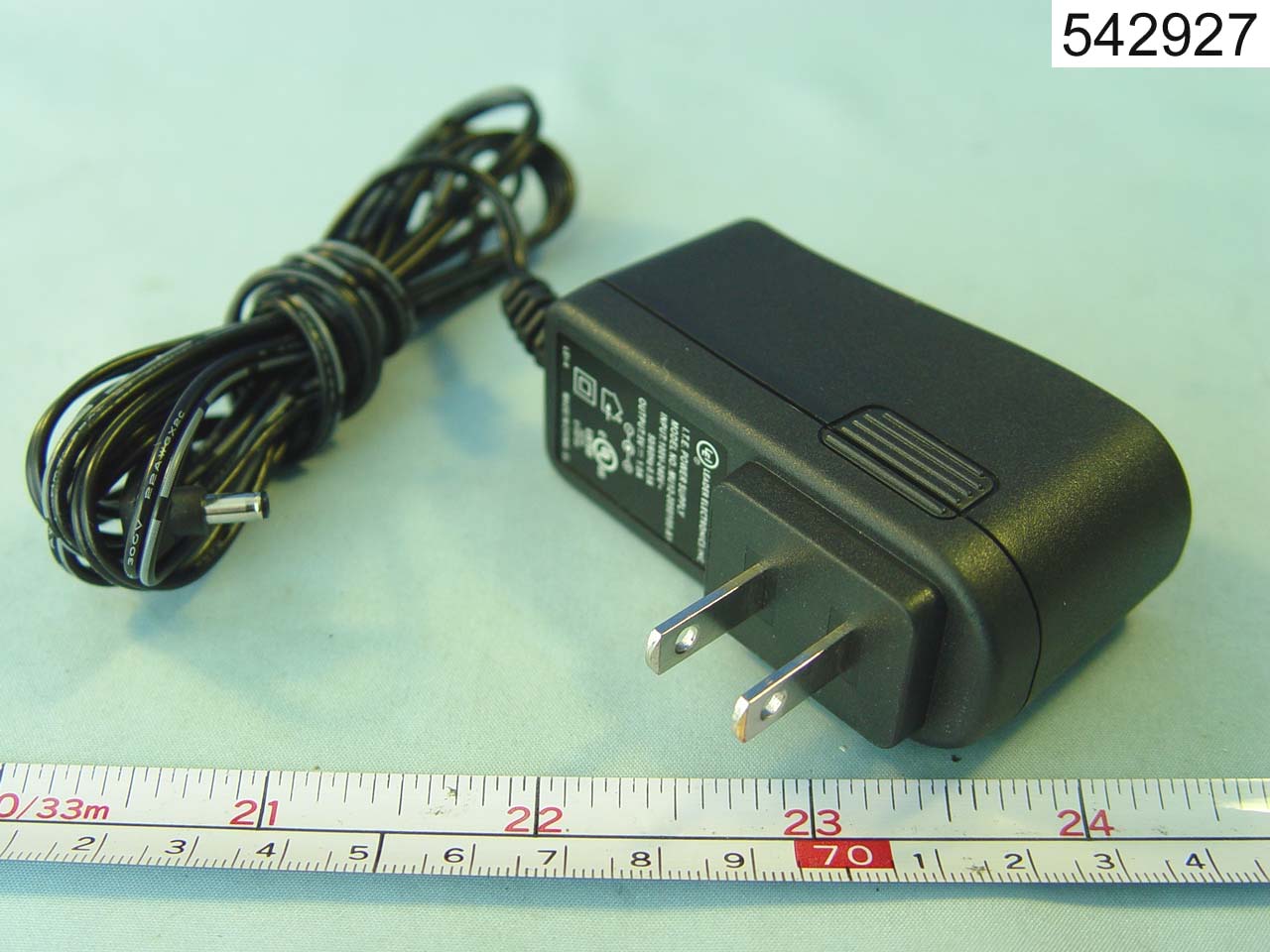

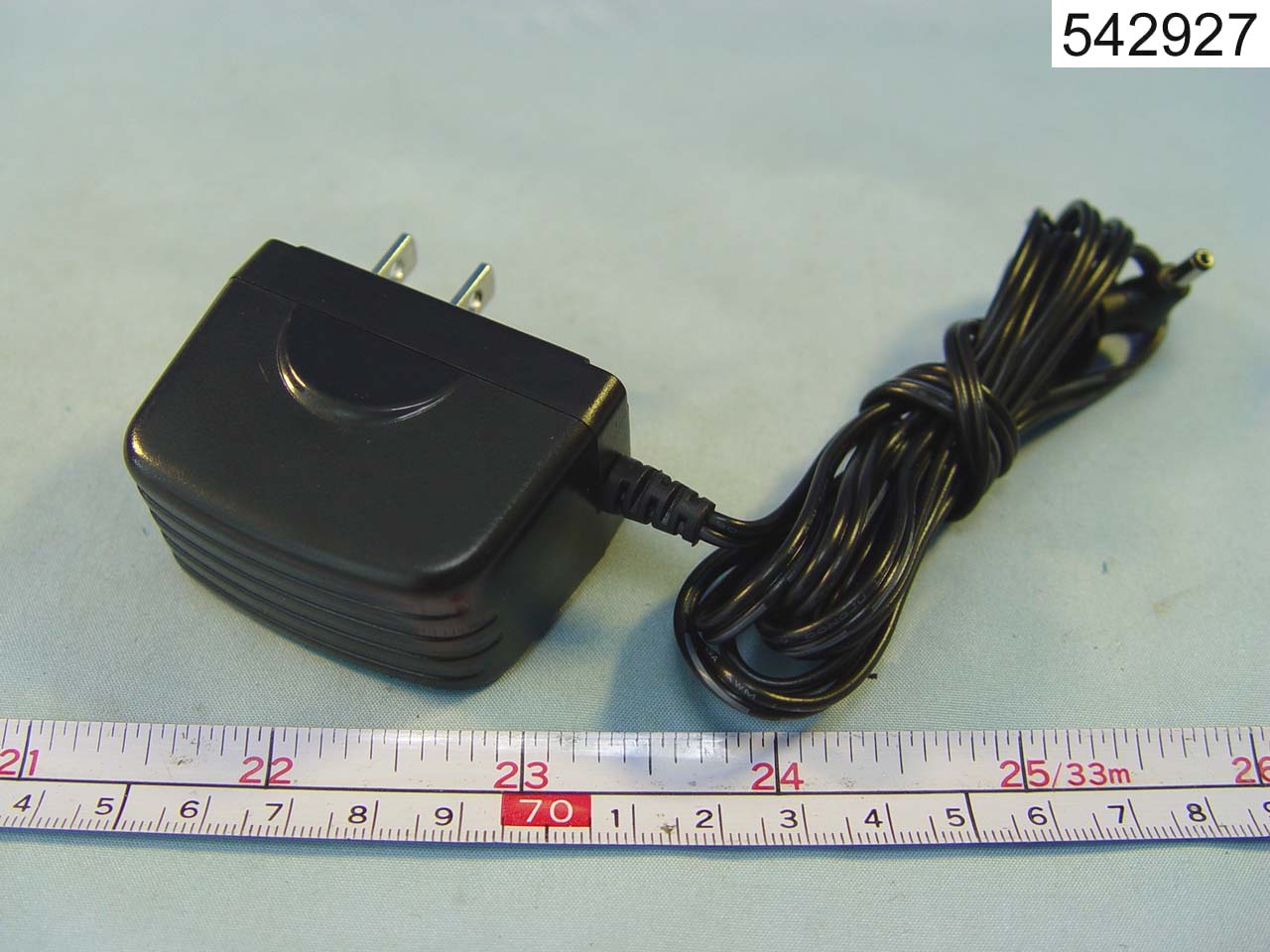

16 Connecting and Configuring your RouterConnecting and Configuring your Router Adapter Mode Installation 1. Mode Selecting Adapter Mode1. Mode Selecting Adapter Mode 1.1 Select “Adapter Mode”, then click “Next”. 1.2Move the center of the switch on the back panel to align with the word “Adapter”. Click “Next”. 2. Connect Connecting the Cables. Connect 2.1 Connect one end of the included Ethernet cable to the Router (which is now functioning in Adapter Mode) and the other end into your PC’s RJ45 port. Next, plug the included USB power cable into the Router with the USB end in the PC’s USB port, or plug the included power supply into the Router and then into a wall outlet. Click “Next”. Connecting and Configuring your Router 17 section 2 1 3 4 5 6 7 8 9 10 11 2.2 Check to make sure that the Ethernet and Power LEDs on the front of the Router are on. Click “Next” to go to the Router’s home page on the Web. 3.1 Wirelessly connect to a network from the “Available Networks” window. Select a network by clicking “Join” and then “Connect”. The status window will tell you the current status of the network to which the Router is currently connected. Click “Next”. Note: If you do not see the page pictured here once you have established a connection with the Router, pRouter, pRouterlease refer to the “Using the Adapter Mode” section in this manual on page 67. 3.2 Your installation is now complete. However, if you would like to set up any advanced features (such as security features), you may click the “Advanced Features” button or type “192.168.2.225” into the navigation bar of your web browser. 3. Configure Configuration for Adapter Mode. Configure 18 Connecting and Configuring your RouterConnecting and Configuring your Router Access Point Mode Installation 1. Mode Selecting the Access Point Mode1. Mode Selecting the Access Point Mode 1.1 Select “Access Point Mode”. Click “Next”. 1.2Move the center of the switch on the back panel to align with the word “AP”. Click “Next”. 2. Connect Connecting the Cables. Connect 2.1 Connect one end of the included Ethernet cable to the Router (which is now functioning in Access Point Mode) and the other end to a cable/DSL modem. Next, plug the included power supply into the Router and click “Next”. Connecting and Configuring your Router 19 section 2 1 3 4 5 6 7 8 9 10 11 2.2 From your PC, wirelessly connect to the Router using your PC’s built-in wireless card or external wireless adapter. The network name (SSID) of the Router is “Belkin Traveler”. Once you have wirelessly connected, click “Next”. 3.1 Once you have established a connection with the Router, your installation is complete. However, if you would like to set up any advanced features (such as security features), you may click the “Advanced Features” button or type “192.168.2.254” into the navigation bar of your web browser. 3. Configure Configuration for Access Point Mode. Configure 20 Using the Web-Based Advanced User Interface The Web-Based Advanced User Interface is a web-based tool that you can use to set up the Router if you don’t want to use the Easy Install Wizard. You can also use it to manage advanced Router functions. From the Web-Based Advanced User Interface window, you can perform the following tasks: • View the Router’s current settings and status • Configure the Router to connect to your ISP with the settings that they provided you • Change current network settings such as the internal IP address, the IP address pool, DHCP settings, and more • Set the Router’s firewall to work with specific applications via port forwarding • Set up security features such as client restrictions, MAC address filtering, WEP, and WPA • Enable the DMZ feature for a single computer on your network • Change the Router’s internal password • Enable/disable UPnP (Universal Plug-and-Play) • Reset the Router • Back up your configuration settings • Reset the Router’s default settings • Update the Router’s firmware You can access the Router’s Web-Based Advanced User Interface using your Internet browser. In the navigation bar of your browser, type “192.168.2.1” (you do not need to type in “http://” or “www”). Press the “Enter” key. PLEASE NOTE: If you have difficulty accessing the Router’s Web-Based Advanced User Interface, go to the section of this User Manual entitled “Manually Configuring Network Settings”. Logging into the Router You will see the Router’s home page in your browser window. The home page is visible to any user who wants to see it. To make any changes to the Router’s settings, you have to log in. Clicking the “Login” button or clicking on any one of the links on the home page Using the Web-Based Advanced User Interface 21 section 2 1 3 4 5 6 7 8 9 10 11 will take you to the login screen. The Router ships with no password. In the login screen, leave the password field blank and click “Submit” to log in. Logging out of the Router One computer at a time can log into the Router to make changes to Router settings. Once a user has logged in to make changes, there are two ways that the computer can be logged out. The first is to click the “Logout” button. The second method is automatic. The login will time out after a specified period of time. The default login time-out is 10 minutes. This can be changed to any period of time from 1 to 99 minutes. For more information, see the section in this manual entitled “Login Time-Out”. 22 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Using the Web-Based Advanced User Interface The home page is the first page you will see when you access the Web-Based Advanced User Interface (UI). The home page provides a quick view of the Router’s status and settings. All advanced setup pages can be reached from this page. 1. Quick-Navigation Links You can go directly to any of the Router’s UI pages by clicking directly on these links. The links are divided into logical categories and grouped by tabs to make finding a particular setting easier to …

Text truncated - open the document above for the full version.

26 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Setting your ISP Connection Type to PPPoE Most DSL providers use PPPoE as the connection type. If you use a DSL modem to connect to the Internet, your ISP may use PPPoE to log you into the service. If you have an Internet connection in your home or small office that doesn’t require a modem, you may also use PPPoE. Your connection type is PPPoE if: 1) Your ISP gave you a user name and password, which is required to connect to the Internet; 2) Your ISP gave you software such as WinPOET or Enternet300 that you use to connect to the Internet; or 3) You have to double-click on a desktop icon other than your browser to get on the Internet. (2) (1) (3) (4) (5) Using the Web-Based Advanced User Interface 27 section 2 1 3 4 5 6 7 8 9 10 11 1. User Name This space is provided to type in your user name that was assigned by your ISP. 2. Password Type in your password and re-type it into the “Retype Password” box to confirm it. 3. Service Name A service name is rarely required by an ISP. If you are not sure if your ISP requires a service name, leave this blank. 4. MTU The MTU setting should never be changed unless your ISP gives you a specific MTU setting. Making changes to the MTU setting can cause problems with your Internet connection including disconnection from the Internet, slow Internet access, and problems with Internet applications working properly. 5. Maximum Idle Time The “Maximum Idle Time” feature is used to automatically disconnect the Router from your ISP when there is no activity for a specified period of time. For instance, placing a check mark next to this option and entering “5” into the minute field will cause the Router to disconnect from the Internet after five minutes of no Internet activity. This option should be used if you pay for your Internet service by the minute. 28 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Setting your Internet Service Provider (ISP) Connection Type to Point-to-Point Tunneling Protocol (PPTP) [European Countries Only]. Some ISPs require a connection using PPTP protocol, a type of connection most common in European countries. This sets up a direct connection to the ISP’s system. Type in the information provided by your ISP in the space provided. When you have finished, click “Apply Changes” (8). After you apply the changes, if your Router is set up properly, the “Internet Status” indicator will read “Connected”. 1. IP Address Provided by your ISP. Enter the IP address here. 2. Subnet Mask Provided by your ISP. Enter your subnet mask here. 3. Default Gateway Provided by your ISP. Enter your default gateway here. 4. User ID Provided by your ISP. Enter your PPTP account name here. (1) (2) (3) (4) (5) (6) (7) (8) Using the Web-Based Advanced User Interface 29 section 2 1 3 4 5 6 7 8 9 10 11 5. Password Type your password here. Then retype it into the “Retype Password” box. 6. PPTP Default Gateway Provided by your ISP. Enter your service IP address here. 7. Idle Time Out The “Maximum Idle Time” feature is used to automatically disconnect the Router from your ISP when there is no activity for a specified period of time. For instance, if you place a check mark next to this option and enter “5” into the minute field, the Router will disconnect from the Internet after five minutes of no Internet activity. This option should be used if you pay for your Internet service by the minute. This feature also allows you to select “manual connect”, “auto connect”, and “keep session” options. 30 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Setting Custom Domain Name Server (DNS) Settings A “Domain Name Server” is a server located on the Internet that translates Universal Resource Locators (URLs) like “www.belkin.com” into IP addresses. Many Internet Service Providers (ISPs) do not require you to enter this information into the Router. The “Automatic from ISP” box (1) should be checked if your ISP did not give you a specific DNS address. If you are using a static IP connection type, then you may need to enter a specific DNS address and secondary DNS address for your connection to work properly. If your connection type is dynamic or PPPoE, it is likely that you do not have to enter a DNS address. Leave the “Automatic from ISP” box checked. To enter the DNS address settings, uncheck the “Automatic from ISP” box and enter your DNS entries in the spaces provided. Click “Apply Changes” (2) to save the settings. Configuring your WAN Media Access Controller (MAC) Address All network components including cards, adapters, and routers, have a unique “serial number” called a MAC address. Your Internet Service Provider may record the MAC address of your computer’s adapter and only let that particular computer connect to the Internet service. When you install the Router, its own MAC address will be “seen” by the ISP and may cause the connection not to work. Belkin has provided the ability to clone (copy) the MAC address of the computer into the Router. This MAC address, in turn, will be seen by the ISP’s (2) (1) Using the Web-Based Advanced User Interface 31 section 2 1 3 4 5 6 7 8 9 10 11 system as the original MAC address and will allow the connection to work. If you are not sure whether your ISP needs to see the original MAC address, simply clone the MAC address of the computer that was originally connected to the modem. Cloning the address will not cause any problems with your network. Cloning your MAC Address To clone your MAC address, make sure that you are using the computer that was ORIGINALLY CONNECTED to your modem before the Router was installed. Click the “Clone” button (1). Click “Apply Changes”(3). Your MAC address is now cloned to the Router. Entering a Specific MAC Address In certain circumstances you may need a specific WAN MAC address. You can manually enter one in the “MAC Address” page. Type in…

Text truncated - open the document above for the full version.

38 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 128-Bit WEP As a result of 64-bit WEP’s potential security weaknesses, a more secure method of 128-bit encryption was developed. 128-bit encryption includes a key length of 104 bits plus 24 additional bits of system-generated data (128 bits total). Some hardware manufacturers refer to 128-bit as 104-bit encryption. Most of the new wireless equipment in the market today supports both 64-bit and 128-bit WEP encryption, but you might have older equipment that only supports 64-bit WEP. All Belkin wireless products will support both 64-bit and 128-bit WEP. Encryption Keys After selecting either the 64-bit or 128-bit WEP encryption mode, it is critical that you generate an encryption key. If the encryption key is not consistent throughout the entire wireless network, your wireless networking devices will be unable to communicate with one another on your network and you will not be able to successfully communicate within your network. You can enter your key by typing in the hex key manually, or you can type in a passphrase in the “Passphrase” field and click “Generate” to create a key. A hex (hexadecimal) key is a combination of numbers and letters from A–F and 0–9. For 64-bit WEP, you need to enter 10 hex keys. For 128-bit WEP, you need to enter 26 hex keys. For instance: AF 0F 4B C3 D4 = 64-bit WEP key C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key The WEP passphrase is NOT the same as a WEP key. Your Router uses this passphrase to generate your WEP keys, but different hardware manufacturers might have different methods on generating the keys. If you have multiple vendors’ equipment in your network, the easiest thing to do is to use the hex WEP key from your Router or access point and enter it manually into the hex WEP key table in your Router’s configuration screen. Using the Web-Based Advanced User Interface 39 section 2 1 3 4 5 6 7 8 9 10 11 WPA (Wi-Fi Protected Access) WPA (Wi-Fi Protected Access) is a new Wi-Fi standard that was designed to improve upon the security features of WEP. To use WPA security, the drivers and software of your wireless equipment must be upgraded to support WPA. These updates will be found on the wireless vendor’s website. There are two types of WPA security, WPA-PSK (no server) and WPA (with radius server). WPA-PSK (no server) uses what is known as a pre-shared key as the network key. A network key is basically a password that is between eight and 63 characters long. It can be a combination of letters, numbers, or characters. Each client uses the same network key to access the network. Typically, this is the mode that will be used in a home environment. For a list of Belkin wireless products that support WPA, please visit our website at www.belkin.com/networking. 40 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Sharing the Same Network Keys Most Wi-Fi products ship with security turned off. So once you have your network working, you need to activate WEP or WPA and make sure your wireless networking devices are sharing the same network key. Using the Web-Based Advanced User Interface 41 section 2 1 3 4 5 6 7 8 9 10 11 Using a Hexadecimal Key A hexadecimal key is a combination of numbers and letters from A–F and 0–9. 64-bit keys are five two-digit numbers. 128-bit keys are 13 two-digit numbers. For instance: AF 0F 4B C3 D4 = 64-bit key C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit key In the boxes below, make up your key by writing in two characters between A–F and 0–9 in each box. You will use this key to program the encryption settings on your Router and your wireless computers. 42 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface WEP Setup 64-Bit WEP Encryption 1. Select “64-bit WEP” from the drop-down menu. 2. After selecting your WEP encryption mode, you can enter your key by typing in the hex key manually, or you can type a passphrase in the “Passphrase” field and click “Generate” to create a key. A hex (hexadecimal) key is a combination of numbers and letters from A–F and 0–9. For 64-bit WEP, you need to enter 10 hex keys. For instance: AF 0F 4B C3 D4 = 64-bit WEP key 3.Click “Apply Changes”. Encryption in the Router is now set. Each of the computers on your wireless network will now need to be configured with the same security settings. WARNING: If you are configuring the Wireless G Travel Router or access point from a computer with a wireless client, you will need to ensure that security is turned ON for this wireless client. If this is not done, your client will lose its wireless connection. Using the Web-Based Advanced User Interface 43 section 2 1 3 4 5 6 7 8 9 10 11 128-Bit WEP Encryption 1. After selecting your WEP encryption mode, you can enter your key by typing in the hex key manually, or you can type a passphrase in the “Passphrase” field and click “Generate” to create a key. A hex (hexadecimal) key is a combination of numbers and letters from A–F and 0–9. For 128-bit WEP, you need to enter 26 hex keys. For instance: C3 03 0F AF 0F 4B B2 C3 D4 4B C3 D4 E7 = 128-bit WEP key 2. Click “Apply Changes”. Encryption in the Router is now set. Each of the computers on your wireless network will now need to be configured with the same security settings. WARNING: If you are configuring the Wireless G Travel Router or access point from a computer with a wireless client, you will need to ensure that security is turned ON for this wireless client. If this is not done, your client will lose its wireless connection. 44 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Changing the Wireless Security Settings Your Router is equipped with WPA (Wi-Fi Protected Access), the latest wireless security standard. It also supports the legacy security standard, WEP (Wired Equivalent Privacy). By default, wireless security is disabled. To enable security, you m…

Text truncated - open the document above for the full version.

Using the Web-Based Advanced User Interface 51 section 2 1 3 4 5 6 7 8 9 10 11 5. For a home or small business user, select “WPA-PSK” under “Network Authentication”. Note: Select “WPA” if you are using this computer to connect to a corporate network that supports an authentication server such as a radius server. Please consult your network administrator for further information. 6. Select “TKIP” or “AES” under “Data Encryption”. This setting will have to be identical to the Router that you set up. 7. Type in your encryption key in the “Network key” box. Important: Enter your pre-shared key. This can be from eight to 63 characters and can be letters, numbers, or symbols. This same key must be used on all of the clients that you set up. 8. Click “OK” to apply settings. 52 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Utilities Tab This screen lets you manage different parameters of the Router and perform certain administrative functions. Using the Web-Based Advanced User Interface 53 section 2 1 3 4 5 6 7 8 9 10 11 Restarting the Router Sometimes it may be necessary to restart or reboot the Router if it begins working improperly. Restarting or rebooting the Router will NOT delete any of your configuration settings. Restarting the Router to Restore Normal Operation 1. Click the “Restart Router” button. 2. The following message will appear. Click “OK”. 3. The following message will appear. Restarting the Router can take up to 25 seconds. It is important not to turn off the power to the Router during the restart. 4. A 25-second countdown will appear on the screen. When the countdown reaches zero, the Router will be restarted. The Router’s home page should appear automatically. If not, type in the Router’s address (default = 192.168.2.1) into the navigation bar of your browser. 54 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Restoring Factory Default Settings Using this option will restore all of the settings in the Router to the factory (default) settings. It is recommended that you back up your settings before you restore all of the defaults. 1. Click the “Restore Defaults” button. 2. The following message will appear. Click “OK”. 3. The following message will appear. Restoring the defaults includes restarting the Router. It can take up to 25 seconds. It is important not to turn the power to the Router off during the restart. 4. A 25-second countdown will appear on the screen. When the countdown reaches zero, the Router’s defaults will be restored. The Router’s home page should appear automatically. If it does not, type in the Router’s address (default = 192.168.2.1) into the navigation bar of your browser. Using the Web-Based Advanced User Interface 55 section 2 1 3 4 5 6 7 8 9 10 11 Saving a Current Configuration You can save your current configuration by using this feature. Saving your configuration will allow you to restore it later if your settings are lost or changed. It is recommended that you back up your current configuration before performing a firmware update. 1. Click “Save”. A window called “File Download” will open. Click “Save”. 2. A window will open that allows you to select the location where you want to save the configuration file. Select a location. You can name the file anything you want, or use the default name “Config”. Be sure to name the file so you can locate it yourself later. When you have selected the location and name of the file, click “Save”. 56 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface 3. When the save is complete, you will see the following window. Click “Close”. The configuration is now saved. Restoring a Previous Configuration This option will allow you to restore a previously saved configuration. 1. Click “Browse”. A window will open that allows you to select the location of the configuration file. All configuration files end with a “.bin”. Locate the configuration file you want to restore and double-click on it. Using the Web-Based Advanced User Interface 57 section 2 1 3 4 5 6 7 8 9 10 11 2. You will be asked if you want to continue. Click “OK”. 3. A reminder window will appear. It will take up to 35 seconds for the configuration restoration to complete. Click “OK”. 4. A 35-second countdown will appear on the screen. When the countdown reaches zero, the Router’s configuration will be restored. The Router’s home page should appear automatically. If not, type in the Router’s address (default = 192.168.2.1) into the navigation bar of your browser. 58 Using the Web-Based Advanced User InterfaceUsing the Web-Based Advanced User Interface Updating the Firmware From time to time, Belkin may release new versions of the Router’s firmware. Firmware updates contain feature improvements and fixes to problems that may exist. When Belkin releases new firmware, you can download the firmware from the Belkin update website and update your Router’s firmware to the latest version. Searching for a New Version of Firmware From http://www.belkin.com/support/downloads.asp, type in the Belkin part number “F5D7233” on the “Search” field. Click “Search”. From the results page, click “F5D7233 Firmware update - North America”. Using the Web-Based Advanced User Interface 59 section 2 1 3 4 5 6 7 8 9 10 11 Downloading a New Version of Firmware You will now be taken to the download page of “F5D7233 Firmware update - North America”. 1. To download the new version of firmware, click the download logo (). 2. A window will open that allows you to select the location where you want to save the firmware file. Select a location. You can name the file anything you want, or use the default name. Be sure to save the file in a place where you can locate it yourself later. Note: We suggest saving this to your desktop to make it easy to locate the file. When you have selected the location, click “Save”. 60 Using the Web-Based Advanced User InterfaceUsing the Web-Based Adva…

Text truncated - open the document above for the full version.
