RAXWA8001AACWireless Joey Access Point

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Tel: 886-3-578-7000 / Fax: 886-3-563-7325 Ad Hoc Mode Function Declaration Date: 2013/12/18 FCC ID：RAXWA8001AAC To whom it may concern: We, Arcadyan Technology Corporation, declare that the EUT (Model Name: Wireless Joey Access Point) doesn’t have Ad Hoc function on “non-US/ Canada frequencies” and/or “on DFS frequencies”. In non-associated mode, that software and associated drivers will not initiate any transmission on DFS frequencies. This includes transmissions for beacon ad-hoc peer-to-peer modes. Sincerely, FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Signature : Name and Job Title : simon_liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

Echostar Technologies L.L.C. 90 Inverness Circle East Englewood, CO 80112 (303) 706-5234 January 3, 2014 Arcadyan Technology Corporation 4F., No. 9, Park Avenue II Hsinchu Science Park Hsinchu 300 Taiwan, 30075 To whom it may concern- Echostar Technologies L.L.C. as a customer of Arcadyan Technology Corporation authorize Arcadyan Technology Corporation to manufacture the following: - Brand Name: Echostar - Product Name: Wireless Joey Access Point - Model Name: Wireless Joey Access Point Sincerely - Ian Schroeder Regulatory Compliance Engineer Echostar Technologies L.L.C. 303-706-5234 [email protected]

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Tel: 886-3-578-7000 / Fax: 886-3-563-7325 Confidential Letter Date: 2013/12/18 Federal Communications Commission Authorization and Evaluation Division FCC ID：RAXWA8001AAC Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Signature : Name and Job Title : simon_liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Tel: 886-3-578-7000 / Fax: 886-3-563-7325 Power of Attorney Date: 2013/12/18 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: EchoStar / Wireless Joey Access Point FCC ID: RAXWA8001AAC Product name: Wireless Joey Access Point FCC Grantee contact person information. Applicant’s company name : Arcadyan Technology Corporation Applicant’s company address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan Signature : Name and Job Title : simon_liu / Manager E-Mail : [email protected] Tel. : 886-3-578-7000

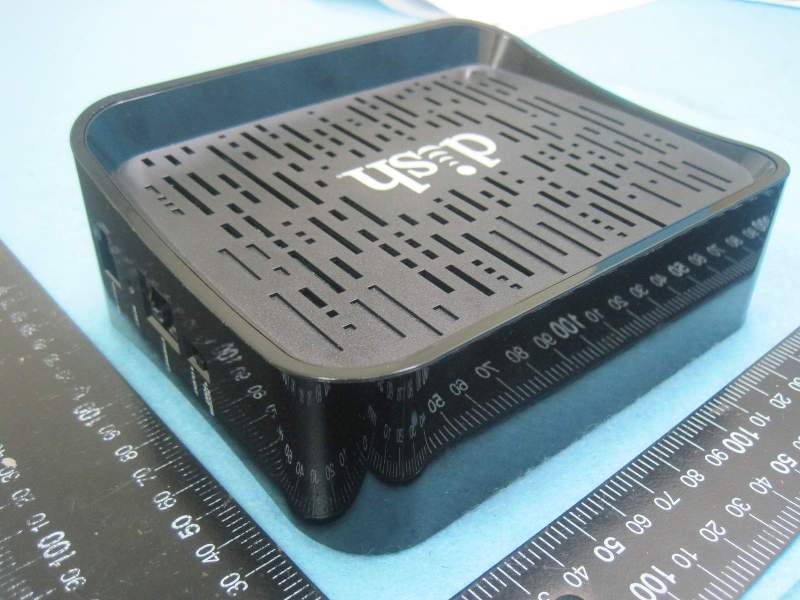

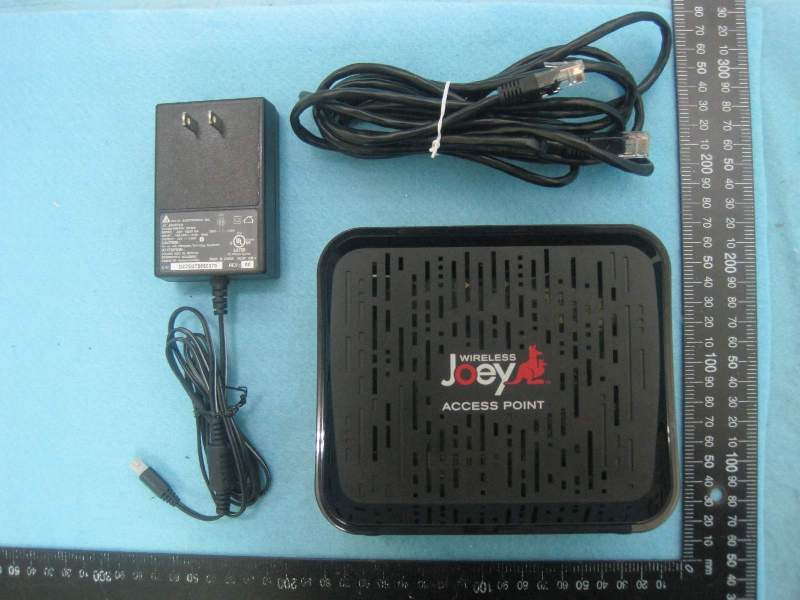

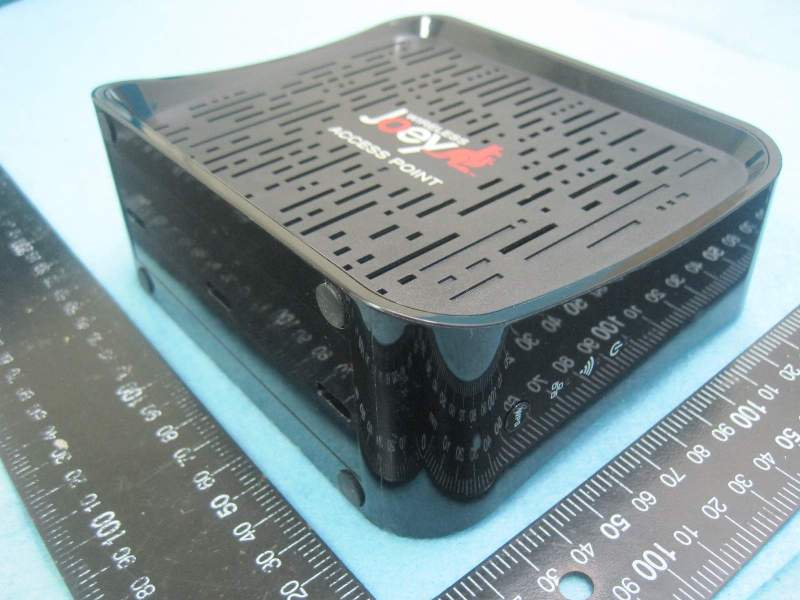

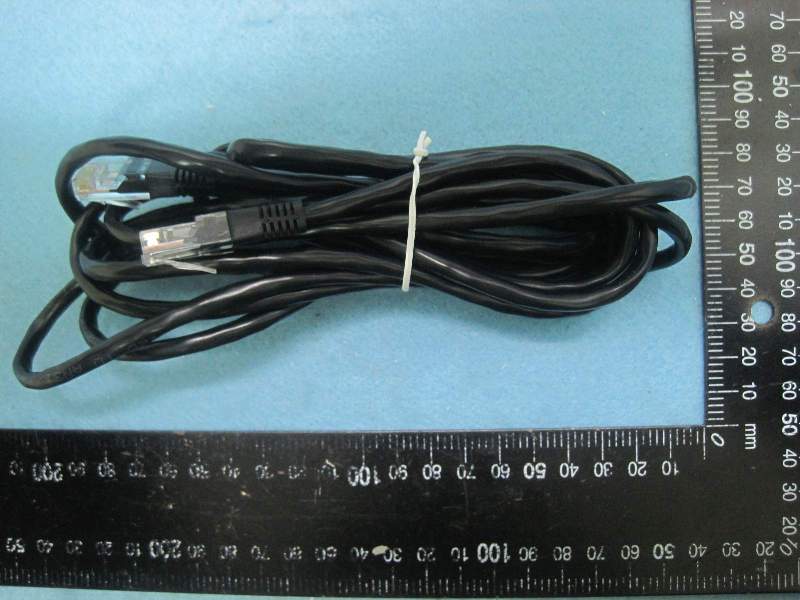

Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A1 OF A5 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A2 OF A5 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A3 OF A5 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Power Adapter Model No.: ADP-18DW BA Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A4 OF A5 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A5 OF A5 TEL : 886-3-327-3456 FAX : 886-3-327-0973 RJ-45 Cable

Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A1 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 APPENDIX A. Photographs of EUT Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A2 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A3 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A4 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A5 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A6 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A7 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973 Report No.: 3D1013 SPORTON International Inc. PAGE NUMBER : A8 OF A8 TEL : 886-3-327-3456 FAX : 886-3-327-0973

Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Average RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP   From the EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : C3 of C3 1.3. Calculated Result and Limit For 5GHz UNII Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 20MHz: 16.42 dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.47 4.4373 16.4153 43.8059 0.038690 1 Complies Note: Directional gain=GANT+10log(NANT/Nss) For 5GHz ISM Band: Antenna Type : PCB Antenna Max Conducted Power for IEEE 802.11ac MCS0, Nss1 40MHz: 29.32 dBm Directional Gain (dBi) Antenna Gain (numeric) Average Output Power (dBm) Average Output Power (mW) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 6.47 4.4373 29.3192 854.9160 0.755084 1 Complies Note: Directional gain=GANT+10log(NANT/Nss)

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park Hsinchu 300, Taiwan FCC ID RAXWA8001AAC Manufacturer’s company Arcadyan Technology Corporation Manufacturer Address 4F, No.9, Park Avenue II, Science-based Industrial Park Hsinchu 300, Taiwan Product Name Wireless Joey Access Point Brand Name EchoStar Model No. Wireless Joey Access Point Test Rule Part(s) 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 5725 ~ 5850MHz Received Date Dec. 10, 2013 Final Test Date Jan. 01, 2014 Submission Type Original Equipment Statement Test result included is only for the IEEE 802.11n and IEEE 802.11a/ac (5725 ~ 5850MHz) of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.10-2009, 47 CFR FCC Part 15 Subpart C, KDB 558074 D01 v03r01 and KDB 662911 D01 v02. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR3D1013AA Report Format Version: 01 Page No. : i of ii FCC ID: RAXWA8001AAC Issued Date : Jan. 07, 2014 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................4 3.3. Table for Filed Antenna.......................................................................................................................................................................5 3.4. Table for Carrier Frequencies .............................................................................................................................................................5 3.5. Table for Test Modes ...........................................................................................................................................................................6 3.6. Table for Testing Locations..................................................................................................................................................................7 3.7. Table for Supporting Units ...................................................................................................................................................................7 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................8 3.9. EUT Operation during Test ...................................................................................................................................................................8 3.10. Duty Cycle ..........................................................................................................................................................................................9 3.11. Test Configurations ...........................................................................................................................................................................11 4. TEST RESULT ................................................................................................................................................... 14 4.1. AC Power Line Conducted Emissions Measurement.........................................................................................................................14 4.2. Maximum Conducted Output Power Measurement .........................................................................................................................18 4.3. Power Spectral Density Measurement ..............................................................................................................................................21 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................32 4.5. Radiated Emissions Measurement ....................................................................................................................................................37 4.6. Emissions Measurement ....................................................................................................................................................................52 4.7. Antenna Requirements .....................................................................................................................................................................65 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 66 6. MEASUREMENT UNCERTAINTY..........................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : B1 of B5 Appendix B. Test Photos Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : B2 of B5 1. Photographs of Conducted Emissions Test Configuration Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : B3 of B5 2. Photographs of Radiated Emissions Test Configuration Test Configuration: 9kHz ~30MHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : B4 of B5 Test Configuration: 30MHz~1GHz / Test Mode: Mode 1 FRONT VIEW REAR VIEW Report No.: FR3D1013 FCC ID: RAXWA8001AAC Page No. : B5 of B5 Test Configuration: Above 1GHz FRONT VIEW REAR VIEW
