RAXWG4005DARCOfficeConnect Wireless 11g Cable/DSL Router

http://www.3com.com/ Part No. DUA0554-TAAA01 Rev. 01 Published June 2004 OfficeConnect ® 11g Cable/DSL Router User Guide 3CRWE554G72T 3CRWE554G72TU 3Com Corporation 5500 Bayfront Plaza Santa Clara, California 95052-8145 Copyright © 2003, 3Com Corporation. All rights reserved. No part of this documentation may be reproduced in any form or by any means or used to make any derivative work (such as translation, transformation, or adaptation) without written permission from 3Com Corporation. 3Com Corporation reserves the right to revise this documentation and to make changes in content from time to time without obligation on the part of 3Com Corporation to provide notification of such revision or change. 3Com Corporation provides this documentation without warranty, term, or condition of any kind, either implied or expressed, including, but not limited to, the implied warranties, terms or conditions of merchantability, satisfactory quality, and fitness for a particular purpose. 3Com may make improvements or changes in the product(s) and/or the program(s) described in this documentation at any time. If there is any software on removable media described in this documentation, it is furnished under a license agreement included with the product as a separate document, in the hard copy documentation, or on the removable media in a directory file named LICENSE.TXT or !LICENSE.TXT. If you are unable to locate a copy, please contact 3Com and a copy will be provided to you. UNITED STATES GOVERNMENT LEGEND If you are a United States government agency, then this documentation and the software described herein are provided to you subject to the following: All technical data and computer software are commercial in nature and developed solely at private expense. Software is delivered as “Commercial Computer Software” as defined in DFARS 252.227-7014 (June 1995) or as a “commercial item” as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in 3Com’s standard commercial license for the Software. Technical data is provided with limited rights only as provided in DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction with, this User Guide. Unless otherwise indicated, 3Com registered trademarks are registered in the United States and may or may not be registered in other countries. 3Com, OfficeConnect and the 3Com logo are registered trademarks of 3Com Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Microsoft, MS-DOS, Windows, and Windows NT are registered trademarks of Microsoft Corporation. Novell and NetWare are registered trademarks of Novell, Inc. UNIX is a registered trademark in the United States and other countries, licensed exclusively through X/Open Company, Ltd. Netscape Navigator is a registered trademark of Netscape Communications. JavaScript is a trademark of Sun Microsystems Wi-Fi and the Wi-Fi logo are registered trademarks of the WI-Fi Alliance. IEEE and 802 are trademarks of the Institute of Electrical and Electronics Engineers, Inc. All other company and product names may be trademarks of the respective companies with which they are associated. ENVIRONMENTAL STATEMENT It is the policy of 3Com Corporation to be environmentally-friendly in all operations. To uphold our policy, we are committed to: Establishing environmental performance standards that comply with national legislation and regulations. Conserving energy, materials and natural resources in all operations. Reducing the waste generated by all operations. Ensuring that all waste conforms to recognized environmental standards. Maximizing the recyclable and reusable content of all products. Ensuring that all products can be recycled, reused and disposed of safely. Ensuring that all products are labelled according to recognized environmental standards. Improving our environmental record on a continual basis. End of Life Statement 3Com processes allow for the recovery, reclamation and safe disposal of all end-of-life electronic components. Regulated Materials Statement 3Com products do not contain any hazardous or ozone-depleting material. Environmental Statement about the Documentation The documentation for this product is printed on paper that comes from sustainable, managed forests; it is fully biodegradable and recyclable, and is completely chlorine-free. The varnish is environmentally-friendly, and the inks are vegetable-based with a low heavy-metal content. CONTENTS ABOUT THIS GUIDE Naming Convention7 Conventions8 Feedback about this User Guide8 Related Documentation9 Product Registration9 1INTRODUCING THE ROUTER OfficeConnect 11g Cable/DSL Router11 Router Advantages13 Package Contents13 Minimum System and Component Requirements14 Front Panel14 Rear Panel16 2HARDWARE INSTALLATION Introduction19 Safety Information19 Positioning the Router19 Using the Rubber Feet20 Wall Mounting20 Before you Install your Router21 Powering Up the Router22 Connecting the Router22 3SETTING UP YOUR COMPUTERS Obtaining an IP Address Automatically25 Windows 200025 Windows XP27 Windows 95/98/ME27 Macintosh27 Disabling PPPoE and PPTP Client Software28 Disabling Web Proxy28 4RUNNING THE SETUP WIZARD Accessing the Wizard29 Password32 Time Zone32 WAN Settings33 LAN Settings38 DHCP38 Wireless Settings39 Summary40 5ROUTER CONFIGURATION Navigating Through the Router Configuration Pages41 Main Menu41 Option Tabs42 Welcome Screen42 Notice Board42 Password43 Wizard44 LAN Settings44 Unit Configuration44 DHCP Clients List45 Wireless Settings47 Configuration47 Encryption49 Configuring WPA Encryption49 Configuring WEP Encryption50 Connection Control53 Client List55 Profile55 Internet Settings57 Connection to ISP58 Firewall63 Virtual Servers63 Special Applications65 PC Privileges67 URL Filter69 Security73 System Tools75 Re…

Text truncated - open the document above for the full version.

Internet Settings61 ■Use this PC’s MAC address - This field is automatically filled in with the MAC address of the PC you are using to configure the Router. You should use this address only if you were previously using this computer to connect directly to your modem. ■Enter a new MAC address manually - Use this option if you want to specify a new MAC address. Enter the new MAC address. 5Check all settings and click Apply. PPP over Ethernet Figure 43 PPPoE Setup Screen To setup the Router for use with a PPP over Ethernet connection, use the following procedure: 1Select PPP over Ethernet in the IP Allocation Mode field. (Figure 43 ) 2Enter your Primary DNS Address and Secondary DNS address. Your ISP may provide you with primary and secondary DNS addresses. If they have been provided, enter the addresses in the appropriate text boxes. If not, leave 0.0.0.0 in the boxes. 3Enter the Host Name (optional). Some ISPs require a host name. If your ISP has this requirement, enter the host name in the Host Name text box. 4Enter your PPP over Ethernet user name in the PPPoE User Name text box. 5Enter a password in the PPPoE Password text box. 62CHAPTER 5: ROUTER CONFIGURATION 6Enter your PPP over Ethernet service name in the PPPoE Service Name text box. Not all ISPs require a PPPoE service name. Only enter a service name if your ISP requires this. 7Select an idle time from the Maximum Idle Time drop-down list. This value will correspond to the amount of idle time (no Internet activity) that will pass before the Router automatically ends your PPP over Ethernet session. Since the Router contains its own PPPoE client, you no longer need to run PPPoE client software on your computer to access the Internet. PPTP Figure 44 PPTP Setup Screen To setup the Router for use with a PPTP connection, use the following procedure: 1Select PPTP (used by some European providers) in the IP Allocation Mode field. (Figure 44 ) 2Enter your PPTP server address in the PPTP Server Address text box (this is typically the address of your modem). 3Enter your PPTP user name in the PPTP User Name text box. 4Enter your password in the PPTP Password text box. Firewall63 5Enter your Primary DNS Address and Secondary DNS address. Your ISP may provide you with primary and secondary DNS addresses. If they have been provided, enter the addresses in the appropriate text boxes. If not, leave 0.0.0.0 in the boxes. 6Select an idle time from the Maximum Idle Time drop-down list. This value will correspond to the amount of idle time (no Internet activity) that will pass before the Router automatically ends your PPTP session. 7IP settings must be used when establishing a PPTP connection. Fill in the Initial IP Address and the Initial Subnet Mask fields if your ISP has provided you with these settings. Alternatively, if the PPTP server is located in your DSL modem, click Suggest to select an IP address on the same subnet as the PPTP server. FirewallOn the main frame of the Firewall setup screen is a menu with five tabs: Virtual Servers, Special Applications, PCs Privileges, URL Filter, and Security. Virtual ServersSelecting the Firewall option on the main menu displays the Virtual Servers setup screen. (Figure 45 ) Virtual DMZ Figure 45 Virtual Servers Screen 64CHAPTER 5: ROUTER CONFIGURATION DMZ (De-Militarized Zone) Host is a computer without the protection of the firewall. This feature allows a single computer to be exposed to unrestricted 2-way communication from outside of your network. This feature should be used only if the Virtual Server or Special Applications options do not provide the level of access needed for certain applications. To configure one of your computers as a DMZ host, enter the last digit(s) of the IP address of the computer in the IP Address of DMZ Host text box, and then click Apply. Virtual Server Activating and configuring a virtual server allows one or more of the computers on your network to function as a public server. For example, one of your computers could be configured as an FTP server, allowing others outside of your office network to download files of your choosing. Or, if you have created a Web site, you can configure one of your computers as a Web server, so that others can view your Web site. To configure a virtual server: 1Click New on the right side of the screen to open the Virtual Server Settings dialogue box. (Figure 46 ) 2Enter the last digit(s) of the IP address of the computer in the Server IP Address text box. 3Select the Service from the pull-down list. (Figure 46 ) Figure 46 Virtual Servers Settings Screen Firewall65 Or select Custom to specify a suitable name for the service and then enter the port numbers required for that service. (Figure 47 ) Figure 47 Custom Setup Screen 4Click Add to save the settings. The port numbers are specified using a comma-separated list, with hyphens to denote port number ranges. So for example, entering 2, 3, 5-7 would cause ports 2, 3, 5, 6, and 7 to be activated. Special Applications Figure 48 Special Applications Screen Select Special Applications tab to display Authorized Application setup screen. (Figure 48 ) Some software applications require special or multiple connections to the Internet and these would normally be blocked by the firewall. For example Internet Telephony or Video conferences require multiple connections. So that these special applications can work properly and are not blocked, the firewall needs to be told about them. In each instance there will be a 66CHAPTER 5: ROUTER CONFIGURATION trigger port and incoming port(s), where traffic on the trigger port tells the firewall to open the incoming ports. Each defined Special Application only supports a single computer user, and up to 10 Special Applications can be defined. Any incoming ports opened by a Special Application trigger will be closed after five minutes of inactivity. To configure special applications: 1Click New. 2Select the applications from the pull-down list. (Figure 49 ) Figure 49…

Text truncated - open the document above for the full version.

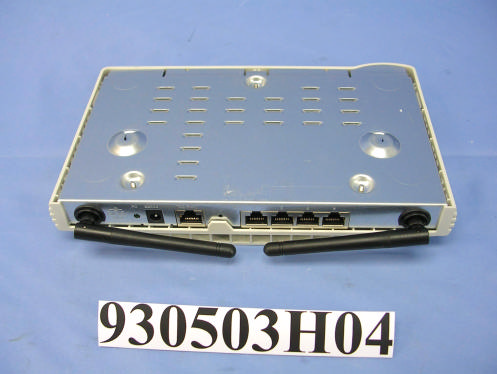

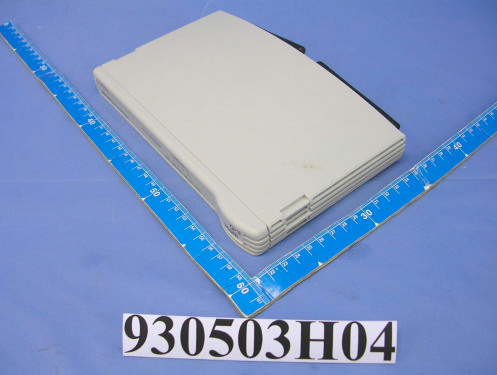

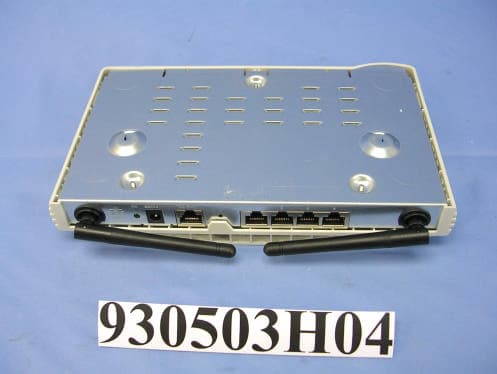

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

(Fig. 1) FCC ID: RAXWG4005DARC LABEL LOCATION Label

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: RAXWG4005DARC Report No. 930503H04 Operational Description This device is a OfficeConnect Wireless 11g Cable/DSL Router, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (OfficeConnect Wireless 11g Cable/DSL Router) is powered by from AC adapter. The antenna type used in this product is Dipole Antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: RAXWG4005DARC ADT No.: 930503H04 1 FCC TEST REPORT REPORT NO.: SA930503H04 MODEL NO.: WL-527, 3CRWE554G72TU, 3CRWE554G72T ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT:Arcadyan Technology Corporation ADDRESS:4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: RAXWG4005DARC ADT No.: 930503H04 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAXWG4005DARC ADT No.: 930503H04 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This is a stand alone radio device. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWG4005DARC ADT No.: 930503H04 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.58489(numeric) 6.2 Output Power Into Antenna & RF Exposure Distance : For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241277.98301110.0245883351.0 6243796.16122780.0303199951.0 11246289.12509380.0281014761.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241256.23413250.0177308331.0 6243787.70008210.0276521641.0 11246263.24118510.0199401831.0

FCC ID: RAXWG4005DARC Report No.: RF930503H041 Issued: Jun. 04, 2004 FCC TEST REPORT REPORT NO.:RF930503H04 MODEL NO.:WL-527, 3CRWE554G72TU, 3CRWE554G72T RECEIVED:May 04, 2004 TESTED:May 06 to 28, 2004 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 61 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced, except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA FCC ID: RAXWG4005DARC Report No.: RF930503H042 Issued: Jun. 04, 2004 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 9 3.5CONFIGURATION OF SYSTEM UNDER TEST ......................................... 10 4TEST TYPES AND RESULTS......................................................................11 4.1CONDUCTED EMISSION MEASUREMENT ...............................................11 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................11 4.1.2TEST INSTRUMENTS .................................................................................11 4.1.3TEST SETUP .............................................................................................. 12 4.1.4EUT OPERATING CONDITIONS................................................................ 13 4.1.5TEST RESULTS.......................................................................................... 14 4.2Radiated Emission Measurement ............................................................... 16 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 16 4.2.2TEST INSTRUMENTS ................................................................................ 17 4.2.3TEST PROCEDURES................................................................................. 18 4.2.4TEST SETUP .............................................................................................. 19 4.2.5EUT OPERATING CONDITIONS................................................................ 19 4.2.6TEST RESULTS.......................................................................................... 20 4.2.7TEST RESULTS - DSSS............................................................................. 21 4.2.8TEST RESULTS -OFDM ............................................................................. 24 4.36dB BANDWIDTH MEASUREMENT .......................................................... 27 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT........................................ 27 4.3.2TEST INSTRUMENTS ................................................................................ 27 4.3.3TEST PROCEDURE ................................................................................... 28 4.3.4TEST SETUP .............................................................................................. 28 4.3.5EUT OPERATING CONDITIONS................................................................ 28 4.3.6TEST RESULTS-DSSS............................................................................... 29 4.3.7TEST RESULTS-OFDM .............................................................................. 33 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 37 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 37 4.4.2TEST INSTRUMENTS ................................................................................ 37 FCC ID: RAXWG4005DARC Report No.: RF930503H043 Issued: Jun. 04, 2004 4.4.3TEST PROCEDURES................................................................................. 38 4.4.4TEST SETUP .............................................................................................. 38 4.4.5EUT OPERATING CONDITIONS................................................................ 38 4.4.6TEST RESULTS- DSSS.............................................................................. 39 4.4.7TEST RESULTS- OFDM ............................................................................. 40 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 41 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 41 4.5.2TEST INSTRUMENTS ................................................................................ 41 4.5.3TEST PROCEDURE ................................................................................... 42 4.5.4TEST SETUP .............................................................................................. 42 4.5.5EUT OPERATING CONDITIONS................................................................ 42 4.5.6TEST RESULTS-DSSS............................................................................... 43 4.5.7TEST RESULTS-OFDM .............................................................................. 47 4.6BAND EDGES MEASUREMENT ................................................................ 51 4.6.1LIMITS OF BAND EDGES MEASUREMENT ............................................. 51 4.6.2TEST INSTRUMENTS ..........…

Text truncated - open the document above for the full version.

FCC ID: RAXWG4005DARC Report No.: RF930503H0451 Issued: Jun. 04, 2004 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2004 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: RAXWG4005DARC Report No.: RF930503H0452 Issued: Jun. 04, 2004 4.6.5 TEST RESULTS - DSSS The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot on the following first page shows 54.48dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 104.7dBuV/m, so the maximum field strength in restrict band is 104.7-54.48=50.22dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 53.94dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 106.2dBuV/m, so the maximum field strength in restrict band is 106.2-53.94=52.26dBuV/m which is under 54 dBuV/m limit. FCC ID: RAXWG4005DARC Report No.: RF930503H0453 Issued: Jun. 04, 2004 FCC ID: RAXWG4005DARC Report No.: RF930503H0454 Issued: Jun. 04, 2004 FCC ID: RAXWG4005DARC Report No.: RF930503H0455 Issued: Jun. 04, 2004 4.6.6 TEST RESULTS-OFDM The spectrum plots are attached on the following 2 pages. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot on the following first page shows 46.79dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2. is 99.10dBuV/m, so the maximum field strength in restrict band is 99.10-46.79=52.31dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot on the following second page shows 47.11dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 100.3dBuV/m, so the maximum field strength in restrict band is 100.3-47.11=53.19dBuV/m which is under 54 dBuV/m limit. FCC ID: RAXWG4005DARC Report No.: RF930503H0456 Issued: Jun. 04, 2004 FCC ID: RAXWG4005DARC Report No.: RF930503H0457 Issued: Jun. 04, 2004 FCC ID: RAXWG4005DARC Report No.: RF930503H0458 Issued: Jun. 04, 2004 4.7 ANTENNA REQUIREMENT 4.7.1 STANDARD APPLICABLE For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. 4.7.2 ANTENNA CONNECTED CONSTRUCTION The antenna used in this product is Dipole Antenna without connector. The maximum Gain of the antenna is 2.0dBi. FCC ID: RAXWG4005DARC Report No.: RF930503H0459 Issued: Jun. 04, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWG4005DARC Report No.: RF930503H0460 Issued: Jun. 04, 2004 RADIATED EMISSION TEST FCC ID: RAXWG4005DARC Report No.: RF930503H0461 Issued: Jun. 04, 2004 6 INFORMATION ON THE TESTING LABORATORIES We, ADT Corp., were founded in 1988 to provide our best service in EMC, Radio, Telecom and Safety consultation. Our laboratories are accredited and approved by the following approval agencies according to ISO/IEC 17025, Guide 25 or EN 45001: USAFCC, NVLAP, UL GermanyTUV Rheinland JapanVCCI NorwayNEMKO CanadaINDUSTRY CANADA , CSA R.O.C.CNLA, BSMI, DGT NetherlandsTe l e f i c a t i o n SingaporePSB , GOST-ASIA(MOU) RussiaCERTIS(MOU) Copies of accreditation certificates of our laboratories obtained from approval agencies can be downloaded from our web site: www.adt.com.tw/index.5/phtml. If you have any comments, please feel free to contact us at the following: Linko EMC/RF Lab: Tel: 886-2-26052180 Fax: 886-2-26052943 Hsin Chu EMC/RF Lab: Tel: 886-3-5935343 Fax: 886-3-5935342 Hwa Ya EMC/RF/Safety/Telecom Lab: Tel: 886-3-3183232 Fax: 886-3-3185050 Linko RF Lab. Tel: 886-3-3270910 Fax: 886-3-3270892 Email: [email protected] Web Site: www.adt.com.tw The address and road map of all our labs can be found in our web site also.

FCC ID: RAXWG4005DARC Report No.: RF930503H0459 Issued: Jun. 04, 2004 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWG4005DARC Report No.: RF930503H0460 Issued: Jun. 04, 2004 RADIATED EMISSION TEST
