RAXWG4005EWIRELESS BASE STATION 11g TRUE TURBO

Philips Model Name: SNB6500 Arcadyan Model Name: WG4005E-LF-B7 Wireless Base Station Quick Installation Guide Contents A BOUT THE Base Station Congratulations on your purchase of the IEEE 802.11g Wireless Router. The SNB6500 is a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. LED Indicators The IEEE 802.11g Base Station includes status LED indicators, as described in the following figure and table. LED Status Description Power On The Base Station is receiving power. Modem On The WAN link is connected. Internet On PPP connection is on. Wireless On The Wireless LAN is enabled. Flashing The Base Station is transmitting or receiving traffic via a wireless connection. LAN1-4 Blue On The indicated Ethernet port has established a valid Features and Benefits • Internet connection to DSL or cable modem via a 10/100 Mbps WAN port • Local network connection via 10/100 Mbps Ethernet ports or 54 Mbps wireless interface • IEEE 802.11g Compliant – interoperable with multiple vendors • Advanced security through 64/128-bit WEP encryption, 802.1x, SSID broadcast disabled, and MAC address filtering features to protect your sensitve data and authenticate only authorized users to your network • Provides seamless roaming within 802.11g WLAN environment • DHCP for dynamic IP configuration, and DNS for domain name mapping • Firewall with Stateful Packet Inspection, client privileges, hacker prevention, DoS, and NAT • NAT also enables multi-user access with a single-user account, and virtual server functionality such as web, mail, FTP, and Telnet • Virtual Private Network support using PPTP, L2TP, or IPSec pass-through, ISP permitting • Parental controls allow the user to restrict web browsing • Automatic email alerts when the network is being attacked • Easy setup through a web browser on any operating system that supports TCP/IP • Compatible with all popular Internet applications INSTALLING THE Base Station Before installing the Base Station, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local distributor. Also be sure that you have all the necessary cabling before installing the Base Station. After installing the Base Station, refer to the web-based configuration program in “Configuring the IEEE 802.11g Base Station” on page 20 for information on configuring the Base Station. Package Contents After unpacking the Base Station, check the contents of the box to be sure you have received the following components: • IEEE 802.11g Base Station • Power adapter • One CAT-5 Ethernet cable • Installation CD containing the User Guide and installation wizard • Quick Installation Guide Immediately inform your dealer in the event of any incorrect, missing or damaged parts. If possible, please retain the carton and original packing materials in case there is a need to return the product. Installing the IEEE 802.11g Base Station Hardware Description The Base Station can be connected to the Internet or to a remote site using its WAN port. It can be connected directly to your PC or to a local area network using any of the Fast Ethernet LAN ports. Although access speed to the Internet is determined by your service type and the modem type connected to the Wireless Router, data passing between the devices connected to your local area network can run up to 100 Mbps over the Fast Enternet ports. The Base Station includes an LED display on the front panel for system power and port indications that simplifies installation and network troubleshooting. It also provides four RJ-45 LAN ports and one RJ-45 WAN port on the rear panel. • Four Ethernet ports for connection to a 10BASE-T/ 100BASE-TX Ethernet Local Area Network (LAN). These ports can auto-negotiate the operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X (i.e., allowing these ports to be connected to any network device with straight-through cable). These ports can be connected directly to a PC or to a server equipped with an Ethernet network interface card, or to a networking device such as an Ethernet hub or switch. • One RJ-45 port for connection to a DSL or cable modem (WAN). This port also auto-negotiates operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X. The following figure shows the components of the Wireless Figure 1. Front and Rear Panels System Requirements • Internet access from your local telephone company or Internet Service Provider (ISP) using a DSL modem or cable modem. • A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a gateway server address and DNS server address from your service provider. • A computer equipped with a 10 Mbps, 100 Mbps, or 10/100 Mbps Fast Ethernet card, or a USB-to-Ethernet converter. • TCP/IP network protocol installed on each PC that needs to access the Internet. • A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above, Firefox 1.0 or Mozilla 1.7 installed on one PC at your site for configuring the Base Station. Connect the System The Base Station can be positioned at any convenient location in your office or home. No special wiring or cooling requirements are needed. You should, however comply with the following guidelines: • Keep the Base Station away from any heating devices. • Do not place the Base Station in a dusty or wet environment. You should also remember to turn off the power, remove the power cord from the outlet, and keep your hands dry when you install the Base Station. Basic Installation Procedure 1. Connect the LAN: Connect the Base Station to your PC, or to a hub or switch. Run Ethernet cable from one of the LAN ports on the rear of the Base Station to your computer’s network adapter or to another network device. You may also connect the Base Station to your PC (using a wireless client adapter) via radio signals. 2. Connect the WAN: Use an Ethernet …

Text truncated - open the document above for the full version.

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan 1/1 Date: 04/ 08 / 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAXWG4005E Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Simon Liu / Manager Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan TEL: 886.3.505.1719 FAX: 886.3.563.7325 E-mail: [email protected]

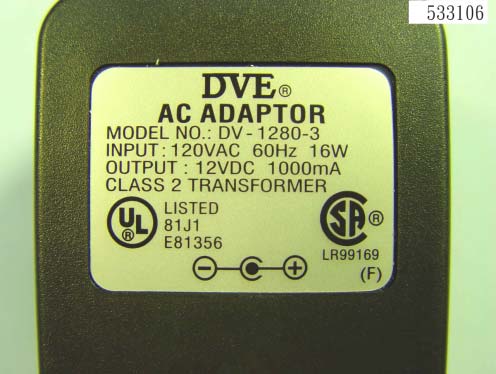

FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT External FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255

Label

0682

FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B1 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 APPENDIX B. Photographs of EUT Internal FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B2 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B3 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B4 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B5 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255 FCC TEST REPORT REPORT NO. : FR533106 SPORTON International Inc. PAGE NUMBER : B6 OF B6 TEL : 886-2-2696-2468 ISSUED DATE : Apr. 13, 2005 FAX : 886-2-2696-2255

Document No.: 533106 RF Exposure Test Report Date: Apr.18, 2005 FCC ID: RAXWG4005E Sporton International Inc. This report man not be reproduced, expect in full, without the prior written consent of Sporton International Inc. RF Exposure Test Report for Arcadyan Technology Corporation SNB6500 Equipment : Wireless Base Station 11g True Turbo Trade Name : Philips Model No. : SNB6500 FCC ID : RAXWG4005E Filing Type : Certification Applicant : Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Par, Hsinchu 300, Taiwan ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. Document No.: 533106 RF Exposure Test Report Date: Apr. 18, 2005 FCC ID: RAXWG4005E Sporton International Inc. Maximum Permissible Exposure Test Report for SNB6500 1.0 Introduction The report has been prepared on behalf of Arcadyan Technology Corporation SNB6500 to show compliance with the RF Exposure. 1.1 Requirements Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile and portable and are defined as follows: ƒ Fixed installation: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans form the antenna is maintained to at least 2 meters. ƒ Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter’s radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located are considered mobile devices if they meet the 20 centimeter separation requirement. The FCC rules for evaluating mobile devices for RF compliance are found in 47 CFR 2.1091. ƒ Portable Devices: a portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable device requirements are found in Section 2.1093 of the FCC’s Rules (47 CFR 2.1093) For this test report the Arcadyan Technology Corporation SNB6500 is being done as a mobile device and the MPE is evaluated at the 20cm test distance. The FCC also categorizes the use of the device as based upon the user’s awareness and ability to exercise control over his or her exposure. The two categories defined are Occupational/Controlled Document No.: 533106 RF Exposure Test Report Date: Apr. 18, 2005 FCC ID: RAXWG4005E Sporton International Inc. Exposure and General Population/Uncontrolled Exposure. These two categories are defined as follows: ƒ Occupational/controlled Exposure: In general, occupational/controlled exposure limits are applicable to situation in which persons are exposed as a consequence of their employment, who have been made fully aware of the potential for exposure. Awareness of the potential for RF exposure in a workplcae or similar environment can be provided through specific training as part of a RF safety program. If appropriate, warning signs and labels can also be used to establish such awareness by providing prominent information on the risk of potential exposure and instructions on methods to minimize such exposure risks. ƒ General Population/Uncontrolled Exposure: The general population / uncontrolled exposure limits are applicable to situations in which the general public may be exposed or in which persons who are exposed as a consequence of their employment may not be made fully aware of the potential for exposure or cannot exercise control over their exposure. Members of the general public would come under this category when exposure is not employment-related; for example, in the case of a wireless transmitter that exposes persons in its vicinity. Warning labels placed on low-power consumer devices such as cellular telephones are not considered sufficient to allow the device to be considered under the occupational/controlled category, and the general population/uncontrolled exposure limits apply to these devices. Since there are no warnings or training associated with this unit and it can be used by anyone, Wireless Base Station 11g True Turbo is evaluated to the General Population / Uncontrolled Exposure limits. 1.2 Radio Frequency Radiation Exposure Evaluation According to 1.1310 of the FCC rules, the power density limit for General Population/Uncontrolled Exposure is 1mW/cm 2 . As this is a mobile application the MPE shall be calculated at 20cm to show compliance with the power density limit. The following formula was used to calculate the Power Density: Where: Document No.: 533106 RF Exposure Test Report Date: Apr. 18, 2005 FCC ID: RAXWG4005E Sporton International Inc. S = Power Density P = Output Power at Antenna Terminals G = Gain of Transmit Antenna (linear gain) R = Distance from Transmitting Antenna For this device, the calculation is as follows: Because the EUT belongs to General Population/ Uncontrolled Exposure, the limit of power density is 1.0 mW/cm². 801.11b Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm ²) Channel 01 1.58 1.44 16.74 47.21 0.0135 1.00 Channel 06 1.58 1.44 16.86 48.53 0.0139 1.00 Channel 11 1.58 1.44 16.02 39.99 0.0115 1.00 802.11g Channel NO. Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power (mW) Calculated RF Exposure at d=20cm (mW/cm²) Limit (mW/cm ²) Channel 01 1.58 1.44 17.72 59.16 0.0169 1.00 Channel 06 1.58 1.44 17.56 57.02 0.0163 1.00 Channel 06 (Turbo) 1.58 1.44 17.29 53.58 0.0153 1.00 Channel 11 1.58 1.44…

Text truncated - open the document above for the full version.

SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : i Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 Table of Contents History of this test report....................................................................................................................................ii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ........................................................................................................................................................................................1 1.2 Manufacturer ..................................................................................................................................................................................1 1.3 Basic Description of Equipment under Test ...................................................................................................................................1 1.4 Feature of Equipment under Test ..................................................................................................................................................2 2 Test Configuration of Equipment under Test ...............................................................................................3 2.1 Test Manner ...................................................................................................................................................................................3 2.2 Test Mode ......................................................................................................................................................................................3 2.3 Connection Diagram of Test System .............................................................................................................................................4 2.4 Ancillary Equipment List.................................................................................................................................................................4 3. RF Utility ...........................................................................................................................................................5 4. General Information of Test............................................................................................................................6 4.1 Test Voltage ...................................................................................................................................................................................6 4.2 Standard for Methods of Measurement..........................................................................................................................................6 4.3 Test in Compliance with .................................................................................................................................................................6 4.4 Frequency Range Investigated ......................................................................................................................................................6 4.5 Test Distance .................................................................................................................................................................................6 5. Test Data and Test Result...............................................................................................................................7 5.1 List of Measurements and Examinations .......................................................................................................................................7 5.2 6dB Bandwidth Measurement ........................................................................................................................................................8 5.3 Power Spectral Density Measurement .........................................................................................................................................17 5.4 Band Edges Measurement...........................................................................................................................................................26 5.5 Peak Output Power Measurement ...............................................................................................................................................34 5.6 Conducted Emission Measurement .............................................................................................................................................36 5.7 Radiated Emission Measurement ................................................................................................................................................41 5.8 Antenna Requirements ................................................................................................................................................................53 6. List of Measuring Equipments Used ...........................................................................................................54 7. Uncertainty Evaluation..................................................................................................................................55 Appendix A. Photographs of EUT External Appendix B. Photographs of EUT Internal Appendix C. Photographs of Setup SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : ii Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 History of this test report Original Report Issue Date: Apr. 13, 2005 No additional attachment. Additional attachment were issued as following record: Attachment No.Issue Date Description SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 1 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR53310…

Text truncated - open the document above for the full version.

SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 45 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 3 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 46 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 4 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 47 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 5 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 48 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 6 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 49 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 50 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 7 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 51 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 8 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 52 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 ‚ Test Mode : Mode 9 ‚ Polarization : Horizontal The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. ‚ Polarization : Vertical The test that passed at minimum margin was marked by the frame in the following table. Remark: #3 and #4 Fundamental Signal. Remark: The spurious emission except listed above is too low to be taken. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 53 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 5.8 Antenna Requirements 5.8.1 Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no other antenna except assembled by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (b), if directional gain of transmitting antennas is greater than 6dBi, the power shall be reduced by the same level in dB comparing to gain minus 6dBi. 5.8.2 Antenna Connected Construction The antennas used in this product are fixed dipole with reverse SMA and PCB antenna without conntector and it is considered to meet antenna requirement of FCC. 5.8.3 Antenna Gain The antenna gain of EUT is less than 6dBi. Therefore, it is not necessany to reduce maximum peak output power limit. SPORTON International Inc. FCC ID : RAXWG4005E TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 Page No. : 54 of 56 Issued Date : Apr. 13, 2005 FCC TEST REPORT Report No. : FR533106 6. List of Measuring Equipments Used Instrument Manufacturer Model No.Serial No.Characteristics Calibration Date Due Date Remark EMC Receiver R&S ESCS 30100132 9 KHz – 2.75 GHzJun. 23, 2004 Jun. 23, 2005 Conduction (CO01-HY) LISN MessTec NNB-2/16Z2001/0089 KHz – 30 MHz May 03, 2004 May 03, 2005 Conduction (CO01-HY) LISN (Support Unit) MessTec NNB-2/16Z2001/0099 KHz – 30 MHz Apr. 19, 2004 Apr. 19, 2005 Conduction (CO01-HY) EMI Filter LINDGREN LRE-20601004 < 450 Hz N/A N/A Conduction (CO01-HY) EMI Filter LINDGREN N6006 201052 0 ~ 60 Hz N/A N/A Conduction (CO01-HY) RF Cable-CON Suhner Switzerland RG223/UCB029 9KHz~30MHz Dec. 23, 2004 Dec. 23, 2005 Conduction (CO01-HY) Spectrum analyzer Agilent E4408BMY442110309KHz-26.5GHz Jul. 27, 2004 Jul. 26, 2005 Radiation (03CH06-HY) Receiver R&S ESCS30100356 9KHz-2.75GHz Jul,09,2004 Jul, 10,2005 Radiation (03CH06-HY) Controller CT SC100 N/A N/A N/A N/A Radiation (03CH06-HY) Bilog Antenna SCHAFFNER CBL6112B2885 30MHz -2GHz Nov. 22, 2004 Nov. 21, 2005 Radiation (03CH06-HY) Horn Antenna Com-Power AH118 071025 1G-18G Feb. 22, 2005 Feb. 22, 2006 Radiation (03CH06-HY) SHF-EHF Horn SCHWARZBECK BBHA 9170 9170-24914G - 40G Jun. 22, 2004 Jun. 22, 2005 Radiation (03CH06-HY) PreAmplifier Com-Power PA-…

Text truncated - open the document above for the full version.

FCC TEST REPORTReport No. : FR533106 SPORTON International Inc. Page No. : C1 of C3 TEL : 886-2-2696-2468 Issued Date : Apr. 13, 2005 FAX : 886-2-2696-2255 Conducted Emission FRONT VIEW REAR VIEW Appendix C. Set up Photograph FCC TEST REPORTReport No. : FR533106 SPORTON International Inc. Page No. : C2 of C3 TEL : 886-2-2696-2468 Issued Date : Apr. 13, 2005 FAX : 886-2-2696-2255 SIDE VIEW FCC TEST REPORTReport No. : FR533106 SPORTON International Inc. Page No. : C3 of C3 TEL : 886-2-2696-2468 Issued Date : Apr. 13, 2005 FAX : 886-2-2696-2255 Radiation Emission FRONT VIEW REAR VIEW
