RAXWN4201BARCEZ Connect g 2.4GHz 54Mbps Wireless PCI Card

SMC2802W 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EZ Connect 2.4 GHz 54Mbps 802.11b/g Wireless PCI Card User Guide The easy way to make all your network connections October 2003 Pub No: R01 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2003 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 Trademarks: SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that the interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT STATEMENT FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm (8 in) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CALIFORNIA PROPOSITION 65 WARNING: This product or components of this product contains a chemical[s] known to the State of California to cause cancer and/or birth defects or other reproductive harm. Compliances ii Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. EC Conformance Declaration - Class B SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuós Gelabert 6-8, 2 o , 4 a , 08970 - Sant Joan Despí, Barcelona, Spain. This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/ EEC. For the evaluation of the compliance with these Directives, the following standards were applied: RFI Emission:• Limit class B according to EN 55022:1998, IEC 60601-1-2 (EMC, medical) • Limit class B for harmonic current emission according to EN 61000-3-2/1995 • Limitation of voltage fluctuation and flicker in low-voltage supply system according to EN 61000-3-3/1995 Immunity:• Product family standard according to EN 55024:1998 • Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV) • Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) • Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV) iii • Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Power frequency magnetic field immunity test according to EN 61000-4-8:1993 (1 A/m at frequency 50 Hz) • Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms) LV D :• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997) MDD:• IEC 60601-1 Compliances iv v TABLE OF CONTENTS EZ Connect™ 2.4 GHz 54 Mbps Wireless PCI Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 System Requirements . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: RAXWN4201BARC LABEL LOCATION Label

27.58 35.48 28.52 17.87 25.90 6.62 2.97 2.97 7 . 6 8 1 5 . 9 7 . 4

Page 2 Page 3

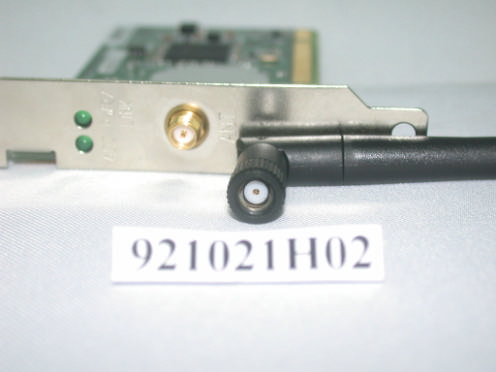

FCC ID: RAXWN4201BARC ADT No. 921021H02 Operational Description This device is an EZ Connect ™ g 2.4GHz 54Mbps Wireless PCI Card in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (EZ Connect ™ g 2.4GHz 54Mbps Wireless PCI Card) is powered by from host equipment. The antenna type used in this product is Dipole antenna with SMA-male to female. The other instruction, please have a look at the users manual.

FCC ID: RAXWN4201BARC Report No.: RF920904H03A ADT No. 921021H02 1 RF EXPOSURE REPORT REPORT NO.: RF920904H03A MODEL NO.: SMC2802W ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: RAXWN4201BARC Report No.: RF920904H03A ADT No. 921021H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500 ... ... F/300 6 1500-100,000 ... ... 5 6 (B)Limits For General Population / Uncontrolled Exposure 300-1500 ... ... F/1500 6 1500-100,000 ... ... 1.0 30 F = Frequency in MHz FCC ID: RAXWN4201BARC Report No.: RF920904H03A ADT No. 921021H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWN4201BARC Report No.: RF920904H03A ADT No. 921021H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 4.0dBi or 2.51 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: FOR DSSS: Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 16.14 0.01137 1.0 6 2437 16.30 0.01180 1.0 11 2462 16.38 0.01202 1.0 FOR OFDM: Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1 2412 15.08 0.00891 1.0 6 2437 15.21 0.00918 1.0 11 2462 15.34 0.00946 1.0

FCC ID: RAXWN4201BARC Report No.: RF920904H03A 1 Issued: Nov. 03, 2003 ADT No.: 921021H02 FCC TEST REPORT REPORT NO.: RF920904H03A MODEL NO.: SMC2802W RECEIVED: Oct. 21, 2003 TESTED: Oct. 23 to 30, 2003 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 60 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: RAXWN4201BARC Report No.: RF920904H03A 2 Issued: Nov. 03, 2003 ADT No.: 921021H02 Table of Contents 1 CERTIFICATION......................................................................................................4 2 SUMMARY OF TEST RESULTS...........................................................................5 3 GENERAL INFORMATION.....................................................................................6 3.1 GENERAL DESCRIPTION OF EUT.....................................................................6 3.2 DESCRIPTION OF TEST MODES........................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4 DESCRIPTION OF SUPPORT UNITS.................................................................8 4 TEST TYPES AND RESULTS................................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT.................................9 4.1.2 TEST INSTRUMENTS............................................................................................9 4.1.3 TEST SETUP..........................................................................................................10 4.1.4 EUT OPERATING CONDITIONS........................................................................11 4.1.5 TEST RESULTS.....................................................................................................12 4.2 RADIATED EMISSION MEASUREMENT..........................................................14 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT.....................................14 4.2.2 TEST INSTRUMENTS..........................................................................................15 4.2.3 TEST PROCEDURES...........................................................................................16 4.2.4 TEST SETUP..........................................................................................................17 4.2.5 EUT OPERATING CONDITIONS........................................................................17 4.2.6 TEST RESULTS.....................................................................................................18 4.2.7 TEST RESULTS - DSSS.......................................................................................19 4.2.8 TEST RESULTS -OFDM.......................................................................................23 4.3 6dB BANDWIDTH MEASUREMENT..................................................................27 4.3.1 LIMITS OF 6dB BANDWIDTH MEASUREMENT.............................................27 4.3.2 TEST INSTRUMENTS..........................................................................................27 4.3.3 TEST PROCEDURE..............................................................................................28 4.3.4 TEST SETUP..........................................................................................................28 4.3.5 EUT OPERATING CONDITIONS........................................................................28 4.3.6 TEST RESULTS-DSSS.........................................................................................29 4.3.7 TEST RESULTS-OFDM........................................................................................33 4.4 MAXIMUM PEAK OUTPUT POWER..................................................................37 FCC ID: RAXWN4201BARC Report No.: RF920904H03A 3 Issued: Nov. 03, 2003 ADT No.: 921021H02 4.4.1 LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............37 4.4.2 TEST INSTRUMENTS..........................................................................................37 4.4.3 TEST PROCEDURES...........................................................................................38 4.4.4 TEST SETUP..........................................................................................................38 4.4.5 EUT OPERATING CONDITIONS........................................................................38 4.4.6 TEST RESULTS- DSSS........................................................................................39 4.4.7 TEST RESULTS- OFDM.......................................................................................39 4.5 POWER SPECTRAL DENSITY MEASUREMENT...........................................40 4.5.1 LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT......................40 4.5.2 TEST INSTRUMENTS..........................................................................................40 4.5.3 TEST PROCEDURE..............................................................................................41 4.5.4 TEST SETUP..........................................................................................................41 4.5.5 EUT OPERATING CONDITIONS........................................................................41 4.5.6 TEST RESULTS-DSSS.........................................................…

Text truncated - open the document above for the full version.

Report No. 921007H07 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & Manufacturer Model No. Serial No. Calibrated Until R&S SPECTRUM ANALYZER FSP 1093.4495.30 Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 921007H07 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 921007H07 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 921007H07 4 Ch1 Report No. 921007H07 5 Ch11 Report No. 921007H07 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 921007H07 7 Ch1 Report No. 921007H07 8 Ch11

FCC ID: RAXWN4201BARC Report No.: RF920904H03A 58 Issued: Nov. 03, 2003 ADT No.: 921021H02 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWN4201BARC Report No.: RF920904H03A 59 Issued: Nov. 03, 2003 ADT No.: 921021H02 RADIATED EMISSION TEST
