RAXWN4201EBarricade g 802.11g Wireless PCI Adapter

Barricade g 802.11g Wireless PCI Adapter TM SMCWPCI-G2 20 Mason Irvine, CA 92618 Phone: (949) 679-8000 Barricade™ g 802.11g Wireless PCI Adapter User Guide The easy way to make all your network connections January 2008 Pub No: R01 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2008 by SMC Networks, Inc. 20 Mason Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and Barricade is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.4GHz operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. Compliances ii IC (Industry Canada) Statement This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numerique de la class B est conforme a la norme NMB-003 du Canada. This device has been designed to operate with an antenna having a maximum gain of 2 dBi. Antenna having a higher gain is strictly prohibited per regulations of Industry Canada. The required antenna impedance is 50 ohms To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the EIRP is not more than required for successful communication. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2.4GHz operation of this product in Canada is firmware-limited to channels 1 through 11. Compliances iii EC Conformance Declaration SMC contact for these products in Europe is: SMC Networks Europe, Edificio Conata II, Calle Fructuos Gelabert 6-8, 2, 4a, 08970 - Sant Joan Despi, Barcelona, Spain Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: EN 300 328 EN 301 489-1 EN 301 489-17 EN 60950 vii TABLE OF CONTENTS Barricade™g 802.11g Wireless PCI Adapter . . . . 1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Package Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Hardware Description . . . . . . . . . . . . . . . . . . . . . . . 5 LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . 6 Driver and Utility Installation . . . . . . . . . . . . . . . . . 8 Using the Installation Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Utility Configuration . . . . . . . . . . . . . . . . . . . . . . . 11 Using the SMCWPCI-G2 Utility Program . . . . . . . . . . . . . . . . . 11 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Link Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 IP Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Site Survey . . . . . . .…

Text truncated - open the document above for the full version.

Date: 2008/1/21 Subject: Ad Hoc Mode Function Declaration FCC ID: RAXWN4201E To Whom it may concern, This device is acting as slave and operating on 2.4GHz band. Ad Hoc function is available and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, Applicant: Arcadyan Technology Corporation Address: 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Name and Job Title: Simon Liu / Manager Tel: 886-3-578-7000 E-mail: [email protected] Signature:

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan FCC ID : RAXWN4201E Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________ Simon Liu / Manager Email: [email protected] TEL: 886-3-578-7000 FAX: 886-3-563-7325





 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Sporton International Inc. Address :










! "  Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: SMC / SMCWPCI-G2 FCC ID: RAXWN4201E Product name: Barricade TM g 802.11g Wireless PCI Adapter Applicant : Arcadyan Technology Corporation Address : 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Signature : _________________________________ Name and Job Title. : Simon Liu / Manager E-mail : [email protected] Tel. : 886-3-578-7000

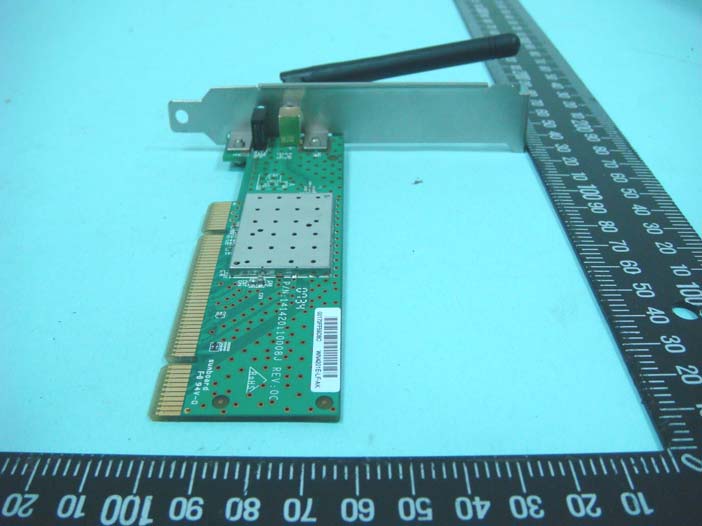

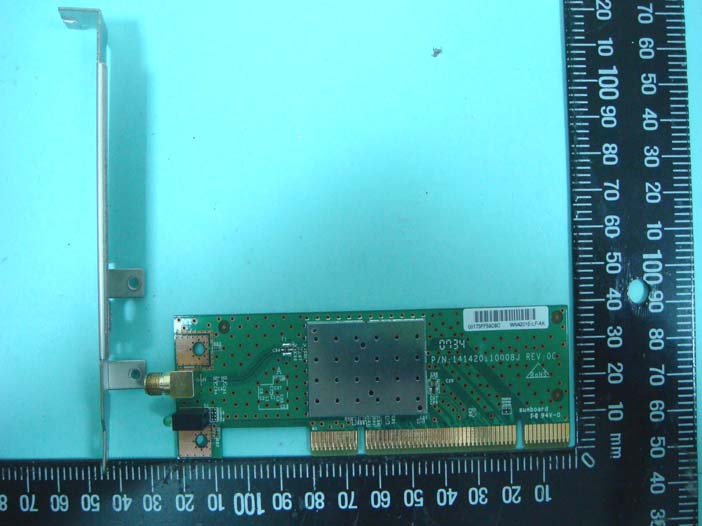

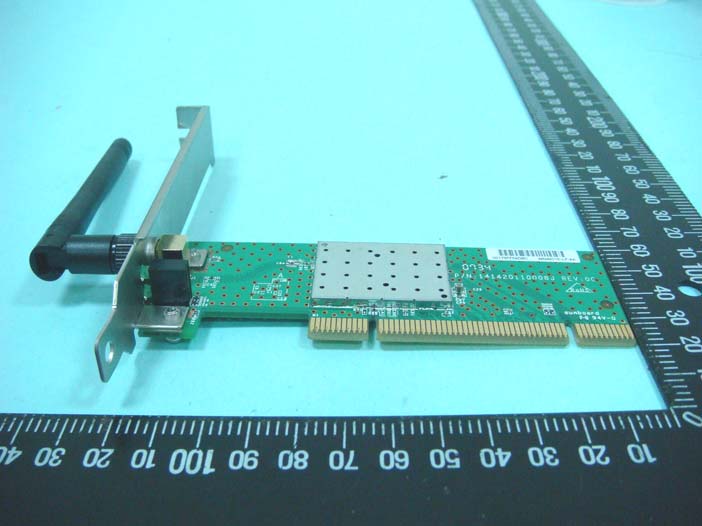

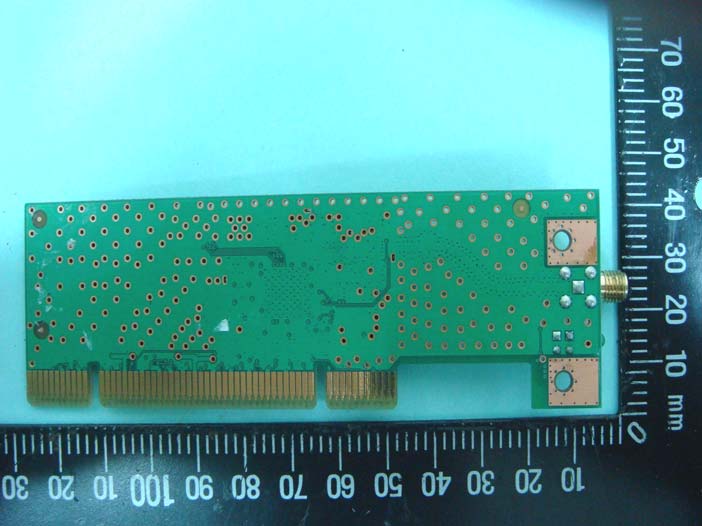

SPORTON International Inc. PAGE NUMBER : A1 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A5 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A6 OF A6 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Jan. 10, 2008 FAX : 886-2-2696-2255

Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 1 of 3 Appendix C. Maximum Permissible Exposure Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 2 of 3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 3 of 3 1.3. Calculated Result and Limit Antenna Type : Dipole Antenna Max Conducted Power for IEEE 802.11b/g : 21.52 dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 2 1.5849 21.5200 141.9058 0.044766 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: 01 FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID RAXWN4201E Product Name Barricade TM g 802.11g Wireless PCI Adapter Brand Name SMC Model Name SMCWPCI-G2 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Sep. 04, 2007 Final Test Date Sep. 29, 2007 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR790407-01 Report Format Version: 01 Page No. : i of ii FCC ID: RAXWN4201E Issued Date : Jan. 18, 2008 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................4 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................12 4.3. Power Spectral Density Measurement ..............................................................................................................................................14 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................19 4.5. Radiated Emissions Measurement ....................................................................................................................................................24 4.6. Band Edge Emissions Measurement .................................................................................................................................................42 4.7. Antenna Requirements .....................................................................................................................................................................47 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 48 6. TEST LOCATION.............................................................................................................................................. 50 7. TAF CERTIFICATE OF ACCREDITATION ............................................................................................................. 51 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A8 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B7 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C3 Report No.: FR790407-01 Report Format Version: 01 Page No. : ii…

Text truncated - open the document above for the full version.

Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 1 of 7 Appendix B. Test Photos Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 3 of 7 SIDE VIEW Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 5 of 7 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 6 of 7 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR790407-01 FCC ID: RAXWN4201E Page No. : 7 of 7 SIDE VIEW
