RAXWN4301BEZ Connect g 108Mbps WLAN Cardbus

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EZ Connect TM g 108Mbps WLAN Cardbus User Guide From SMC’s EZ line of low-cost workgroup LAN solutions April 2005 Revision #: R01, F1.0 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2005 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and EZ Connect is a trademark of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the distance between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CSA Statement (Canada) This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of Industry Canada. Le présent appareil numérique n’émet pas de bruits radio-électriques dépassant les limites applicables aux appareils numériques de la classe B prescrites dans le Règlement sur le brouillage radioélectrique édicté par l’Industrie. Compliances ii CE Mark Declaration of Conformance for EMI and Safety (EEC) This information technology equipment complies with the requirements of the Council Directive 89/336/EEC on the Approximation of the laws of the Member States relating to Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the compliance with these Directives, the following standards were applied: RFI Emission: • Limit class B according to EN 55022:1998 • Limit class B for harmonic current emission according to EN 61000-3-2/1995 • Limitation of voltage fluctuation and flicker in low-voltage supply system according to EN 61000-3-3/1995 Immunity: • Product family standard according to EN 55024:1998 • Electrostatic Discharge according to EN 61000-4-2:1995 (Contact Discharge: ±4 kV, Air Discharge: ±8 kV) • Radio-frequency electromagnetic field according to EN 61000-4-3:1996 (80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV) • Surge immunity test according to EN 61000-4-5:1995 (AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV) • Immunity to conducted disturbances, Induced by radio-frequency fields: EN 61000-4-6:1996 (0.15 - 80 MHz with 1 kHz AM 80% Modulation: 3 V/m) • Power frequency magnetic field immunity test according to EN 61000-4-8:1993 (1 A/m at frequency 50 Hz) • Voltage dips, short interruptions and voltage variations immunity test according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30% Reduction @500 ms, >95% Reduction @5000 ms) LVD:• EN 60950 (A1/1992; A2/1993; A3/1993; A4/1995; A11/1997) iii Contents Compliances i Federal Communication Commission Interference Statement i CSA Statement (Canada) i CE Mark Declaration of Conformance for EMI and Safety (EEC) ii Introduction 1 Features 1 Applications 2 System Requirements 2 Package Checklist 2 Hardware Description 3 LED Indicators 3 Hardware Installation 4 Driver and Utility Installation 5 Utility Configuration 9 Wireless Network Manager 9 Configuration 10 Link Information 13 IP Information 15 Site Survey 16 Version Information 17 Network Configuration and Planning 18 Network Topologies 18 Ad Hoc Wireless LAN 18 Infrastructure Wireless LAN 19 Setting the Communication Domain 20 Troubleshooting 21 Adapter Installation Problems 21 Network Connection Problems 21 Specifications 23 General Specifications 23 Data Rate and Transmission Power 25 Typical Receiver Sensitivity Range 25 Contents iv 1 EZ CONNECT ™ G 108MBPS WLAN CARDBUS Introduction The 108Mbps WLAN Cardbus is an IEEE 802.11g wireless network ad…

Text truncated - open the document above for the full version.

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan 1/1 Date: 03/ 08 / 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAXWN4301B Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Simon Liu / Manager Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan TEL: 886.3.505.1719 FAX: 886.3.563.7325 E-mail: [email protected]

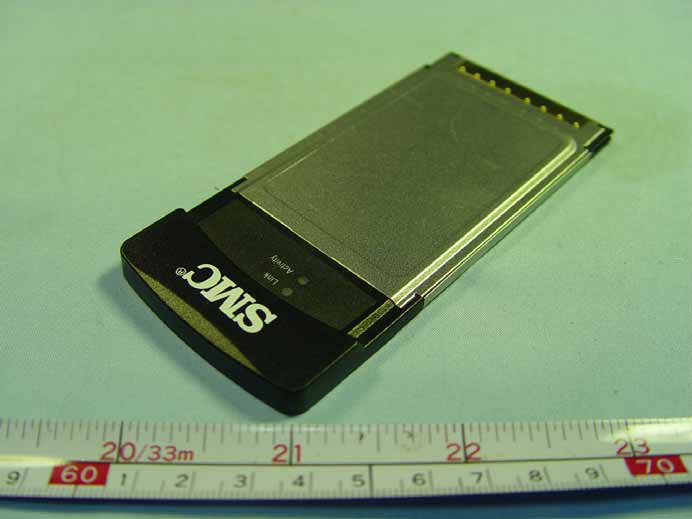

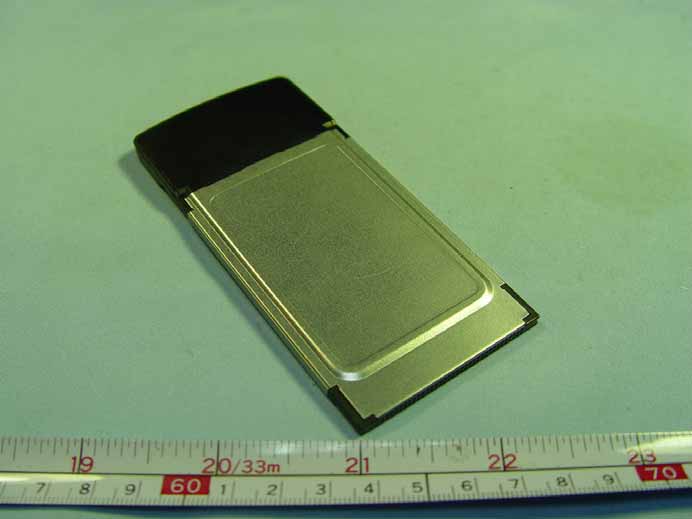

REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A1 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A2 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A3 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255

FCC ID: RAXWN4301B Label Location

REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A4 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A5 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A6 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A7 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A8 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255 REPORT NO. : 522104 SPORTON International Inc. PAGE NUMBER : A9 OF A9 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 22, 2005 FAX : 886-2-2696-2255

Description of Operation EUT is a CardBus Wireless LAN Card with 11 channels. This device provided 1/2/5.5/11/6/9/12/18/24/36/48/54 Mbps of transmitting speed. The device of RF carrier is DQPSK,DBPSK,CCK and OFDM. The device adapts direct sequence spread spectrum modulation. The antenna is internal printing Antenna. This CardBus Wireless LAN Card is an IEEE 802.11b/g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplex-ing (OFDM) radio transmission, the CardBus Wireless LAN Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm and the new industrial-strength WPA (Wi-Fi Protected AccessTM) security is used. In addition, its standard compliance ensures that it can communicate with any 802.11b/g network.

© 2004 SPORTON International Inc..SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev.03 FCC SAR Test Report Test Report No FA522104-1-2-03 Specific Absorption Rate (SAR) Test Report for Arcadyan Technology Corporation on the EZ Connect TM g 108Mbps WLAN Cardbus Report No. : FA522104-1-2-03 Trade Name : SMC Model Name : SMCWCBT-G FCC ID : RAXWN4301B Date of Testing : Mar. 18, 2005 Date of Report : Mar. 25, 2005 Date of Review : Mar. 25, 2005 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2004 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No FA522104-1-2-03 Table of Contents 1. Statement of Compliance ..........................................................................................................................................1 2. Administration Data ...................................................................................................................................................2 2.1. Testing Laboratory ...............................................................................................................2 2.2. Detail of Applicant ................................................................................................................2 2.3. Detail of Manufacturer..........................................................................................................2 2.4. Application Detail .................................................................................................................2 3. Scope ...........................................................................................................................................................................3 3.1. Description of Device Under Test (DUT) ..............................................................................3 3.2. Product Photo ......................................................................................................................4 3.3. Applied Standards:...............................................................................................................5 3.4. Device Category and SAR Limits .........................................................................................6 3.5. Test Conditons .....................................................................................................................6 3.5.1. Ambient Condition: .....................................................................................................6 3.5.2. Test Configuration: .....................................................................................................6 4. Specific Absorption Rate (SAR)................................................................................................................................7 4.1. Introduction ..........................................................................................................................7 4.2. SAR Definition......................................................................................................................7 5. SAR Measurement Setup...........................................................................................................................................8 5.1. DASY4 E-Field Probe System .............................................................................................9 5.1.1. ET3DV6 E-Field Probe Specification .......................................................................10 5.1.2. ET3DV6 E-Field Probe Calibration ..........................................................................10 5.2. DATA Acquisition Electronics (DAE)................................................................................... 11 5.3. Robot .................................................................................................................................12 5.4. Measurement Server .........................................................................................................12 5.5. SAM Twin Phantom ...........................................................................................................12 5.6. Data Storage and Evaluation .............................................................................................14 5.6.1. Data Storage ............................................................................................................14 5.6.2. Data Evaluation........................................................................................................14 5.7. Test Equipment List............................................................................................................17 6. Tissue Simulating Liquids .......................................................................................................................................18 7. Uncertainty Assessment..........................................................................................................................................20 8. SAR Measurement Evaluation ................................................................................................................................22 8.1. Purpose of System Performance check .............................................................................22 8.2. System Setup.....................................................................................................................22 8.3. Validation Results ..............................................................................................................23 9. Description for DUT Testing Position............................................................................…

Text truncated - open the document above for the full version.

FCC ID: RAXWN4301B Issued on Mar. 22, 2005 Report No.: FR522104 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable PRODUCT NAME : EZ Connect TM g 108Mbps WLAN Cardbus FCC ID. : RAXWN4301B FILING TYPE : Certification BRAND NAME : SMC MODEL NAME : SMCWCBT-G APPLICANT : Arcadyan Technology Corporation 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan. MANUFACTURER : Same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA and any agency of U.S. government. The test equipment used to perform the test is calibrated and traceable to NML/ROC or NIST/USA. 1190 ILAC MRA FCC ID: RAXWN4301B Issued on Mar. 22, 2005 Report No.: FR522104 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Mar. 22, 2005 FAX : 886-2-2696-2255: Table of Contents HISTORY OF THIS TEST REPORT..................................................................................................................... II CERTIFICATE OF COMPLIANCE ...................................................................................................................... III 1. GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST .......................................................................... 1 1.1. Applicant ..............................................................................................................................................................................................1 1.2. Manufacturer ........................................................................................................................................................................................1 1.3. Basic Description of Equipment under Test.........................................................................................................................................1 1.4. Features of Equipment under Test ......................................................................................................................................................1 1.5. Antenna Description.............................................................................................................................................................................2 1.6. Table for Carrier Frequencies ..............................................................................................................................................................2 2. TEST CONFIGURATION OF THE EQUIPMENT UNDER TEST .................................................................... 3 2.1. Connection Diagram of Test System ...................................................................................................................................................3 2.2. The Test Mode Description..................................................................................................................................................................3 2.3. Description of Test Supporting Units ...................................................................................................................................................3 3. GENERAL INFORMATION OF TEST.............................................................................................................. 4 3.1. Test Facility ..........................................................................................................................................................................................4 3.2. Standards for Methods of Measurement..............................................................................................................................................4 3.3. DoC Statement ....................................................................................................................................................................................4 3.4. Frequency Range Investigated ............................................................................................................................................................4 3.5. Test Distance .......................................................................................................................................................................................4 3.6. Test Software .......................................................................................................................................................................................4 4. LIST OF MEASUREMENTS............................................................................................................................. 6 4.1. Summary of the Test Results...............................................................................................................................................................6 5. TEST RESULT.................................................................................................................................................. 7 5.1. Test of 6dB Spectrum Bandwidth ........................................................................................................................................................7 5.2. Test of Maximum Peak Conducted Output Power.............................................................................................................................13 5.3. Test of Peak Power Spectral Density ................................................................................................................................................15 5.4. Test of Band Edges Emission.....................................…

Text truncated - open the document above for the full version.
