RAXWN4401C1WLAN Mini PCI Card

WN4401C 1-ZZ 1 WN4401C 1-ZZ IEEE 802.11b/g single chip miniPCI V 0.1 Arcadyan Technology Corporation 4F, No 9 Park Avenue II, Science-based Industrial Park HsinChu 300, Taiwan Subject to Change without Notices ©Copyright 2003 by Arcadyan. Confidentical / All right reserved. WN4401C 1-ZZ 2 Table of Contents Contents_____________________________________________________________2 Revision History______________________________________________________3 Chapter 1 Introduction_________________________________________________4 1.1 Product Features________________________________________________4 1.2 Application____________________________________________________5 Chapter 2 Hardware___________________________________________________5 2.1 General Overview_______________________________________________5 2.2 Hardware Architecture___________________________________________5 2.3 Main Chipset Information_________________________________________5 Chapter 3 Software____________________________________________________6 3.1 Operating Systems Supported____________________________________6 3.2 WEP Security_________________________________________________6 3.3 Configuration Utility___________________________________________6 Chapter 4 Specifications________________________________________________7 References__________________________________________________________10 WN4401C 1-ZZ 3 Revision History Edition # Reason for revision Issue date Written by V 0.1 ♦ Initial Document Sep. 23, 2004 Jason Lee ♦ WN4401C 1-ZZ 4 Chapter 1 Introduction 1. Introduction WN4401C is an industrial miniPCI Card which enables wireless networking systems to attain data transmission speeds at least up to 54 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of over 15 million Wi-Fi systems worldwide. It supports operation to both the IEEE 802.11b and IEEE 802.11g standards. WN4401C will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. It is fully IEEE 802.11g standard compliant, and uses prioritization algorithms and enhanced protection mechanisms to significantly increase pure 802.11g as well as mixed-mode network performance. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers, as well as advanced home networking applications such as multi-channel CD-quality audio and DVD-quality video streaming. WN4401C incorporates the 802.11g Standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, up to 54 Mbps data rate. ♦ Extended Range feature supported ♦ Backward compatible to the existing IEEE 802.11b WLAN infrastructure. ♦ An user-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption using WEP 64, 128-bit encryption for security. ♦ Support for WPA and Wi-Fi, WPA2 upgradeable ♦ Built-in Hirose antenna connectors. ♦ Firmware upgrade-able by only changing driver. 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, PDA, Web Pad or Wireless Gateway Built-in Application. WN4401C 1-ZZ 5 Chapter 2 Hardware 2.1 General Overview ♦ Power: 3.3V, DC input. ♦ Antenna connector: Two Hirose, FL-R-SMT (01) coaxial connectors. 2.2 Hardware Architecture 2.3 Main Chipset Information 2.3.1 AR2413: An IEEE 802.11g MAC + Baseband processor, AES Hardware accelerator, on-chip SRAM memory and MiniPCI/PCI bus interface. Radio-on-Chip (RoC). A zero-IF direct down conversion transceiver. a 2.4GHz power amplifier, 5GHz SiGe monolithic VCO. WN4401C 1-ZZ 6 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 98SE, Windows ME, Windows 2000, Windows XP and Linux. 3.2 Security ♦ Wired Equivalent Privacy (WEP) supports 64, and 128 bit keys. ♦ Support WPA, WPA2 upgradeable 3.3 Configuration Utility ♦ A Utility to set SSID, WEP key and dynamically view configuration and receiving signal quality. ♦ Support worldwide country channel selection. WN4401C 1-ZZ 7 Chapter 4 Specifications ♦ Frequency Band: 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Spain 2412~2472MHz (Ch1~Ch13) France 2457~2472MHz (Ch10~Ch13) Japan – STD-T66 2412~2472MHz (Ch1~Ch13) ♦ Modulation TYPE: DSSS BPSK, QPSK, CCK OFDM BPSK, QPSK, 16QAM, 64QAM ♦ Operating Channels: IEEE 802.11b compliant: 11 channels (US, Canada) 13 channels (ETSI) 13 Channels (Spain) 4 Channels (France) 13 channels (Japan) IEEE 802.11g compliant: 11 channels (US, Canada) 13 channels (ETSI) 13 Channels (Spain) 4 Channels (France) 13 channels (Japan) ♦ Security: 64/128-bit WEP/TKIP/AES-CCM/AES-OCB/ 802.1x, and WPA ♦ Operating Voltage: 3.15V ~ 3.45V ♦ Transmitted Power: See Table 1 ♦ Rates/Sensitivity/Allowable Path Loss: See the Table 2 ♦ Mechanical specification: ♦ MiniPCI Type 3B ♦ Regulatory compliance: ♦ Power Limit: FCC 15.247 ♦ ETSI, CE ♦ Current consumption: TX:480 mA Max; RX: 420mA Max; Power Saving: 20mA WN4401C 1-ZZ 8 ♦ Operating Temperature: 0 ~ 55 o C ambient ♦ Storage Temperature: -20 ~ 75 o C ambient ♦ Humidity: 5 ~ 90% and must be non-condensing ♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge. WN4401C 1-ZZ 9 Table 1: Modulation Scheme and Transmit Power Modulation Rate Output Power 2.4-2.5GHz (dBm) 802.11b – 1Mbps 17 802.11b – 2Mbps 17 802.11b – 5.5Mbps 17 802.11b – 11Mbps 17 Modulation Rate Output Power 2.4-2.5GHz (dBm) 802.11g – 6Mbps 16 802.11g – 9Mbps 16 802.11g – 12Mbps …

Text truncated - open the document above for the full version.

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan FCC ID : RAXWN4401C1 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, __________________________________ Simon Liu / Manager Email: [email protected] TEL: 886-3-505-1719 FAX: 886-3-563-7325

FCC ID: RAXWN4401C1 Report No. RF940324H01 Modular Approval Request Letter Advance Data Technology April 18, 2005 Dear Application Examiner, Arcadyan Technology Corporation’s WLAN MINI PCI CARD, FCC ID: RAXWN4401C1, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2413A-00. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is CXT2907A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAXWN4401C1 Report No. RF940324H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan
    To whom it may concern: We, the undersigned Arcadyan Technology Corporation, hereby authorize Advance Data Technology Corporation (ADT) of Taiwan to act on our behalf in all matters relating to all processes required in the FCC Part 15C approval and any communication needed with the national authority. Any and all acts carried out by ADT on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Sincerely yours, __________________________________ Simon Liu / Manager Email: [email protected] TEL: 886-3-505-1719 FAX: 886-3-563-7325

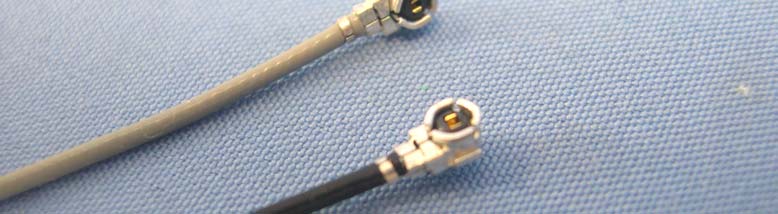

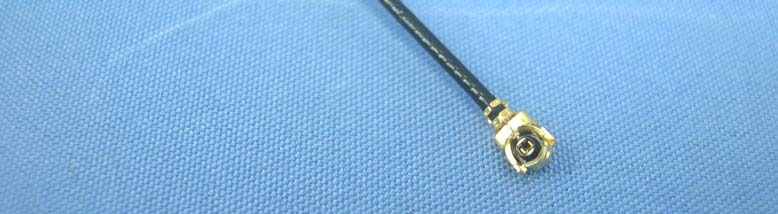

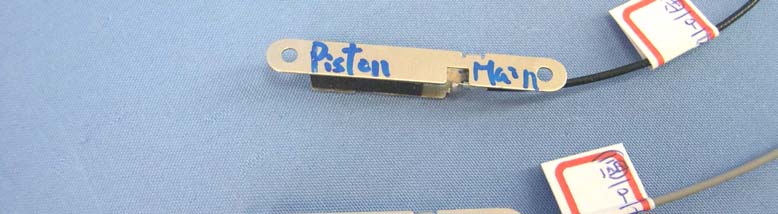

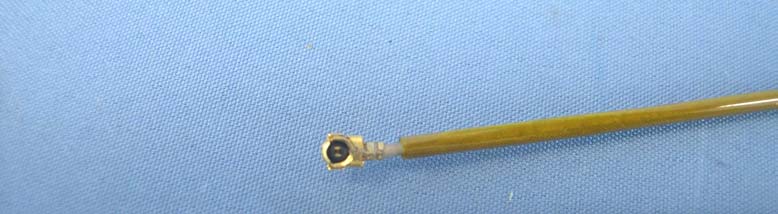

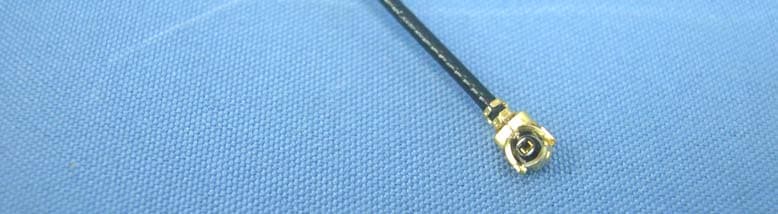

Page 4 Antenna 1, 2 Page 5 Page 6 Page 7 Antenna 3, 4 Page 8 Page 9 Page 10 Antenna 5, 6 Page 11 Page 12 Antenna 7, 8 Page 13 Page 14 Antenna 9 Page 15 Page 16 Page 17 Antenna 10, 11 Page 18 Page 19 Antenna 12, 13 Page 20 Page 21 Antenna 14, 15 Page 22 Page 23 Antenna 16, 17, 18, 19 Page 24 Page 25 Antenna 20, 21 Page 26 Page 27 Antenna 22, 23 Page 28 Page 29 Antenna 24, 25 Page 30

(Fig. 1) FCC ID: RAXWN4401C1 LABEL LOCATION Label

40.00 mm 1 4 . 0 0 m m

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3

FCC ID: RAXWN4401C1 Report No. RF940324H01 Operational Description This device is a WLAN MINI PCI CARD, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (WLAN MINI PCI CARD) is powered by host equipment. The antenna types used in this product are as following: No. Brand Name Antenna Model No. Antenna Type Antenna Connector Gain (dBi) Frequency range 1 WGTB05250000006(Main)PIFAUFL2.21 2.4~2.5GHz 2WGTB05250000007(Auxiliary)PIFAUFL1.82.4~2.5GHz 3 WhayuB05250000008(Main)PIFAUFL2.45 2.4~2.5GHz 4 WhayuB05250000009(Auxiliary)PIFAUFL2.54 2.4~2.5GHz 5 WGTB0125028000001(Main)PIFAUFL2.43 2.4~2.5GHz 6WGTB0125028000002(Auxiliary)PIFAUFL2.45 2.4~2.5GHz 7WNCB0125028000004(Main)PIFAUFL2.45 2.4~2.5GHz 8WNCB0125028000005(Auxiliary)PIFAUFL2.42 2.4~2.5GHz 9Favortron D05007001401PIFAUFL1.37 2.4~2.5GHz 10SmartAnt 21-90841-01-Left AntPIFAUFL1.21 2.4~2.5GHz 11SmartAnt 21-90841-01-Right AntPIFAUFL1.42 2.4~2.5GHz 12SmartAnt 21-90706-02 (Auxiliary)PIFAUFL0.24 2.4~2.5GHz 13SmartAnt 21-90707-02 (Main)PIFAUFL2.02 2.4~2.5GHz 0.42.4~2.5GHz 14Favortron P50 -Right AntPIFAUFL -0.21 4.9~5.85GHz 0.12.4~2.5GHz 15Favortron P50-Left AntPIFAUFL -1.24.9~5.85GHz 0.98 2.4~2.5GHz 16YAGEOM30-Main Ant for EI systemPIFAUFL 0.05 5.15~5.85GHz -1.13 2.4~2.5GHz 17YAGEOM30-Aux Ant for EI systemPIFAUFL -0.39 5.15~5.85GHz 1.96 2.4~2.5GHz 18YAGEOM30-Main Ant for KI systemPIFAUFL 0.92 5.15~5.85GHz 1.96 2.4~2.5GHz 19YAGEOM30-Aux Ant for KI systemPIFAUFL 05.15~5.85GHz 1.19 2.4~2.5GHz 20WGT B0265050000003(Left) Main PIFAUFL 1.59 5.15~5.85GHz 1.97 2.4~2.5GHz 21WGT B0265050000002(Right) Aux PIFAUFL 2.06 5.15~5.85GHz FCC ID: RAXWN4401C1 Report No. RF940324H01 0.87 2.4~2.5GHz 22WhayuB0265050000008(Main)PIFAUFL 0.77 5.15~5.85GHz 0.77 2.4~2.5GHz 23WhayuB0265050000007(Aux)PIFAUFL 0.02 5.15~5.85GHz 24WGTB0375050000001(Main)PIFAUFL0.77 2.4~2.5GHz 25WGTB0375050000002(Aux)PIFAUFL02.4~2.5GHz The other instruction, please have a look at the users manual.

FCC ID: RAXWN4401C1 Report No.: SA940324H01 1 RF EXPOSURE REPORT REPORT NO.: SA940324H01 MODEL NO.: WN4401C 1-ZZ ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: RAXWN4401C1 Report No.: SA940324H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAXWN4401C1 Report No.: SA940324H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWN4401C1 Report No.: SA940324H01 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 2.54dBi or 1.794(numeric) 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412100.23052380.0357873161.0 62437127.64388090.0455752571.0 11246297.050996720.0346520661.0 For Part 802.11g: Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241263.679552090.0227367891.0 62437160.69412530.057375851.0 11246267.297665630.0240286371.0

FCC ID: RAXWN4401C1 Report No.: RF940324H011Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940324H01 MODEL NO.:WN4401C 1-ZZ RECEIVED:Mar. 29, 2005 TESTED:Mar. 31 to Apr. 08, 2005 ISSUED: Apr. 11, 2005 APPLICANT:Arcadyan Technology Corporation ADDRESS:4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: RAXWN4401C1 Report No.: RF940324H012Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 8 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 8 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 9 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 9 4TEST TYPES AND RESULTS..................................................................... 10 4.1CONDUCTED EMISSION MEASUREMENT .............................................. 10 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................... 10 4.1.2TEST INSTRUMENTS ................................................................................ 10 4.1.3TEST PROCEDURES..................................................................................11 4.1.4TEST SETUP ...............................................................................................11 4.1.5EUT OPERATING CONDITIONS................................................................ 12 4.1.6TEST RESULTS.......................................................................................... 13 4.2RADIATED EMISSION MEASUREMENT ................................................... 15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 15 4.2.2TEST INSTRUMENTS ................................................................................ 16 4.2.3TEST PROCEDURES................................................................................. 17 4.2.4TEST SETUP .............................................................................................. 18 4.2.5EUT OPERATING CONDITIONS................................................................ 18 4.2.6TEST RESULTS.......................................................................................... 19 4.2.7TEST RESULTS – DSSS ............................................................................ 20 4.2.8TEST RESULTS – OFDM ........................................................................... 23 4.36DB BANDWIDTH MEASUREMENT.......................................................... 26 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 26 4.3.2TEST INSTRUMENTS ................................................................................ 26 4.3.3TEST PROCEDURE ................................................................................... 27 4.3.4TEST SETUP .............................................................................................. 27 4.3.5EUT OPERATING CONDITIONS................................................................ 27 4.3.6TEST RESULTS – DSSS ............................................................................ 28 4.3.7TEST RESULTS – OFDM ........................................................................... 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 34 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 34 FCC ID: RAXWN4401C1 Report No.: RF940324H013Report Format Version 2.0.1 4.4.2TEST INSTRUMENTS ................................................................................ 34 4.4.3TEST PROCEDURES................................................................................. 35 4.4.4TEST SETUP .............................................................................................. 35 4.4.5EUT OPERATING CONDITIONS................................................................ 35 4.4.6TEST RESULTS – DSSS ............................................................................ 36 4.4.7TEST RESULTS – OFDM ........................................................................... 37 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 38 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 38 4.5.2TEST INSTRUMENTS ................................................................................ 38 4.5.3TEST PROCEDURE ................................................................................... 39 4.5.4TEST SETUP .............................................................................................. 39 4.5.5EUT OPERATING CONDITIONS................................................................ 39 4.5.6TEST RESULTS – DSSS ............................................................................ 40 4.5.7TEST RESULTS – OFDM ........................................................................... 43 4.6BA…

Text truncated - open the document above for the full version.

FCC ID: RAXWN4401C1 Report No.: RF940324H0155Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWN4401C1 Report No.: RF940324H0156Report Format Version 2.0.1 FCC ID: RAXWN4401C1 Report No.: RF940324H0157Report Format Version 2.0.1 RADIATED EMISSION TEST FCC ID: RAXWN4401C1 Report No.: RF940324H0158Report Format Version 2.0.1
