RAXWN4401CARCWLAN Mini PCI Card

WN4401C-ZZ 1 WN4401C-ZZ IEEE 802.11b/g single chip miniPCI V 0.1 Arcadyan Technology Corporation 4F, No 9 Park Avenue II, Science-based Industrial Park HsinChu 300, Taiwan Subject to Change without Notices ©Copyright 2003 by Arcadyan. Confidentical / All right reserved. WN4401C-ZZ 2 Table of Contents Contents_____________________________________________________________2 Revision History______________________________________________________3 Chapter 1 Introduction_________________________________________________4 1.1 Product Features________________________________________________4 1.2 Application____________________________________________________5 Chapter 2 Hardware___________________________________________________5 2.1 General Overview_______________________________________________5 2.2 Hardware Architecture___________________________________________5 2.3 Main Chipset Information_________________________________________5 Chapter 3 Software____________________________________________________6 3.1 Operating Systems Supported____________________________________6 3.2 WEP Security_________________________________________________6 3.3 Configuration Utility___________________________________________6 Chapter 4 Specifications________________________________________________7 References__________________________________________________________10 WN4401C-ZZ 3 Revision History Edition # Reason for revision Issue date Written by V 0.1 ♦ Initial Document Sep. 23, 2004 Jason Lee ♦ WN4401C-ZZ 4 Chapter 1 Introduction 1. Introduction WN4401C is an industrial miniPCI Card which enables wireless networking systems to attain data transmission speeds at least up to 54 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of over 15 million Wi-Fi systems worldwide. It supports operation to both the IEEE 802.11b and IEEE 802.11g standards. WN4401C will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. It is fully IEEE 802.11g standard compliant, and uses prioritization algorithms and enhanced protection mechanisms to significantly increase pure 802.11g as well as mixed-mode network performance. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers, as well as advanced home networking applications such as multi-channel CD-quality audio and DVD-quality video streaming. WN4401C incorporates the 802.11g Standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. 1.1 Product Features ♦ High speed for wireless LAN connection, up to 54 Mbps data rate. ♦ Extended Range feature supported ♦ Backward compatible to the existing IEEE 802.11b WLAN infrastructure. ♦ An user-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption using WEP 64, 128-bit encryption for security. ♦ Support for WPA and Wi-Fi, WPA2 upgradeable ♦ Built-in Hirose antenna connectors. ♦ Firmware upgrade-able by only changing driver. 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, PDA, Web Pad or Wireless Gateway Built-in Application. WN4401C-ZZ 5 Chapter 2 Hardware 2.1 General Overview ♦ Power: 3.3V, DC input. ♦ Antenna connector: Two Hirose, FL-R-SMT (01) coaxial connectors. 2.2 Hardware Architecture 2.3 Main Chipset Information 2.3.1 AR2413: An IEEE 802.11g MAC + Baseband processor, AES Hardware accelerator, on-chip SRAM memory and MiniPCI/PCI bus interface. Radio-on-Chip (RoC). A zero-IF direct down conversion transceiver. a 2.4GHz power amplifier, 5GHz SiGe monolithic VCO. WN4401C-ZZ 6 Chapter 3 Software 3.1 Operating System Supported ♦ Windows 98SE, Windows ME, Windows 2000, Windows XP and Linux. 3.2 Security ♦ Wired Equivalent Privacy (WEP) supports 64, and 128 bit keys. ♦ Support WPA, WPA2 upgradeable 3.3 Configuration Utility ♦ A Utility to set SSID, WEP key and dynamically view configuration and receiving signal quality. ♦ Support worldwide country channel selection. WN4401C-ZZ 7 Chapter 4 Specifications ♦ Frequency Band: 802.11g Radio: 2.4 GHz 802.11b Radio: 2.4 GHz USA – FCC 2412~2462MHz (Ch1~Ch11) Canada – IC 2412~2462MHz (Ch1~Ch11) Europe – ETSI 2412~2472MHz (Ch1~Ch13) Spain 2412~2472MHz (Ch1~Ch13) France 2457~2472MHz (Ch10~Ch13) Japan – STD-T66 2412~2472MHz (Ch1~Ch13) ♦ Modulation TYPE: DSSS BPSK, QPSK, CCK OFDM BPSK, QPSK, 16QAM, 64QAM ♦ Operating Channels: IEEE 802.11b compliant: 11 channels (US, Canada) 13 channels (ETSI) 13 Channels (Spain) 4 Channels (France) 13 channels (Japan) IEEE 802.11g compliant: 11 channels (US, Canada) 13 channels (ETSI) 13 Channels (Spain) 4 Channels (France) 13 channels (Japan) ♦ Security: 64/128-bit WEP/TKIP/AES-CCM/AES-OCB/ 802.1x, and WPA ♦ Operating Voltage: 3.15V ~ 3.45V ♦ Transmitted Power: See Table 1 ♦ Rates/Sensitivity/Allowable Path Loss: See the Table 2 ♦ Mechanical specification: ♦ MiniPCI Type 3B ♦ Regulatory compliance: ♦ Power Limit: FCC 15.407 ♦ ETSI, CE ♦ Current consumption: TX:480 mA Max; RX: 420mA Max; Power Saving: 20mA WN4401C-ZZ 8 ♦ Operating Temperature: 0 ~ 55 o C ambient ♦ Storage Temperature: -20 ~ 75 o C ambient ♦ Humidity: 5 ~ 90% and must be non-condensing ♦ ESD: EN61000-4-2, which specifies 4kV contact and 8kV air discharge. WN4401C-ZZ 9 Table 1: Modulation Scheme and Transmit Power Modulation Rate Output Power 2.4-2.5GHz (dBm) 802.11b – 1Mbps 17 802.11b – 2Mbps 17 802.11b – 5.5Mbps 17 802.11b – 11Mbps 17 Modulation Rate Output Power 2.4-2.5GHz (dBm) 802.11g – 6Mbps 16 802.11g – 9Mbps 16 802.11g – 12Mbps 16 802.11g – 18Mbps …

Text truncated - open the document above for the full version.

FCC ID: RAXWN4401CARC Report No. RF940201H01 Modular Approval Request Letter Advance Data Technology Mar. 16, 2005 Dear Application Examiner, Arcadyan Technology Corporation’s WLAN MINI PCI CARD, FCC ID: RAXWN4401CARC, would like to have your authorization as a modular approval specific to the Notebook Computer, Access Point..etc. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2413A-00. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 1.8VDC powered. The miniPCI interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is CXT2907A. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was placed on an extended card which connected to Notebook Computer as a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAXWN4401CARC Report No. RF940201H01 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

From: [email protected] [mailto:[email protected]] Sent: Wednesday, March 16, 2005 8:14 PM To: steve.cheng Cc: [email protected]; [email protected]; [email protected] Subject: 回信: RE: Additional ： New urgent FCC & Canada approval projects Dear Steve, Thank you for your comments on this application! We uploaded the revised test reports for this project Thanks! Best Regards, Amanda Chu / 朱芳誼 ~~~~~~~~~~~~~~~~~~~~~~~~~ Certification Specialist ADT Corp. (Hsin Chu Office) TEL: 03-5935343 ext. 1737 FAX: 03-5934728 ~~~~~~~~~~~~~~~~~~~~~~~~~ "steve.cheng" <[email protected]> 2005/03/16 下午 06:15 收件人 [email protected] 副本抄送 [email protected], [email protected] 主旨RE: Additional ： New urgent FCC & Canada approval projects TCB Review Comments for (RAXWN4401CARC, 940201H01) -EMC- Question #1: Test report: section 4.5.7 to 4.5.8 most of SPD tests does not follow FCC test guideline to have enough sweep time (Span/RBW=500 secs). Please re-supply proper test data. The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Steve Cheng North American EMC Certification Services Inc. 359 Hawkland Cir., NW. Calgary, Alberta Canada T3G 3R3 Tel: (403) 241-8826 Email: [email protected]

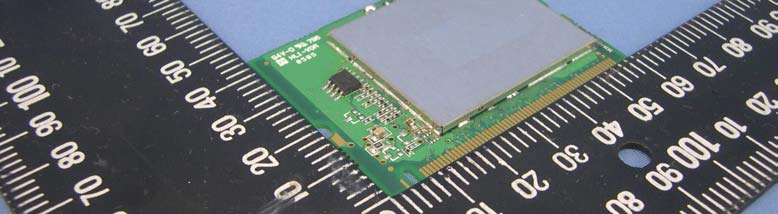

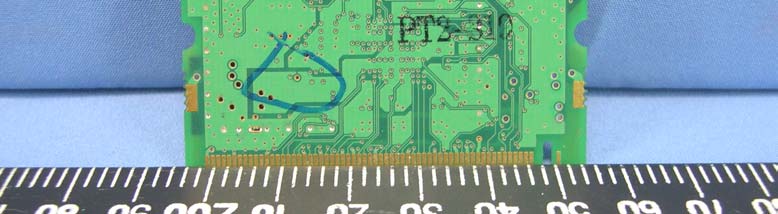

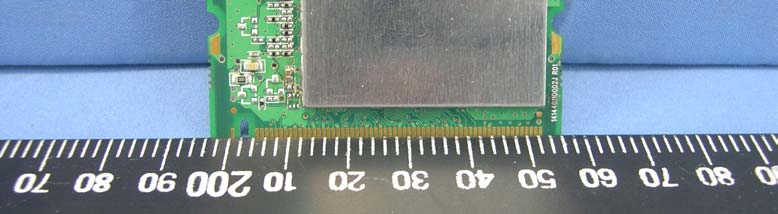

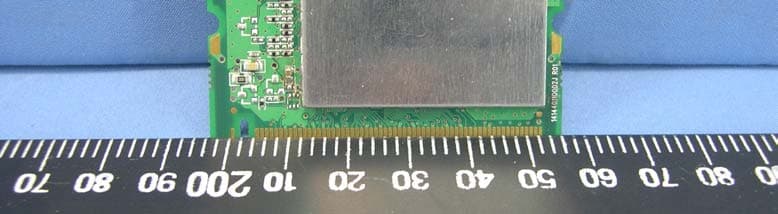

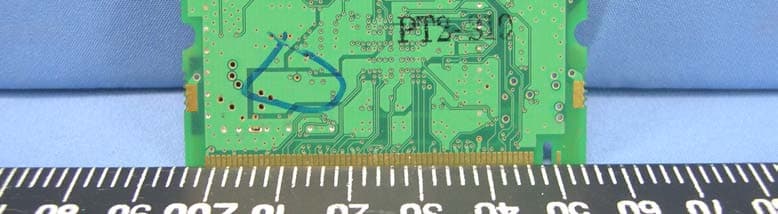

Page 1 CONSTRUCTION PHOTOS OF EUT EUT with Dipole antenna and PCB Dipole antenna Page 2 Page 3 Page 4 Page 5 EUT with Dipole antennas Page 6 Page 7 Page 8 EUT with PIFA antenna and PCB Dipole antenna Page 9 Page 10

(Fig. 1) FCC ID: RAXWN4401CARC LABEL LOCATION Label

40.00 mm 14.00 mm ARC

Page 11 Page 12 Page 13 For Antenna Model No.: AN4021 Page 14 For Antenna Model No.: 120300009100J Page 15 For Antenna Model No.: 120300009200J Page 16 For Antenna Model No.: Sleeve Dipole Antenna Page 17 For Antenna Model No.: Butterfly Antenna type 3 Page 18 For Antenna Model No.: PIFA

FCC ID: RAXWN4401CARC Report No. RF940201H01 Operational Description This device is a WLAN MINI PCI CARD, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (WLAN MINI PCI CARD) is powered by host equipment. The antenna types used in this product are as following: No.Antenna Model No.Antenna Type Antenna Connector Gain (dBi) 1AN4021DipoleRPSMA2dBi 2120300009100JDipoleRPSMA2dBi 3120300009200JDipoleRPSMA2dBi 4Sleeve Dipole AntennaDipoleNA2dBi 5Butterfly Antenna type 3PCB DipoleNA2dBi 6PIFAPIFANA2dBi The other instruction, please have a look at the users manual.

FCC ID: RAXWN4401CARC Report No.: SA940201H01 1 RF EXPOSURE REPORT REPORT NO.: SA940201H01 MODEL NO.: WN4401C-ZZ ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. FCC ID: RAXWN4401CARC Report No.: SA940201H01 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAXWN4401CARC Report No.: SA940201H01 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWN4401CARC Report No.: SA940201H01 4 6. Test Results 6.1 Antenna Gain No.Antenna Model No.Antenna Type Antenna Connector Gain (dBi) 1AN4021DipoleRPSMA2dBi 2120300009100JDipoleRPSMA2dBi 3120300009200JDipoleRPSMA2dBi 4Sleeve Dipole AntennaDipoleNA2dBi 5Butterfly Antenna type 3PCB DipoleNA2dBi 6PIFAPIFANA2dBi 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: For Part 802.11b: MAIN Antenna Connector Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412125.89254120.039694391.0 62437123.02687710.0387908351.0 112462120.22644350.0379078481.0 AUX Antenna Connector Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412117.48975550.037044961.0 62437118.57687480.0373877331.0 112462120.22644350.0379078481.0 FCC ID: RAXWN4401CARC Report No.: SA940201H01 5 For Part 802.11g: MAIN Antenna Connector Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412134.89628830.0425333051.0 62437123.02687710.0387908351.0 112462112.20184540.0353776621.0 AUX Antenna Connector Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 12412125.89254120.039694391.0 62437120.22644350.0379078481.0 112462112.20184540.0353776621.0

FCC ID: RAXWN4401CARC Report No.: RF940201H011Report Format Version 2.0.1 FCC TEST REPORT REPORT NO.:RF940201H01 MODEL NO.:WN4401C-ZZ RECEIVED:Feb. 01, 2005 TESTED:Feb. 05 to Mar. 09, 2005 ISSUED: Mar. 14, 2005 APPLICANT:Arcadyan Technology Corporation ADDRESS:4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 126 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: RAXWN4401CARC Report No.: RF940201H012Report Format Version 2.0.1 Table of Contents 1CERTIFICATION ..................................................................................................................... 5 2SUMMARY OF TEST RESULTS............................................................................................. 6 3GENERAL INFORMATION ..................................................................................................... 7 3.1GENERAL DESCRIPTION OF EUT ....................................................................................... 7 3.2DESCRIPTION OF TEST MODES ......................................................................................... 9 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ...................................................... 10 3.4DESCRIPTION OF SUPPORT UNITS ..................................................................................11 3.5CONFIGURATION OF SYSTEM UNDER TEST ...................................................................11 4TEST TYPES AND RESULTS............................................................................................... 12 4.1CONDUCTED EMISSION MEASUREMENT ....................................................................... 12 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................................... 12 4.1.2TEST INSTRUMENTS ..........................................................................................................12 4.1.3TEST PROCEDURES...........................................................................................................13 4.1.4TEST SETUP ........................................................................................................................ 13 4.1.5EUT OPERATING CONDITIONS.......................................................................................... 14 4.1.6TEST RESULTS .................................................................................................................... 15 4.2RADIATED EMISSION MEASUREMENT............................................................................. 17 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT .......................................................... 17 4.2.2TEST INSTRUMENTS ..........................................................................................................18 4.2.3TEST PROCEDURES...........................................................................................................19 4.2.4TEST SETUP ........................................................................................................................ 20 4.2.5EUT OPERATING CONDITIONS.......................................................................................... 20 4.2.6TEST RESULTS (MODE 1)................................................................................................... 21 4.2.7TEST RESULTS (MODE 1 - ANTENNA 2 – DSSS).............................................................. 22 4.2.8TEST RESULTS (MODE 1 - ANTENNA 5 – DSSS).............................................................. 25 4.2.9TEST RESULTS (MODE 1 - ANTENNA 2 – OFDM)............................................................. 28 4.2.10TEST RESULTS (MODE 1 - ANTENNA 5 – OFDM)............................................................. 31 4.2.11TEST RESULTS (MODE 2)................................................................................................... 34 4.2.12TEST RESULTS (MODE 2 - ANTENNA 2 – DSSS).............................................................. 35 4.2.13TEST RESULTS (MODE 2 - ANTENNA 2 – OFDM)............................................................. 38 4.2.14TEST RESULTS (MODE 3)................................................................................................... 41 4.2.15TEST RESULTS (MODE 3 - ANTENNA 6 – DSSS).............................................................. 42 4.2.16TEST RESULTS (MODE 3 - ANTENNA 5 – DSSS).............................................................. 45 4.2.17TEST RESULTS (MODE 3 - ANTENNA 6 – OFDM)............................................................. 48 4.2.18TEST RESULTS (MODE 3 - ANTENNA 5 – OFDM)............................................................. 51 4.36DB BANDWIDTH MEASUREMENT ................................................................................... 54 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT................................................................. 54 4.3.2TEST INSTRUMENTS ..........................................................................................................54 4.3.3TEST PROCEDURE .............................................................................................................55 FCC ID: RAXWN4401CARC Report No.: RF940201H013Report Format Version 2.0.1 4.3.4TEST SETUP ........................................................................................................................ 55 4.3.5EUT OPE…

Text truncated - open the document above for the full version.

FCC ID: RAXWN4401CARC Report No.: RF940201H0186Report Format Version 2.0.1 4.6 BAND EDGES MEASUREMENT 4.6.1 LIMITS OF BAND EDGES MEASUREMENT Below –20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth). 4.6.2 TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 23, 2005 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 4.6.3 TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set RBW spectrum analyzer to 100 KHz and set VBW spectrum analyzer to 100 KHz with suitable frequency span including 100 MHz bandwidth from band edge. The band edges was measured and recorded. The spectrum plots (Peak RBW=VBW=100kHz ; Average RBW=1MHz, VBW=10Hz) are attached on the following pages. 4.6.4 EUT OPERATING CONDITION Same as Item 4.3.5 FCC ID: RAXWN4401CARC Report No.: RF940201H0187Report Format Version 2.0.1 4.6.5 TEST RESULTS (Mode 1 - MAIN Antenna Connector – ANTENNA 2 – DSSS) The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot of DSSS technique on page 88 show 55.2dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 115.10dBuV/m (Peak), so the maximum field strength in restrict band is 115.10-55.2=59.90dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of DSSS technique on page 89 show 60.47dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2 is 108.10dBuV/m (Average), so the maximum field strength in restrict band is 108.10-60.47=47.63dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot of DSSS on page 88 shows 56.63dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 112.90dBuV/m (Peak), so the maximum field strength in restrict band is 112.90- 56.63=56.27dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of DSSS on page 89 shows 62.31dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 107.0dBuV/m (Average), so the maximum field strength in restrict band is 107.0- 62.31=44.69dBuV/m which is under 54 dBuV/m limit. FCC ID: RAXWN4401CARC Report No.: RF940201H0188Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H0189Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H0190Report Format Version 2.0.1 4.6.6 TEST RESULTS (Mode1 - MAIN Antenna Connector – ANTENNA 2 – OFDM) The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to 4.2. NOTE (1): The band edge emission plot of OFDM on page 91 shows 46.07dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2. is 109.30dBuV/m (Peak), so the maximum field strength in restrict band is 109.30- 46.07=63.23dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of OFDM on page 92 shows 49.38dB delta between carrier maximum power and local maximum emission in restrict band (2.3900GHz). The emission of carrier strength list in the test result of channel 1 at the item 4.2. is 101.60dBuV/m (Average), so the maximum field strength in restrict band is 101.60- 49.38=52.22dBuV/m which is under 54 dBuV/m limit. NOTE (2): The band edge emission plot of OFDM on page 91 shows 45.69dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 107.90dBuV/m (Peak), so the maximum field strength in restrict band is 107.90- 45.69=62.21dBuV/m which is under 74 dBuV/m limit. The band edge emission plot of OFDM on page 92 shows 50.71dB delta between carrier maximum power and local maximum emission in restrict band (2.4835GHz). The emission of carrier strength list in the test result of channel 11 at the item 4.2. is 99.50dBuV/m (Average), so the maximum field strength in restrict band is 99.50- 50.71=48.79dBuV/m which is under 54 dBuV/m limit. FCC ID: RAXWN4401CARC Report No.: RF940201H0191Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H0192Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H0193Report Format Version 2.0.1 4.6.7 TEST RESULTS (Mode 1 - AUX Antenna Connector – ANTENNA 5 – DSSS) The spectrum plots are attached on the following page. D1 line indicates the highest level, D2 line indicates the 20dB offset below D1. It shows compliance with the requirement in part 15.247(C). Note - The delta method is only used up to 2 MHz away from the restricted bandage, The radiated emissions which located in other restricted frequency band, the result, please refer to …

Text truncated - open the document above for the full version.

FCC ID: RAXWN4401CARC Report No.: RF940201H01118Report Format Version 2.0.1 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWN4401CARC Report No.: RF940201H01119Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H01120Report Format Version 2.0.1 RADIATED EMISSION TEST (Mode 1) FCC ID: RAXWN4401CARC Report No.: RF940201H01121Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H01122Report Format Version 2.0.1 RADIATED EMISSION TEST (Mode 2) FCC ID: RAXWN4401CARC Report No.: RF940201H01123Report Format Version 2.0.1 FCC ID: RAXWN4401CARC Report No.: RF940201H01124Report Format Version 2.0.1 RADIATED EMISSION TEST (Mode 3) FCC ID: RAXWN4401CARC Report No.: RF940201H01125Report Format Version 2.0.1
