RAXWN4402AARCWireless miniPCI 802.11 g/b adapter

Introduction 1. Introduction WN4402A is an industrial MiniPCI Card which enables wireless networking systems to attain data transmission speeds at least up to 54 megabits-per-second (Mbps), while remaining backward compatible to the existing installed base of over 15 million Wi-Fi systems worldwide. It supports operation to both the IEEE 802.11b and IEEE 802.11g standards. WN4402A will enable a next generation of high-data-rate platforms for operation in the 2.4 GHz band that deliver a five-fold speed increase. The cost and performance advantages will make it an ideal solution for high bandwidth enterprise applications, such as wireless video conferencing and large file transfers, as well as advanced home networking applications such as multi-channel CD-quality audio and DVD-quality video streaming. WN4402A incorporates the 802.11g Standard's mandatory modulation schemes—Complementary Code Keying (CCK), which is used in 802.11b, and Orthogonal Frequency Division Multiplexing (OFDM), used in 802.11g. Using CCK ensures backward-compatibility with the installed Wi-Fi 802.11b base, while OFDM provides the speed required for today's high-bandwidth applications. The additional hard key function provides a truly flexible usage to directly disable and re-enable the RF power without going into the utility program. 1.1 Product Features ♦ High speed for wireless LAN connection, up to 54 Mbps data rate. ♦ A new WLAN software solution that improves 802.11g throughput by over 3x. ♦ Backward compatible to the existing IEEE 802.11b WLAN infrastructure. ♦ An user-friendly utility to configure SSID, security setup and site survey. ♦ Wireless data encryption using WEP 64, 128 bit encryption for security. ♦ Hardware AES Accelerator. ♦ Built-in Hirose antenna connectors. ♦ Hard key function to directly disable/re-enable the RF power, which complies to US flight safety. ♦ Firmware upgrade-able by only changing driver. 1.2 Applications ♦ Home networking for device sharing. ♦ Wireless multimedia. ♦ Wireless office for extension Ethernet range. ♦ Mobile networking for notebook PC, PDA, Web Pad or Wireless Gateway Built- in Application. 2. WN4402A Installation Guide 1. Execute Setup.exe. Click “Next” button. 2. Select “I accept the terms of license agreement”. Click “Next” button. 3. Select “Install Driver and Atheros Applications (recommended). Click “next” button. 4. Use the default install directory. Click “Next” button. 5. Use the default program folder. Click “Next” button. 6. Installation begins. 7. Then click “Finish” to end. 8. Then You may use the utility. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) The antenna must be installed such that 20 cm is maintained between the antenna and users, and 2) The transmitter module may not be co-located with any other transmitter or antenna. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end- product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: RAXWN4402AARC”. Manual Information That Must be Included The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the use…

Text truncated - open the document above for the full version.

FCC ID: RAXWN4402AARC ADT No.920725H02 Modular Approval Request Letter Advance Data Technology Sep. 09, 2003 Dear Application Examiner, Arcadyan Technology Corporation’s Wireless Wireless miniPCI 802.11 g/b adapter, FCC ID: RAXWN4402AARC, would like to have your authorization as a modular approval specific to the mobile device such as Notebook. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. 1. “The modular transmitter must have its own RF shielding.”: The radio portion of this module has been shielded, please see exhibition External Photo. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs, it is integrated in chip AR2112. 3. “The modular transmitter must have its own power supply regulation.” The chips RF converter which will influence the frequency radiation, have to be 2.5V DC powered. The mini-pci interface provides 3.3VDC, so there are regulators in front of these chips, the part number of this regulator is AME8805. 4. “The modular transmitter must comply with the antenna requirements of section 15.203 and 15.204(C).” The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the test report. 5. “The modular transmitter must be tested in a stand-alone configuration” The EUT was tested in a stand-alone configuration. The EUT was tested via the outside a Notebook Computer. Please see section Photographs of Test Configuration in the test report. 6. “The modular transmitter must be labeled with its own FCC ID number.” Please see exhibition Label Sample for the FCC ID of this module. And also in the exhibition Users Manual, there are instructions give to the OEM on how to label the end product. FCC ID: RAXWN4402AARC ADT No.920725H02 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the RF exposure exhibition. Please contact me if you have any further questions. Thanks for your attention. Best Regards, Eric Lin Manager of Hsinchu Certification Service Div. Advance Data Technology

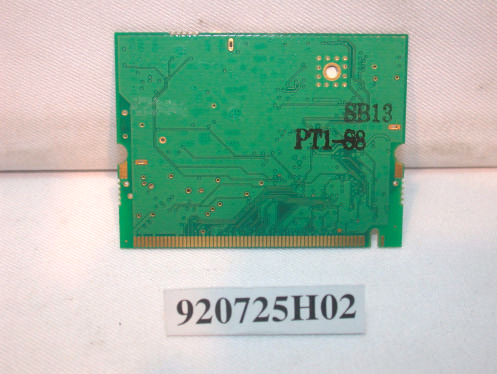

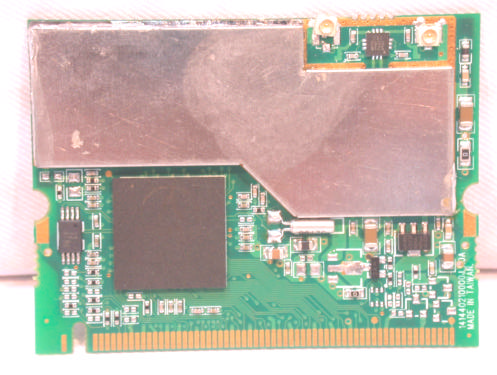

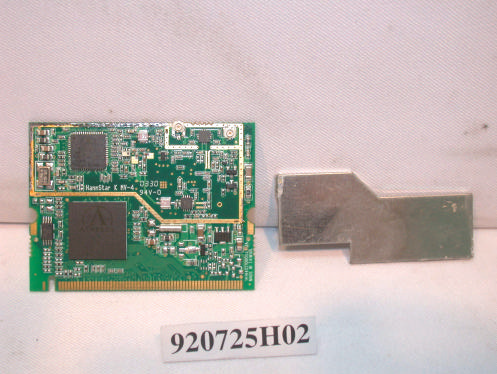

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: RAXWN4402AARC FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

xxxx-xxxxxx 0560 50 2 5 Tested To Comply With FCC Standards FOR HOME OR OFFICE USE

Page 1 CONSTRUCTION PHOTOS OF EUT Antenna Model: Mitac Apollo Page 2 Page 3 Antenna Model: Mitac Apollo MMCX Page 4 Page 5 Antenna Model: Mitac Athena Page 6 Page 7 Page 8 Antenna Model: Mitac Athena MMCX Page 9 Page 10 Page 11 Antenna Model: Mitac Persues Page 12 Antenna Model: Mitac GP3(RD1) Page 13

FCC ID: RAXWN4402AARC ADT No.920725H02 Operational Description This device is a Wireless miniPCI 802.11 g/b adapter which operates in the 2.4GHz band, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (Wireless miniPCI 802.11 g/b adapter) is powered by from host equipment. The antenna type used in this product is PIFA Antenna with MMCX connector. The other instruction, please have a look at the users manual.

FCC ID: RAXWN4402AARC ADT No.: 920725H02 RF EXPOSURE REPORT REPORT NO.: RF920725H02 MODEL NO.: WN4402A ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: RAXWN4402AARC ADT No.: 920725H02 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: RAXWN4402AARC ADT No.: 920725H02 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4 EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification The antenna of this product, under normal use condition, is at least 20cm away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: RAXWN4402AARC ADT No.: 920725H02 6 Test Results 6.1 Antenna Gain Antenna 1: The maximum Gain measured in Fully Anechoic Chamber is -2.16Bi or 0.608 (numeric). Antenna 2: The maximum Gain measured in Fully Anechoic Chamber is -3.34Bi or 0.463 (numeric). Antenna 3: The maximum Gain measured in Fully Anechoic Chamber is 0.35Bi or 1.084 (numeric). Antenna 4: The maximum Gain measured in Fully Anechoic Chamber is 0.02Bi or 1.005 (numeric). Antenna 5: The maximum Gain measured in Fully Anechoic Chamber is -0.54Bi or 0.883 (numeric). Antenna 6: The maximum Gain measured in Fully Anechoic Chamber is 1.07Bi or 1.280 (numeric). 6.2 Output Power Into Antenna & RF Exposure value at distance 20cm: Antenna 1: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0081.0 6243767.300.0081.0 11246269.020.0081.0 Antenna 1: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.390.0031.0 6243722.030.0031.0 11246221.330.0031.0 FCC ID: RAXWN4402AARC ADT No.: 920725H02 Antenna 2: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0061.0 6243767.300.0061.0 11246269.020.0061.0 Antenna 2: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.390.0021.0 6243722.030.0021.0 11246221.330.0021.0 Antenna 3: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0141.0 6243767.300.0151.0 11246269.020.0151.0 Antenna 3: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.390.0051.0 6243722.030.0051.0 11246221.330.0051.0 FCC ID: RAXWN4402AARC ADT No.: 920725H02 Antenna 4: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0131.0 6243767.300.0131.0 11246269.020.0141.0 Antenna 4: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.390.0041.0 6243722.030.0041.0 11246221.330.0041.0 Antenna 5: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0121.0 6243767.300.0121.0 11246269.020.0121.0 Antenna 5: (For OFDM) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241222.390.0041.0 6243722.030.0041.0 11246221.330.0041.0 FCC ID: RAXWN4402AARC ADT No.: 920725H02 Antenna 6: (For DSSS) Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241265.460.0171.0 6243767.300.0171…

Text truncated - open the document above for the full version.

FCC ID: RAXWN4402AARC Report No.: RF920725H021Issed: Sep. 09, 2003 ADT No.: 920725H02 FCC TEST REPORT REPORT NO.: RF920725H02 MODEL NO.: WN4402A RECEIVED: Jul. 25, 2003 TESTED: Aug. 02 to Sep. 08, 2003 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 66 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. Lab Code: 200376-0 FCC ID: RAXWN4402AARC Report No.: RF920725H022Issed: Sep. 09, 2003 ADT No.: 920725H02 Table of Contents 1CERTIFICATION.......................................................................................................4 2SUMMARY OF TEST RESULTS............................................................................5 3GENERAL INFORMATION.....................................................................................6 3.1GENERAL DESCRIPTION OF EUT......................................................................6 3.2DESCRIPTION OF TEST MODES........................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS...................................7 3.4DESCRIPTION OF SUPPORT UNITS..................................................................8 4TEST TYPES AND RESULTS................................................................................9 4.1CONDUCTED EMISSION MEASUREMENT.......................................................9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT..................................9 4.1.2TEST INSTRUMENTS.............................................................................................9 4.1.3TEST SETUP..........................................................................................................10 4.1.4EUT OPERATING CONDITIONS........................................................................11 4.1.5TEST RESULTS......................................................................................................12 4.2RADIATED EMISSION MEASUREMENT..........................................................14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT......................................14 4.2.2TEST INSTRUMENTS...........................................................................................15 4.2.3TEST PROCEDURES...........................................................................................16 4.2.4TEST SETUP..........................................................................................................17 4.2.5EUT OPERATING CONDITIONS........................................................................17 4.2.6TEST RESULTS (A)...............................................................................................18 4.2.7TEST RESULTS (A) - DSSS................................................................................19 4.2.8TEST RESULTS (A) -OFDM.................................................................................22 4.2.9TEST RESULTS (B)...............................................................................................25 4.2.10TEST RESULTS (B) - DSSS................................................................................26 4.2.11TEST RESULTS (B) -OFDM.................................................................................29 4.36dB BANDWIDTH MEASUREMENT..................................................................32 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT..............................................32 4.3.2TEST INSTRUMENTS...........................................................................................32 4.3.3TEST PROCEDURE..............................................................................................33 4.3.4TEST SETUP..........................................................................................................33 4.3.5EUT OPERATING CONDITIONS........................................................................33 4.3.6TEST RESULTS-DSSS.........................................................................................34 4.3.7TEST RESULTS-OFDM........................................................................................38 4.4MAXIMUM PEAK OUTPUT POWER..................................................................42 FCC ID: RAXWN4402AARC Report No.: RF920725H023Issed: Sep. 09, 2003 ADT No.: 920725H02 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT.............42 4.4.2TEST INSTRUMENTS...........................................................................................42 4.4.3TEST PROCEDURES...........................................................................................43 4.4.4TEST SETUP..........................................................................................................43 4.4.5EUT OPERATING CONDITIONS........................................................................43 4.4.6TEST RESULTS-DSSS.........................................................................................44 4.4.7TEST RESULTS-OFDM........................................................................................44 4.5POWER SPECTRAL DENSITY MEASUREMENT...........................................45 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT.......................45 4.5.2TEST INSTRUMENTS...........................................................................................45 4.5.3TEST PROCEDURE..............................................................................................46 4.5.4TEST SETUP..........…

Text truncated - open the document above for the full version.

Report No. 920725H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 NOTE: 1.The measurement uncertainty is less than +/- 2.6dB, which is calculated as per the NAMAS document NIS81. 2.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 920725H02 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 920725H02 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 920725H02 4 Ch1 Report No. 920725H02 5 Ch11 Report No. 920725H02 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 920725H02 7 Ch1 Report No. 920725H02 8 Ch11
