RAXWN4501G-17ARCEZ Connect g 802.11g Wireless USB 2.0 Adapter

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EZ Connect g 2.4 GHz 54 Mbps Wireless USB Adapter User Guide The easy way to make all your network connections October 2004 R01 F1.0 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2004 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and EZ Connect g and EZ Hub are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i COMPLIANCES Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters (8 inches) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other a ntenna or transmitter. SMC declared that SMC2862W-G is limited in CH1~11 from 2400 to 2483.5 MHz b y specified firmware controlled in USA. This equipment has been SAR-evaluated for use in laptops (notebooks) with side s lot configuration. COMPLIANCES ii Wireless 2.4 GHz Band Statements: As the SMC2862W-G Wireless USB can operate in the 2412-2462 MHz frequency band it is limited by the FCC, Industry Canada and some other countries to indoor use only so as to reduce the potential for harmful interference to co-channel Mobile Satellite systems. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. Industry Canada - Class B This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the interference-causing equipment standard entitled “Digital Apparatus,” ICES-003 of Industry Canada. Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils numériques de Classe B prescrites dans la norme sur le matérial brouilleur: “Appareils Numériques,” NMB-003 édictée par l’Industrie. Australia/New Zealand AS/NZS 4771 Contact SMC at: SMC Networks, Inc. 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 ACN 066 352010 A.C.N 096 592 442 Industry Canada-RF Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. COMPLIANCES iii EC Conformance Declaration The following importer/manufacturer is responsible for making this declaration: SMC Networks-Spain, S.L. Edificio Conata II, Calle Fructuos Gelabert 6-8, 2o, 4a, 08970 - Sant Joan Despi, Barcelona, Spain. This RF product complies with R&TTE Directive 99/5/EC. For the evaluation of the compliance with this Directive, the following standards were applied: Electromagnetic compatibility and radio spectrum matters (ERM) • EN300 328-1 (2001-12) • EN300 328-2 (2001-12) Electromagnetic Compatibility (EMC) Standard for radio equipment and services • EN301 489-1 • EN301 489-17 Safety Test • EN60950 Intended for use in the following countries: AustriaBelgiumDenmark FinlandFranceGermany ItalyLuxembourgNetherlands NorwaySpainSweden SwitzerlandUnited KingdomPortugal GreeceIrelandIceland COMPLIANCES iv Wichtige Sicherheitshinweise (Germany) 1. Bitte lesen Sie diese Hinweise sorgfältig durch. 2. Heben Sie diese Anleitung für den späteren Gebrauch auf. 3. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Verwenden Si…

Text truncated - open the document above for the full version.

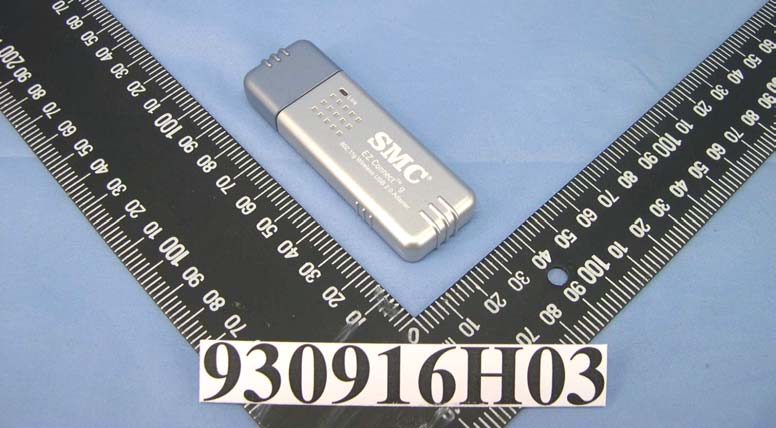

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: RAXWN4501G-17ARC LABEL LOCATION Label

Page 3 Page 4 Page 5 Page 6 Page 7

FCC ID: RAXWN4501G-17ARC Report No. 930916H03 Operational Description This device is an EZ Connect™ g 802.11g Wireless USB 2.0 Adapter, the maximum data rate could be up to 54Mbps which OFDM technique will be applied. If the signal to noise radio is too poor which could not support 54Mbps, the 11Mbps data rate with CCK technique will be applied. The transmitter of the EUT (EZ Connect™ g 802.11g Wireless USB 2.0 Adapter) is powered by host equipment. The antenna type used in this product is PCB antenna without connector. The other instruction, please have a look at the users manual.

FCC ID: RAXWN4501G-17ARC Report No.: SA930908H01A1Issued:Oct. 13, 2004 Reference No.: SA930908H01 SAR TEST REPORT REPORT NO.: SA930908H01A MODEL NO.: SMC2862W-G RECEIVED: NA TESTED: Aug. 09, 2004 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB ADDRESS: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang 244, Taipei Hsien, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2 nd Rd., Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This test report consists of 36 pages in total except Appendix. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA No. 2177-01 FCC ID: RAXWN4501G-17ARC Report No.: SA930908H01A2Issued:Oct. 13, 2004 Reference No.: SA930908H01 Table of Contents 1.CERTIFICATION .........................................................................................................3 2.GENERAL INFORMATION..........................................................................................3 2.1 GENERAL DESCRIPTION OF EUT............................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS .............................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM ...................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION .................9 3.DESCRIPTION OF TEST MODES AND CONFIGURATIONS ..................................13 4.DESCRIPTION OF SUPPORT UNITS ......................................................................15 5.TEST RESULTS ........................................................................................................16 5.1 TEST PROCEDURES ...............................................................................................16 5.2 MEASURED SAR RESULT .......................................................................................17 5.3 SAR LIMITS...............................................................................................................19 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS ......................................................23 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY ........................................................25 6.SYSTEM VALIDATION ..............................................................................................26 6.1 TEST EQUIPMENT ...................................................................................................26 6.2 TEST PROCEDURE .................................................................................................26 6.3 VALIDATION RESULT...............................................................................................28 6.4 SYSTEM VALIDATION UNCERTAINTIES ................................................................29 7.MEASUREMENT SAR PROCEDURE UNCERTAINTIES.........................................30 7.1 PROBE CALIBRATION UNCERTAINTY ...................................................................30 7.2 ISOTROPY UNCERTAINTY......................................................................................30 7.3 BOUNDARY EFFECT UNCERTAINTY .....................................................................31 7.4 PROBE LINEARITY UNCERTAINTY ........................................................................31 7.5 READOUT ELECTRONICS UNCERTAINTY ............................................................31 7.6 RESPONSE TIME UNCERTAINTY...........................................................................32 7.7 INTEGRATION TIME UNCERTAINTY ......................................................................33 7.8 PROBE POSITIONER MECHANICAL TOLERANCE................................................33 7.9 PROBE POSITIONING .............................................................................................34 7.10 PHANTOM UNCERTAINTY ......................................................................................34 7.11 DASY4 UNCERTAINTY BUDGET.............................................................................35 8.INFORMATION ON THE TESTING LABORATORIES ..............................................36 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: RAXWN4501G-17ARC Report No.: SA930908H01A3Issued:Oct. 13, 2004 Reference No.: SA930908H01 1. CERTIFICATION PRODUCT : EZ Connect TM g 802.11g Wireless USB 2.0 Adapter MODEL NO. : SMC2862W-G BRAND NAME : EZ Connect TM g APPLICANT : Arcadyan Technology Corporation TEST SAMPLE : MASS-PRODUCTION STANDARDS : FCC Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 The above equipment (model no.: SMC2862W-G) is identical to model no. USR5422, which has been tested by Advance Data Technology Corporation from Aug. 09, 2004, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY:, DATE:Oct. 13, 2004 ( Andrea Hsia ) TECHNICAL ACCEPTANCE:, DATE:Oct. 13, 2004 Responsible for RF ( Ansen Lei ) APPROVED BY:, DATE:Oct. 13, 2004 ( Cody Chang, Deputy Manager ) FCC ID: RAXWN4501G-17ARC Report No.: SA930908H01A4Issued:Oct. 13, 2004 Reference No.: SA930908H01 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT EZ Connect TM g 802.11g Wireless USB 2.0 Adapter MODEL NO. SMC2862W-G POWER SUPPLY 5.0 Vdc from …

Text truncated - open the document above for the full version.

FCC ID: RAXWN4501G-17ARC Report No.: RF930908H01A1 Issued: Oct. 06, 2004 Reference No.: 930916H03 FCC TEST REPORT REPORT NO.:RF930908H01A MODEL NO.:SMC2862W-G RECEIVED:Sep. 08, 2004 TESTED:Sep. 11 to 14, 2004 APPLICANT: Arcadyan Technology Corporation ADDRESS: 4F, No. 9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. ISSUED BY:Advance Data Technology Corporation LAB LOCATION:No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 59 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, A2LA or any government agencies. The test results in the report only apply to the tested sample. The test results in this report are traceable to the national or international standards. 0536 No. 2177-01 ILAC MRA FCC ID: RAXWN4501G-17ARC Report No.: RF930908H01A2 Issued: Oct. 06, 2004 Reference No.: 930916H03 Table of Contents 1CERTIFICATION ........................................................................................... 4 2SUMMARY OF TEST RESULTS................................................................... 5 3GENERAL INFORMATION ........................................................................... 6 3.1GENERAL DESCRIPTION OF EUT.............................................................. 6 3.2DESCRIPTION OF TEST MODES................................................................ 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................... 7 3.4DESCRIPTION OF SUPPORT UNITS.......................................................... 8 3.5CONFIGURATION OF SYSTEM UNDER TEST ........................................... 8 4TEST TYPES AND RESULTS....................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ................................................ 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT ............................. 9 4.1.2TEST INSTRUMENTS .................................................................................. 9 4.1.3TEST PROCEDURES................................................................................. 10 4.1.4TEST SETUP .............................................................................................. 10 4.1.5EUT OPERATING CONDITIONS.................................................................11 4.1.6TEST RESULTS.......................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................... 14 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT ................................ 14 4.2.2TEST INSTRUMENTS ................................................................................ 15 4.2.3TEST PROCEDURES................................................................................. 16 4.2.4TEST SETUP .............................................................................................. 17 4.2.5EUT OPERATING CONDITIONS................................................................ 17 4.2.6TEST RESULTS.......................................................................................... 18 4.2.7TEST RESULTS - DSSS............................................................................. 19 4.2.8TEST RESULTS -OFDM ............................................................................. 22 4.36DB BANDWIDTH MEASUREMENT.......................................................... 25 4.3.1LIMITS OF 6DB BANDWIDTH MEASUREMENT ....................................... 25 4.3.2TEST INSTRUMENTS ................................................................................ 25 4.3.3TEST PROCEDURE ................................................................................... 26 4.3.4TEST SETUP .............................................................................................. 26 4.3.5EUT OPERATING CONDITIONS................................................................ 26 4.3.6TEST RESULTS-DSSS............................................................................... 27 4.3.7TEST RESULTS-OFDM .............................................................................. 31 4.4MAXIMUM PEAK OUTPUT POWER .......................................................... 35 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........... 35 4.4.2TEST INSTRUMENTS ................................................................................ 35 4.4.3TEST PROCEDURES................................................................................. 36 4.4.4TEST SETUP .............................................................................................. 36 4.4.5EUT OPERATING CONDITIONS................................................................ 36 FCC ID: RAXWN4501G-17ARC Report No.: RF930908H01A3 Issued: Oct. 06, 2004 Reference No.: 930916H03 4.4.6TEST RESULTS- DSSS.............................................................................. 37 4.4.7TEST RESULTS- OFDM ............................................................................. 38 4.5POWER SPECTRAL DENSITY MEASUREMENT...................................... 39 4.5.1LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................... 39 4.5.2TEST INSTRUMENTS ................................................................................ 39 4.5.3TEST PROCEDURE ................................................................................... 40 4.5.4TEST SETUP .............................................................................................. 40 4.5.5EUT OPERATING CONDITIONS................................................................ 40 4.5.6TEST RESULTS-DSSS............................................................................... 41 4.5.7TEST RESULTS-OFDM ...........................…

Text truncated - open the document above for the full version.

Report No. 930916H03 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP40100036Nov. 27, 2005 High pass filter 2.4G WHK3.1/18G- 10SS SN4Jun. 08, 2005 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 930916H03 2 4. TEST SETUP 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER Report No. 930916H03 3 TEST RESULTS – For 802.11b The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930916H03 4 Ch1 Report No. 930916H03 5 Ch11 Report No. 930916H03 6 TEST RESULTS – For 802.11g The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 930916H03 7 Ch1 Report No. 930916H03 8 Ch11

FCC ID: RAXWN4501G-17ARC Report No.: RF930908H01A57 Issued: Oct. 06, 2004 Reference No.: 930916H03 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: RAXWN4501G-17ARC Report No.: RF930908H01A58 Issued: Oct. 06, 2004 Reference No.: 930916H03 RADIATED EMISSION TEST
