RAXWN4501M1EZ ConnectTM g 802.11g 108Mbps Wirless Adapter

38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EZ Connect TM g 802.11g 108Mbps Wireless USB 2.0 Adapter User Guide The easy way to make all your network connections May 2006 R01 F1.0 Copyright Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SMC. SMC reserves the right to change specifications at any time without notice. Copyright © 2006 by SMC Networks, Inc. 38 Tesla Irvine, CA 92618 All rights reserved. Trademarks: SMC is a registered trademark; and EZ Connect g and EZ Switch are trademarks of SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their respective holders. i COMPLIANCES Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to channels 1 through 11. This equipment has been SAR-evaluated for use in laptops (notebooks) with side slot configuration. COMPLIANCES ii Industry Canada Statement Operation is subject to the following two conditions: 1) this device may not cause interference and 2) this device must accept any interference, including interference that may cause undesired operation of the device IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment complies with Canada radiation exposure limits set forth for uncontrolled environments. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Australia/New Zealand AS/NZS 4771 Contact SMC at: SMC Networks, Inc. 38 Tesla Irvine, CA 92618 Phone: (949) 679-8000 EC Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following references have been applied in order to prove presumption of compliance with the R&TTE Directive 1999/5/EC: • EN 300 328 V1.6.1 (11-2004) • EN 301 489-1 V1.5.1 (11-2004) • EN 301 489-17 V1.2.1 (08-2002) • EN 60950-1: 2001+A11:2004 ACN 066 352010 N11846 COMPLIANCES iii Council recommendation 1999/519/EC of 12 July 1999, limitations of exposure of the general public to electromagnetic fields (0 Hz to 300 GHz) English Hereby, SMC Networks, declares that this Radio LAN device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com . Dutch Hierbij verklaart SMC Networks dat het toestel Radio LAN device in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG. Het officiële EC- gelijkvormigheidattest kan men vinden op de internetsite http://www.smc.com onder de betrokken productcategorie. French Par la présente SMC Networks déclare que l'appareil Radio LAN device est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. La déclaration de conformité officielle peut être trouvée sur notre site internet http://www.smc.com dans la rubrique Produits. German Hiermit erklärt SMC Networks, dass sich dieses Wireless LAN Gerät in Übereinstimmung mit den grundlegenden Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Die offizielle EC-Declaration of Conformity finden Sie im Internet unter http://www.smc.com unter der entsprechenden Produktkategorie. Spanish Por medio de la presente SMC Networks declara que el Radio LAN device cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE. The official EC-Declaration of Conformity can be found under the corresponding product section on the web http://www.smc.com . COMPLIANCES iv Countries of Operation & Conditions of Use in EC/ EFTA member states English This device is a 2.4 GHz wireless LAN transceiver, intended for indoor home and office use in all notified EC a…

Text truncated - open the document above for the full version.

Arcadyan Technology Corp. 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan 1/1 Date: 05 / 23 / 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID
RAXWN4501M1 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Block diagram 2. Schematics 3. Operation Description 4. Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Simon Liu / Manager Arcadyan Technology Corporation 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan TEL: 886.3.505.1719 FAX: 886.3.563.7325 E-mail: [email protected]

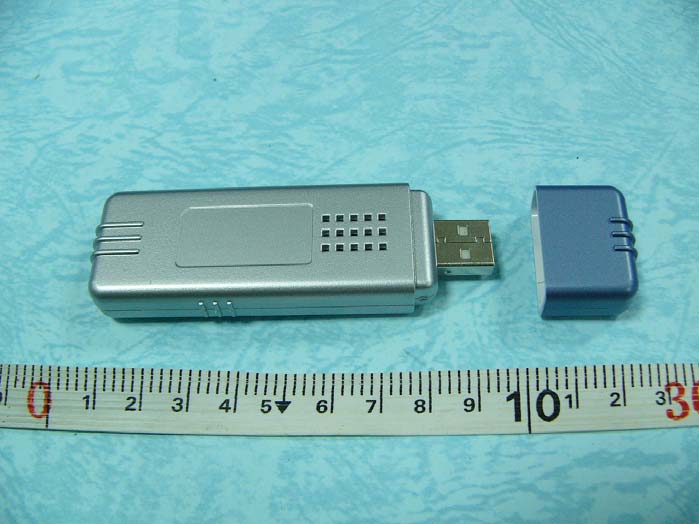

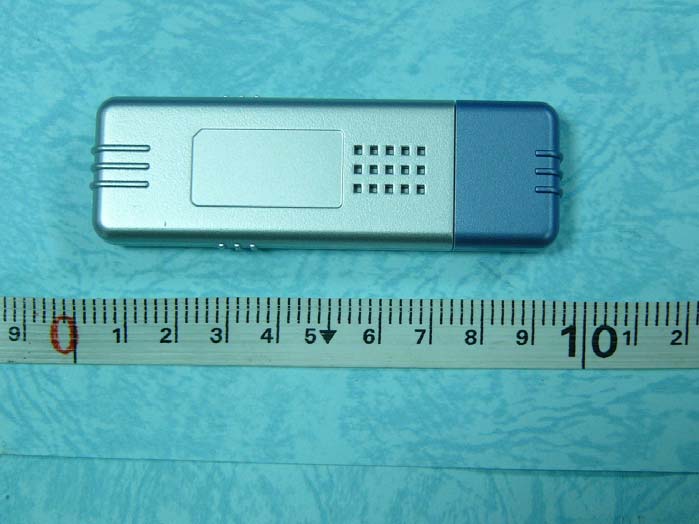

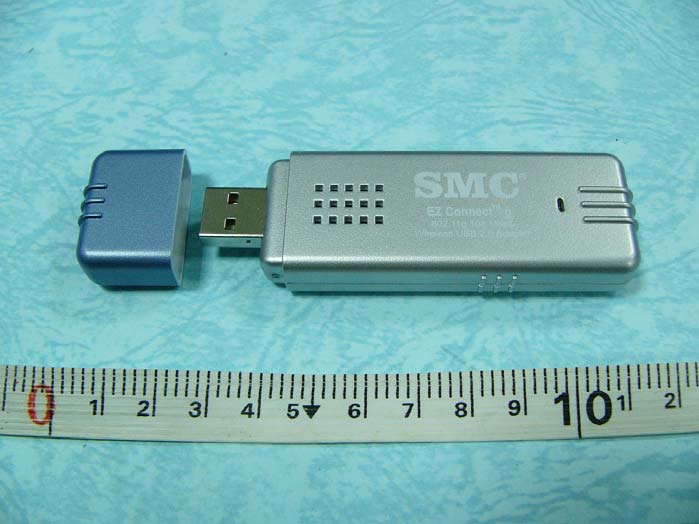

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2006 FAX : 886-2-2696-2255

28.6mm 14.6mm

SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : May 22, 2006 FAX : 886-2-2696-2255

Description of Operation Date: 2006/5/28 EUT is an EZ Connect TM g 802.11g 108Mbps Wireless USB 2.0 Adapter with 11 channels (2412MHz~2462MHz, Space 5MHz) and has Atheros Super G® mode. It allows you to connect to other WLAN device. General Operational Description: 1. Time base of the transmission frequency: For IF and RF frequency, Crystal is a clock reference. 2. Synthesizer: Synthesizer inside Transceiver IC and operate frequency in 2.4GHz ISM Band. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. 3. Transmission: BBP IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54, 108 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and external PA magnify output power. 4. Receiver: Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then 2.4GHz RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. 5. Base band Processing: Channel Selection: Channel selection is controlled by BBP IC. Data Modulation: DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation type is controlled by BBP IC. Power Control Level: BBP IC has the power leveling loop table are calibrated by manufacturer, then uses closed-loop power control function to limit RF output power level. Power leveling step accuracy is ±0.5dB. Transmit/Receive Switch: EUT has Transmit/Receive Switch and Antenna switch Data Link Layer: Firmware implements the full IEEE 802.11 Wireless LAN MAC protocol. It supports BSS and IBSS operation under DCF, and operation under the optional Point Coordination Function (PCF). Lower level protocol functions such as RTS/CTS generation and acknowledgment, fragmentation and de-fragmentation, and automatic beacon monitoring are handled without host intervention. Active scanning is performed autonomously once initiated by host command. Host interface command and status handshakes allow concurrent operations from multi-threaded I/O drivers. 6. Interface: USB 7. Power: 5 Vdc from Host (Notebook). 8. Product Details Items Description Product Type WLAN Radio Type Intentional Transceiver Power Type Host (Notebook) Interface Type USB Modulation DSSS for IEEE 802.11b ; OFDM for IEEE 802.11g Data Modulation DSSS (BPSK / QPSK / CCK) ; OFDM (BPSK / QPSK / 16QAM / 64QAM) Data Rate (Mbps) DSSS (1/ 2/ 5.5/11) ; OFDM (6/9/12/18/24/36/48/54/108) Frequency Range 2400 ~ 2483.5MHz Channel Number 11 Channel Band Width (99%) 11b: 15.48 MHz ; 11g: 16.50 MHz ; 11g Turbo: 32.88 MHz Conducted Output Power 11b: 17.20 dBm ; 11g:21.30 dBm ; 11g Turbo: 21.10 dBm 9. Table for Filed Antenna Ant. Brand Model Name Antenna Type Connector Gain (dBi) 1 - - Printed Antenna NA 3.86

© 2006 SPORTON International Inc. SAR Testing Lab This report shall not be reproduced except in full, without the written approval of Sporton. Rev. 01 FCC SAR Test Report Test Report No FA650909-1-2-01 Specific Absorption Rate (SAR) Test Report for Arcadyan Technology Corporation on the EZ Connect TM g 802.11g 108Mbps Wireless USB 2.0 Adapter Report No. : FA650909-1-2-01 Trade Name : SMC Model Name : SMCWUSBT-G2 FCC ID : RAXWN4501M1 IC ID : 4711A-WN4501M1 Date of Testing : May 24, 2006 Date of Report : May 25, 2006 Date of Review : May 25, 2006 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Report Version: Rev. 01. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. 1190 ILAC MRA ©2006 SPORTON International Inc. SAR Testing Lab Rev. 01 Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No FA650909-1-2-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................................ 1 2. Administration Data..................................................................................................................................................................... 2 2.1 Testing Laboratory ........................................................................................................................................................... 2 2.2 Detail of Applicant............................................................................................................................................................ 2 2.3 Detail of Manufacturer ..................................................................................................................................................... 2 2.4 Application Detail............................................................................................................................................................. 2 3. Scope ............................................................................................................................................................................................ 3 3.1 Description of Device Under Test (DUT).......................................................................................................................... 3 3.2 Product Photo.................................................................................................................................................................. 4 3.3 Applied Standards: .......................................................................................................................................................... 5 3.4 Device Category and SAR Limits .................................................................................................................................... 6 3.5 Test Conditons................................................................................................................................................................. 6 3.5.1 Ambient Condition: ............................................................................................................................................... 6 3.5.2 Test Configuration:................................................................................................................................................ 6 4. Specific Absorption Rate (SAR) ................................................................................................................................................. 7 4.1 Introduction...................................................................................................................................................................... 7 4.2 SAR Definition ................................................................................................................................................................. 7 5. SAR Measurement Setup ............................................................................................................................................................ 8 5.1 DASY4 E-Field Probe System ..................................................................................................... .................................... 9 5.1.1 ET3DV6 E-Field Probe Specification .................................................................................................................. 10 5.1.2 ET3DV6 E-Field Probe Calibration ..................................................................................................................... 10 5.2 DATA Acquisition Electronics (DAE) ...............................................................................................................................11 5.3 Robot............................................................................................................................................................................. 12 5.4 Measurement Server ..................................................................................................................................................... 12 5.5 SAM Twin Phantom ....................................................................................................................................................... 12 5.6 Data Storage and Evaluation ......................................................................................................................................... 14 5.6.1 Data Storage....................................................................................................................................................... 14 5.6.2 Data Evaluation ..........................................................................................................................…

Text truncated - open the document above for the full version.

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-2-17-d FCC RADIO TEST REPORT Applicant’s company Arcadyan Technology Corporation Applicant Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. FCC ID RAXWN4501M1 Manufacturer’s company Arcadyan Technology Corporation Manufacturer Address 4F, No.9, Park Avenue II, Science-based Industrial Park, Hsinchu 300, Taiwan, R.O.C. Product Name EZ Connect TM g 802.11g 108Mbps Wireless USB 2.0 Adapter Brand Name SMC Model Name SMCWUSBT-G2 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date May 9, 2006 Test Date May 19, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Lab Code: 200079-0 Report No.: FR650909 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: RAXWN4501M1 Issued Date : May 22, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................12 4.3. Power Spectral Density Measurement ..............................................................................................................................................14 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................20 4.5. Radiated Emissions Measurement ....................................................................................................................................................26 4.6. Band Edge Emissions Measurement .................................................................................................................................................46 4.7. Antenna Requirements .....................................................................................................................................................................55 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 56 6. SPORTON COMPANY PROFILE ........................................................................................................................ 58 6.1. Test Location.....................................................................................................................................................................................58 7. NVLAP CERTIFICATE OF ACCREDITATION ......................................................................................................... 59 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A5 APPENDIX B. TEST PHOTOS..........................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 1 of 7 Appendix B. Test Photos Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 2 of 7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 3 of 7 SIDE VIEW Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 4 of 7 2. Photographs of Radiated Emissions Test Configuration Test configuration: 9KHz~1GHz FRONT VIEW REAR VIEW Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 5 of 7 SIDE VIEW Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 6 of 7 Test configuration: above 1GHz FRONT VIEW REAR VIEW Report No.: FR650909 FCC ID:RAXWN4501M1 Page No. : 7 of 7 SIDE VIEW
